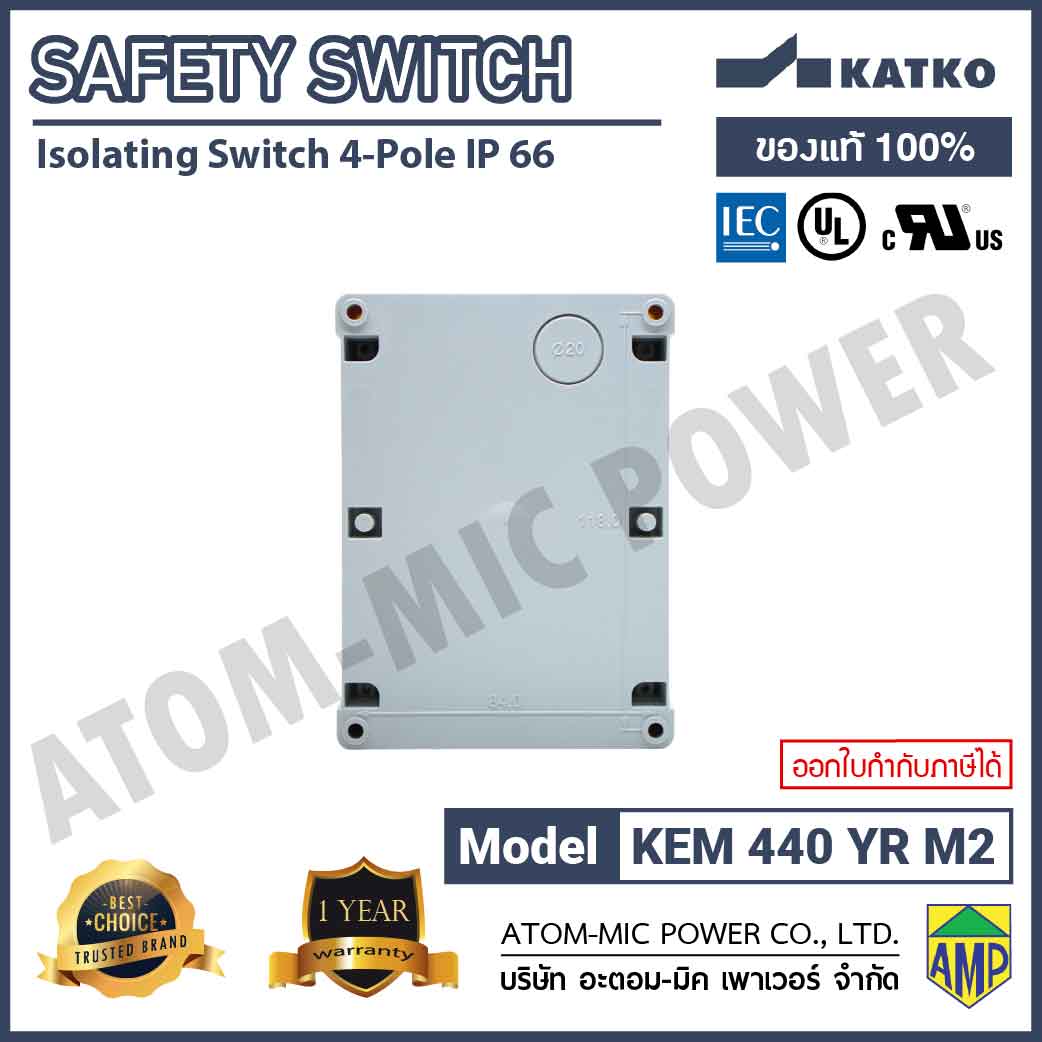

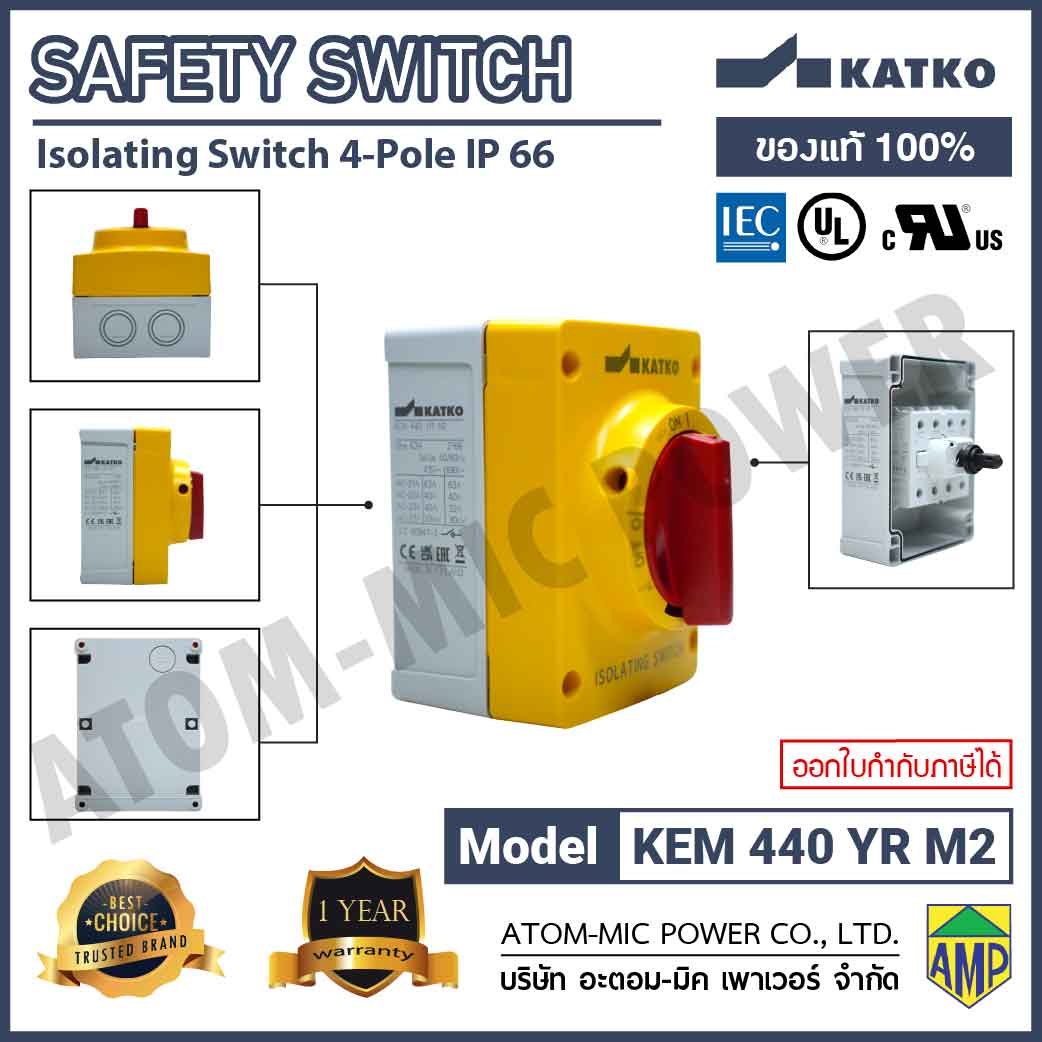

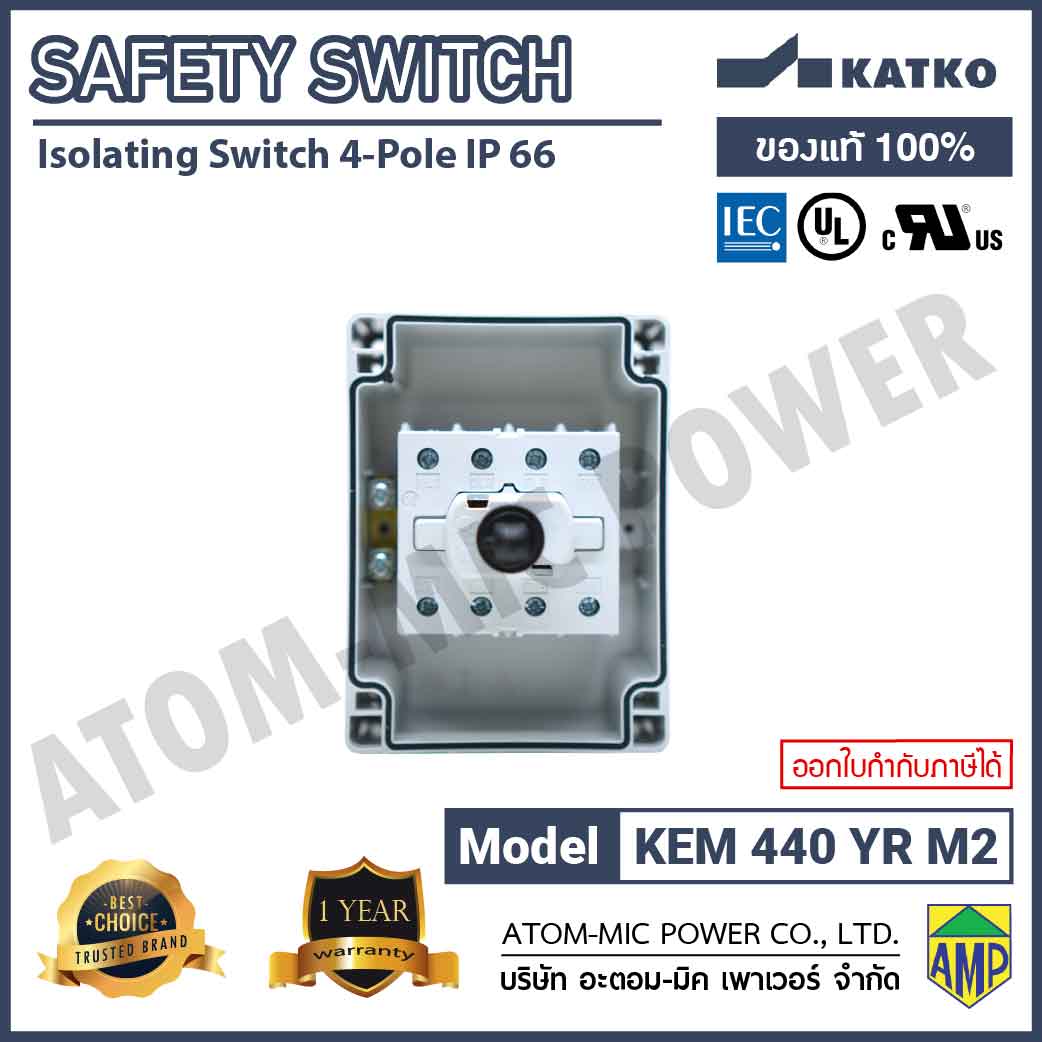

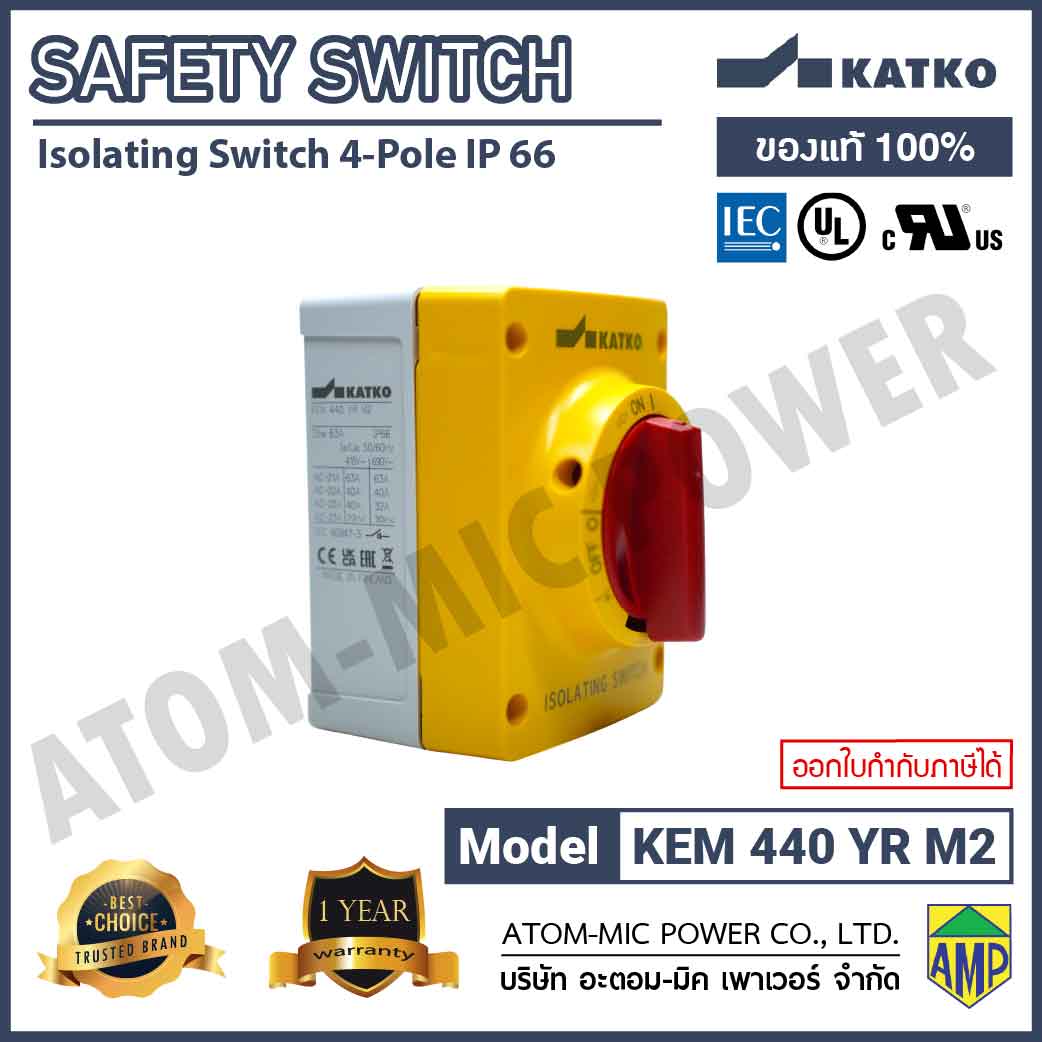

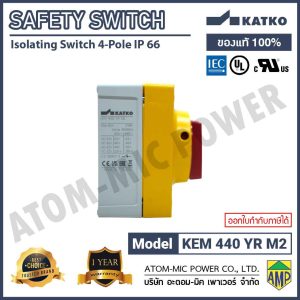

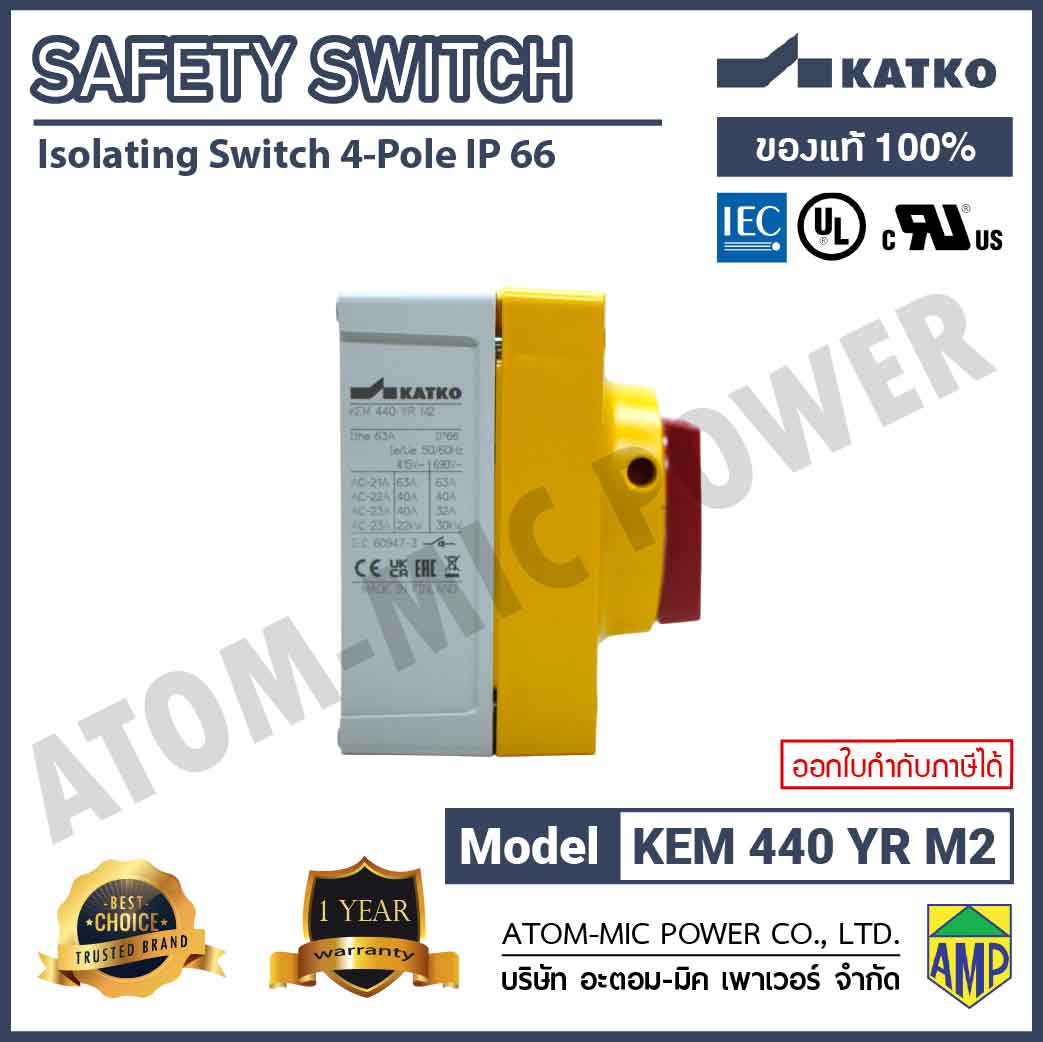

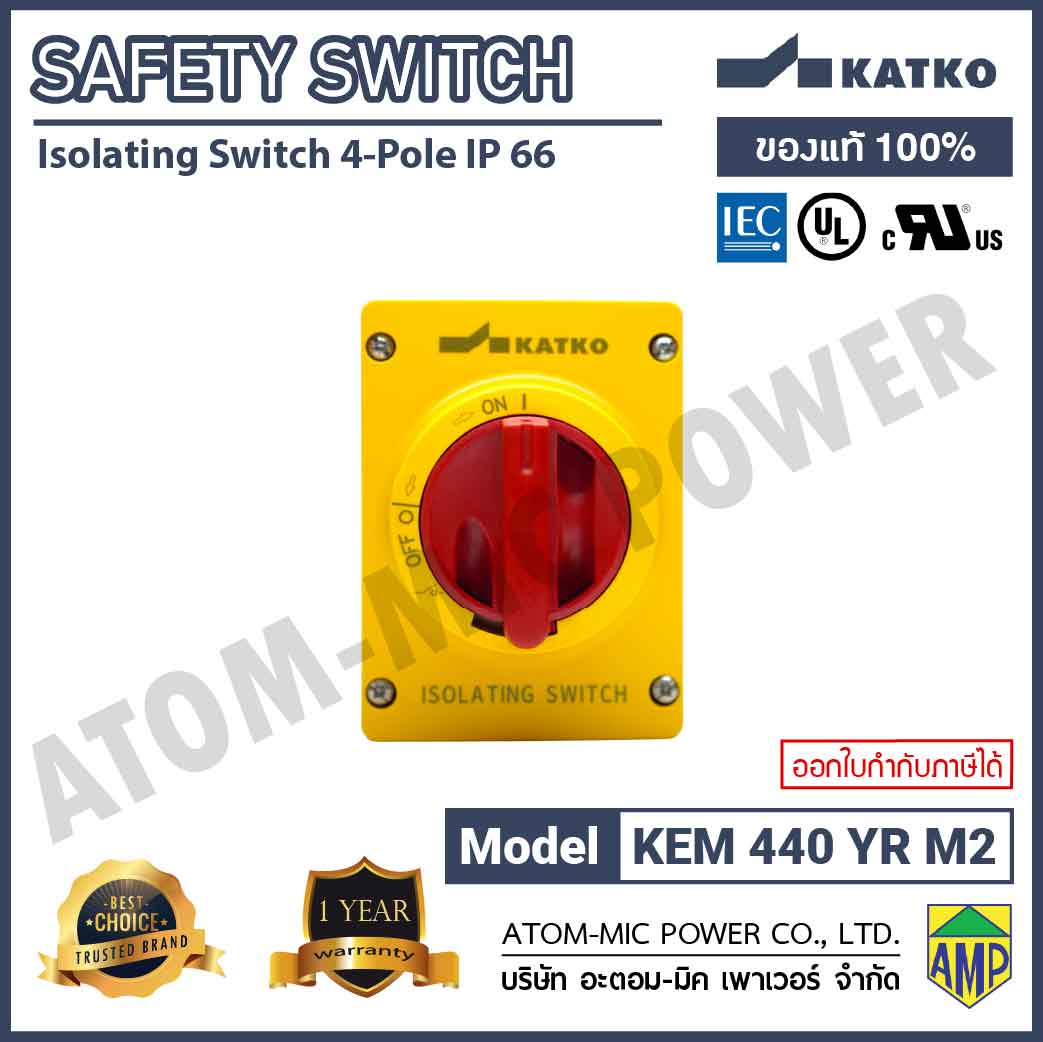

KATKO-SAFETY SWITCH-LOAD BREAK-KEM 440 YR M3(IP66, 4 POLE)

KEM 440 YR M2
KEM Polycarbonate 10-630A
IP66; Enclosure types M2, M3, M4, MF11, MF01, MF02 MF03, MF04
Self-extinguishing material
Wide operating temperature range
Padlockable with 3 locks
Door interlock with defeat mechanism
Excellent insulating properties
Good UV resistance
Good resistance against many chemicals

รหัสสินค้า: KEM 440 YR M2 หมวดหมู่: เมนสวิตช์และโหลดเบรค, KATKO LOAD BREAK SWITCH ENCLOSURES

คำอธิบาย
ข้อมูลเพิ่มเติม

Product details
SKU : KEM 440 YR M2
AC-21 400/415 V (A) : 63 A
AC-21 690 V (A) : 63 A
AC-22 400/415 V (A) : 40 A
AC-22 690 V (A) : 40 A
AC-23 400/415 V (A/kW) : 40 A / 22 kW
AC-23 690 V (A/kW) : 32 A / 30 kW
Cable Area to Switch Terminal (only Cu) (mm2) / Bolt size : 1.5-16
Color : Yellow / Red
EAN : 6419410327784
Enclosure : M2
Enclosure Type : Polycarbonate
IP Rating : 66
Number of Poles : 4
Operation : Front-operated
Switch type : Load Break Switch
Weight (kg) : 0.5
