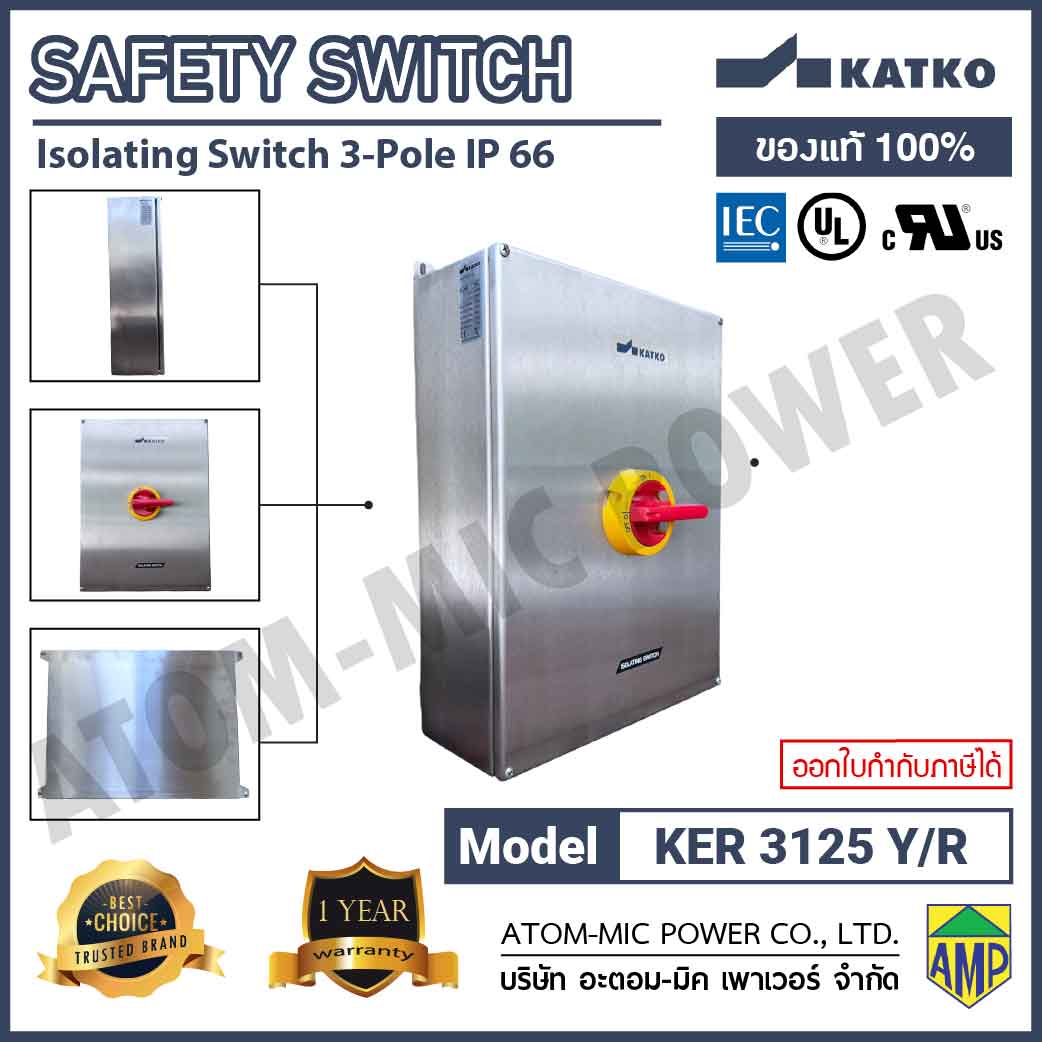

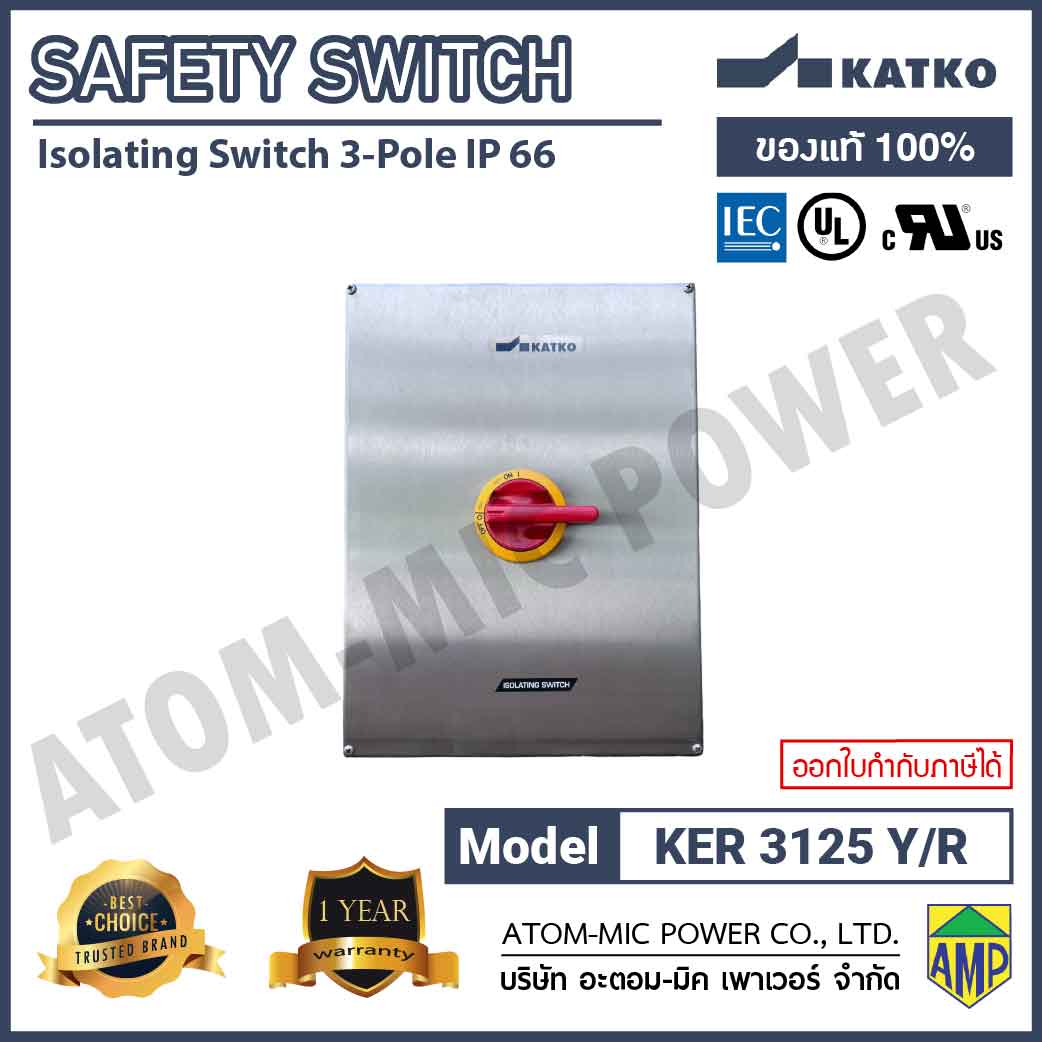

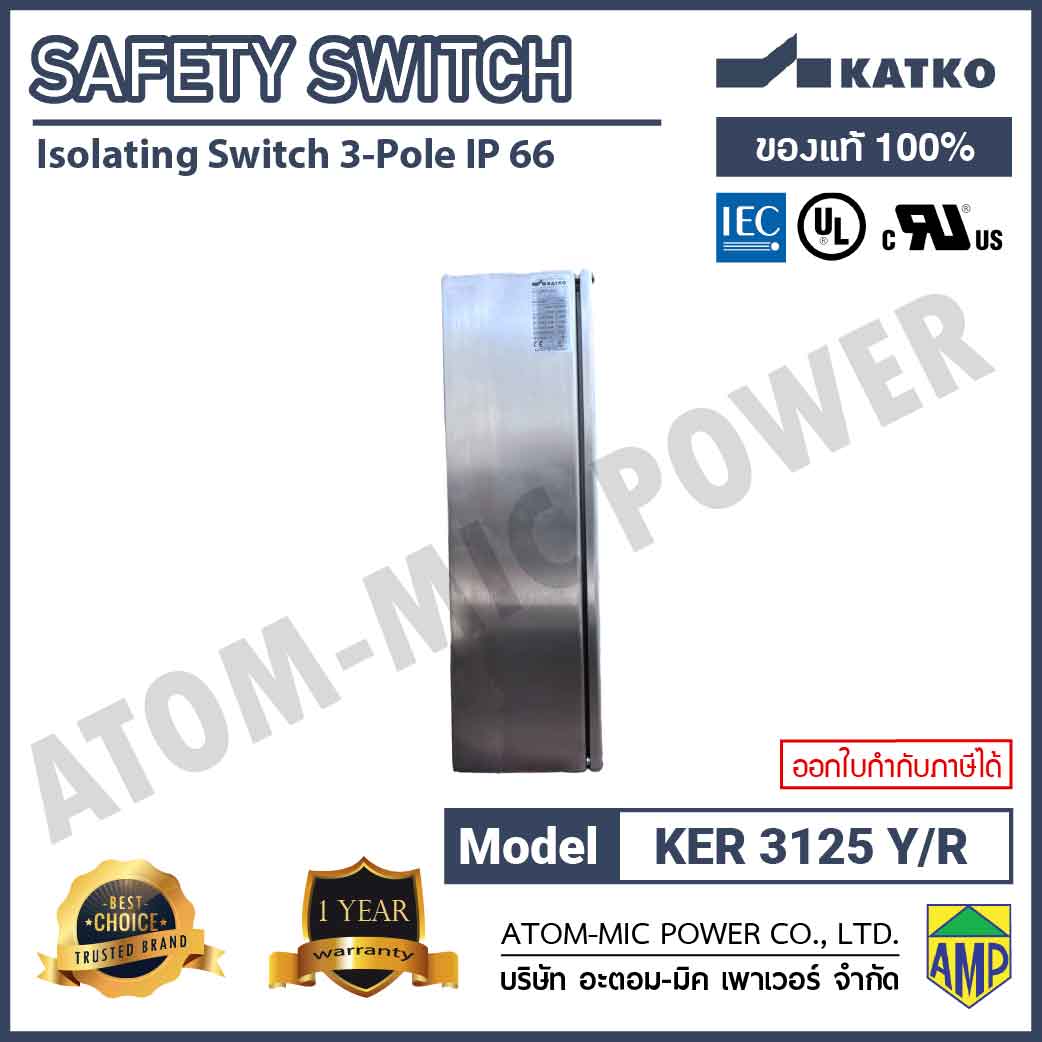

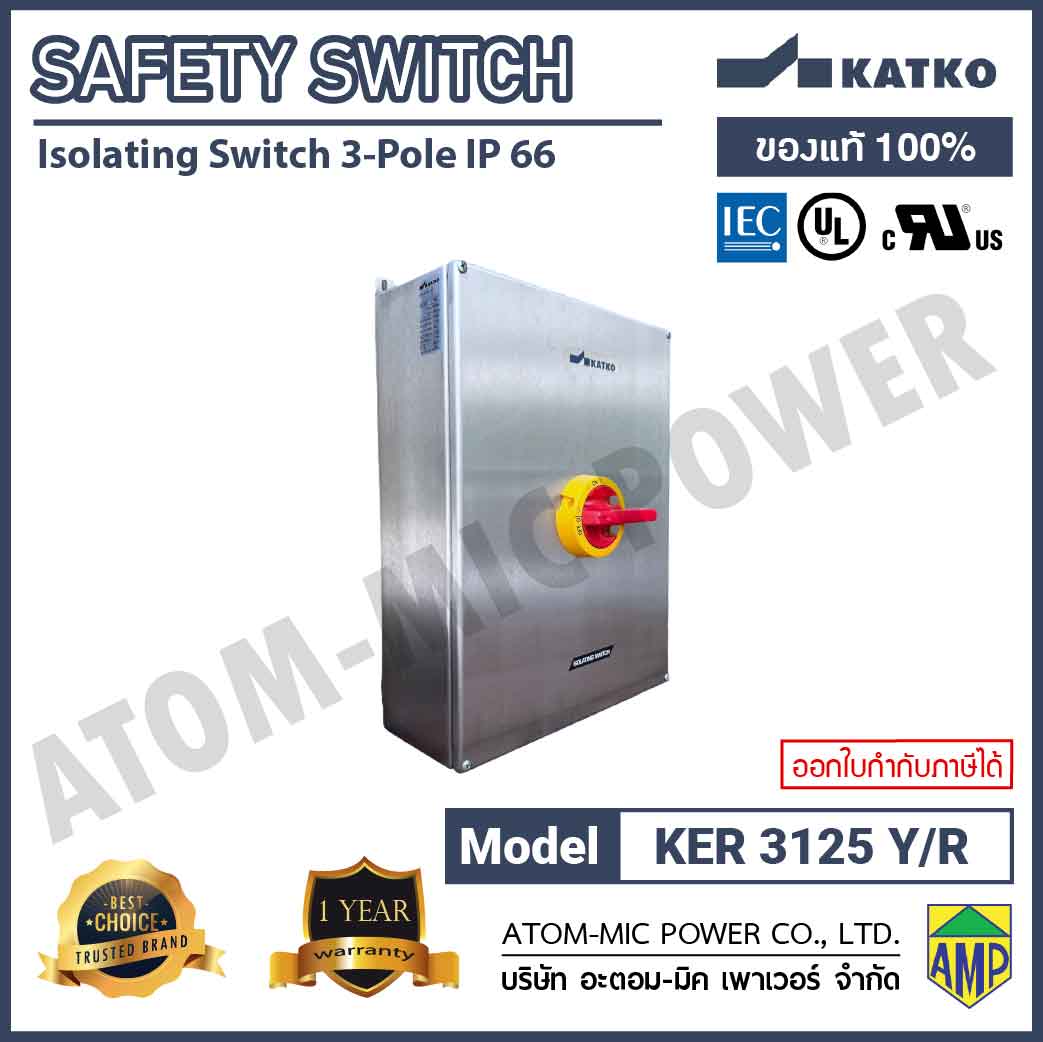

KATKO – SAFETY SWITCH – KER SERIES – KER 3125 Y/R

SAFETY SWITCH
160 A
IP 66
IEC 609473
KER Stainless Steel 16-1600A
IP66; Enclosure types H23, H32,H02 (AISI 316, acid proof)
IP65; Enclosure types H03, H04,H06, H07, H08 (AISI 304 asstandard, AISI 316 upon request)
Where hygiene and good protectionagainst corrosion are required
Padlockable with three locks
Door interlock with defeatmechanism
Tested according to IEC 60947-3

รหัสสินค้า: KER 3125 Y/R หมวดหมู่: เมนสวิตช์และโหลดเบรค, KATKO CHANGEOVER LOAD BREAK SWITCHES

คำอธิบาย

Product details
– SKU : KER 3125 Y/R
– AC-21 400/415 V (A) : 160 A
– AC-21 690 V (A) : 160 A
– AC-22 400/415 V (A) : 125 A
– AC-22 690 V (A) : 125 A
– AC-23 400/415 V(A/kW) : 125 A / 55 kW
– AC-23 690 V (A/kW) : 80 A / 75 kW
– Cable Area toSwitch Terminal(mm2) / Bolt size : 6-70
– Color : Yellow / Red
– EAN : 6419410343654
– Enclosure : H32
– Enclosure Type : Stainless Steel:PolycarbonateHandle
– IP Rating : 66
– Number of Poles : 3
– Operation
– Front-operated : Switch type
– Load BreakSwitch
– Weight (kg) : 2.3
