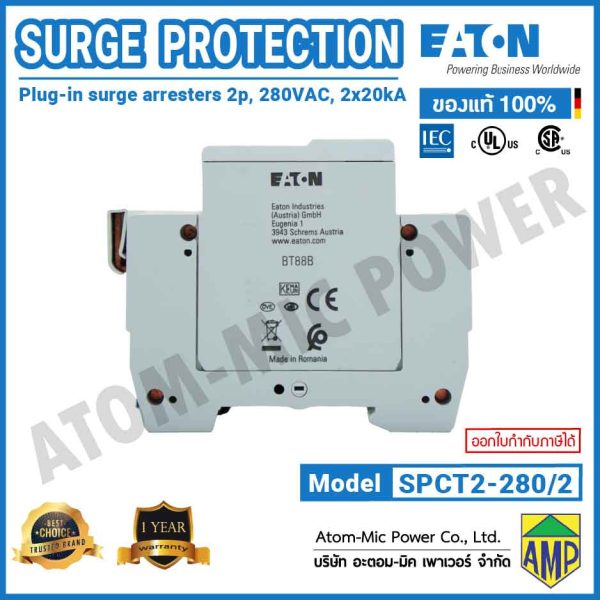

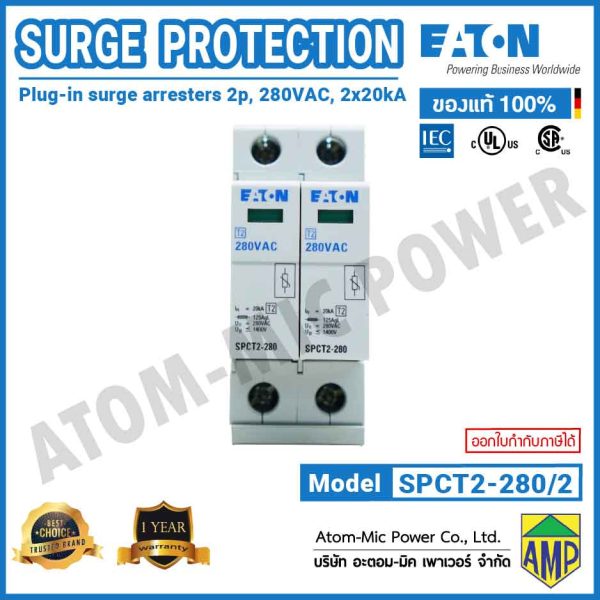

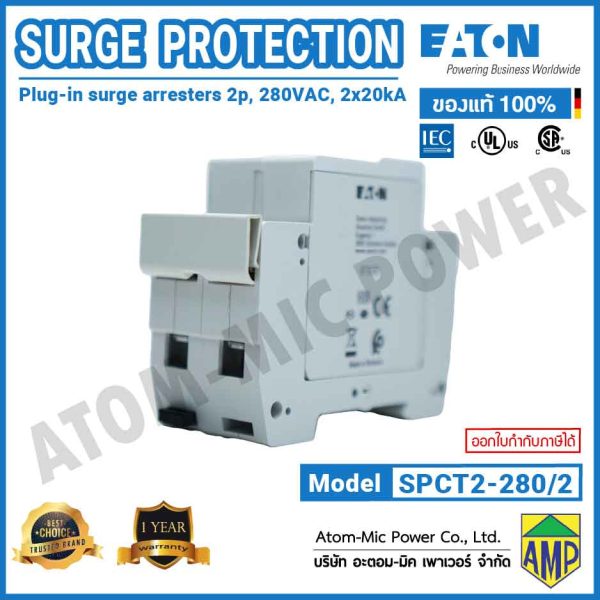

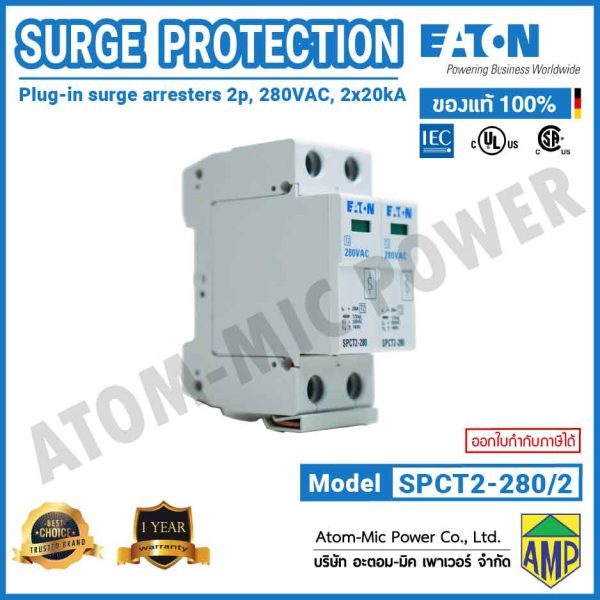

Eaton – SPCT2 Surge Protection Device, Plug-in surge arresters, 2p, 280VAC, 2x20kA – SPCT2-280/2

Name: Eaton - SPCT2 Surge Protection Device, Plug-in surge arresters, 2p, 280VAC, 2x20kA - SPCT2-280/2
SKU: SPCT2-280/2
Availability: InStock

Original price was: ฿4,280.00.Current price is: ฿2,152.00.

Plug-in surge arresters, 2p, 280VAC, 2x20kA

รหัสสินค้า: SPCT2-280/2 หมวดหมู่: EATON, ตัวป้องกันฟ้าผ่า SPD

คำอธิบาย
ข้อมูลเพิ่มเติม

Model Code : SPCT2-280/2
EAN : 4015081640867
Product Length/Depth : 85 mm
Product Height : 67 mm
Product Width : 35 mm
Product Weight : 0.209 kg
Compliances : RoHS conform
Certifications : CE
Global Catalog : 167594
Product Type : Surge protection device

Product specifications
Features : Category type 2
Frame : 2 modular spacing
Degree of protection : IP20
Mounting method : DIN rail (top hat rail) 35 mm
Signalling at the device : Optic
Continuous voltage at AC – max : 280 V
Discharge surge current (8/20) – max : 40 kA
Nominal discharge surge current (8/20) : 20 kA
Nominal voltage at AC : 280 V
Number of conductors without earthing : 2
Voltage protection level : 1.4 KV
Overcurrent protection device, series connection (fuse) – max : 125 A
