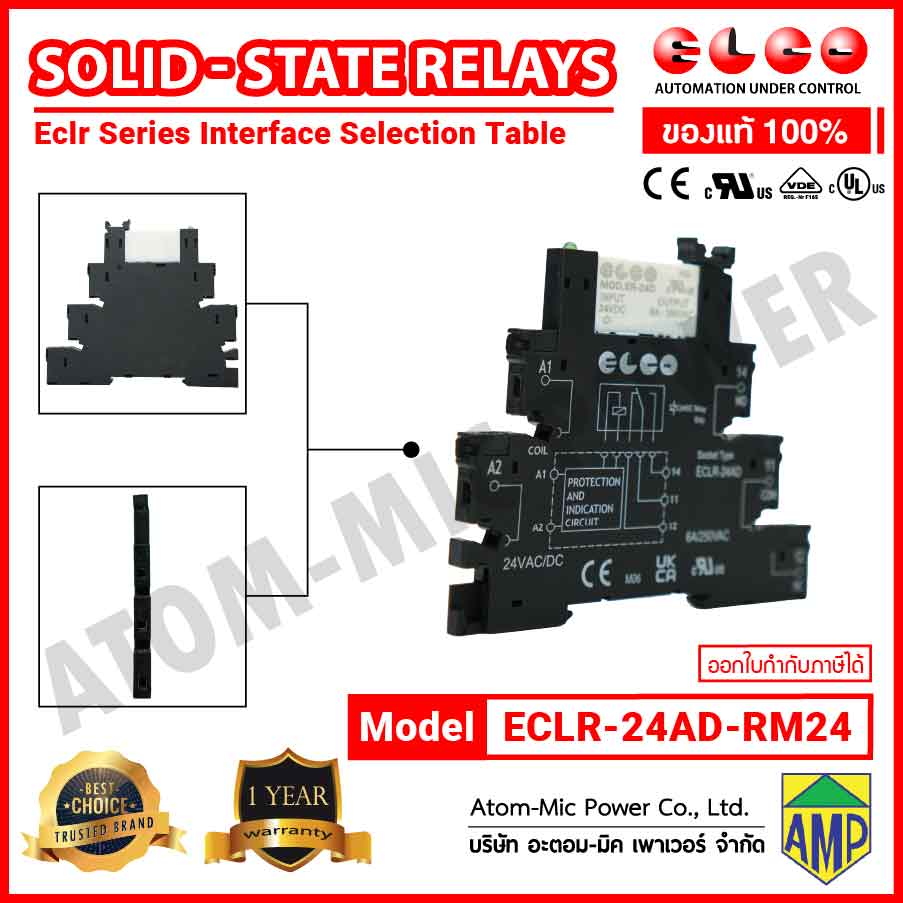

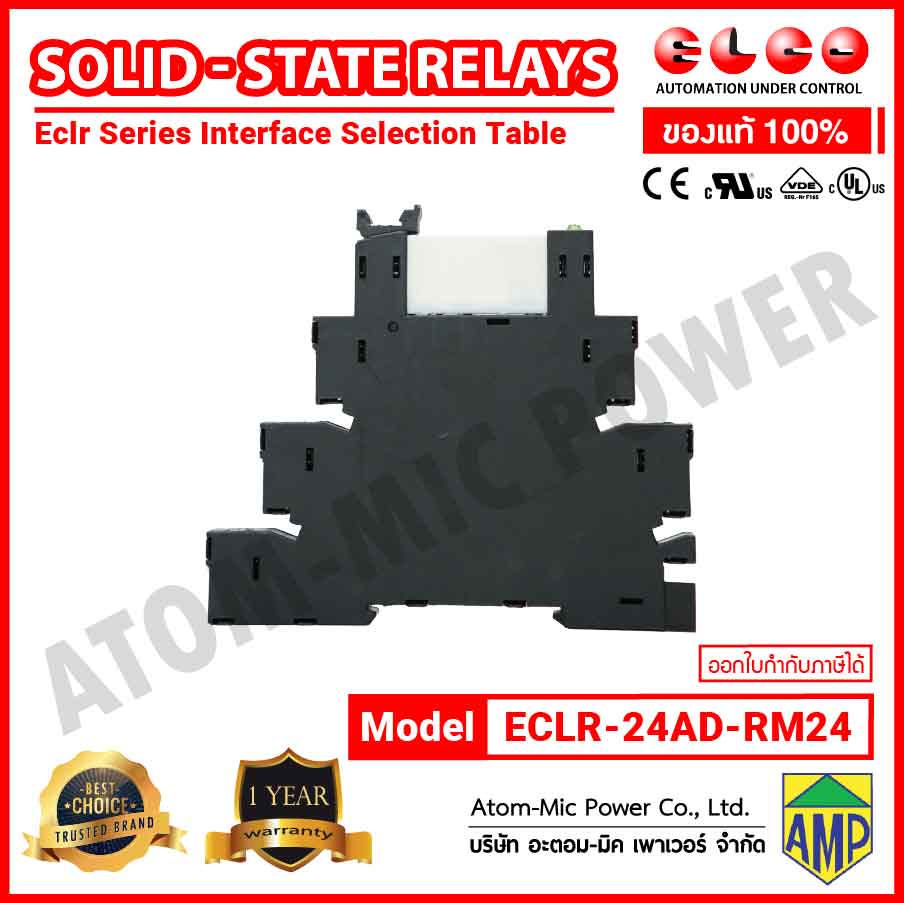

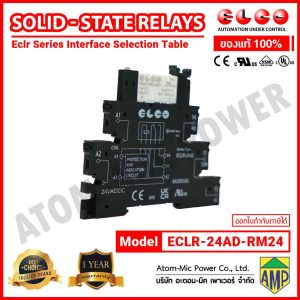

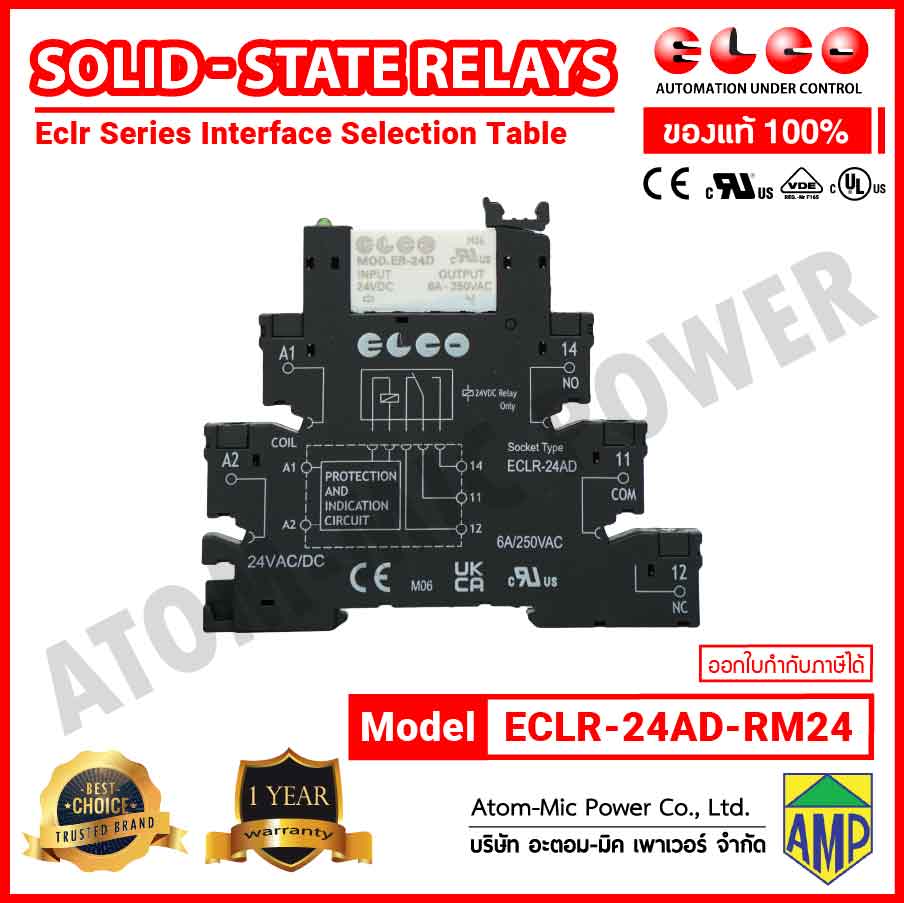

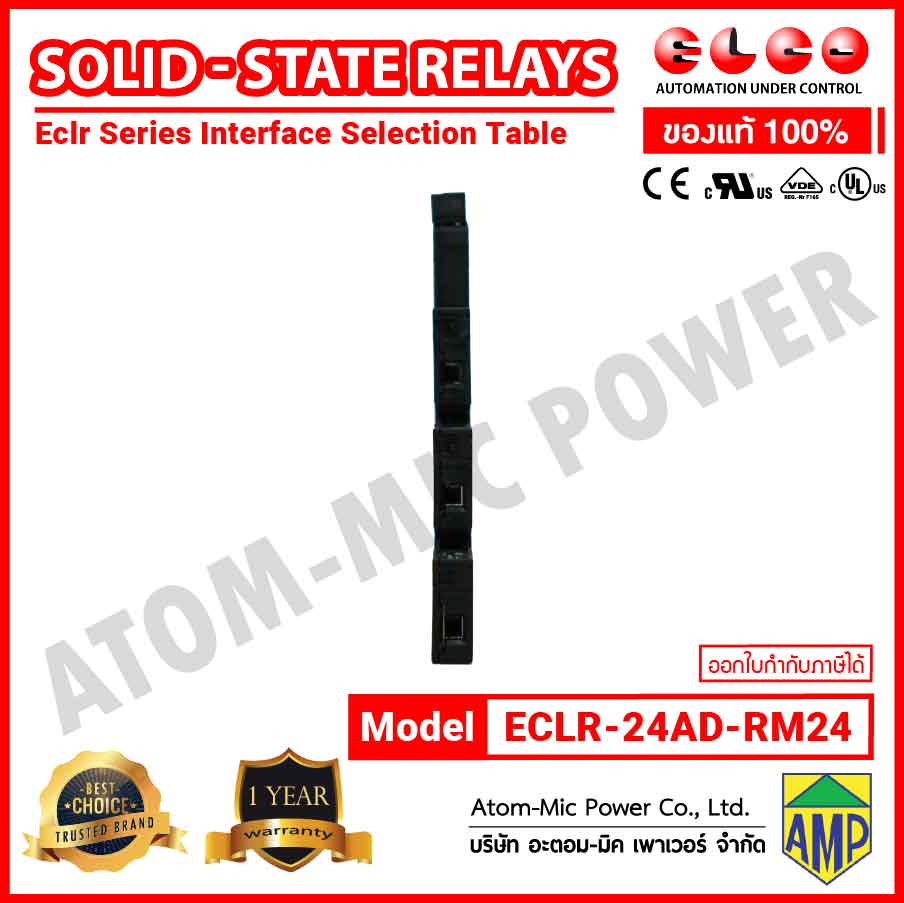

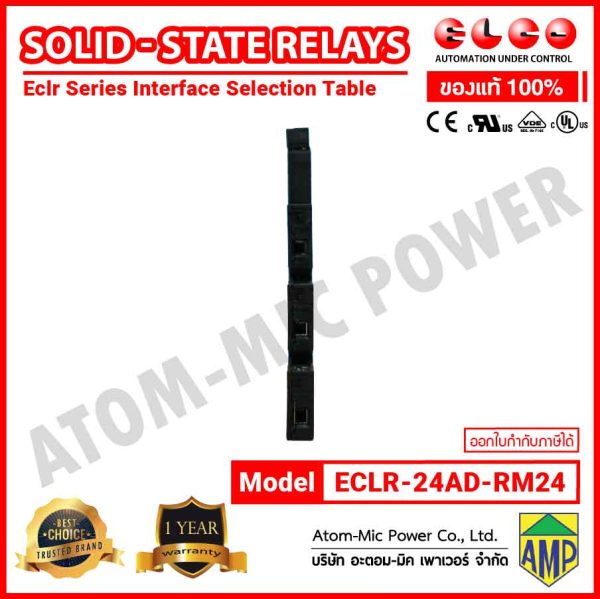

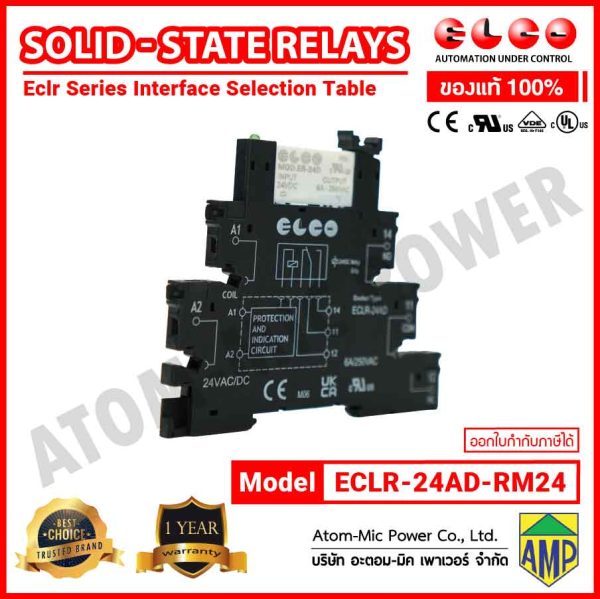

EATON – SOLD STATE RELAYS, INTERFACE SELECTION TABLE – ECLR-24AD-RM24

ECLR Series, Interface Terminal Block Style, 6A SPDT (NO/NC), 24VAC/DC Coil, Screw connection, Ultra-slim 6.2mm wide, with LED indicator, 35mm DIN rail mount

รหัสสินค้า: ECLR-24AD-RM24 หมวดหมู่: RELEQUICK SOLID STATE RELAYS, แมกเนติกและรีเลย์

คำอธิบาย

GENERAL SPECIFICATIONS
– Configuration : 1CO (SPDT)
– Contact Rating : 6A@250VAC
– Coil Nominal Voltage : 24VAC/DC
– Coil Rated Power : 0.3W
– Coil Voltage Operating Range : 19.2 to 26.4VAC/DC
– Terminal Connection Type : Screw Terminal
– Mounting Type : DIN rail (35mm)
– Indicator : LED
– Device Width : 6.2mm
– Operating Temperature : -4° to 131°F (-20° to 55°C)
– Environmental Protection : IP20
