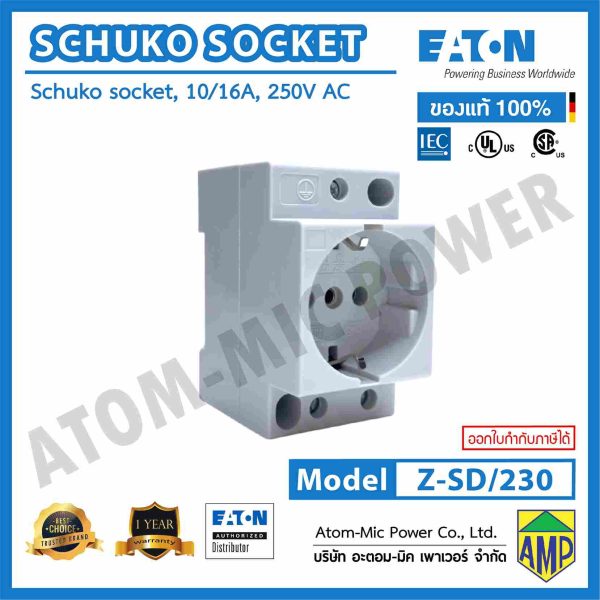

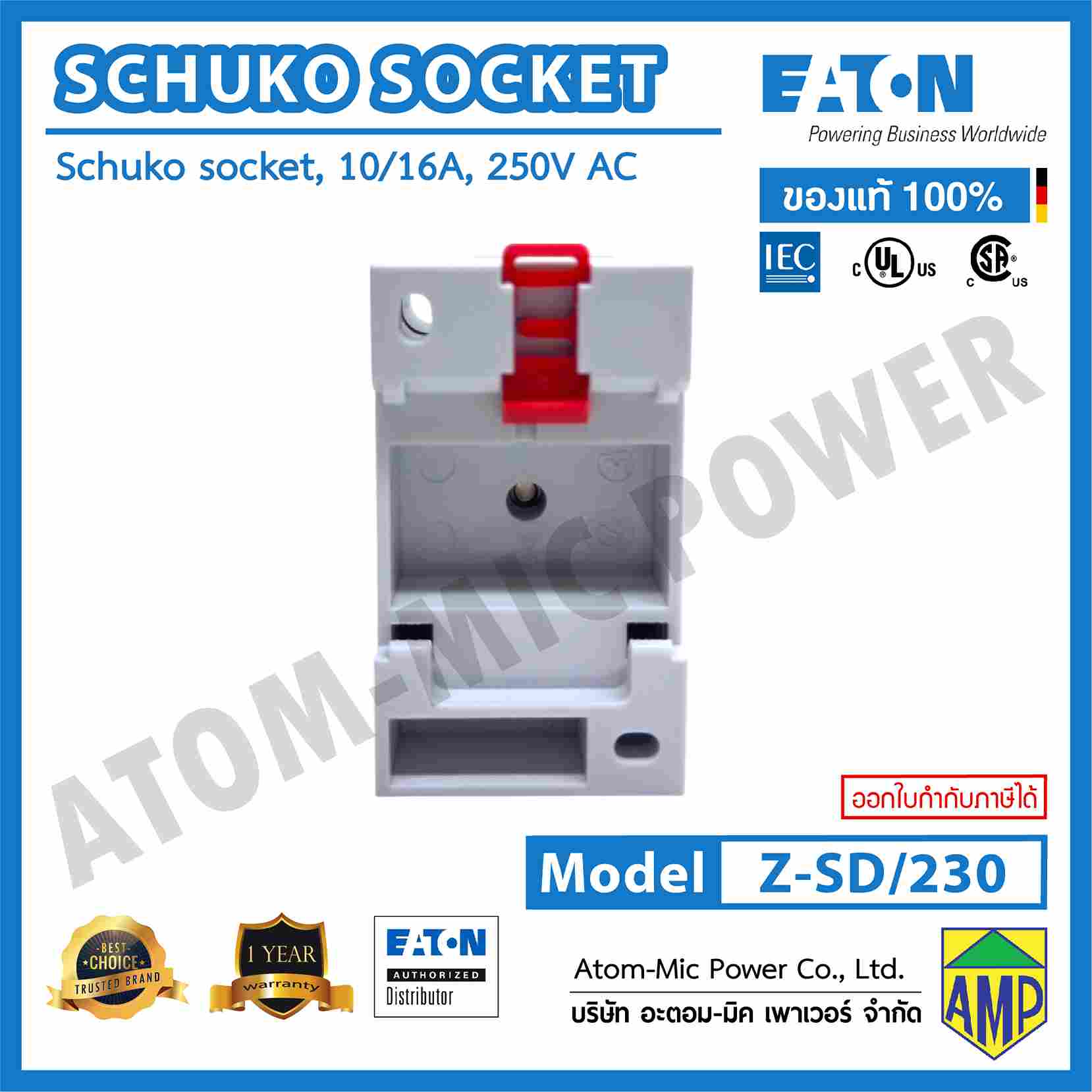

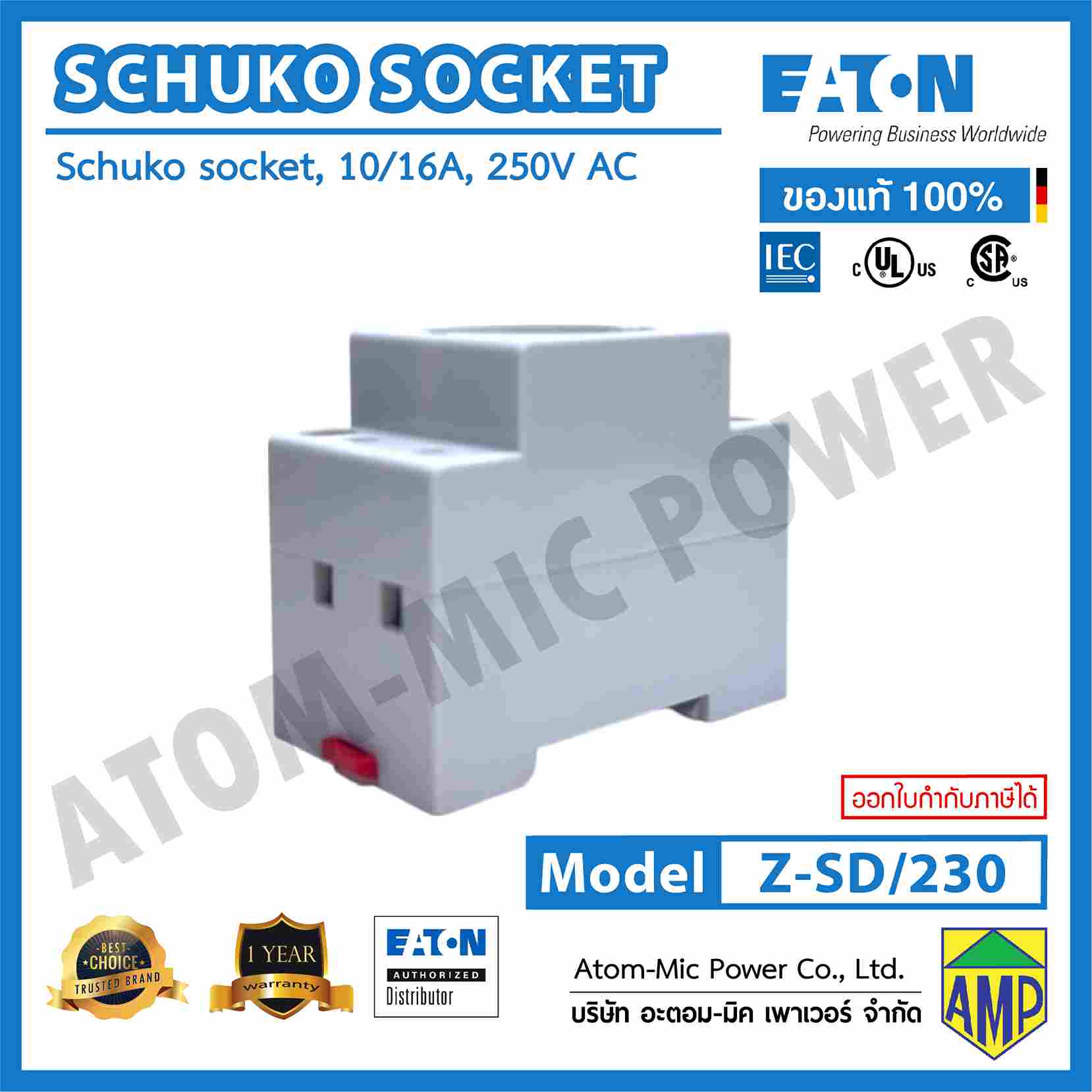

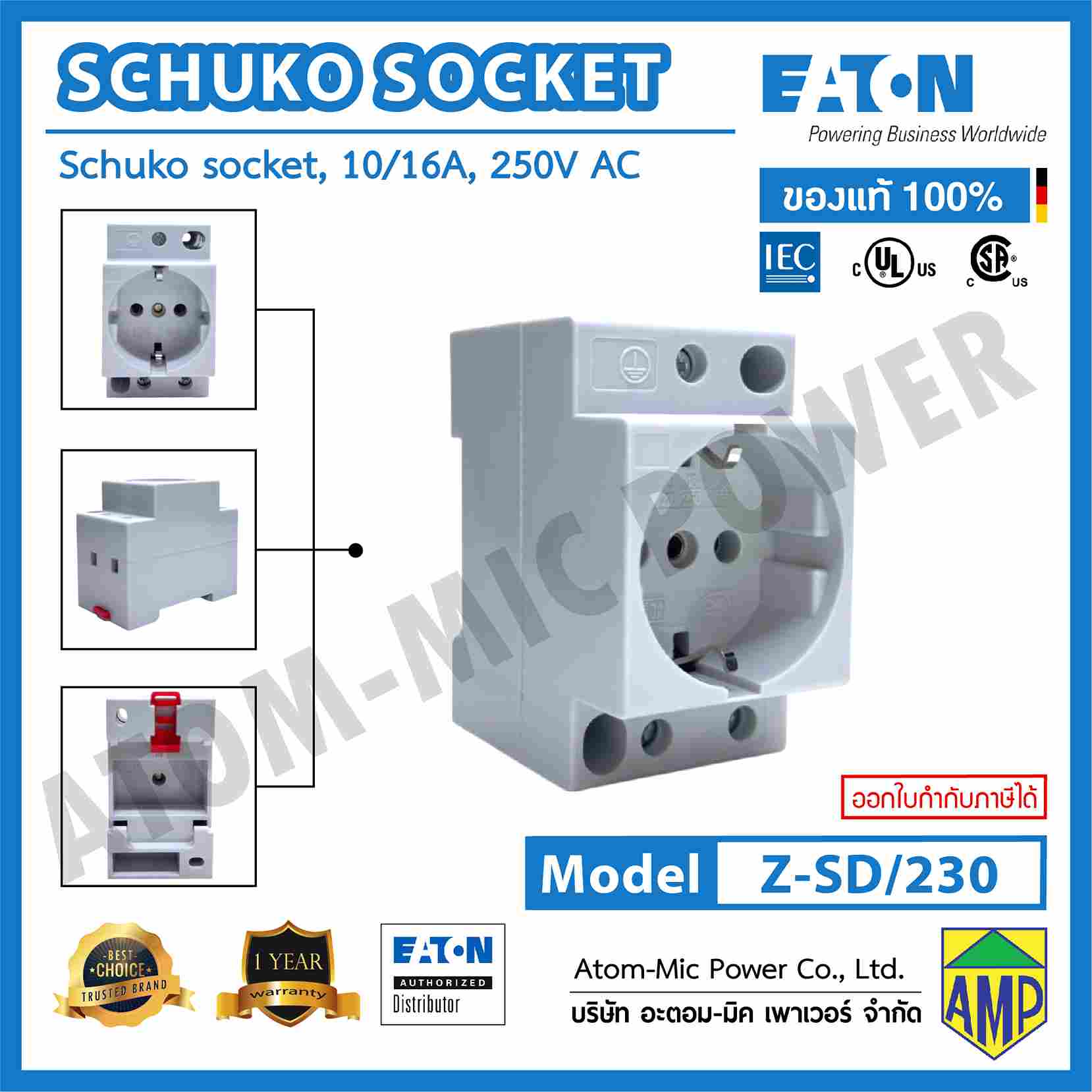

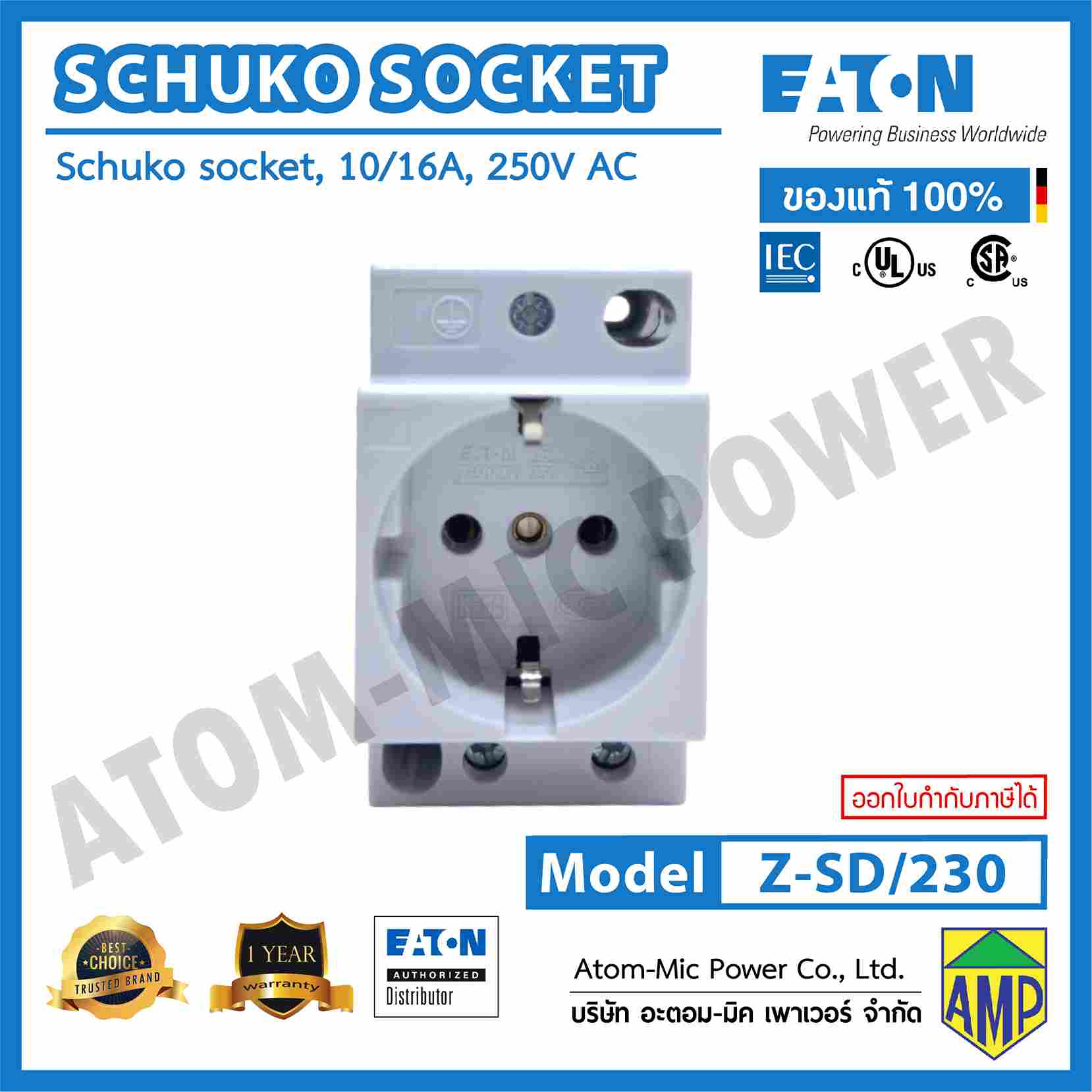

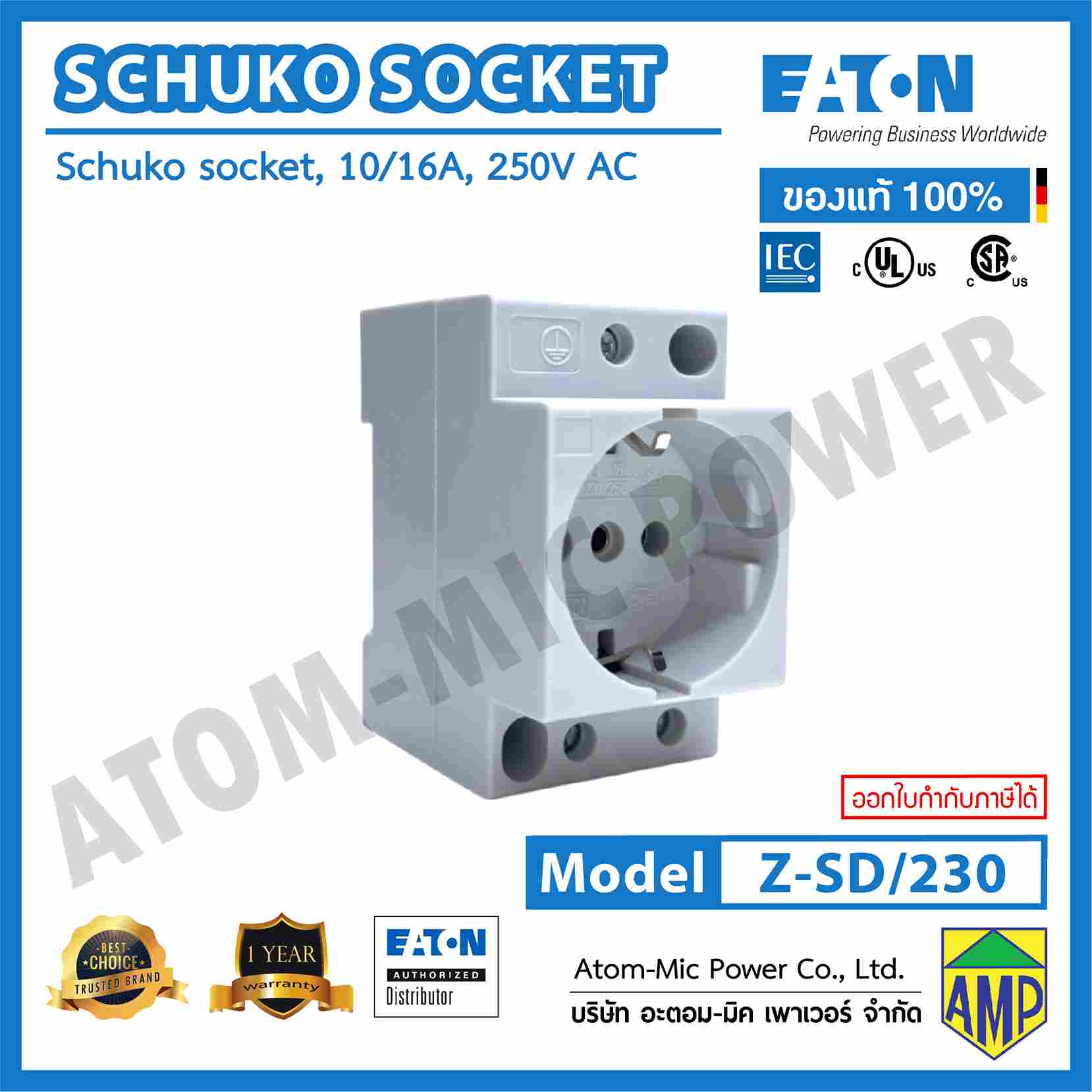

EATON-SCHUKO SOCKET-Z-SD/230 (10/16A, 250V AC)-ปลั๊กตัวเมียรุ่น”ชูโก้”-ติดตั้งบนราง Din rail

EAN : 4015082668754
LENGTH/DEPTH : 75 mm
PRODUCT HEIGHT : 65 mm
PRODUCT WIDTH : 44 mm
PRODUCT WEIGHT : 0.125 kg
COMPLIANCES : RoHS conform
MODEL CODE : Z-SD230
_____________________________
Product specifications
DEGREE OF PROTECTION : IP20
BUILT-IN DEPTH : 60 mm
NUMBER OF ACTIVE PINS : 0
(FLAT)
NUMBER OF ACTIVE PINS : 2
(ROUND)
RATED OPERATIONAL
VOLTAGE (UE) – MAX  : 250 V
WIDTH IN NUMBER OF
MODULAR SPACINGS : 2.5
AMPERAGE RATING : 16 A
VOLTAGE TYPE : AC
NUMBER OF SOCKET
OUTLETS : 1
NUMBER OF ACTIVE
CONTACTS (SQUARE) : 0
PROTECTIVE CONTACT : Earthing clips
