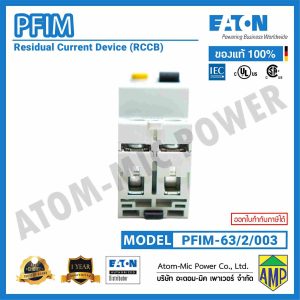

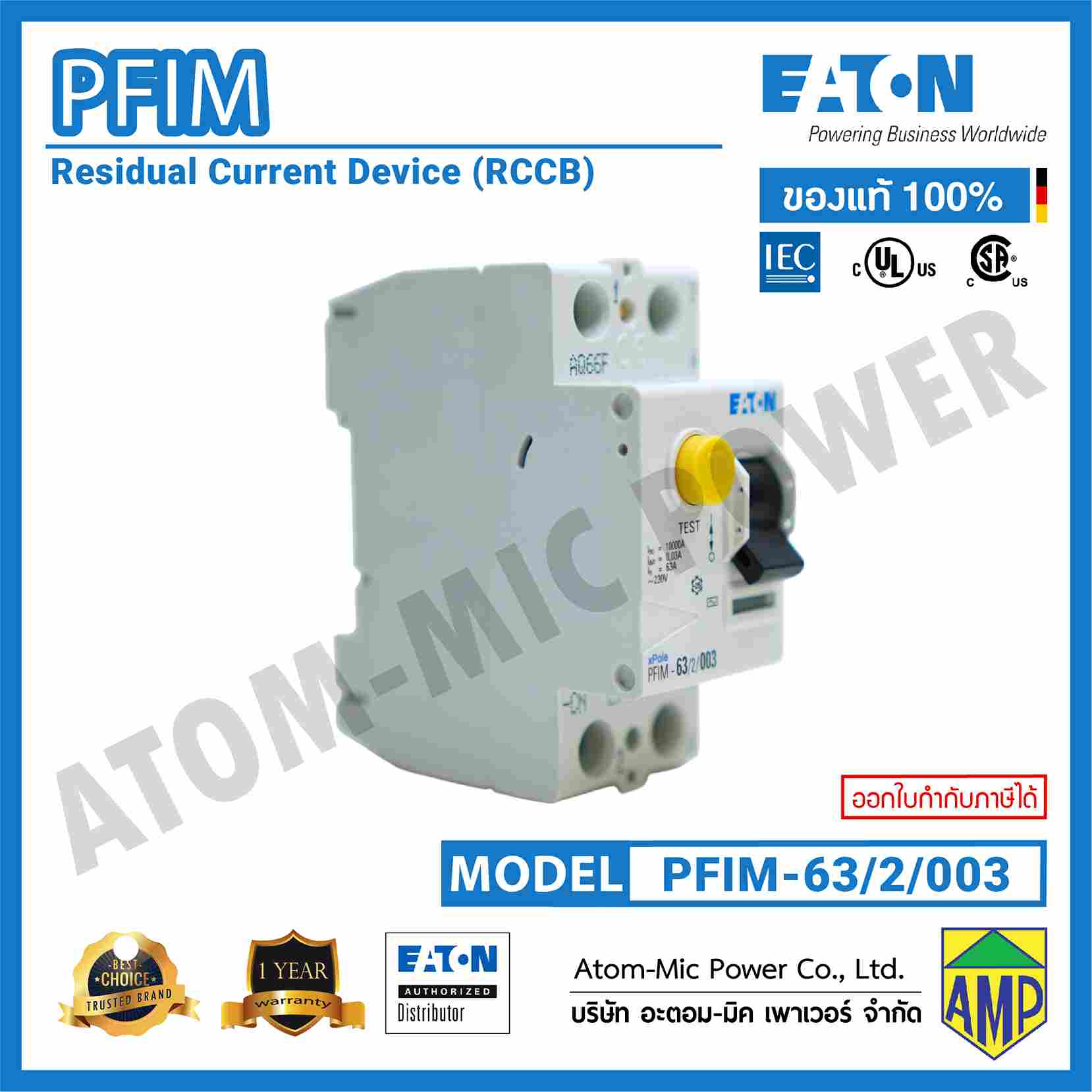

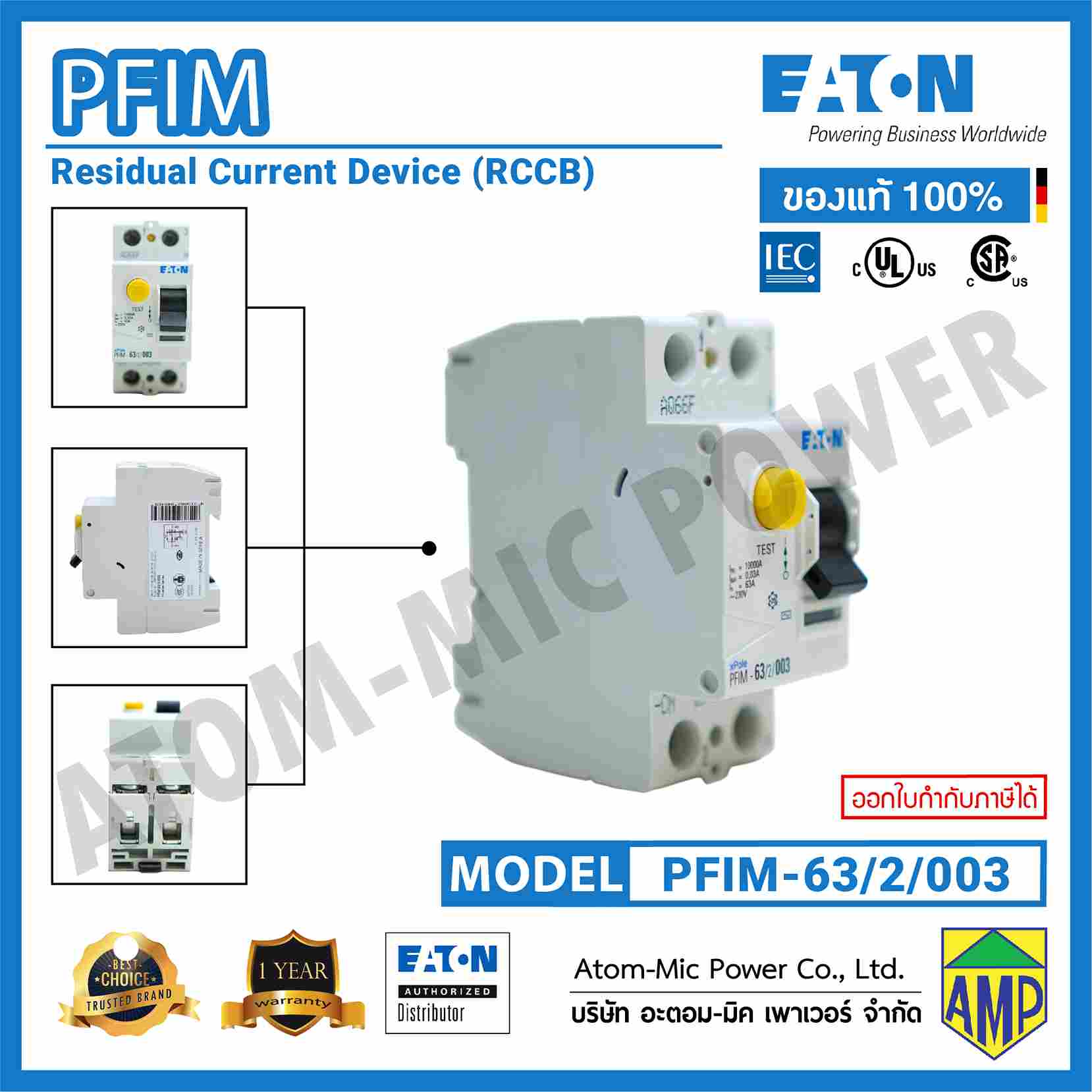

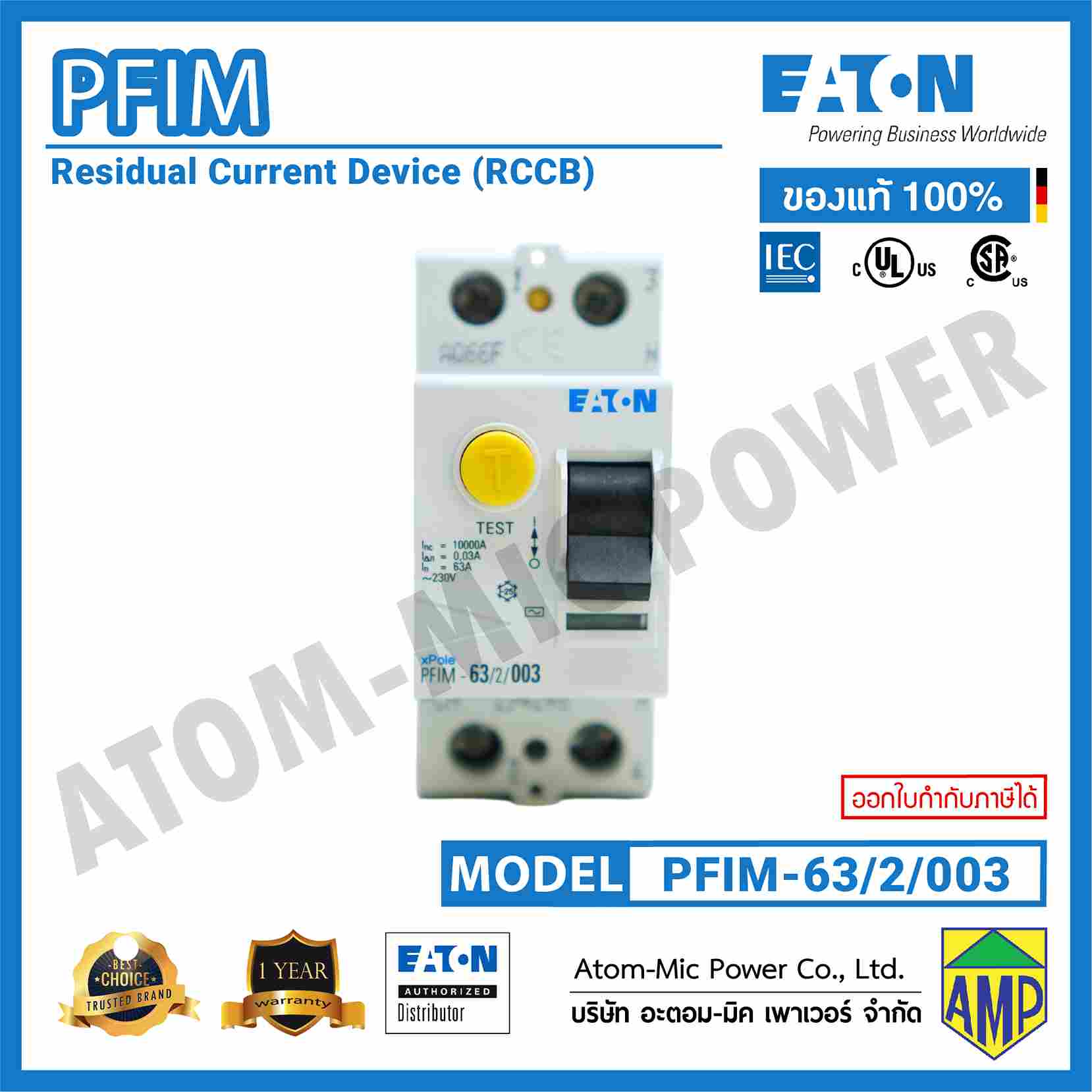

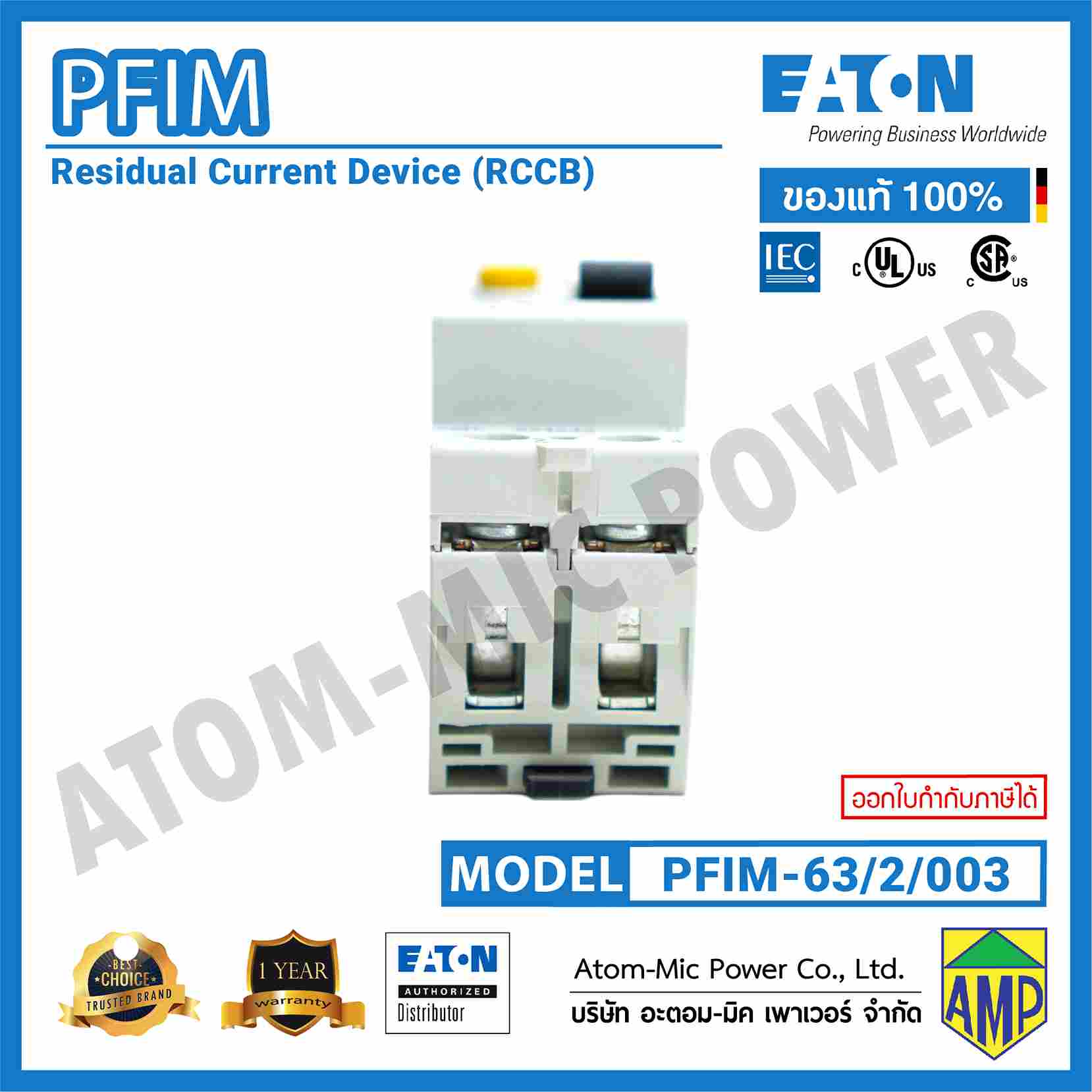

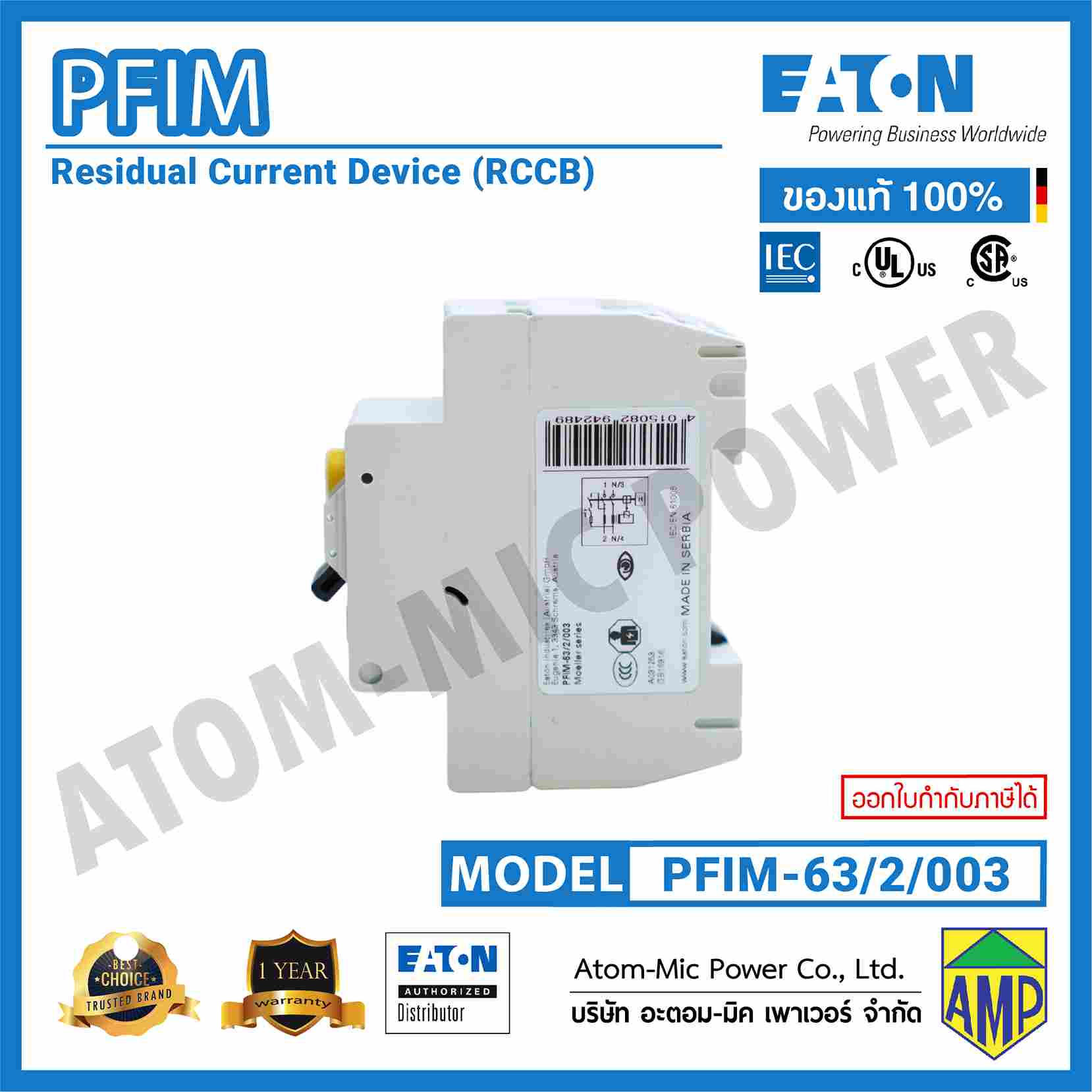

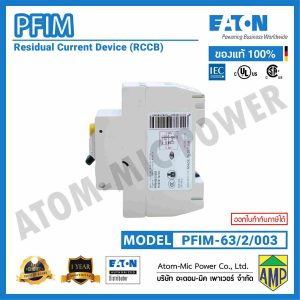

EATON – Residual current circuit breaker (RCCB), 63A, 2Pole, 30mA, type AC – PFIM-63/2/003

PRODUCT : PFIM-63/2/003
LENGTH/DEPTH : 76 mm
HEIGHT : 80 mm
WIDTH : 35 mm
WEIGHT : 0.22 kg
NUMBER OF POLES : Two-pole
TRIPPING TIME : Non-delayed
AMPERAGE RATING : 63 A
RATED : SHORT-CIRCUIT
STRENGTH : 10 kA
FAULT CURRENT RATING : 30 mA
SENSITIVITY TYPE : AC current sensitive
VOLTAGE RATING : 110 V AC
RATED OPERATIONAL
VOLTAGE (UE) – MAX : 110 V
RATED INSULATION
VOLTAGE (UI) : 440 V
RATED IMPULSE WITHSTAND VOLTAGE (UIMP) : 4 kV
RATED FAULT CURRENT-MIN : 0.03 A
RATED FAULT CURRENT-MAX : 0.03 A
FREQUENCY RATING : 50 Hz
