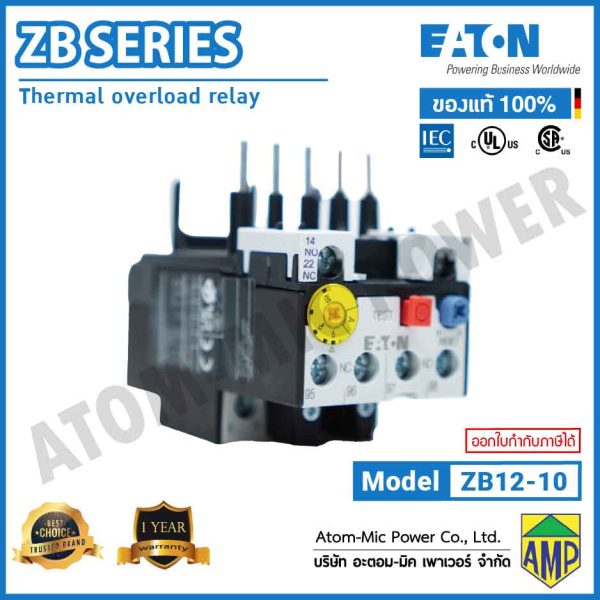

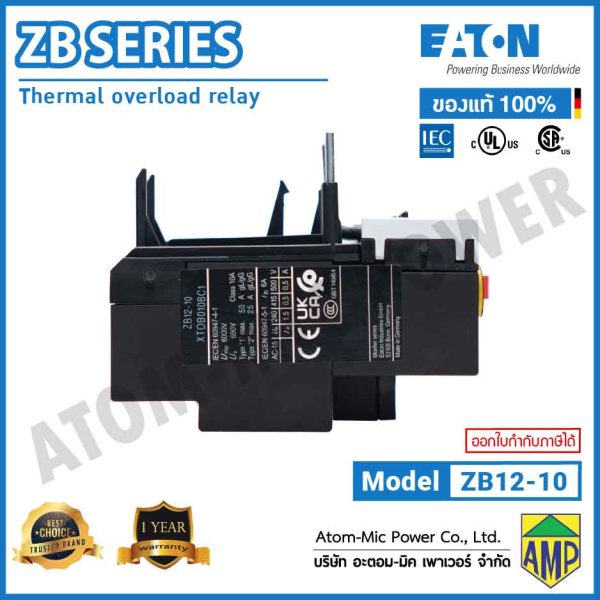

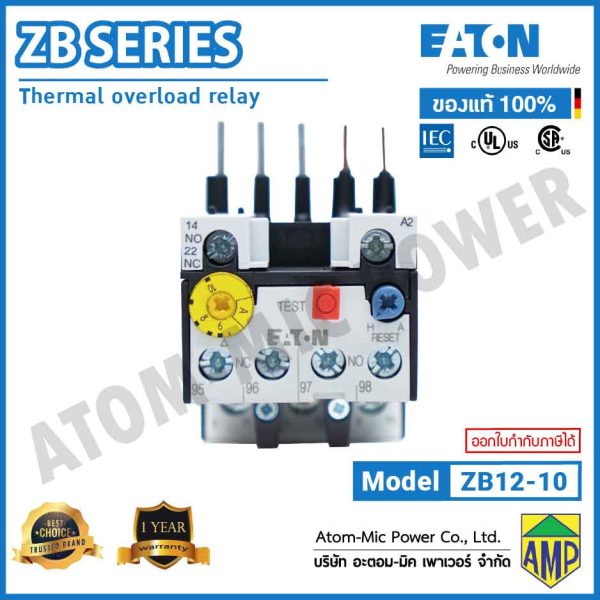

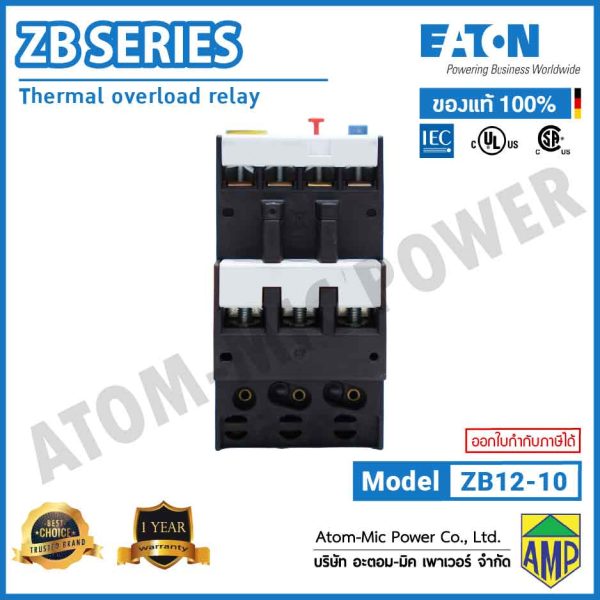

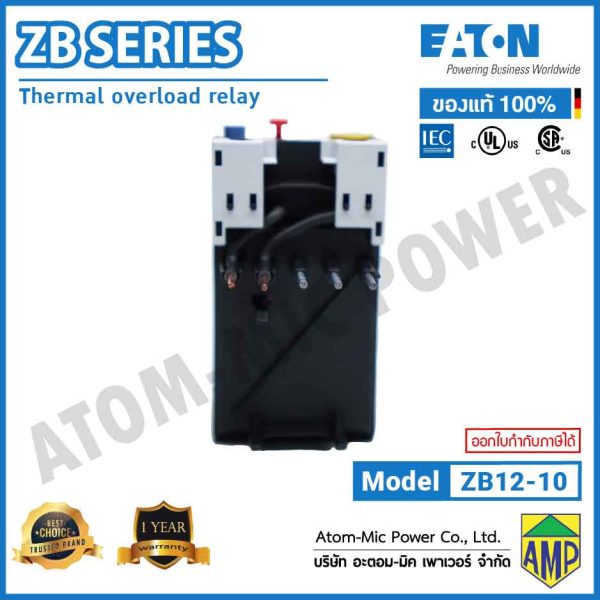

EATON – Overload Relay – ZB12-10 (1 N/O, 1 N/C)

– Part no. ZB12-10
– Product range Overload relay ZB up to 150 A
– Product range Accessories
– Accessories Overload relays
– Frame size ZB12
– Phase-failure sensitivity IEC/EN 60947, VDE 0660 Part 102
– Description Test/off button
– Reset pushbutton manual/auto
– Trip-free release
– Mounting type Direct mounting
– N/O = Normally open 1 N/O
– N/C = Normally closed 1 N/C
– Rated impulse withstand voltage Uimp V AC 6000
– Overvoltage category/pollution degree III/3
– Rated insulation voltage Ui V 690
– Rated operational voltage Ue V AC 690
– Safe isolation to EN 61140
– Between auxiliary contacts and main contacts V AC 440
– Between main circuits V AC 440
– Temperatur compensation residual error > 40 ºC ≦ 0.25 %/K
– Current heat loss (3 conductors)
– Lower value of the setting range W 2.2
– Maximum setting W 6
– Max. rated operation voltage Ue V 690
