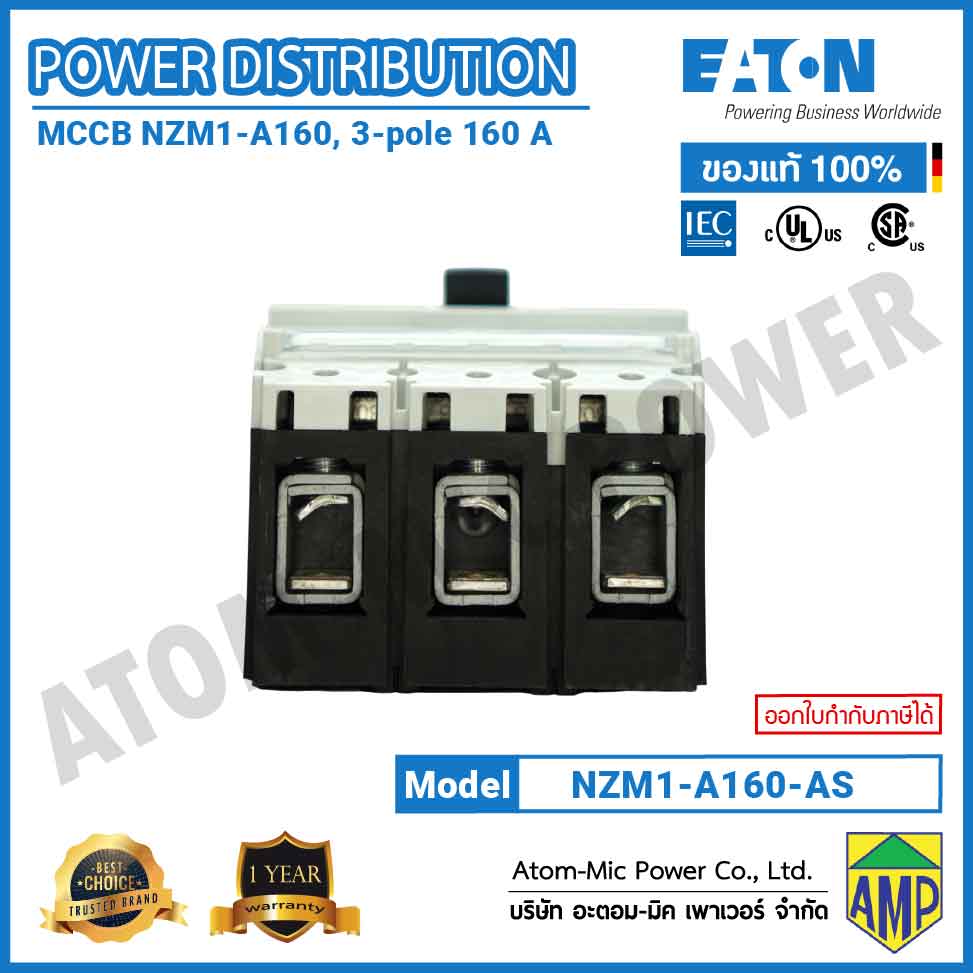

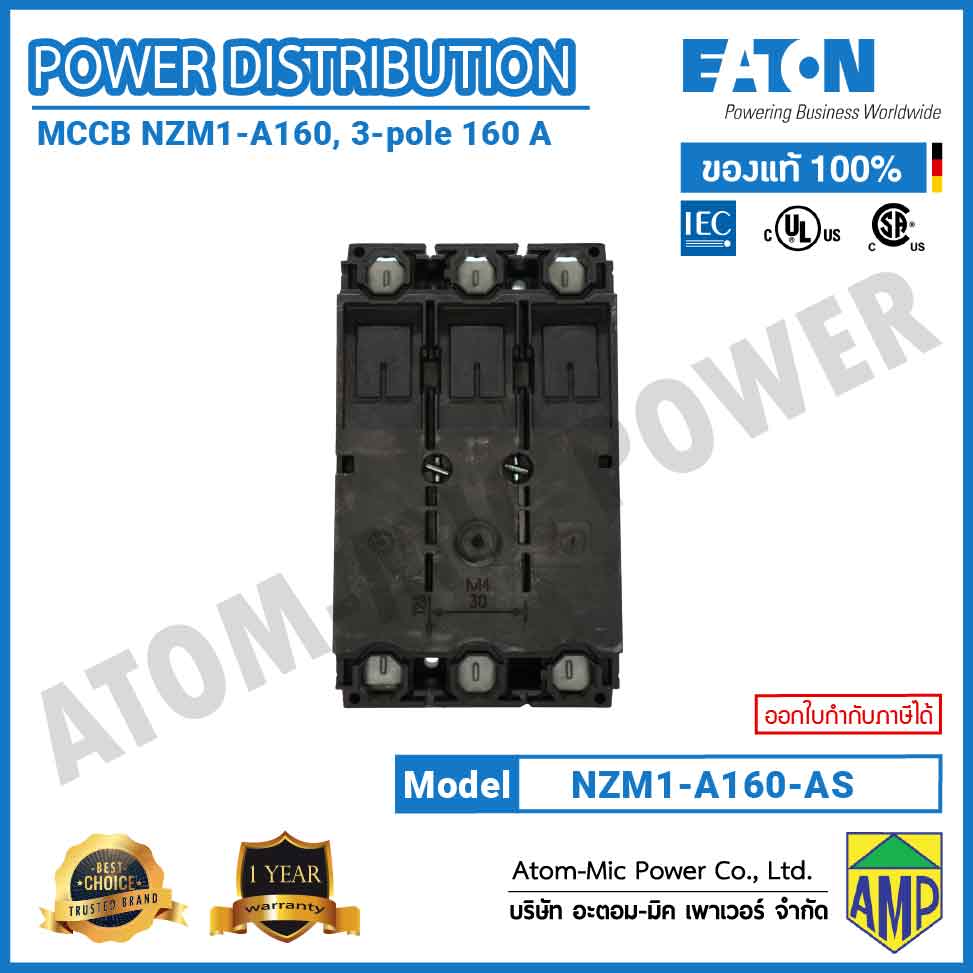

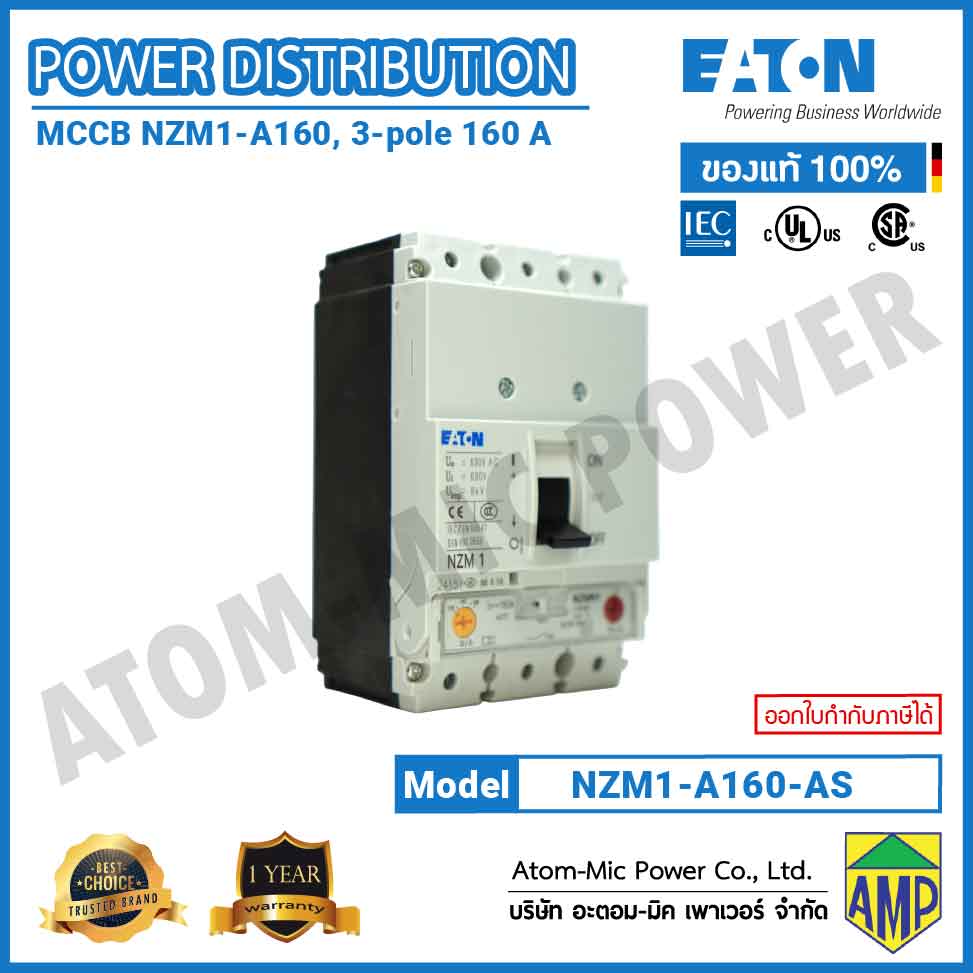

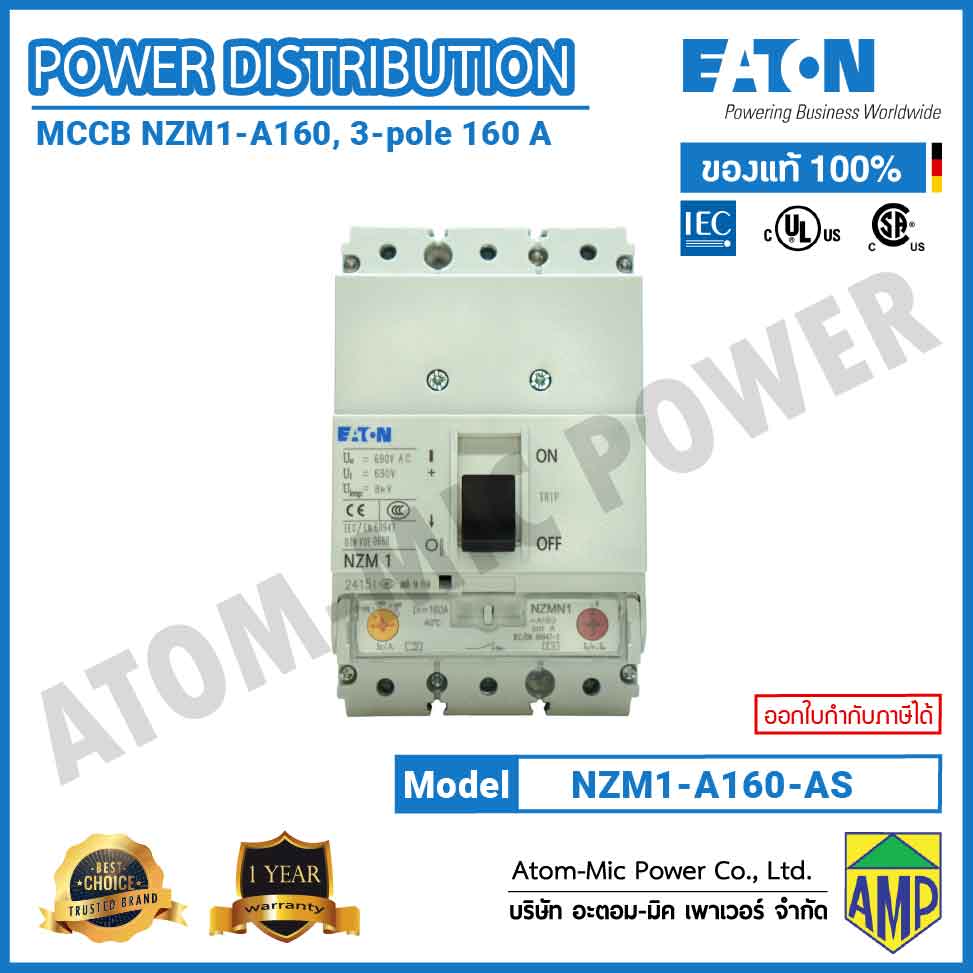

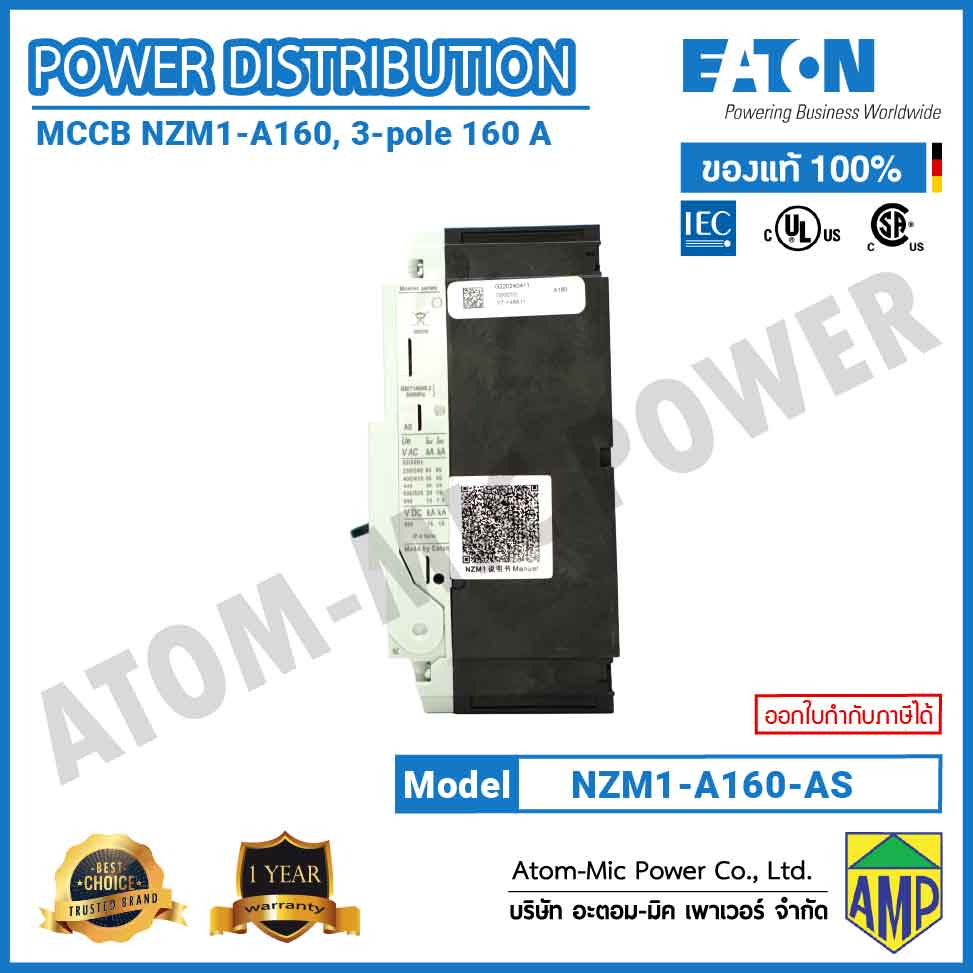

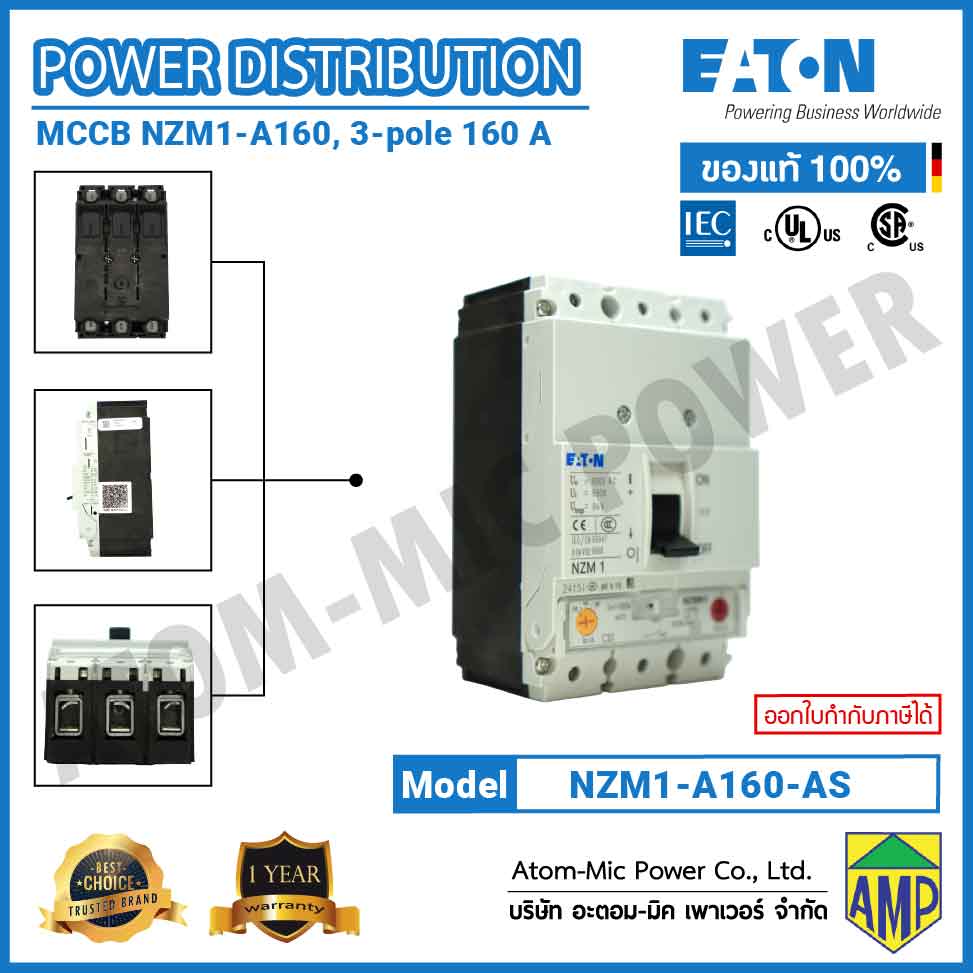

EATON – Molded Case Circuit Breaker (MCCB) – NZMN1-A160
281234
Model code: NZMN1-A160
Eaton Moeller series NZM – Molded Case Circuit Breaker. NZM1, 3 pole, Switching capacity 400/415 V 50 Hz( Icu ): 50 kA, 160 A, Fixed, Box terminal, IEC
General Specifications
CATALOG NUMBER : 281234
PRODUCT LENGTH/DEPTH : 88 mm
PRODUCT HEIGHT : 145 mm
PRODUCT WIDTH : 90 mm
PRODUCT WEIGHT : 1.046 kg
EAN : 4015082812348
MODEL CODE : NZMN1-A160
Product specifications
USED WITH Enclosure : 100 x 800 x 600 mm
AMPERAGE RATING : 160 A
VOLTAGE RATING : 690 V – 690 V
CIRCUIT BREAKER FRAME TYPE : NZM1
FEATURES : Protection unit
| น้ำหนัก | 1.046 กรัม |
|---|---|
| ขนาด | 8.8 × 9 × 14.5 เซนติเมตร |
