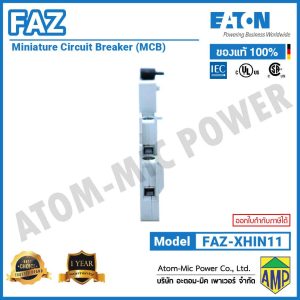

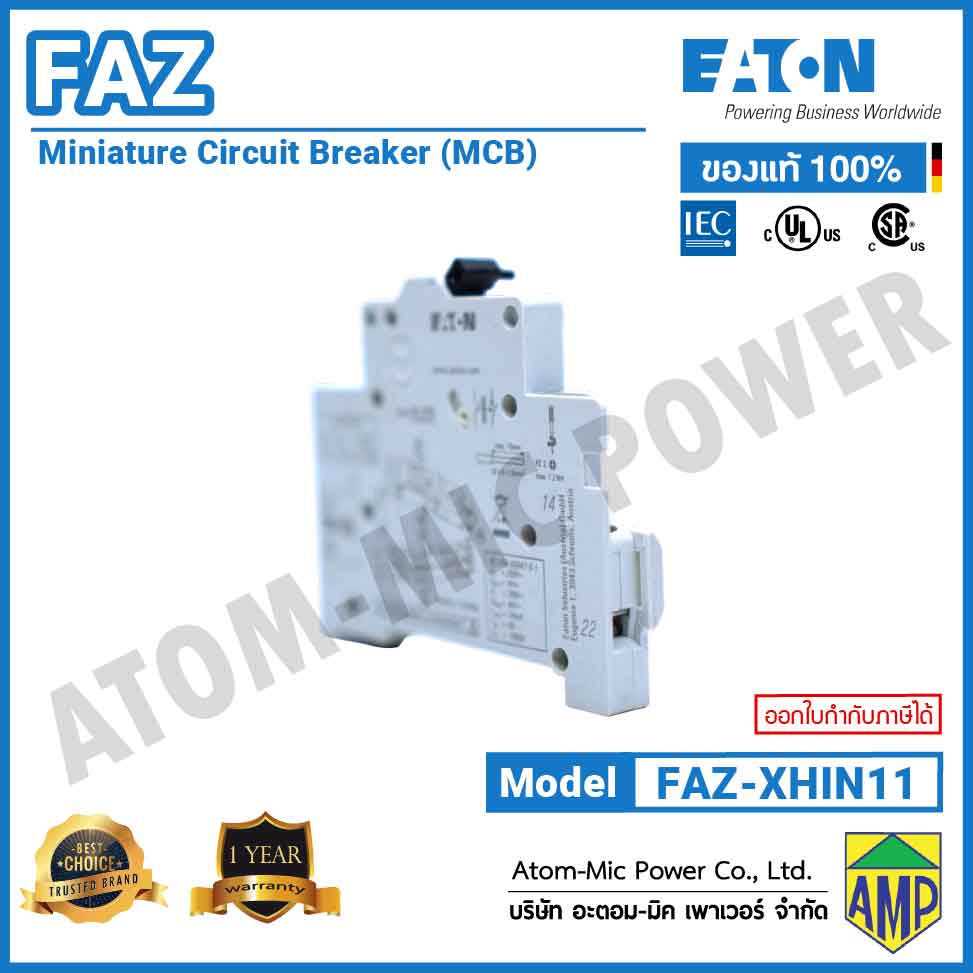

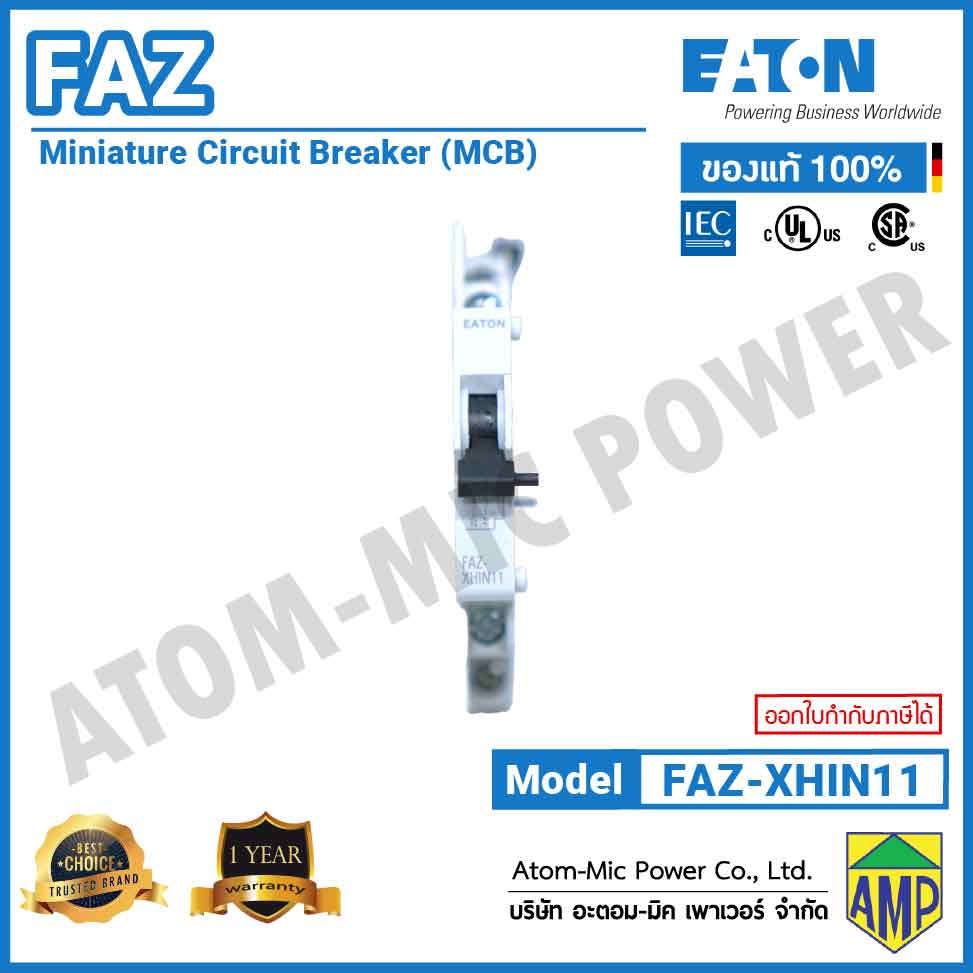

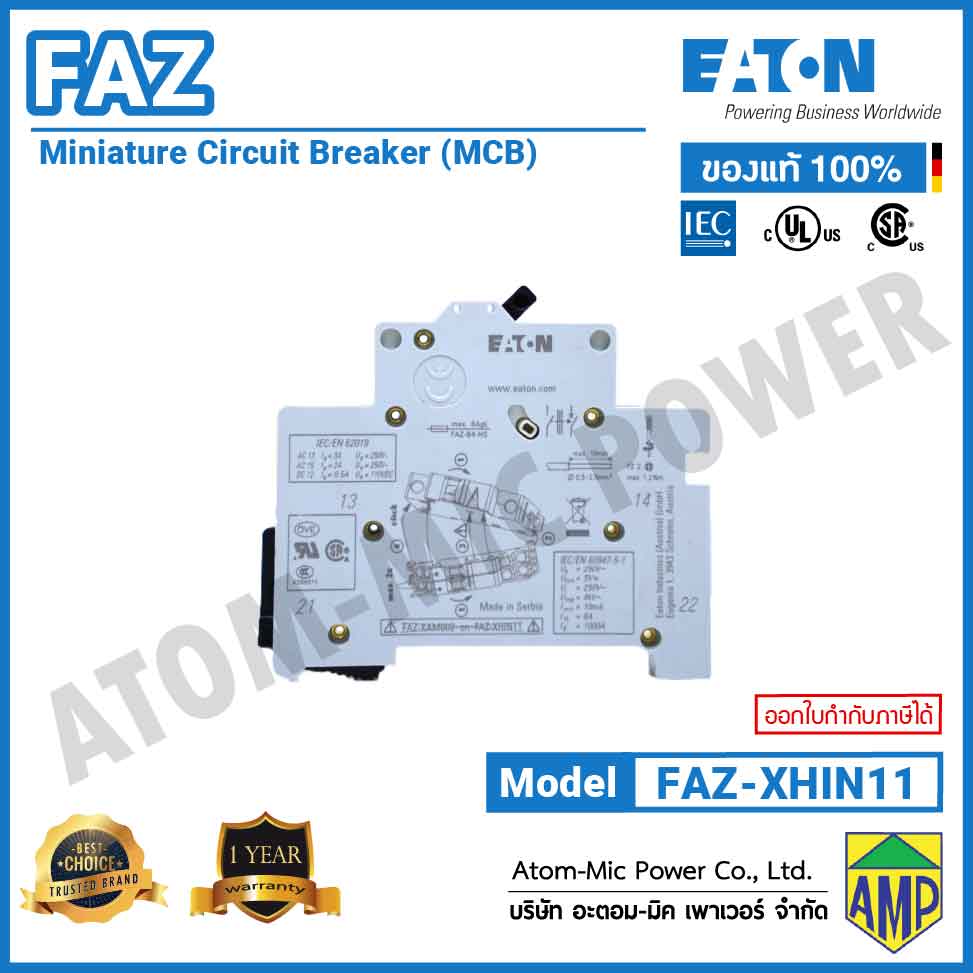

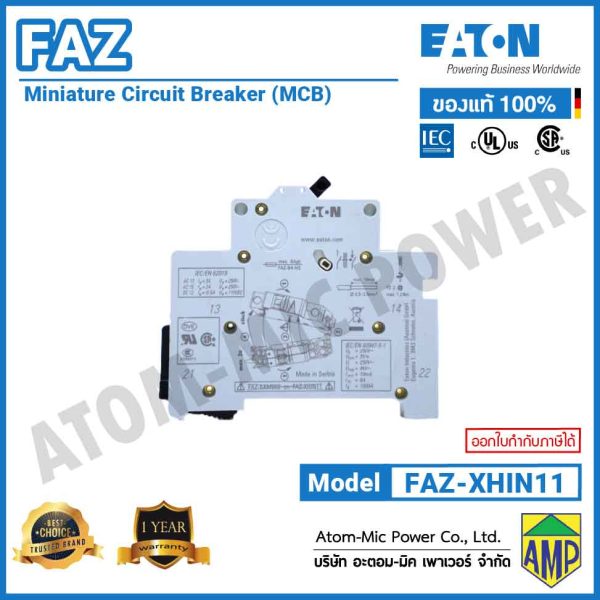

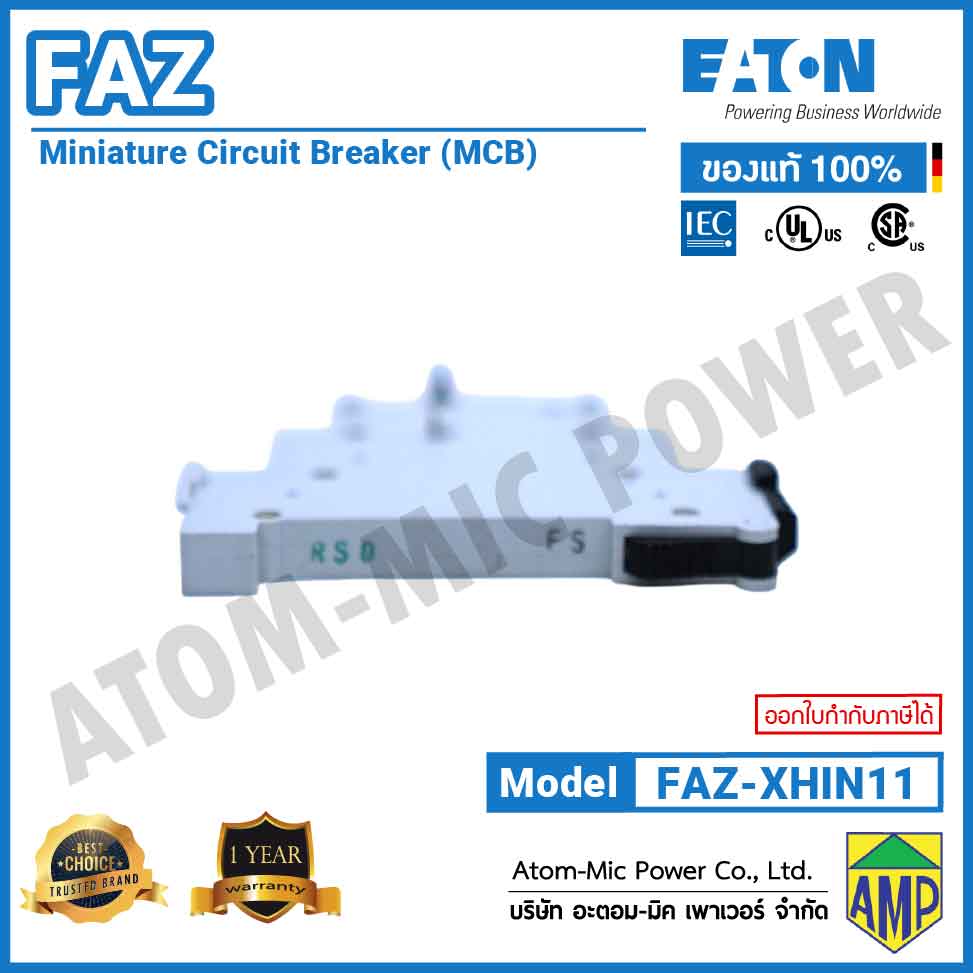

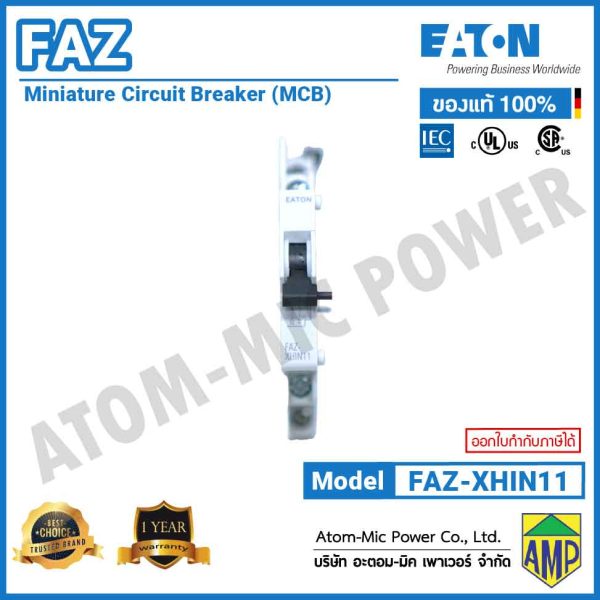

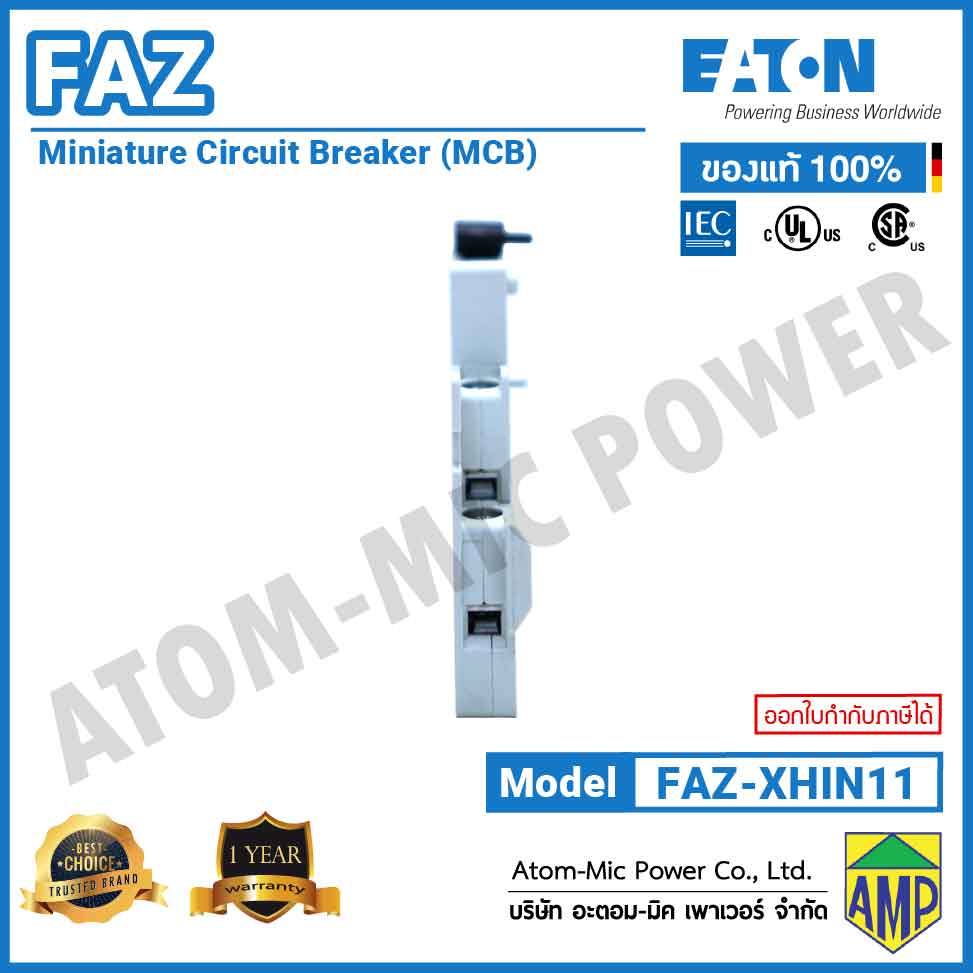

EATON – Miniature Circuit Breaker (MCB) – FAZ-XHIN11

Auxiliary contact, for FAZ, PKNM, 1N/O+1N/C, 0.5HP
UL 1077 Industrial Miniature Circuit Breaker – Thermal Magnetic Circuit

รหัสสินค้า: FAZ-XHIN11 หมวดหมู่: EATON CONTACTOR, แมกเนติกและรีเลย์

คำอธิบาย

Technical data
Electrical
Contact function : 1 NO + 1 NC
Rated operational voltage Ue : 250 V AC
Rated frequency : 50/60 f Hz
Rated current Ie : 6 A
Conventional free air thermal current : 6 A
Standard front dimension : 45 mm
Enclosure height : 80 mm
Mounting width : 8.8 mm (0.5 space unit)
Integrated : IP40
Rated switch current : 3 A
Rated voltage : 230 V
Voltage type for actuating : AC
