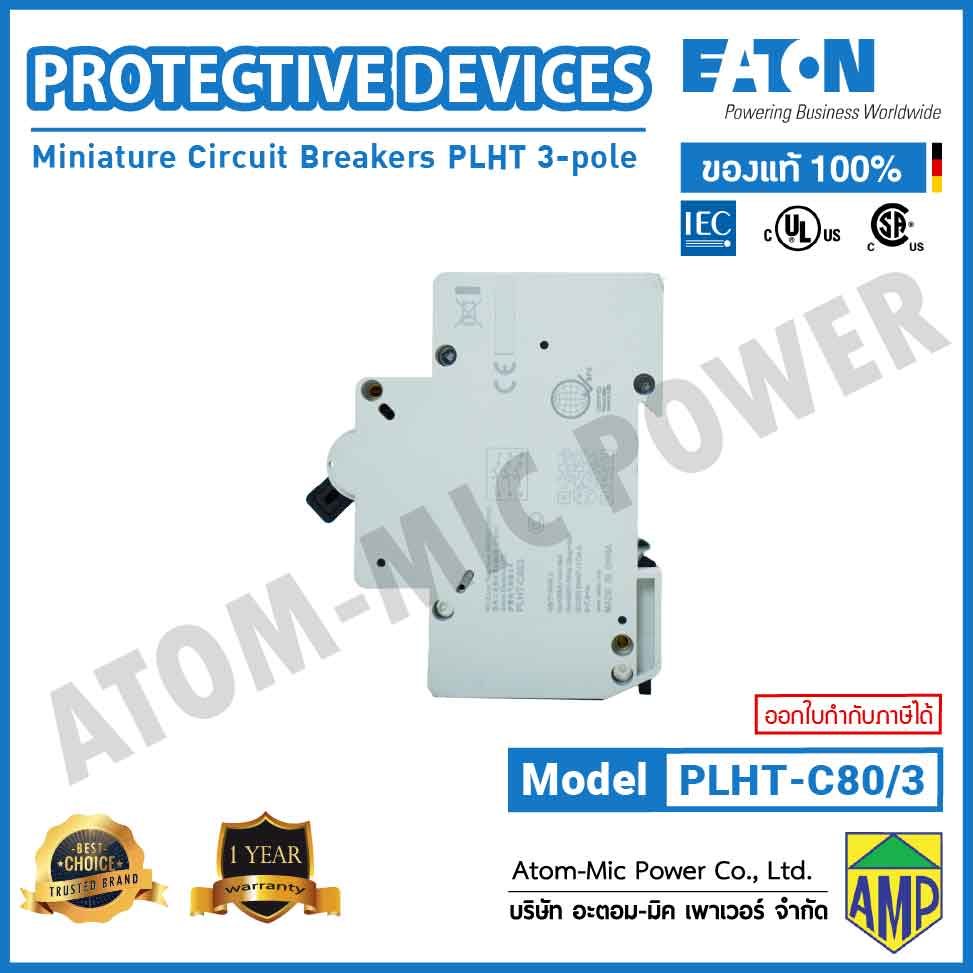

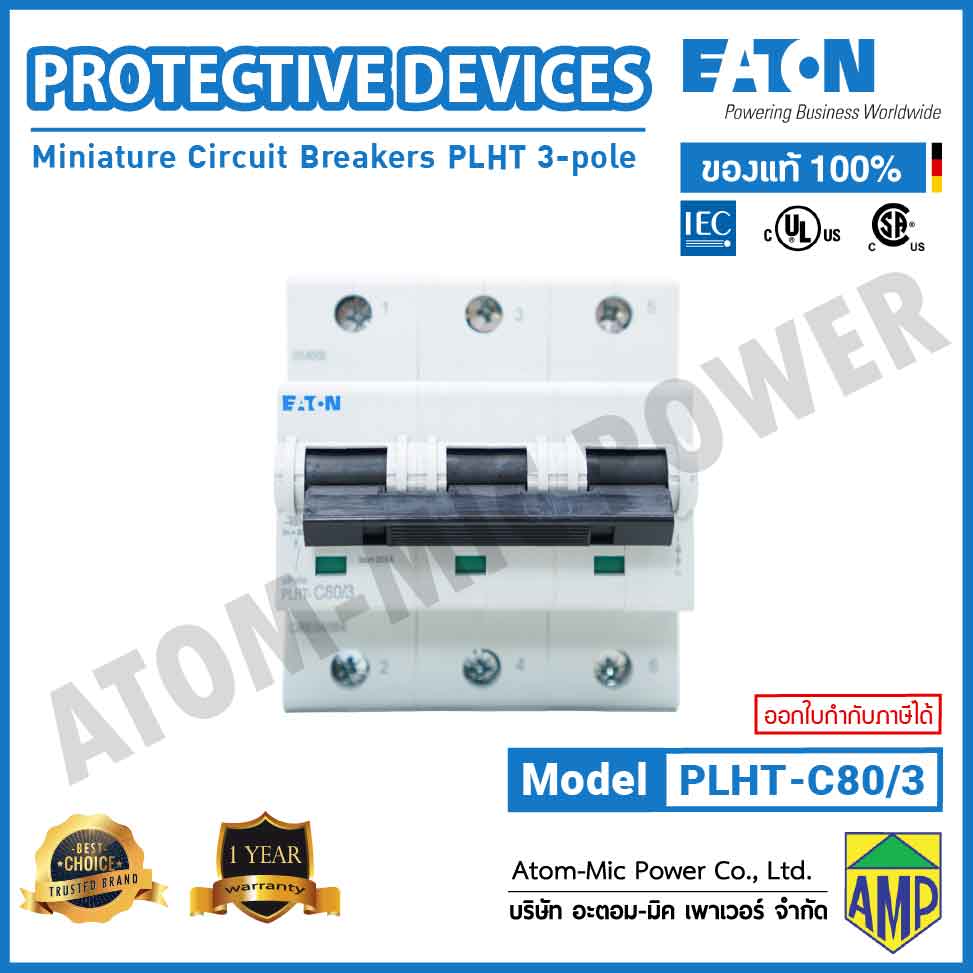

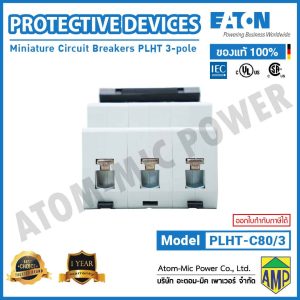

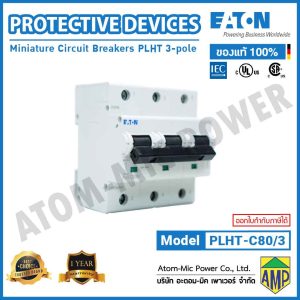

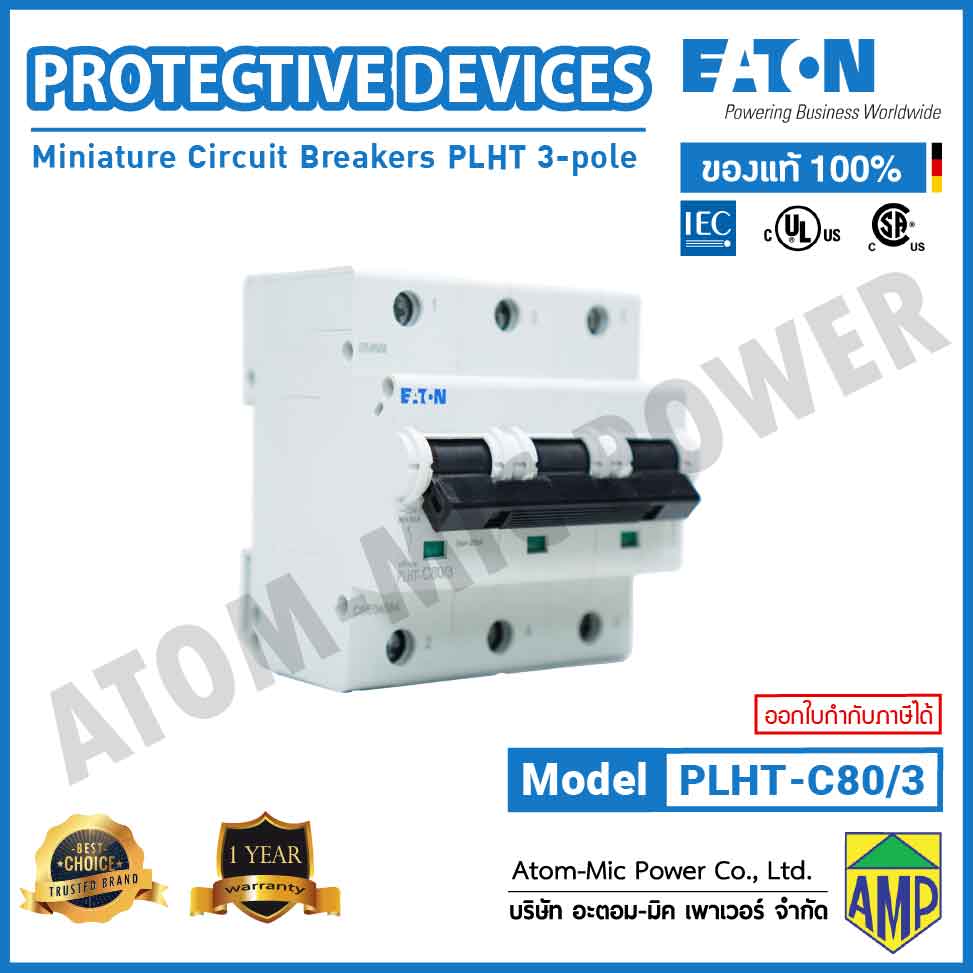

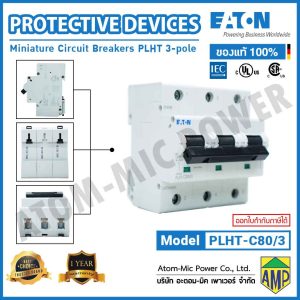

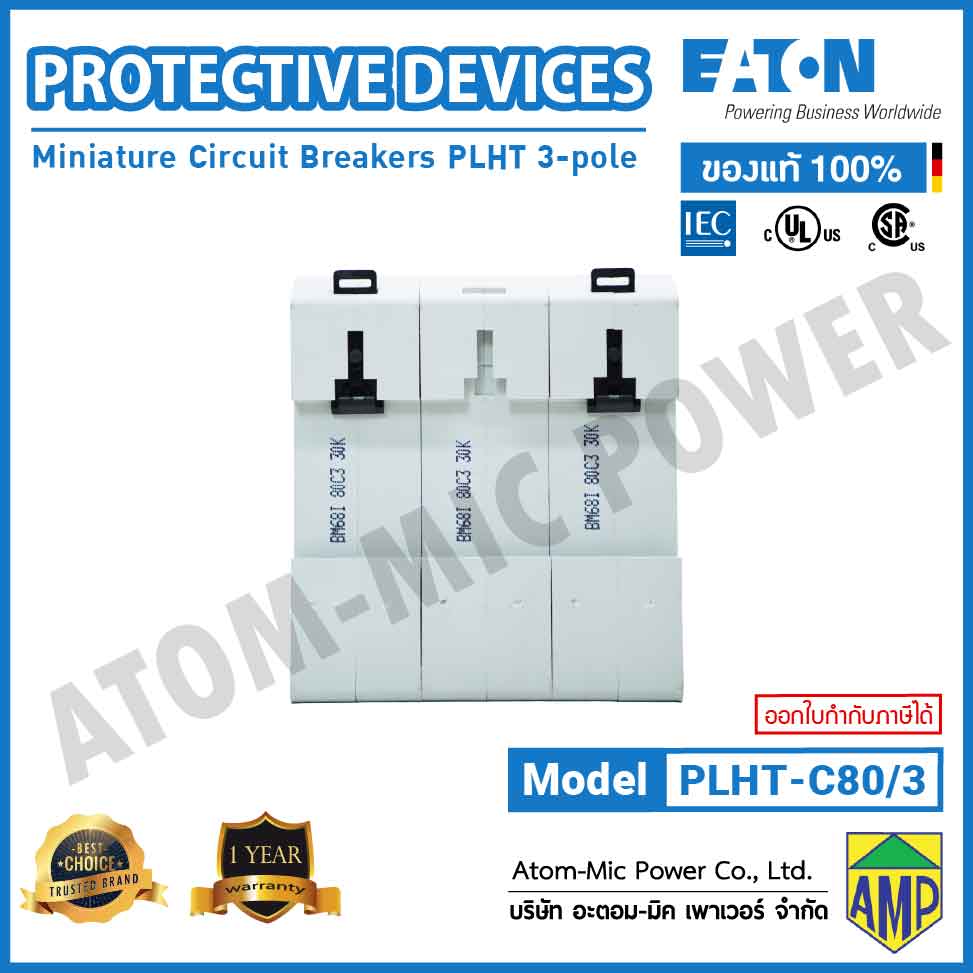

EATON – Miniature Circuit Breaker (MCB), 80A, 3p, C-Char, AC – PLHT-C80/3

– Part no. PLHT-C80/3
– Number of poles 3 pole
– Tripping characteristic C
– Application Switchgear for industrial and advanced commercial applications
– Rated current In A 80
– Rated switching capacity acc. to IEC/EN 60947-2 Icu kA 20
– Product range PLHT
– Rated operational current for specified heat dissipation In A 80
– Heat dissipation per pole, current-dependent Pvid W 0
– Equipment heat dissipation, current-dependent Pvid W 21.4
– Rated current A 80
– Rated voltage V 400
– Rated insulation voltage Ui V 440
– Rated impulse withstand voltage Uimp kV 4
– Voltage type AC
– Width in number of modular spacings 4.5
– Built-in depth mm 75
– Degree of protection (IP) IP20
