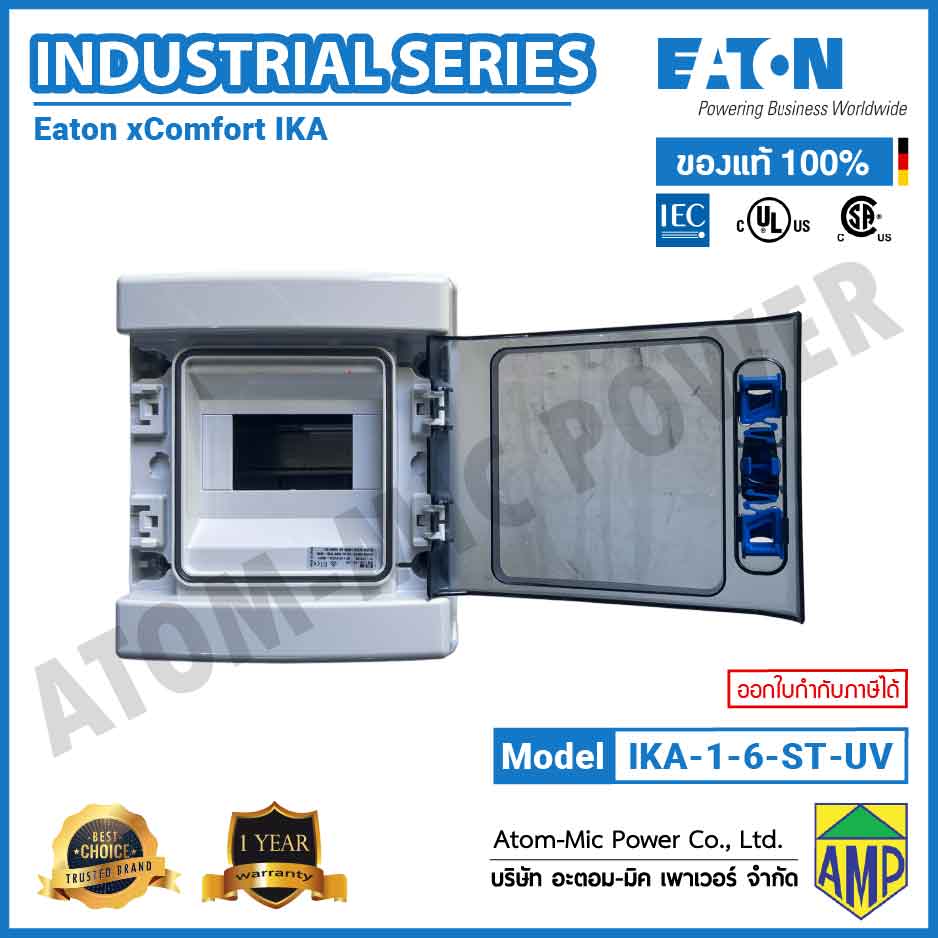

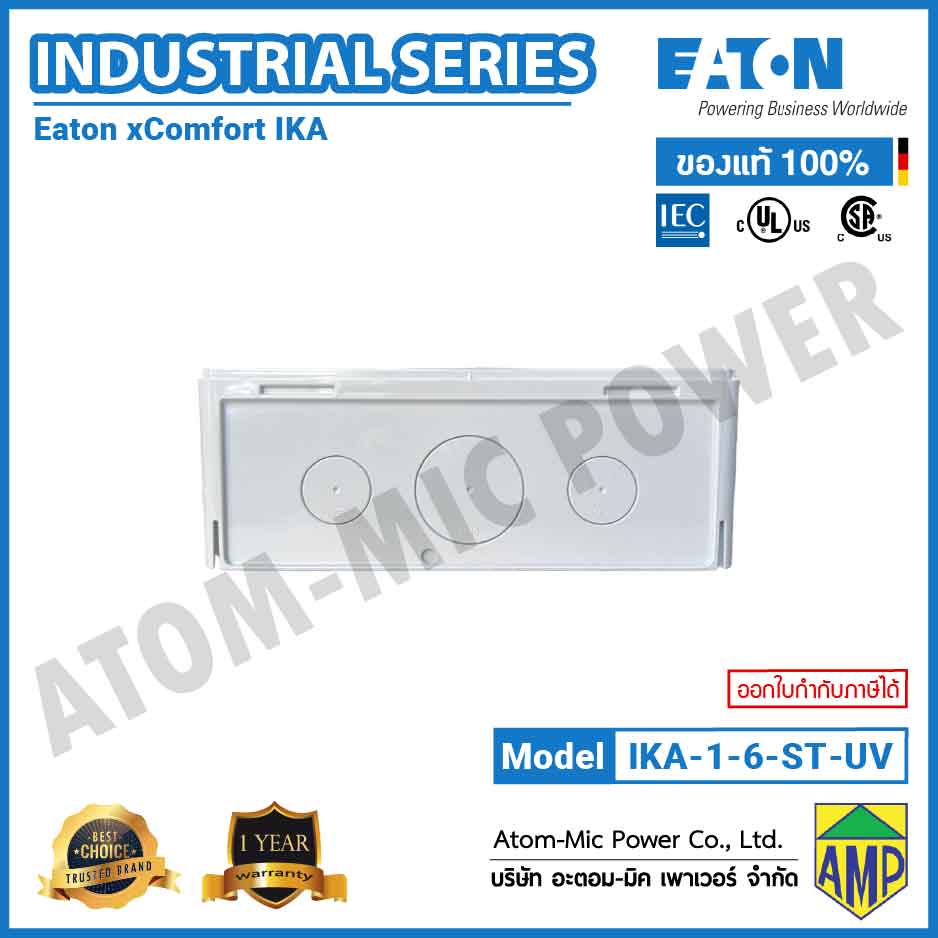

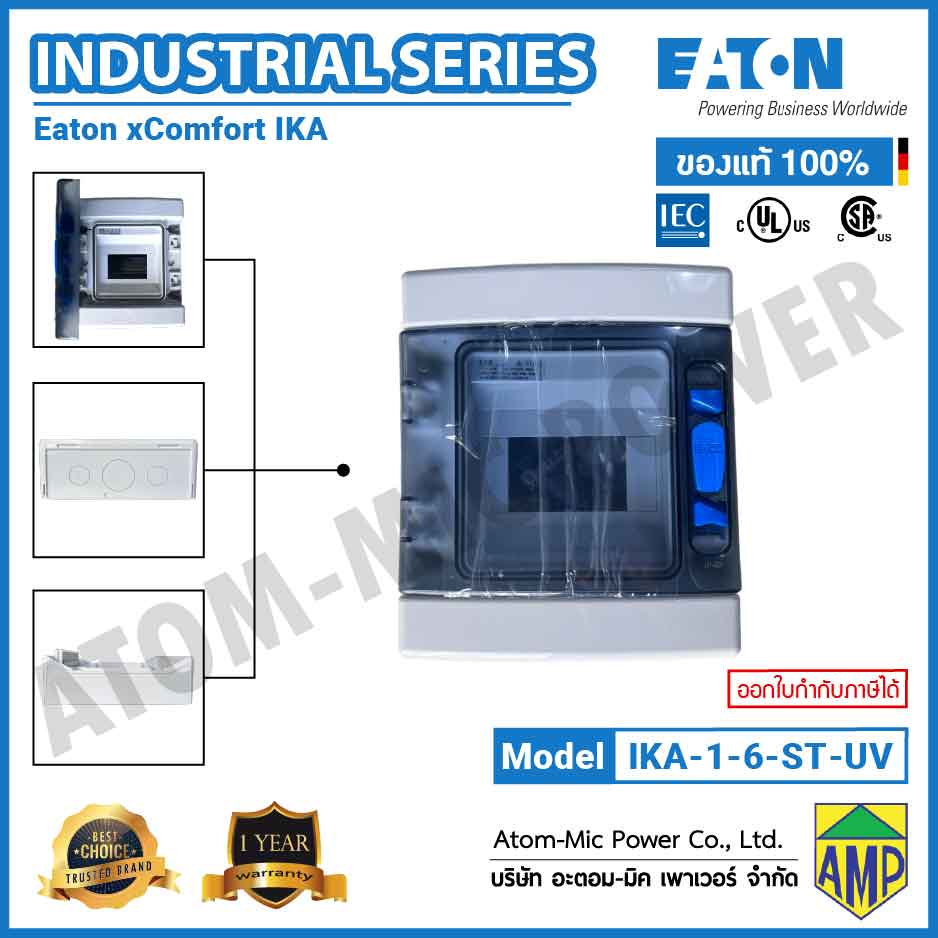

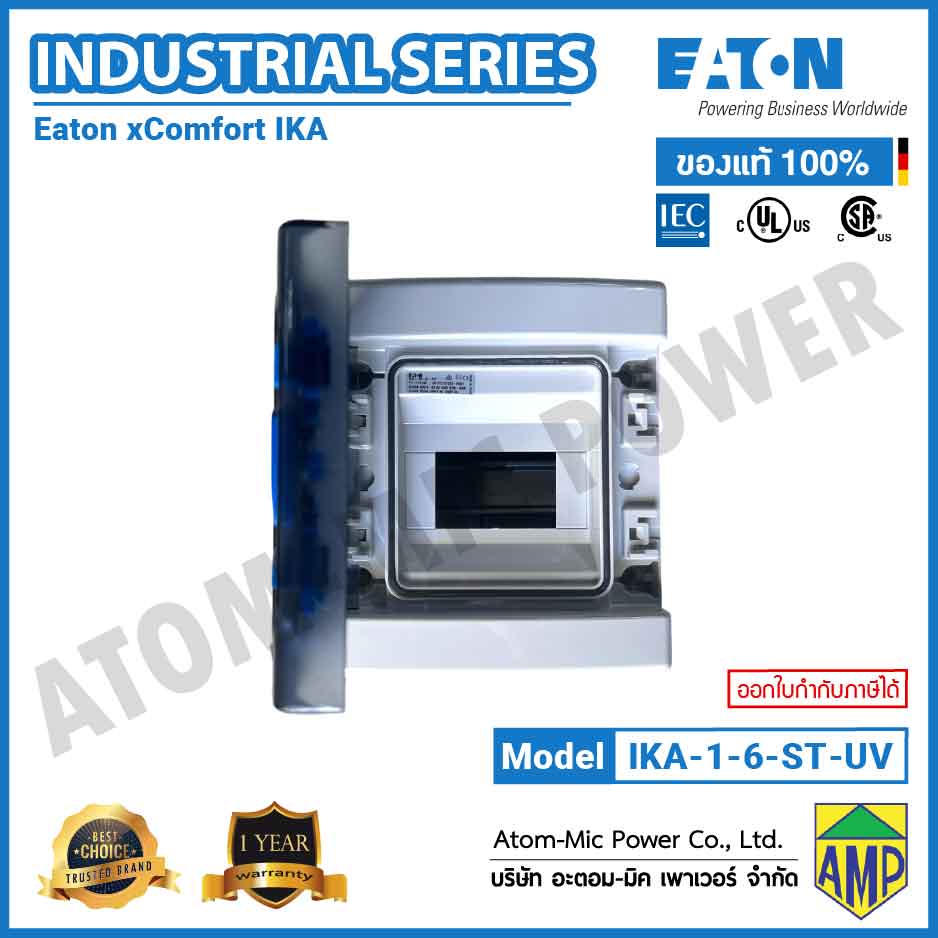

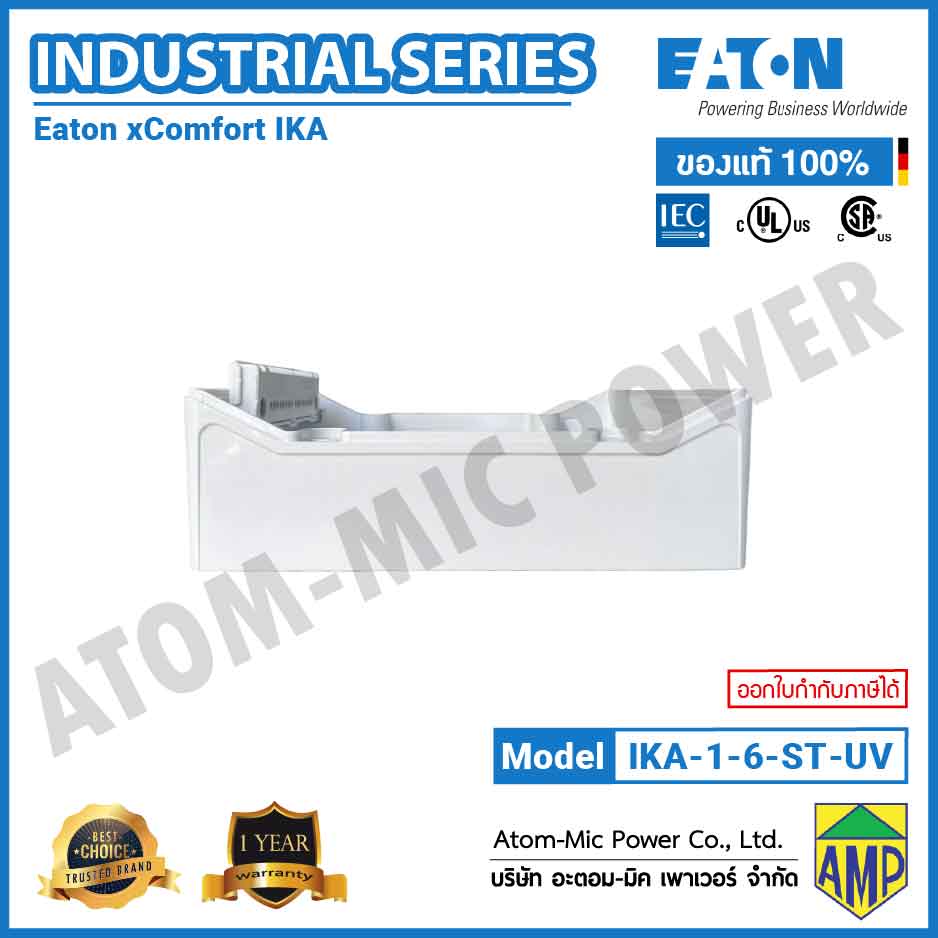

    EATON-IKA-1/6-ST-UV-xComfort IKA LV systems Final Distribution Boards

    Original price was: ฿2,610.00.Current price is: ฿1,227.00.

    Eaton xComfort IKA LV systems Final Distribution Boards. IKA industrial distribution board, UV-stable, IP65 + clamps, 1/6-ST-UV

    รหัสสินค้า: IKA-1/6-ST-UV หมวดหมู่: ,

    General Specifications
    Product Name : Eaton xComfort IKA industrial series
    Catalog Number : 174188
    EAN : 4015081706501
    Product Length/Depth : 110 mm
    Product Height : 231 mm
    Product Width : 202 mm
    Product Weight : 0.81 kg
    Compliances : RoHS conform
    Certifications : IEC/EN 60670-24, EN 62208
    Model Code : IKA-1/6-ST-UV
    Width in number of modular spacings : 6
    Enclosure material : Plastic
    Cable entry postion : Metric cable entries on top and bottom, back plate
    Terminal type : Screw terminals
    Built-in depth : 70 mm
    Heat diss. ambient 35°C delta T:20°C wall mount individ. encl. top (IEC 60890) : 13 W
    Ambient operating temperature details : -25 °C – 40 °C
    Voltage rating at AC : 415 V AC

    น้ำหนัก 0.81 กรัม
    ขนาด 11 × 20 × 23 เซนติเมตร
