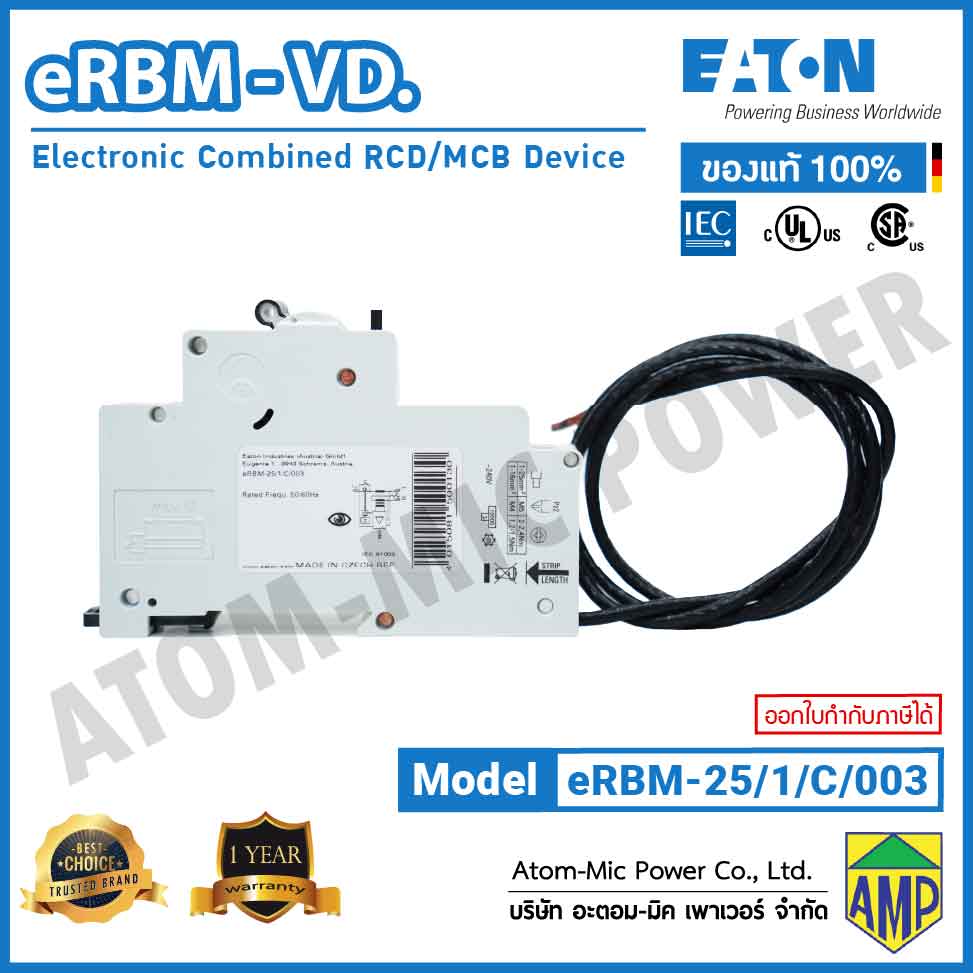

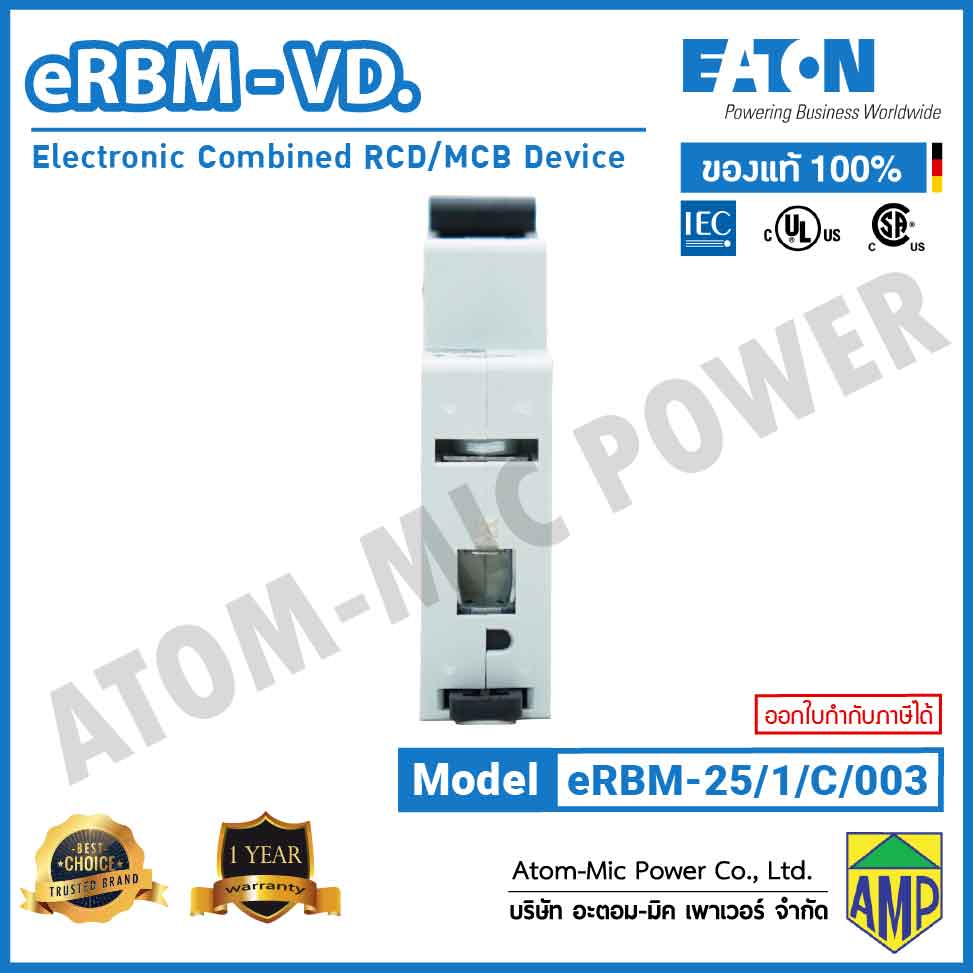

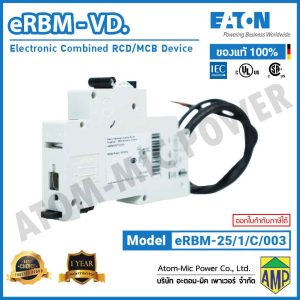

EATON – eRBM อุปกรณ์ป้องกันไฟดูด Electronic Combined RCD/MCB Device – eRBM-25/1/C/003

– Product : eRBM-25/1/C/003
– Product Length/Depth : 216 mm
– Product Height : 72 mm
– Product Width : 17.5 mm
– Product Weight : 0.18 kg
– Degree of protection : IP20
– Built-in depth : 69.5 mm
– Mounting Method : DIN rail
– Short length of 103mm, suitable for compact distribution boards & consumer units
– Specific for applications in the chassis mounted distribution boards, permanently connected neutral conductors
– Contact position indicator red – green
– Comprehensive range of accessories suitable for subsequent installation
– Guide for secure terminal connection
– Wide variety of rated tripping currents including Type A which offers higher immunity to nuisance tripping
– Rated currents up to 45A
– Tripping characteristics B, C, D
– Rated breaking capacity – eRB6: 6kA; eRBM: 10kA
