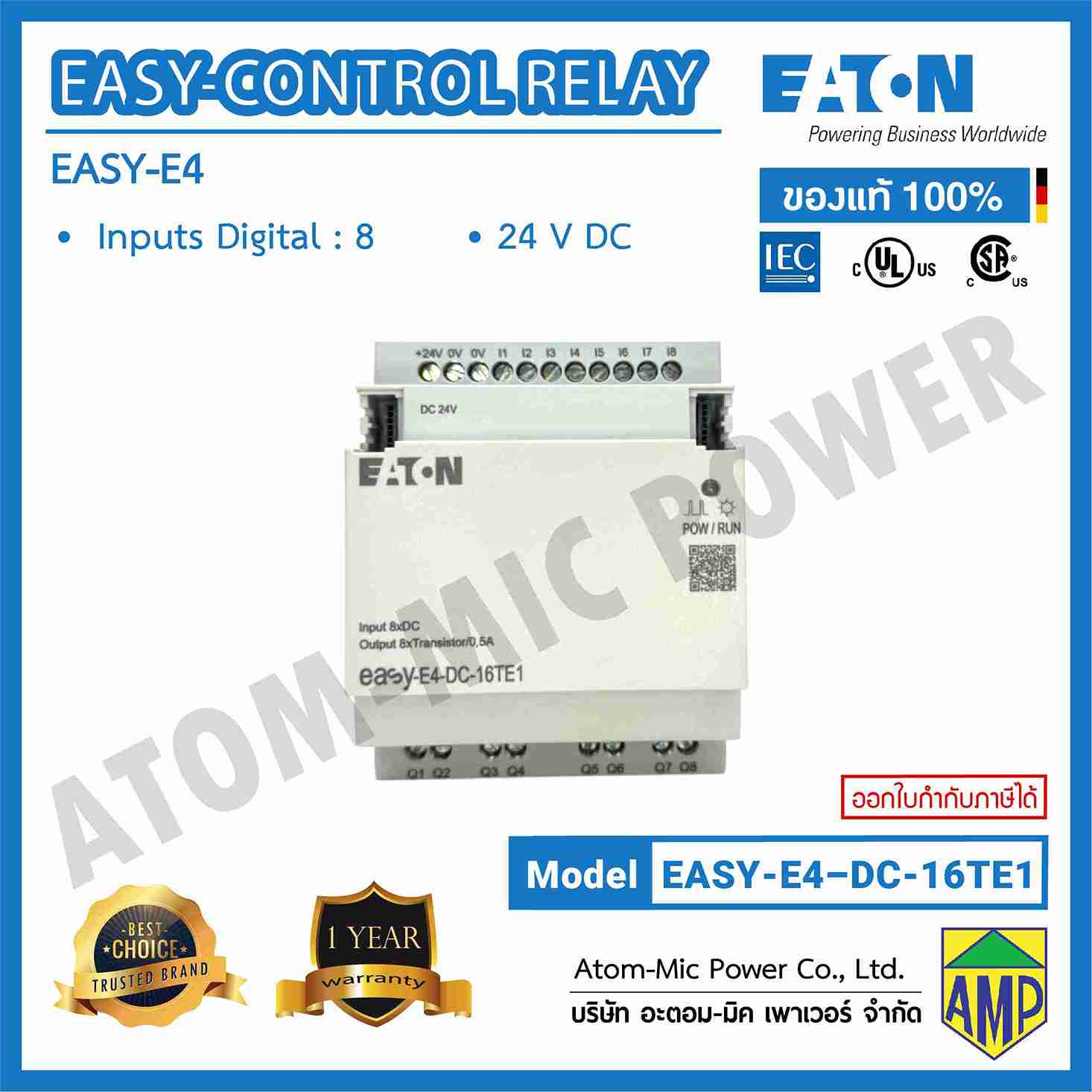

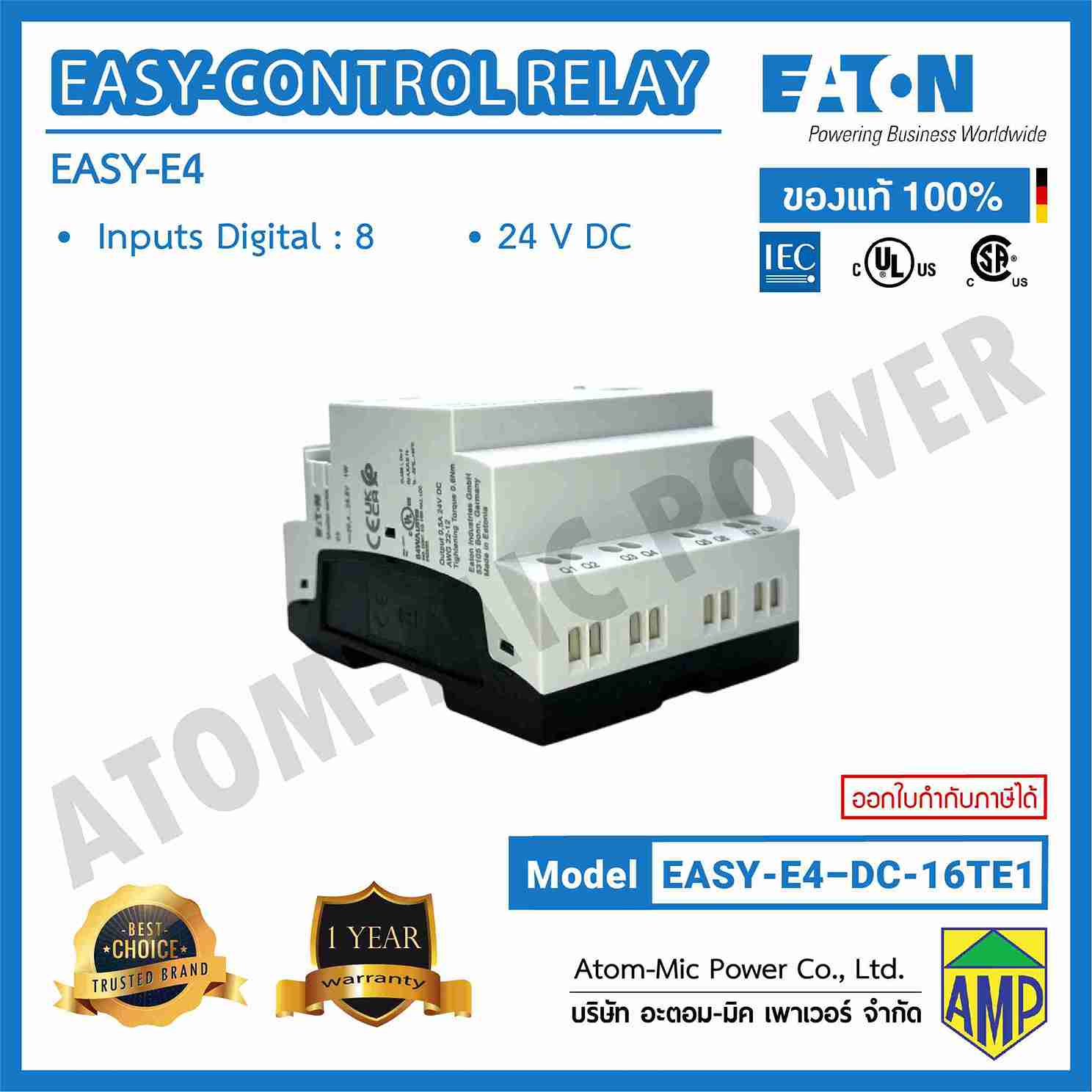

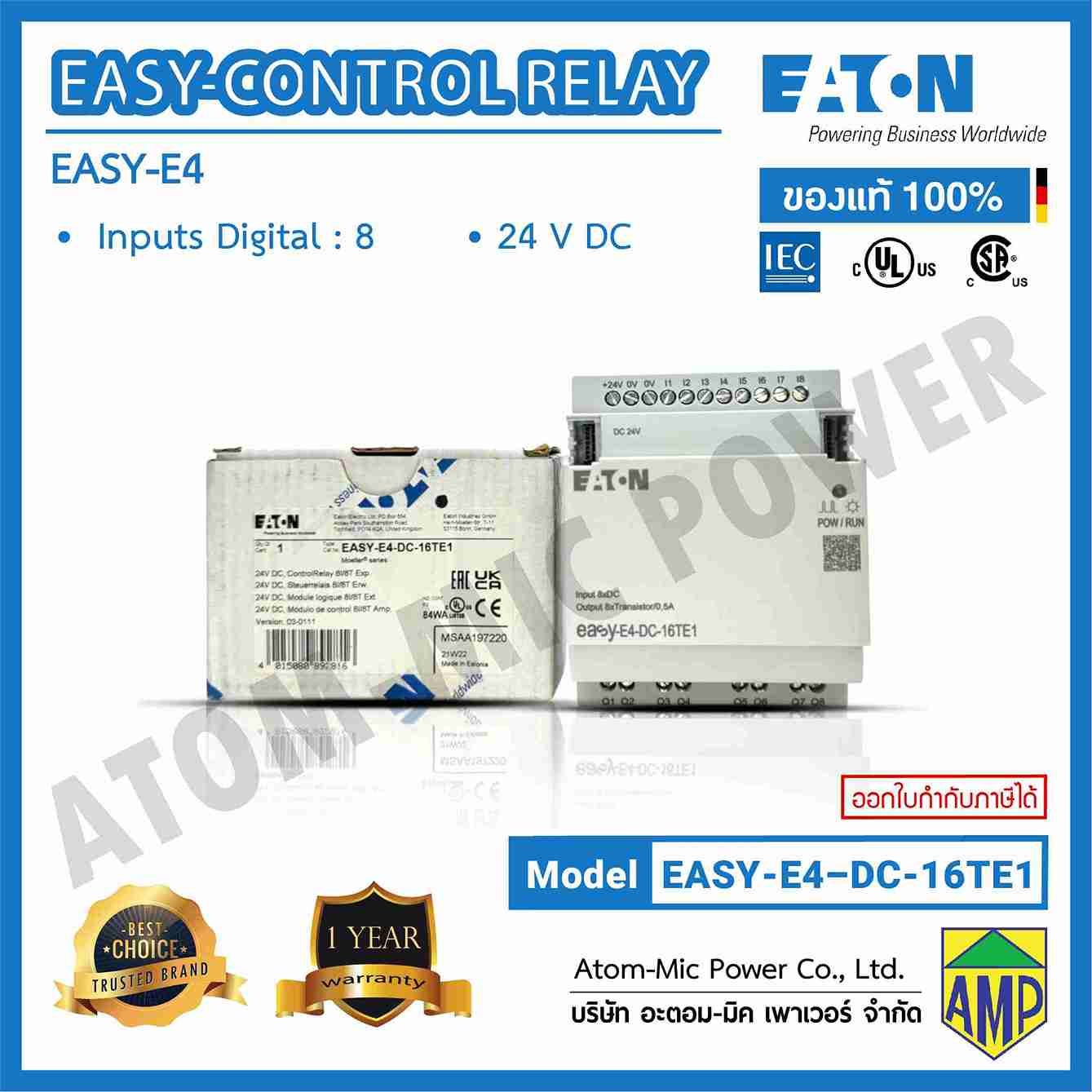

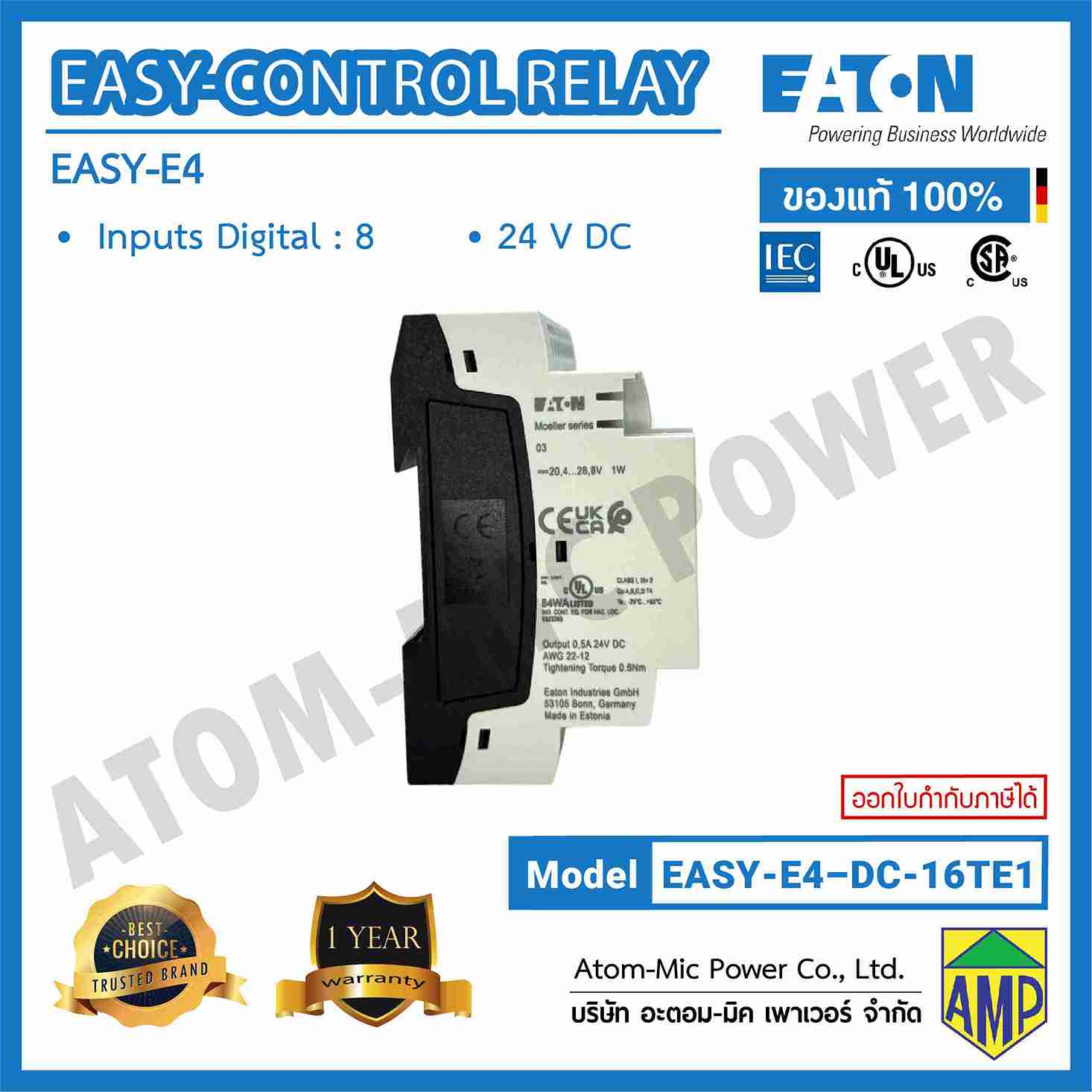

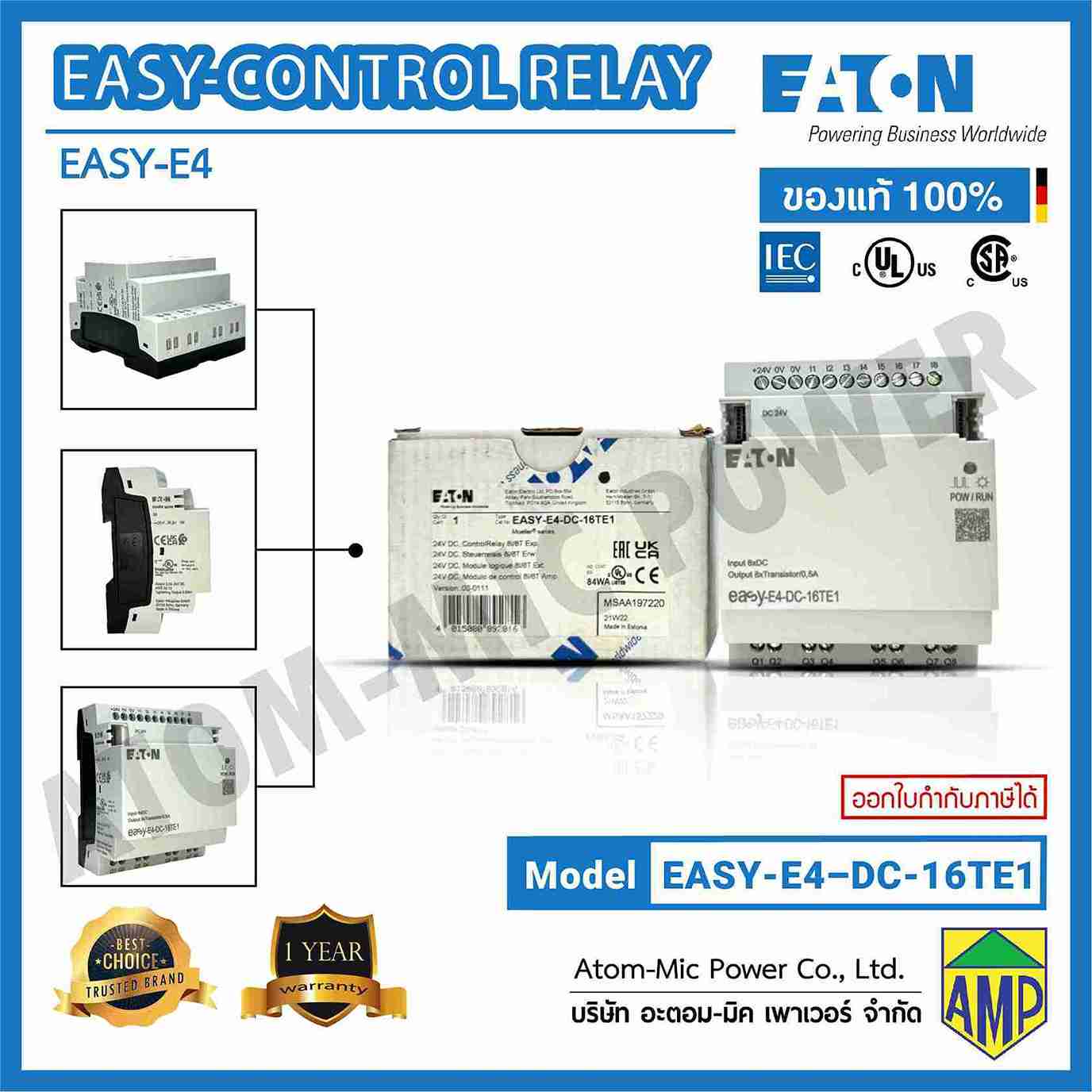

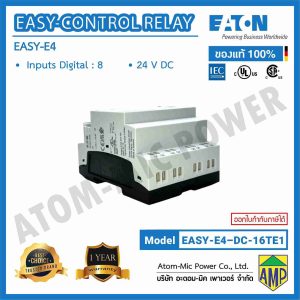

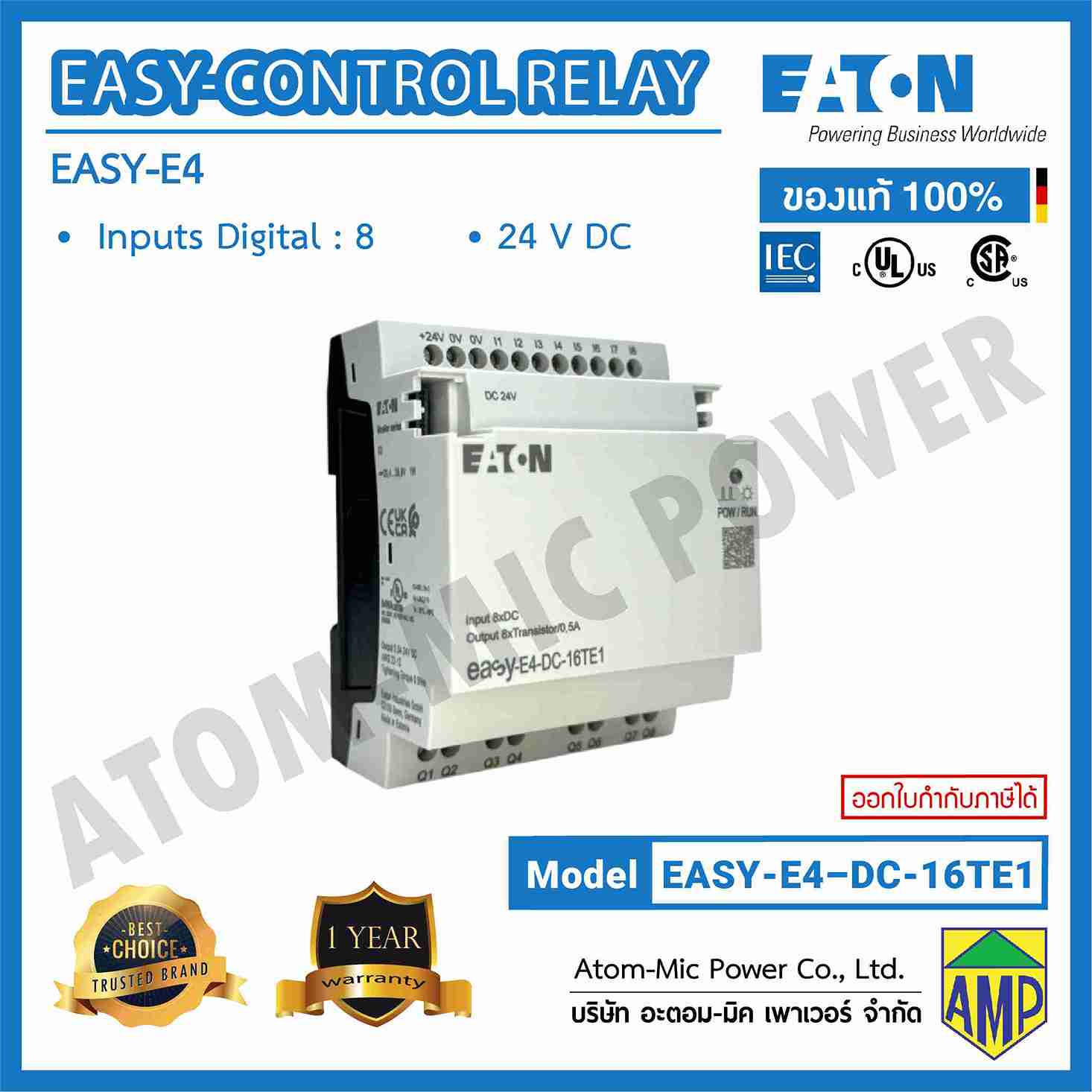

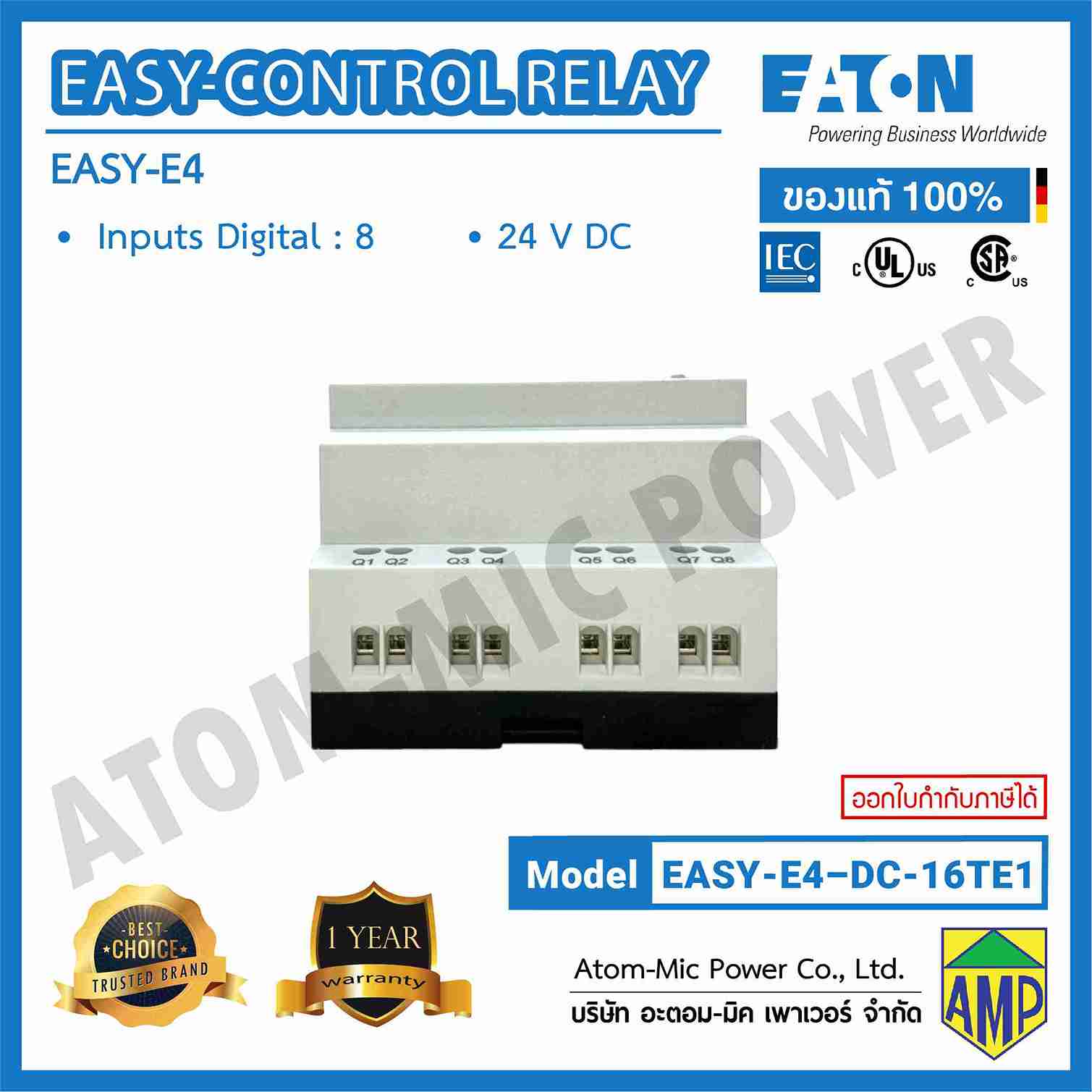

EATON – Control Relays – EASY-E4-DC-16TE1 – 24V DC

Eaton Moeller® series EASY I/O expansion, For use with easyE4, 24 V DC, Inputs expansion (number) digital: 8, screw terminal

รหัสสินค้า: EASY-E4-DC-16TE1 หมวดหมู่: EATON MINI PLC EASY-E4, PLC & ETHERNET SWITCH

Conventional thermal current ith of auxiliary contacts (1-pole, open)	0.5 A
Heat dissipation	3.4 W (at 24 V DC)
Inrush current	12.5 A (for 6 ms)
Power consumption	1 W
Power loss	1 W

Connection type

Screw terminal

Features	Expansion device Parallel connection of transistor outputs with resistive load, inductive load with external suppressor circuit, combination within a group – Group 1 Q1 to Q4 Expandable Parallel connection of transistor outputs with resistive load, inductive load with external suppressor circuit, combination within a group – Group 2 Q5 to Q8
Functions	Thermal cutout
Indication	LCD-display base unit used as Output status indication of Transistor outputs LCD-display base unit used as status indication of Digital inputs 24 V DC

Cable length

100 m, unscreened, Digital inputs 24 V DC

Connection type

Screw terminal

Number of inputs (digital)

Number of outputs (digital)

Pollution degree

Air discharge

8 kV

Contact discharge

6 kV

น้ำหนัก	0.2 กรัม
ขนาด	5 × 9 × 7 เซนติเมตร
