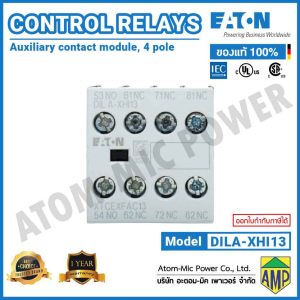

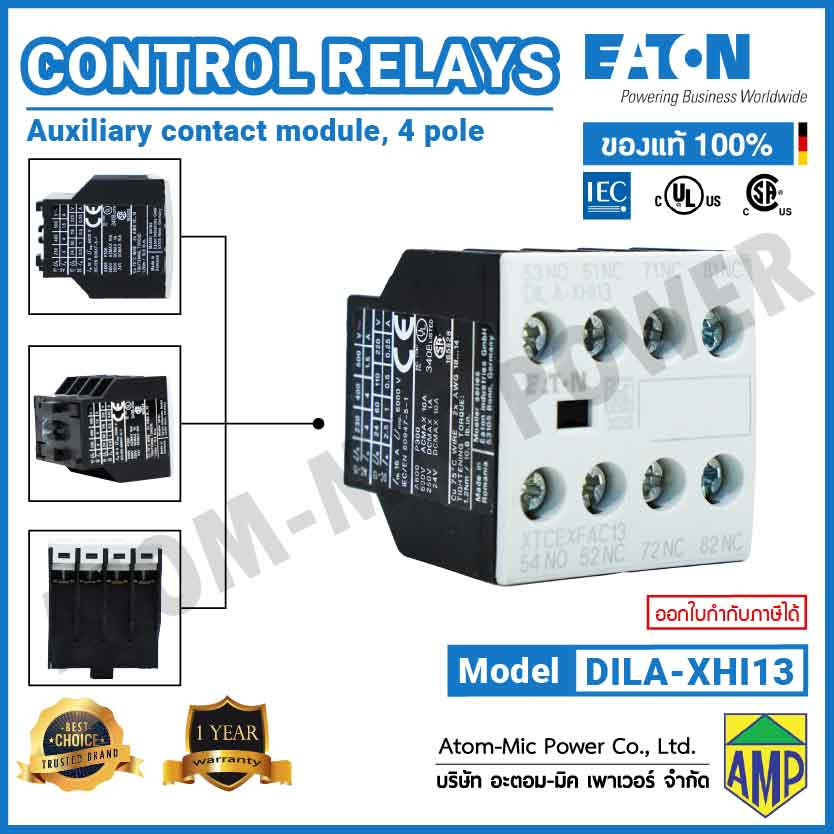

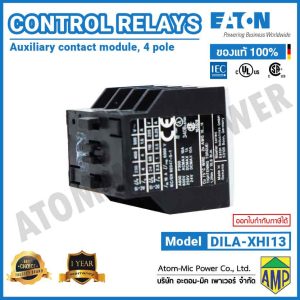

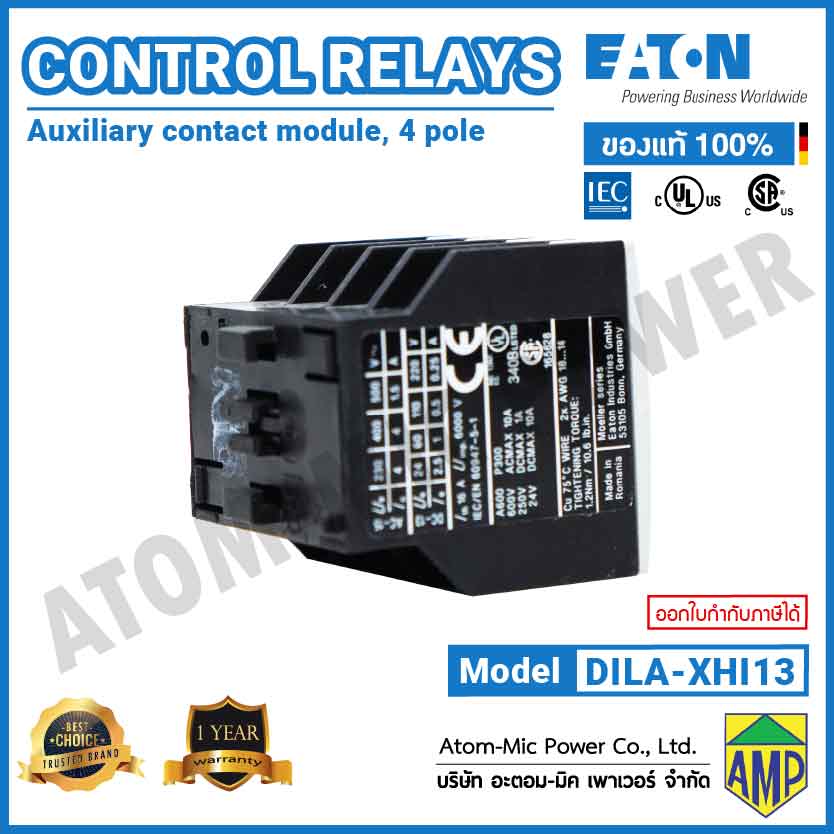

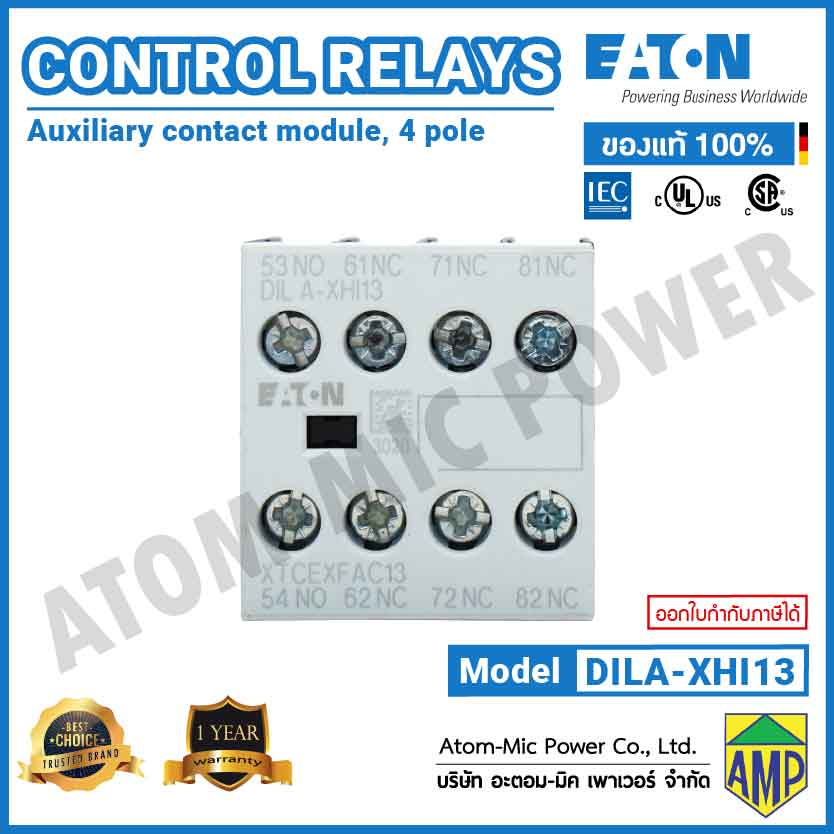

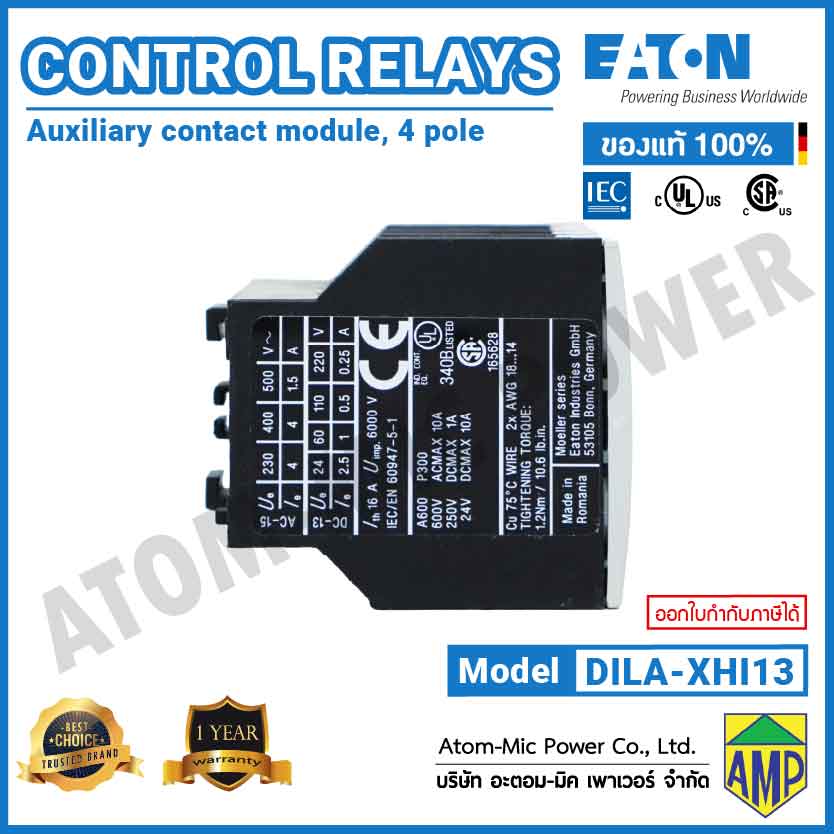

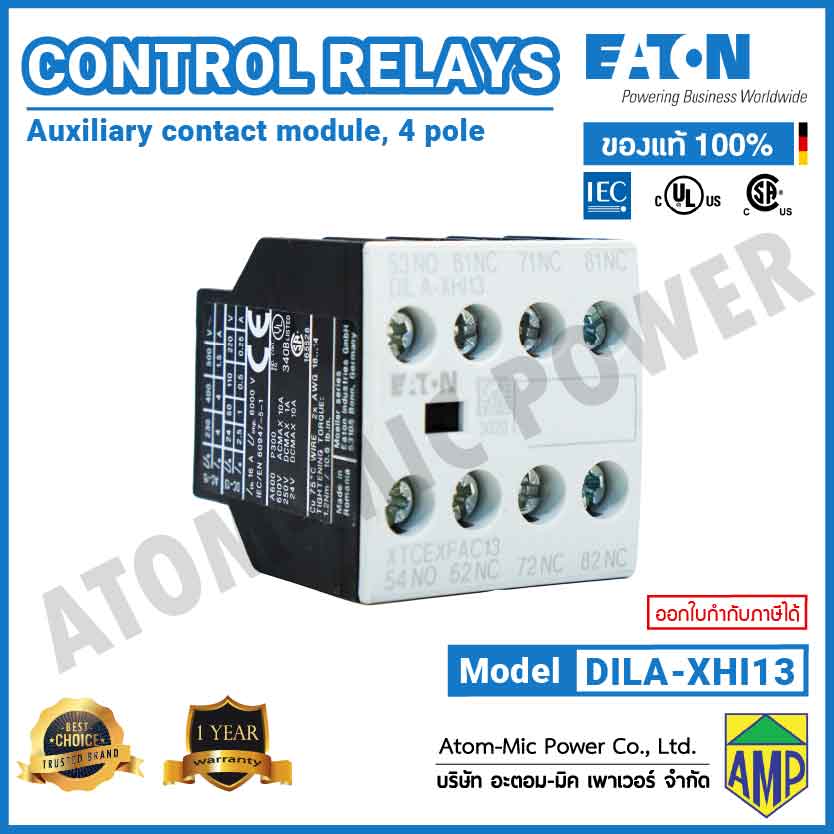

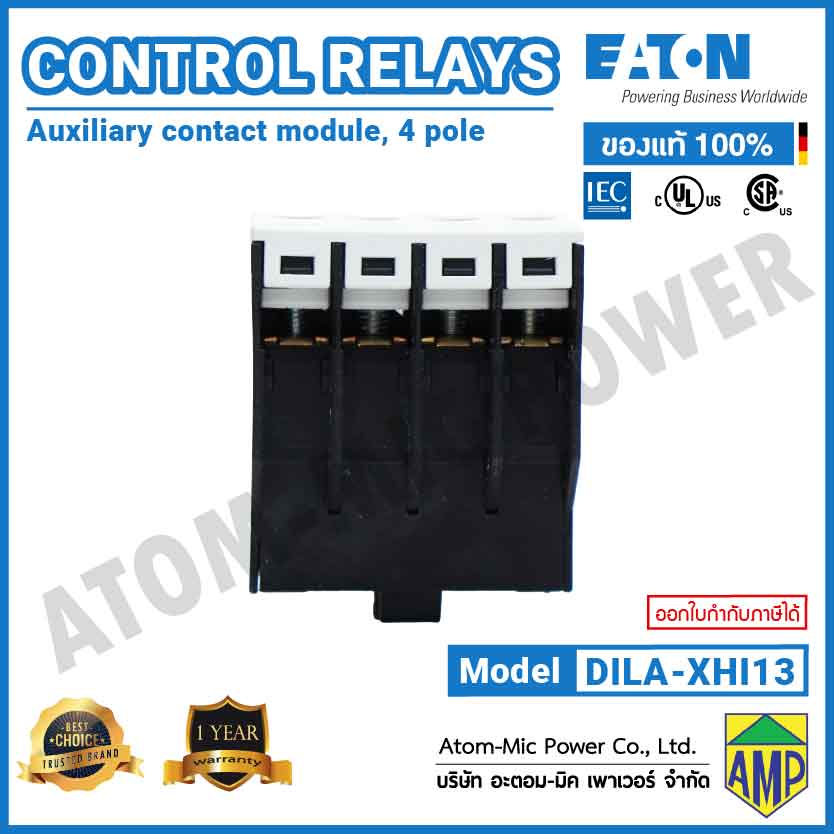

Eaton – Auxiliary contact module, 4 pole, 16 A, 1 N/O, 3 NC – DILA-XHI13

Model Code : DILA-XHI13
Product Length/Depth : 45 mm
Product Height : 38 mm
Product Width : 36 mm
Product Weight : 0.048 kg
Number of poles : Four-pole
Electric connection type : Screw connection
Screw size : M3.5, Terminal screw
Degree of protection : IP20
Mounting method : Front fastening
Connection : Screw terminals
Rated impulse withstand voltage (Uimp) : 6000 V AC
Rated insulation voltage (Ui) : 690 V
Rated operational voltage (Ue) at AC – max : 500 V
Conventional thermal current Ith at 60°C (3-pole, open) : 16 A
