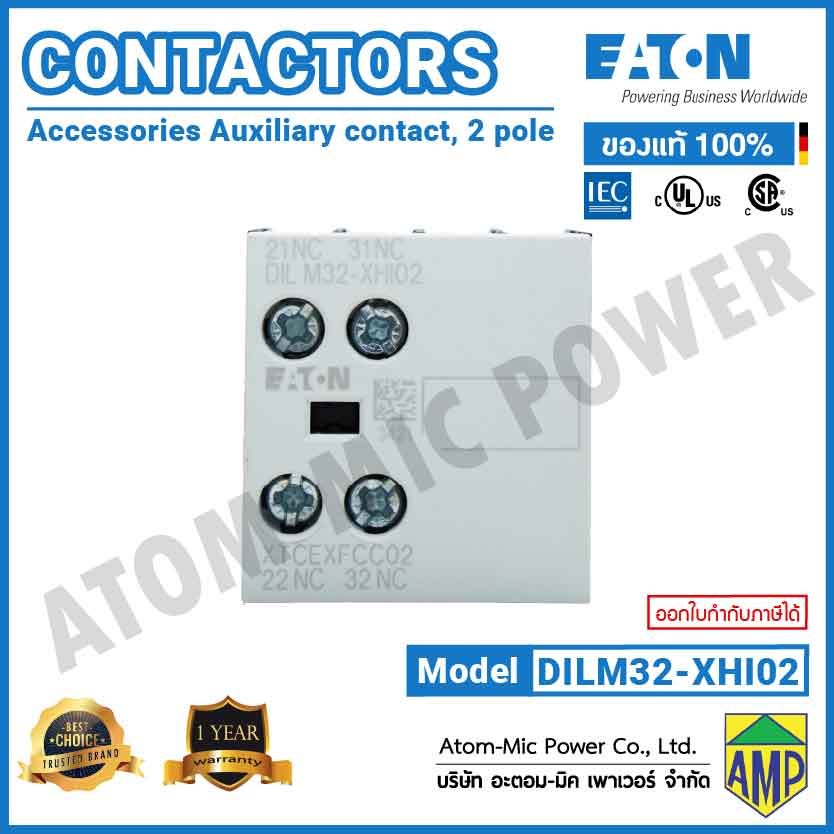

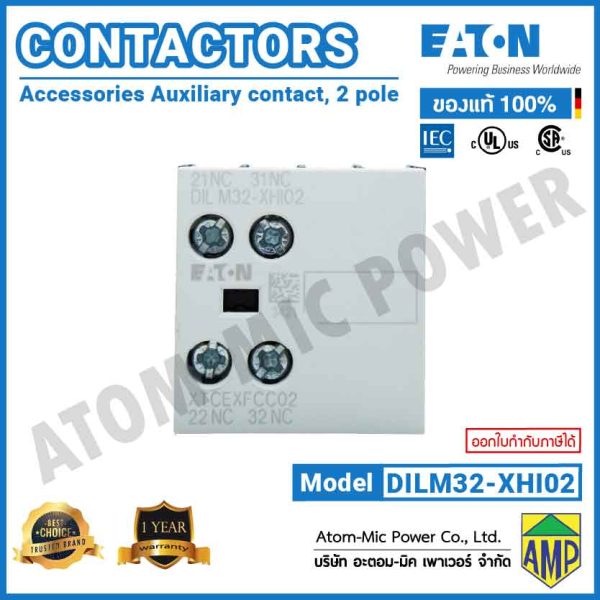

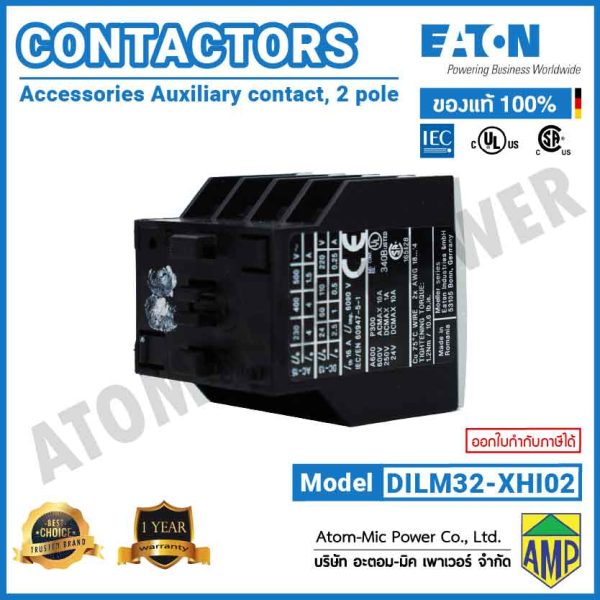

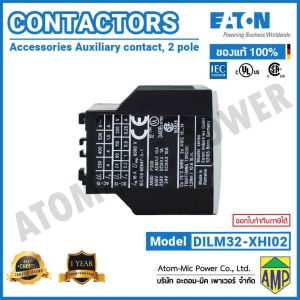

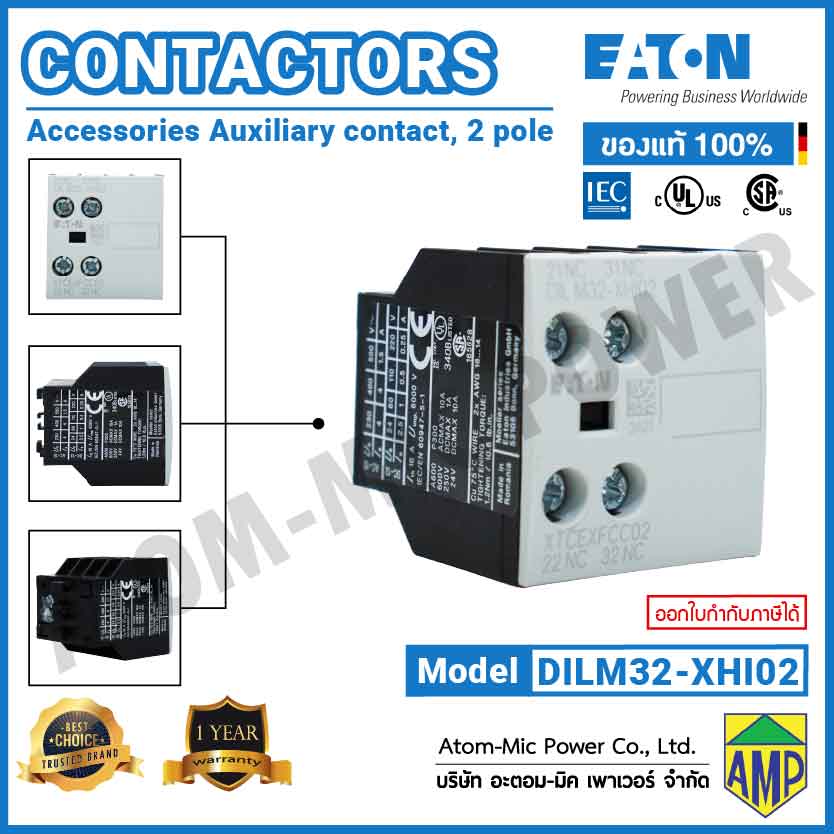

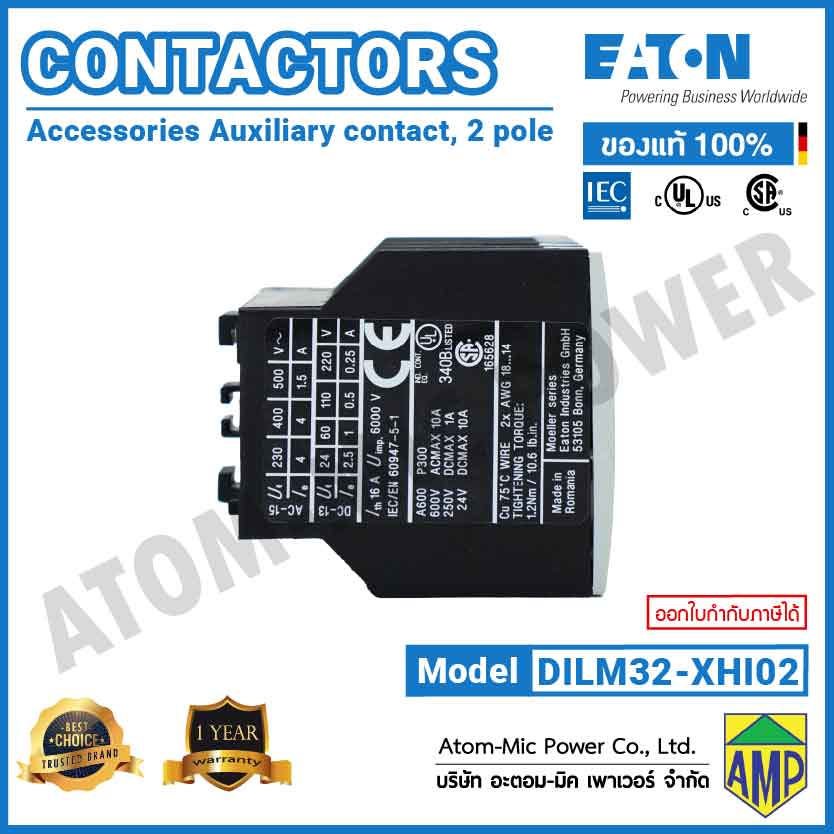

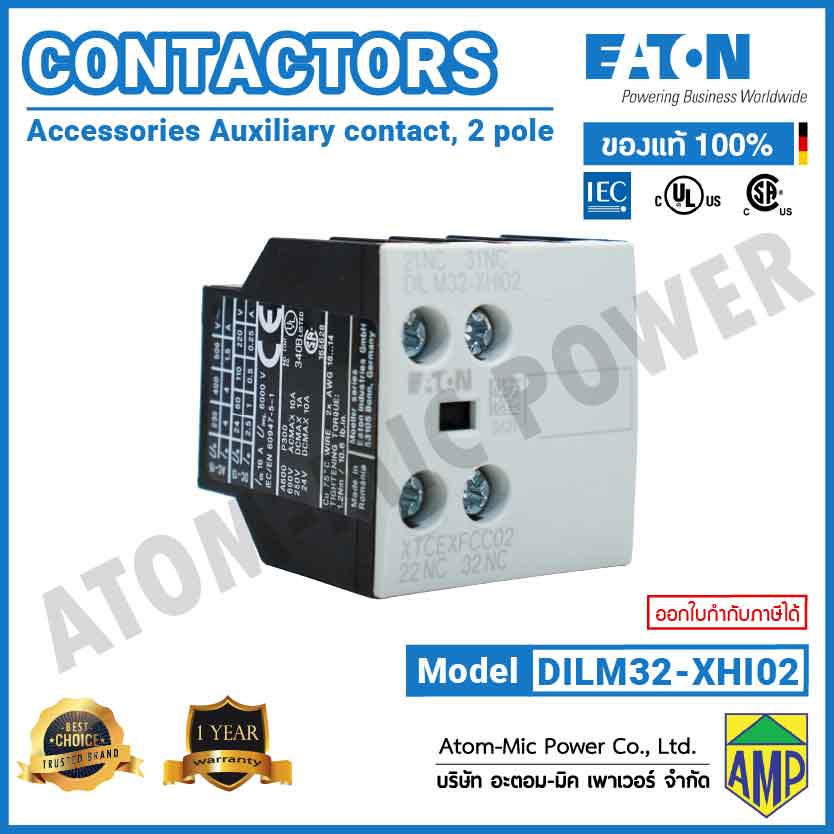

Eaton – Auxiliary contact module, 2 pole, 16 A, 2 NC – DILM32-XHI02

Model Code : DILM32-XHI02
Product Length/Depth : 45 mm
Product Height : 38 mm
Product Width : 36 mm
Product Weight : 0.038 kg
Number of poles : Two-pole
Electric connection type : Screw connection
Connection : Screw terminals
Model : Top mounting
Mounting method : Front fastening
Rated impulse withstand voltage (Uimp) : 6000 V AC
Tightening torque : 1.2 Nm, Screw terminals
Rated operational voltage (Ue) at AC – max : 500 V
Rated insulation voltage (Ui) : 690 V
Rated operational current for specified heat dissipation (In) : 4 A
