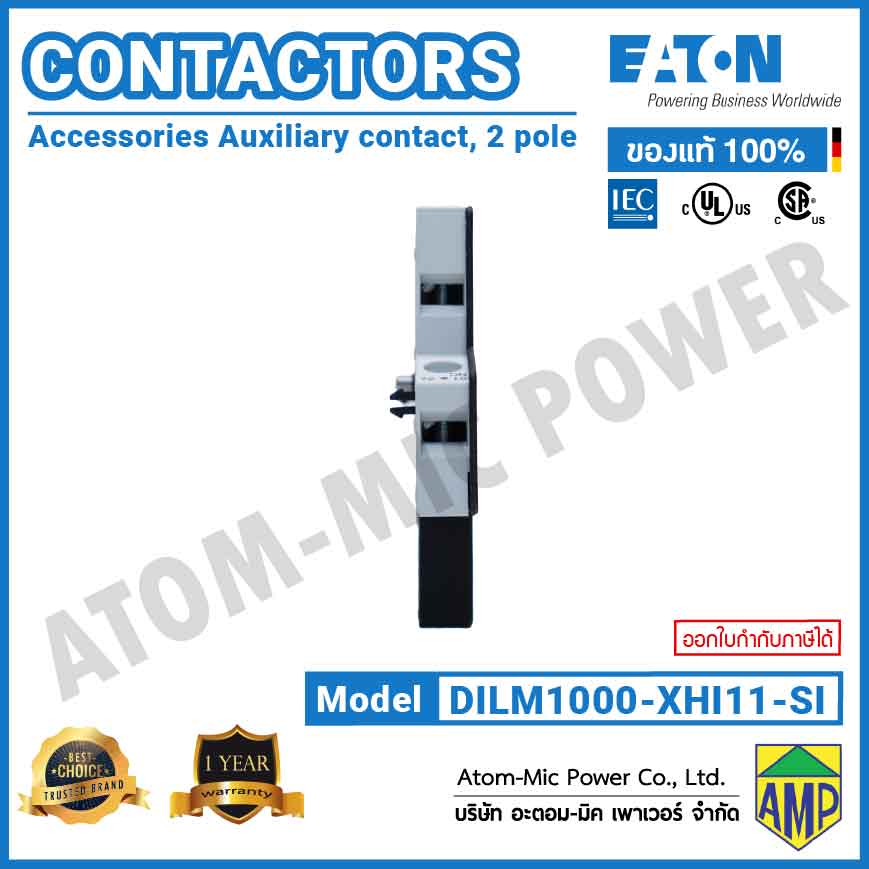

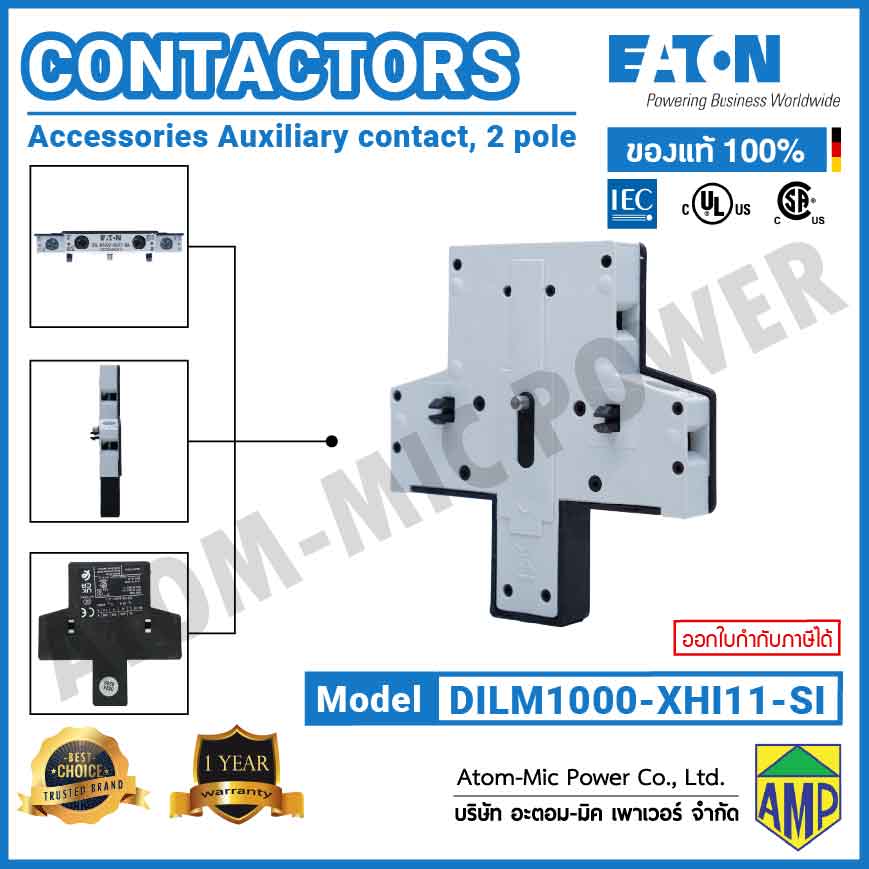

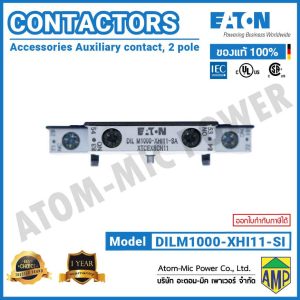

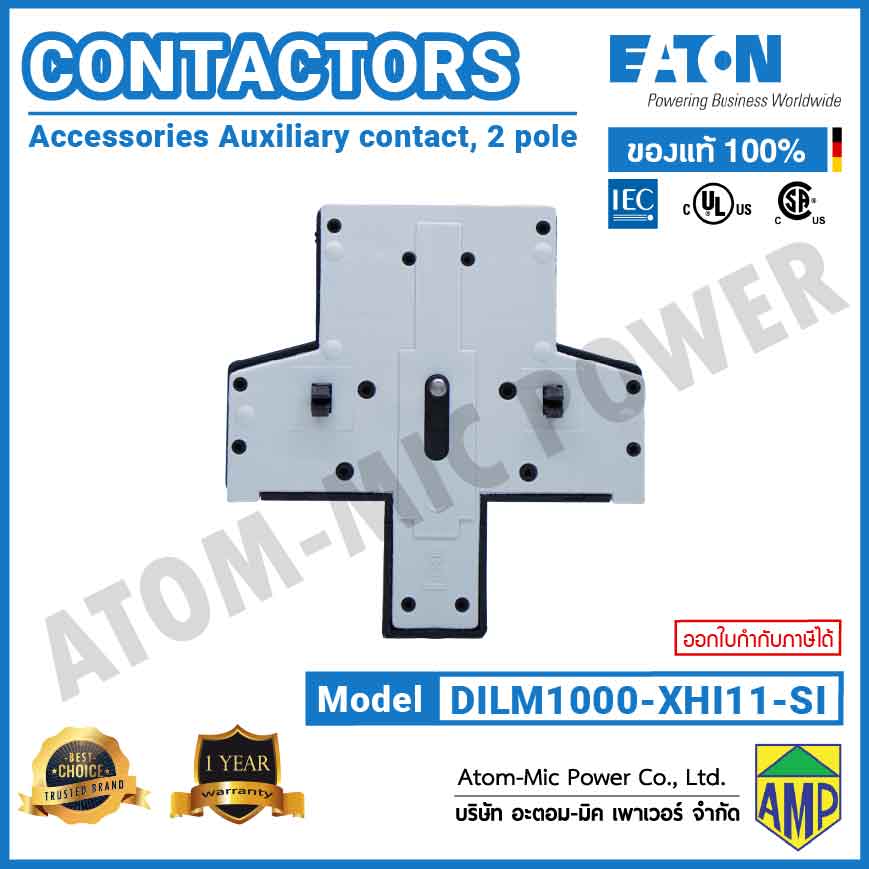

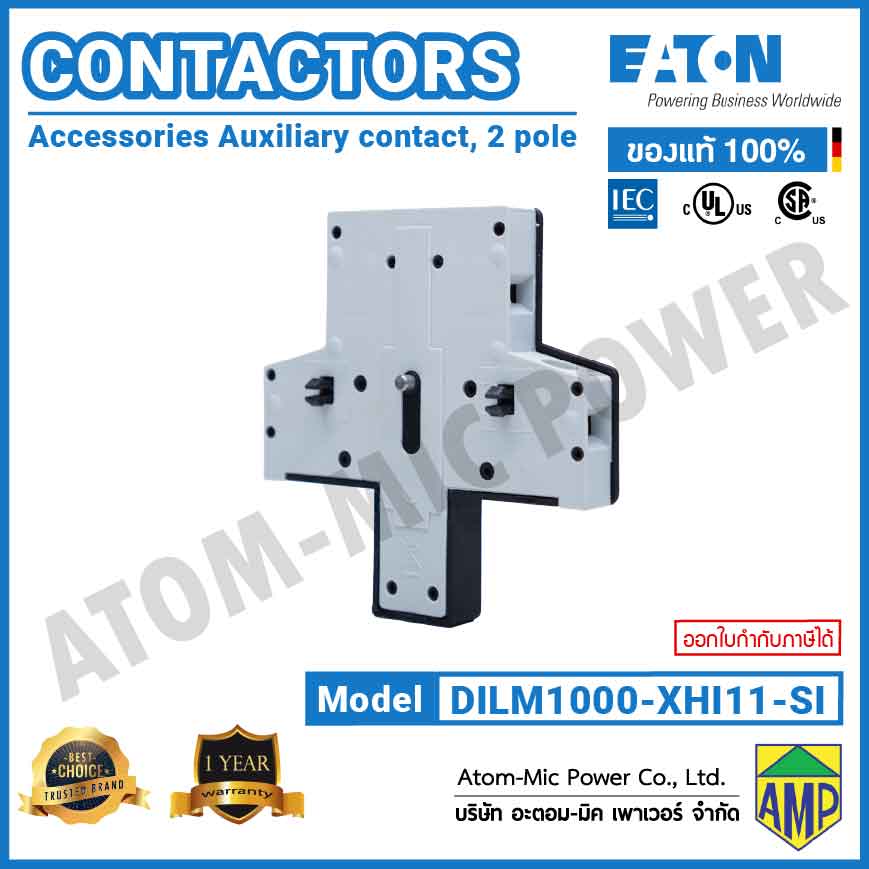

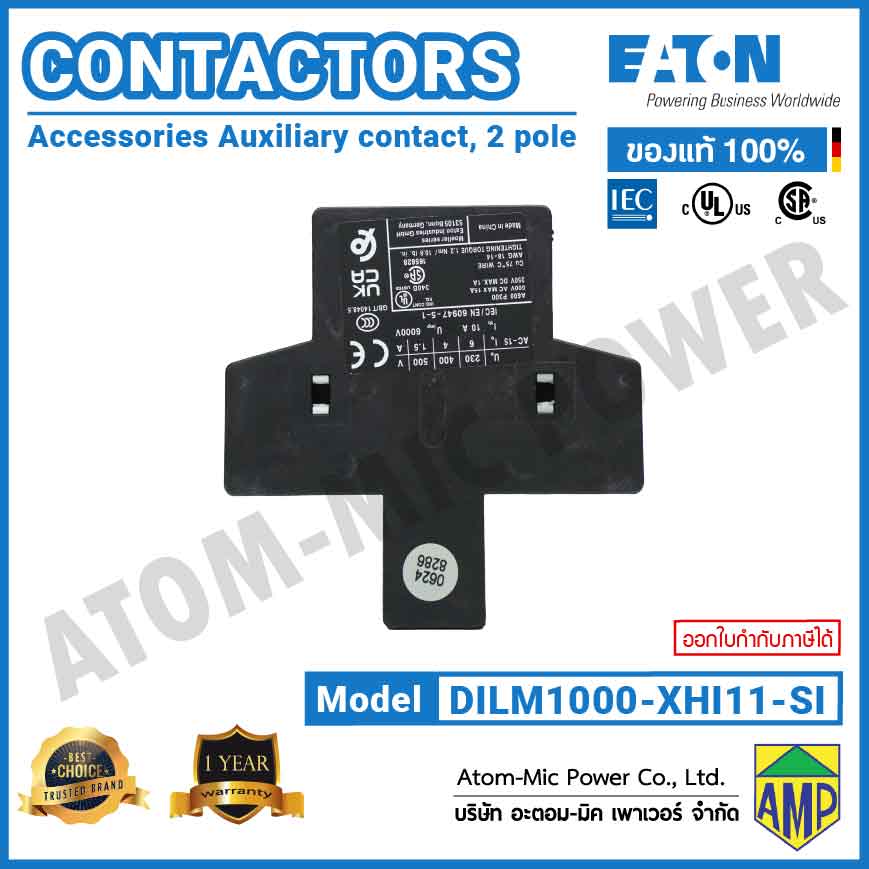

EATON – Auxiliary Contact – DILM1000-XHI11-SI (1 NO, 1 NC)

– Model Code : DILM1000-XHI11-SI
– Product Length/Depth : 77 mm
– Product Height : 77 mm
– Product Width : 15 mm
– Product Weight : 0.041 kg
– Degree of protection : IP20
– Pollution degree : 3
– Rated impulse withstand voltage (Uimp) : 6000 V AC
– Type : Side-mounting auxiliary contacts
– Screw size : M3.5, Terminal screw
– Rated operational current (Ie) at AC-15, 220 V, 230 V, 240 V : 6 A
– Rated operational current (Ie) at AC-15, 380 V, 400 V, 415 V : 4 A
– Rated insulation voltage (Ui) : 690 V
– Rated operational voltage (Ue) at AC – max : 500 V
– Rated conditional short-circuit current (Iq) : 1 kA at 500 V
– Short-circuit protection rating : Max. 16 A gG/gL, Fuse, Without welding, Auxiliary contacts
