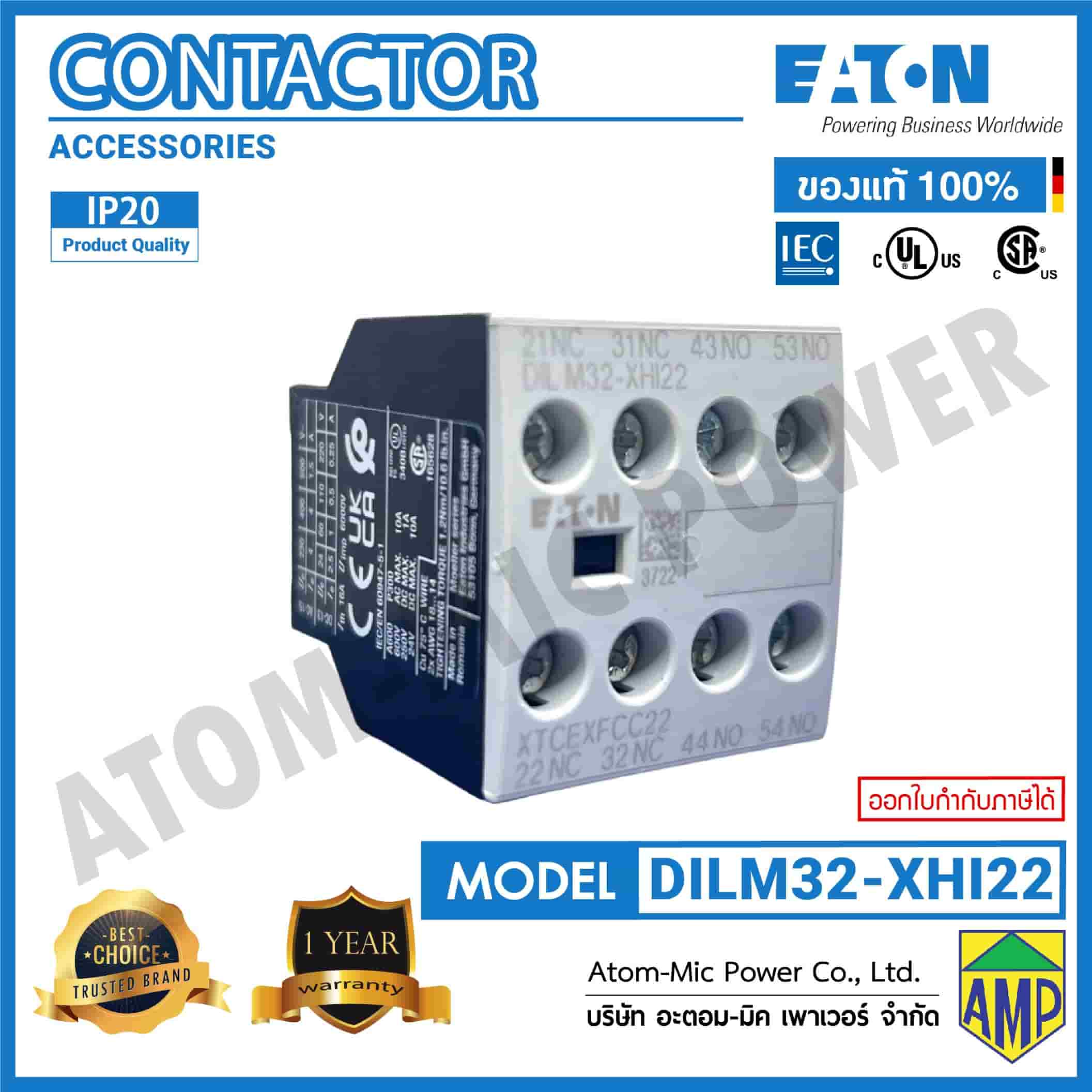

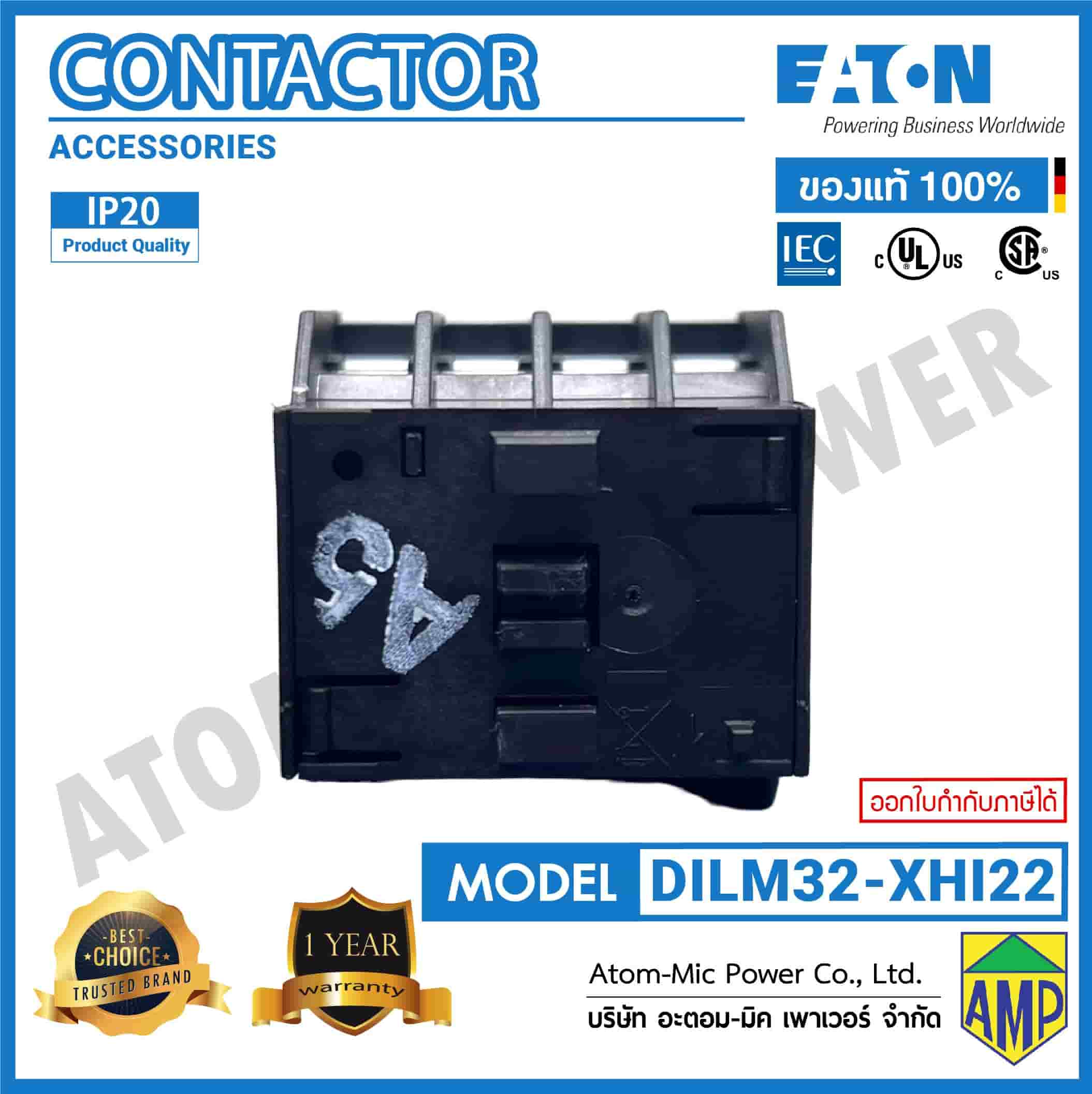

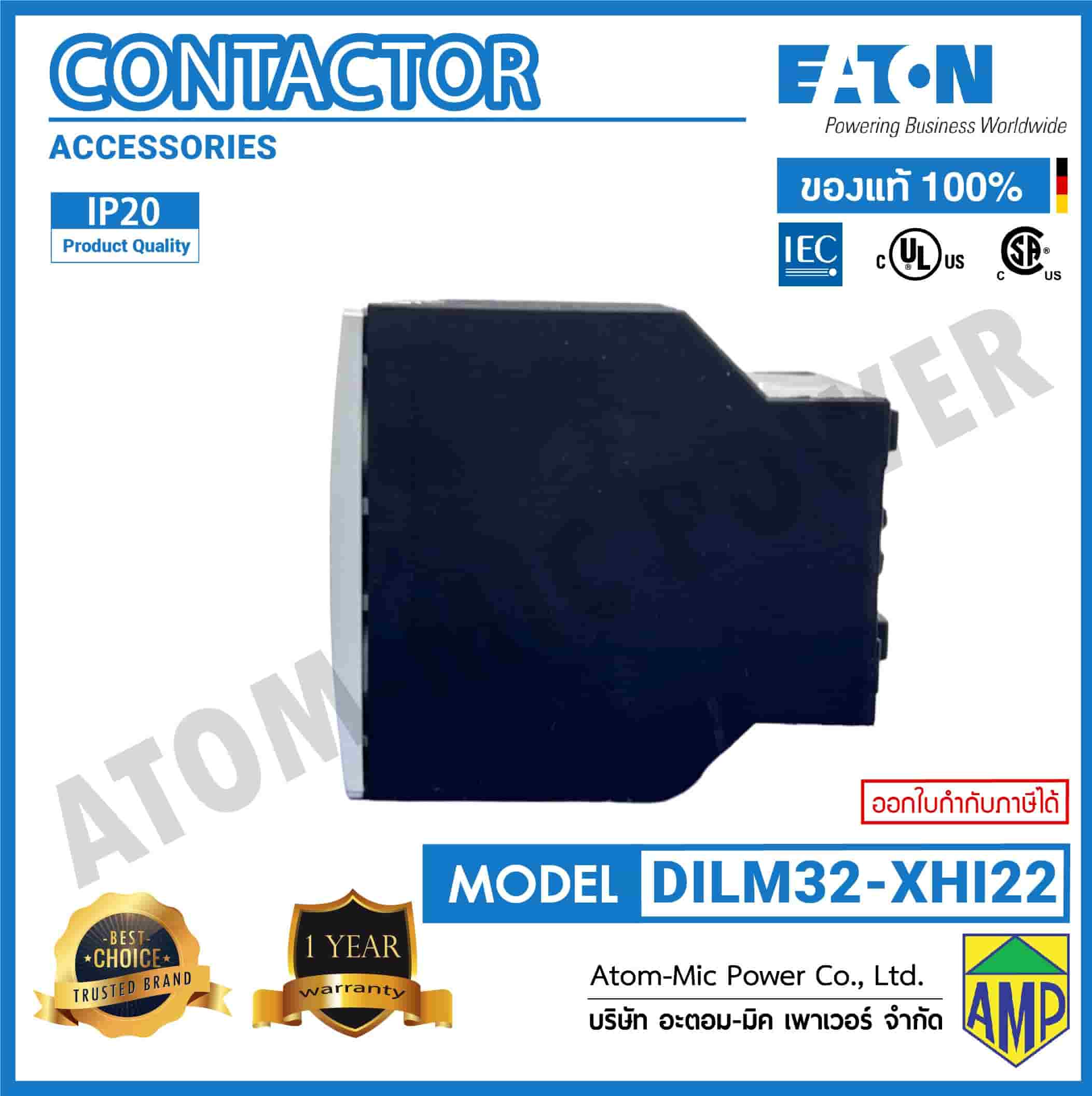

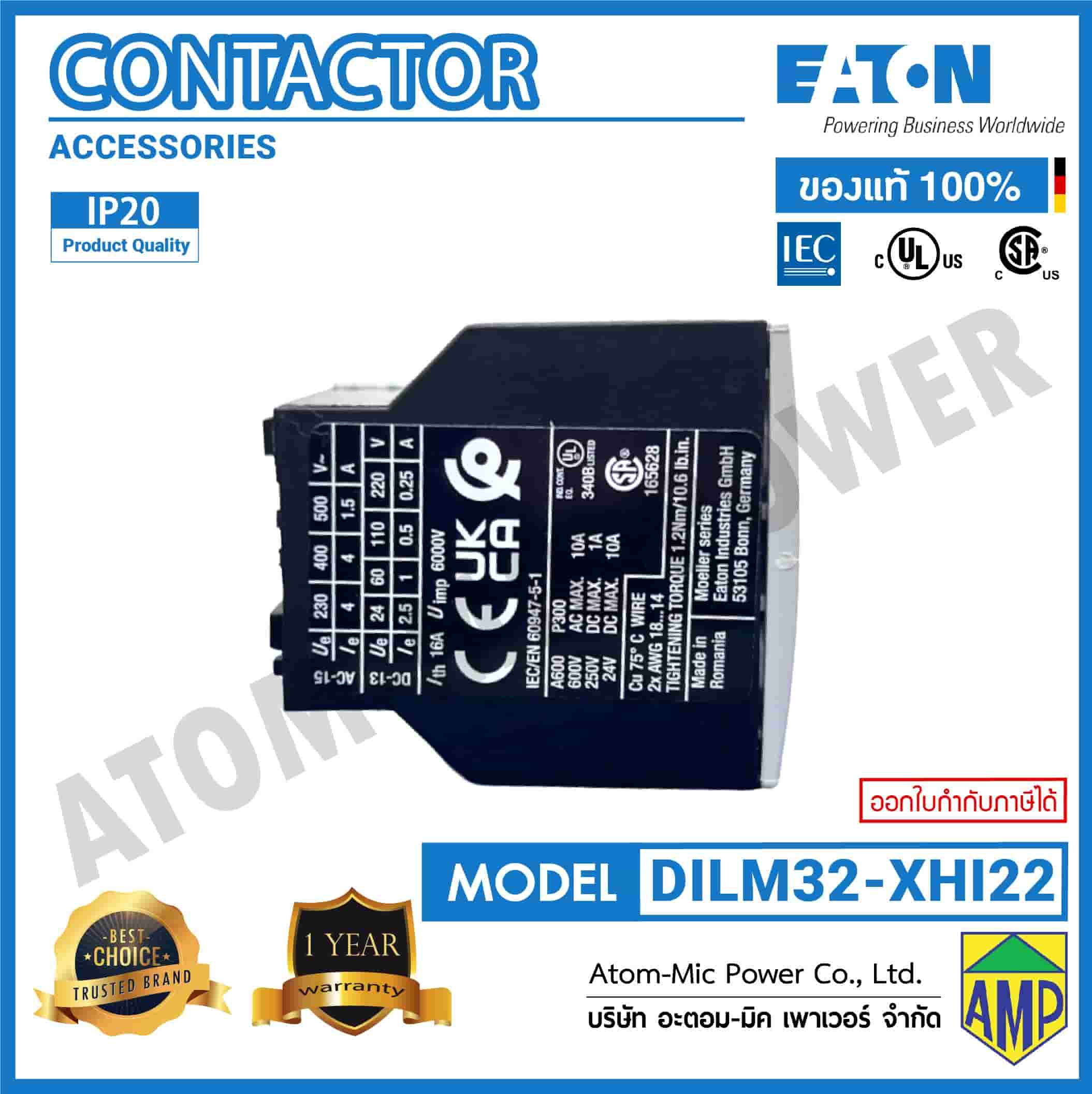

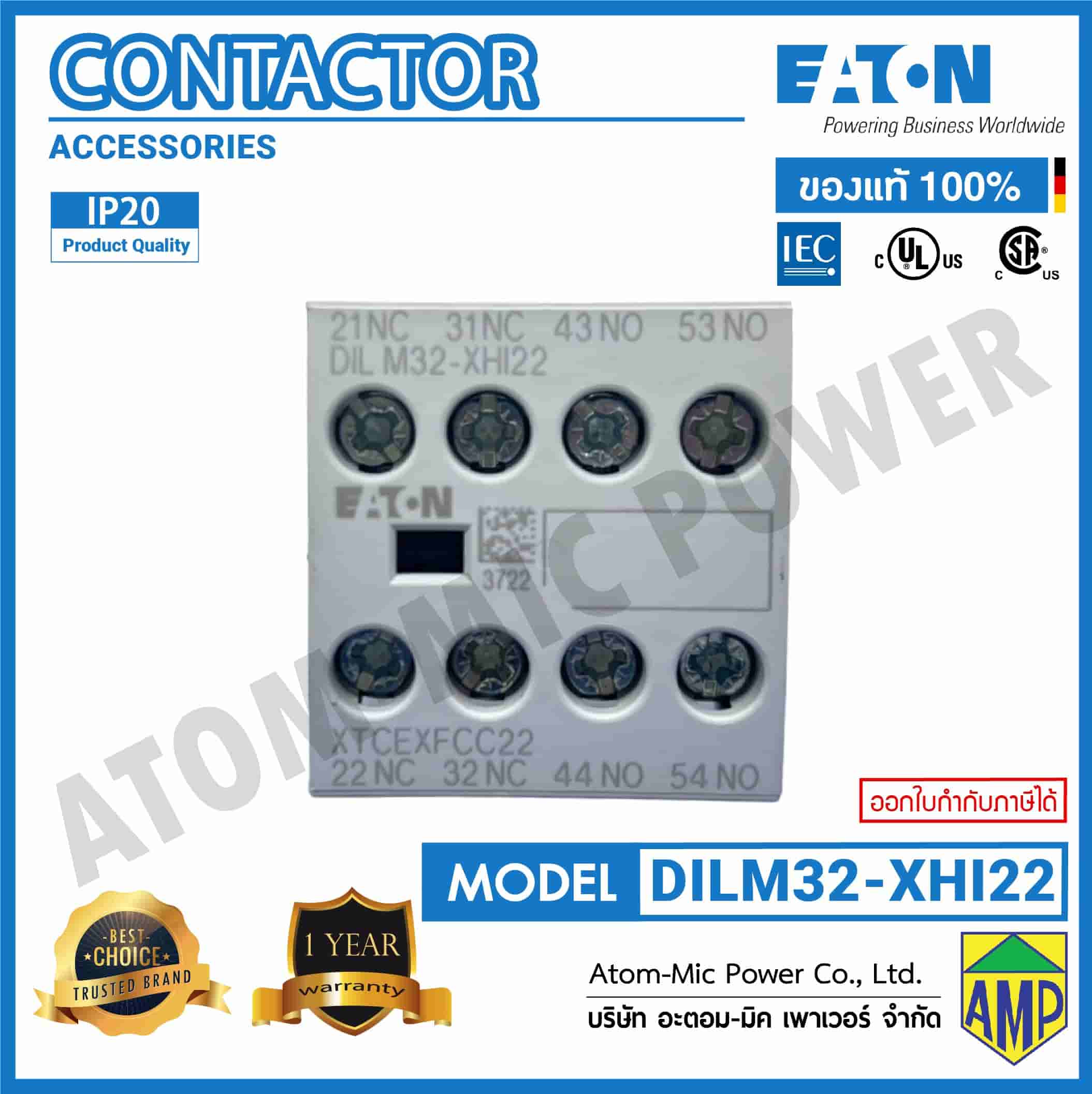

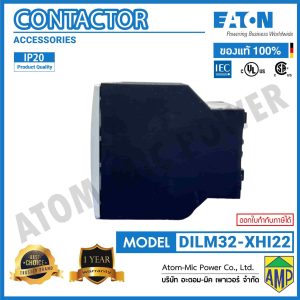

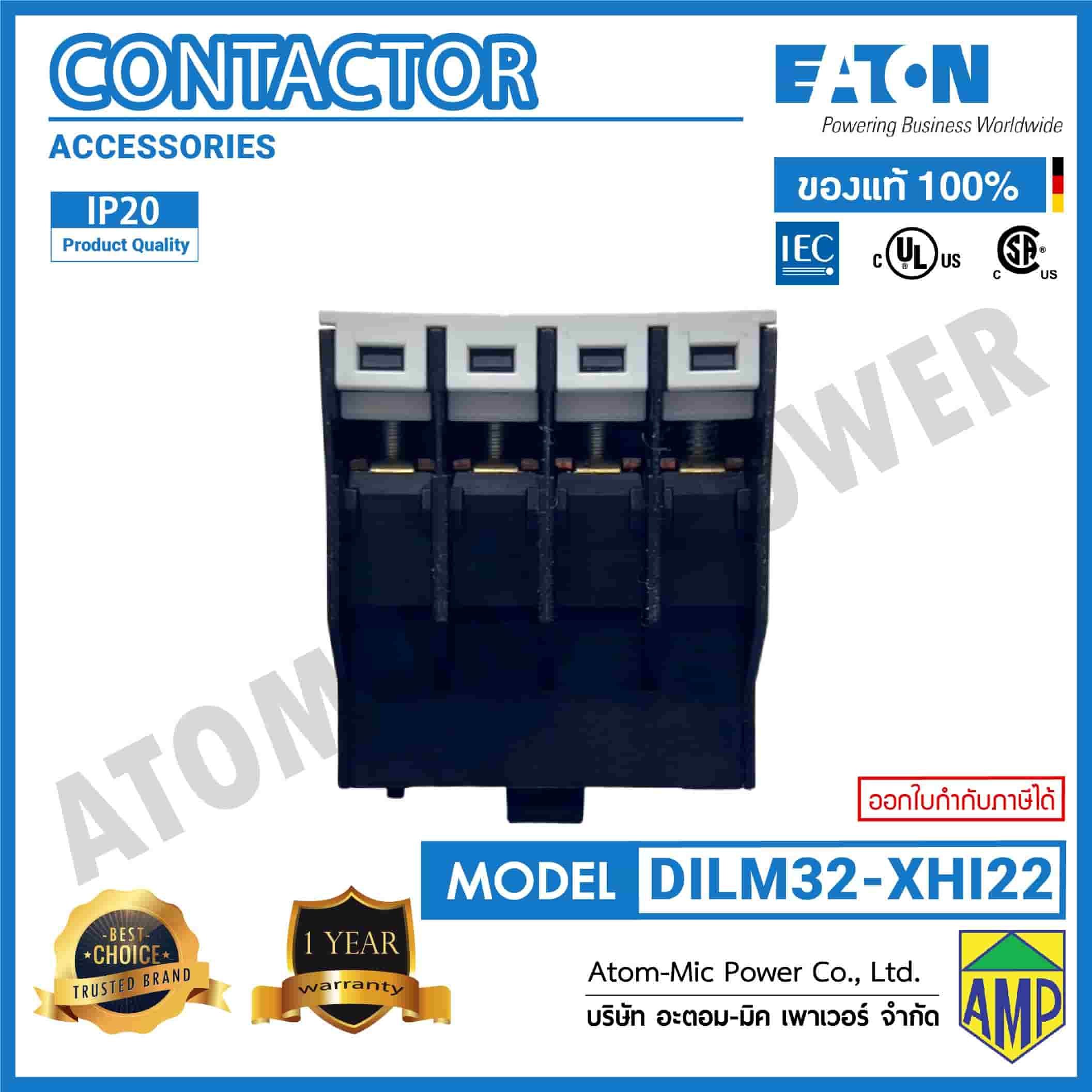

EATON – CONTACTOR – DILM32-XHI22 (2NO,2NC)

Name: EATON - CONTACTOR - DILM32-XHI22 (2NO,2NC)
SKU: DILM32-XHI22
Availability: InStock

Original price was: ฿690.00.Current price is: ฿324.00.

Eaton Moeller® series DILM Auxiliary contact module, 4 pole, Ith= 16 A, 2 N/O, 2 NC, Front fixing, Screw terminals, DILM7-10 – DILM38-10

รหัสสินค้า: DILM32-XHI22 หมวดหมู่: EATON CONTACTOR, แมกเนติกและรีเลย์

คำอธิบาย
ข้อมูลเพิ่มเติม

Part no. : DILM32-XHI22
EAN : 4015082773779
Product Length/Depth : 45 millimetre
Product height : 38 millimetre
Product width : 36 millimetre
Product weight : 0.048 kilogram
Product Type : Accessory
Product Sub Type : Auxiliary contact module
Fitted with : Interlocked opposing contacts
Number of poles : Four-pole
Electric connection type : Screw connection
Connection : Screw terminals
Degree of protection : IP20
Model : Top mounting
Mounting method : Front fastening
Rated impulse withstand voltage (Uimp) : 6000 V AC
Type : Front mounting auxiliary contact
Tightening torque : 1.2 Nm, Screw terminals
