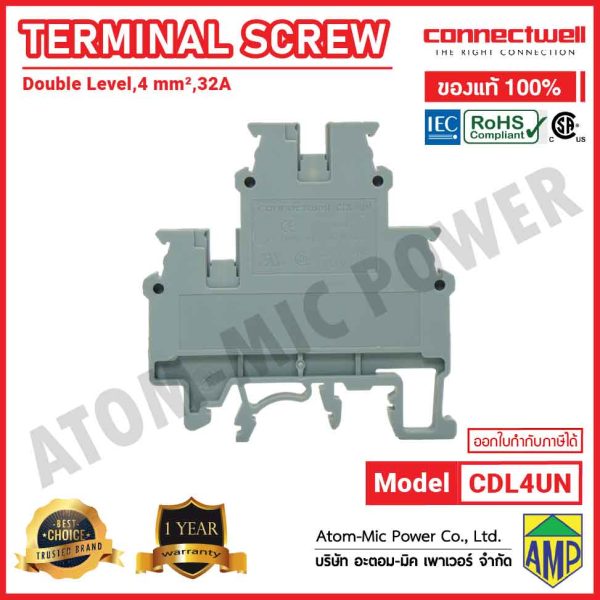

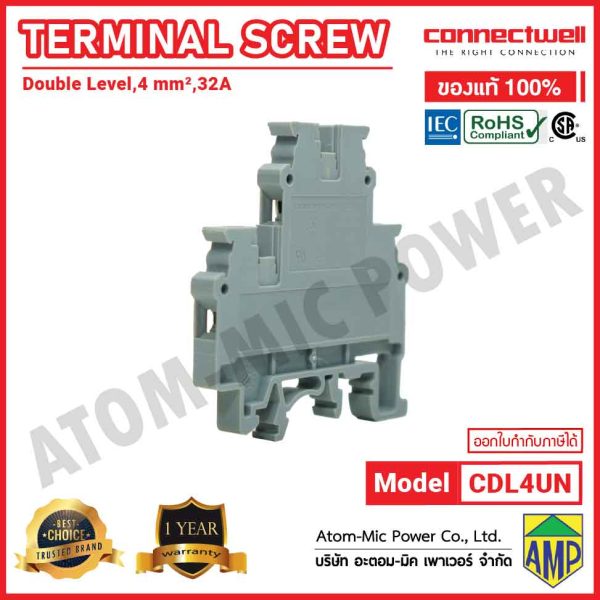

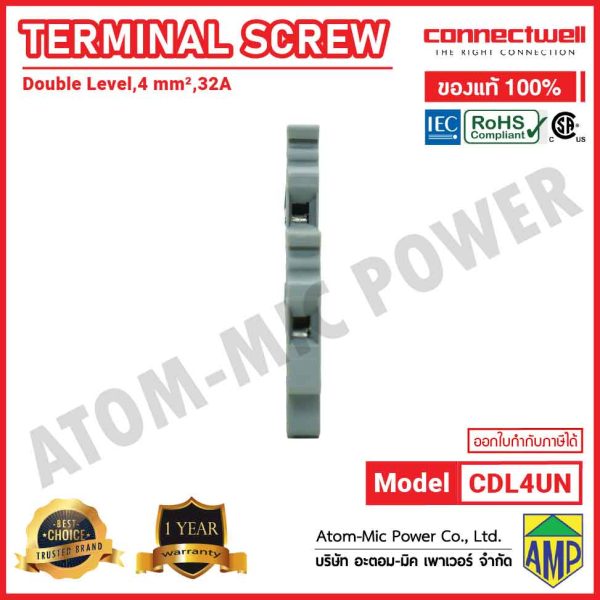

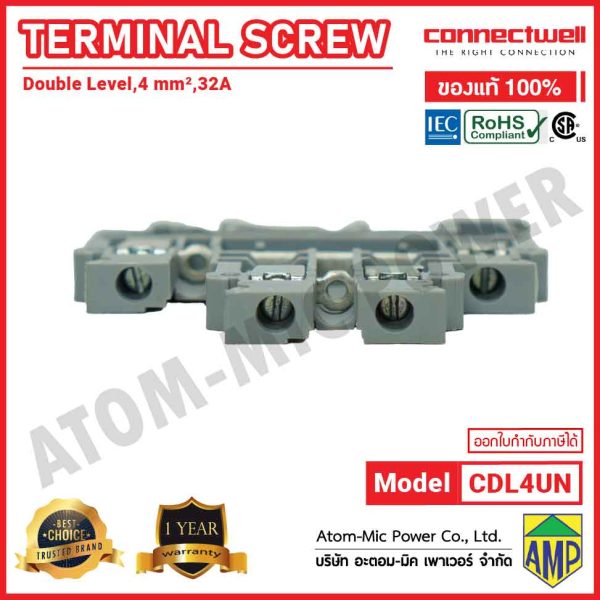

CONNECTWELL – Screw Clamp Multiple Level Terminal Block – CDL4UN

CDL4UN is a double level terminal block with two connection points on each level. The top and bottom are not internally connected level can be used separately for two different connections.

Additionally this terminal block has jumpering feature on both the levels. CDL4UN has same profile as that of CDLG4 and CDLG4(I.S) ground terminals which can be used for connecting ground wires.

These terminal blocks are ideal choice to simplify high density wiring in compact spaces and saves substantial space on DIN Rails.

Short-Time Withstand Current
0.48 kA
Type of Connection
Screw Clamp
Wire Entry Orientation
Side
Operating Temperature Range
-40 to +105
Number of Levels
2
Number of Connections
4
Rated Voltage (IEC)
800 V
Rated Current (IEC)
32 A
Tightening Torque (IEC)
0.5 Nm
Rated Voltage (UL/CSA)
600 V
Rated Current (UL/CSA)
35 A
Tightening Torque (UL/CSA)
7 lb-in
Mounting Possibility
DIN 32/DIN 35/DIN 35-15 Rail
Internally Shorted
No
Screw Size
M3
Operated by
Screwdriver
Rated Surge Voltage
8 kV
Overvoltage Category
III
Pollution Degree
3
