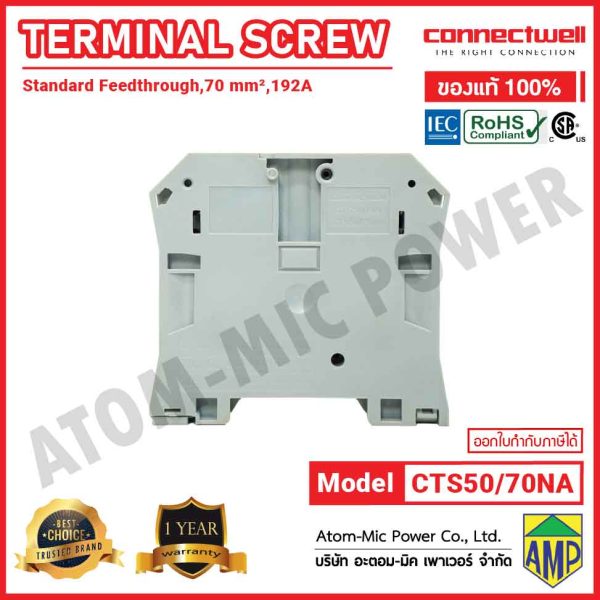

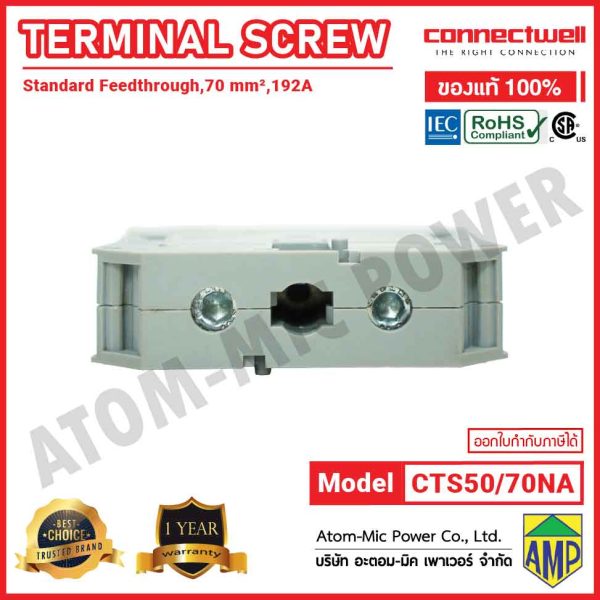

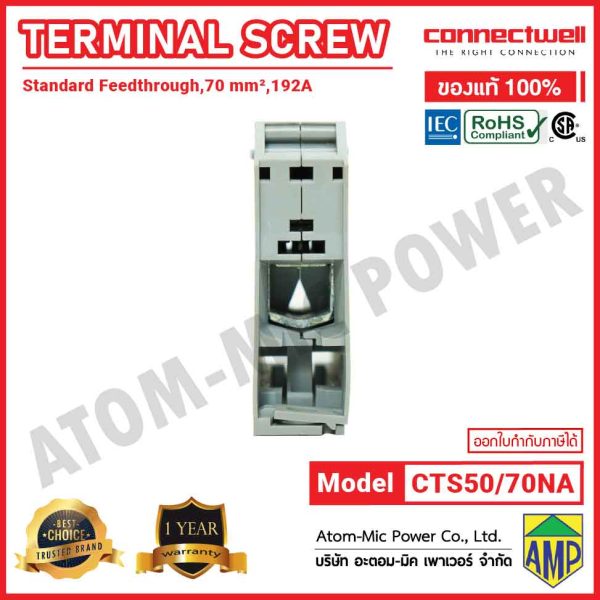

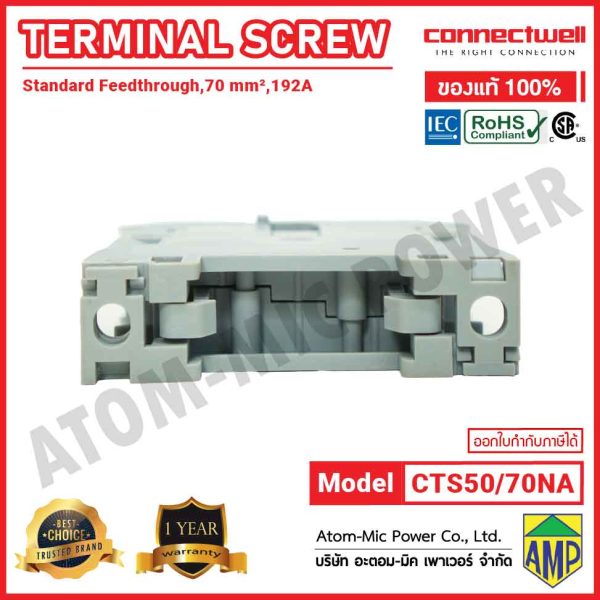

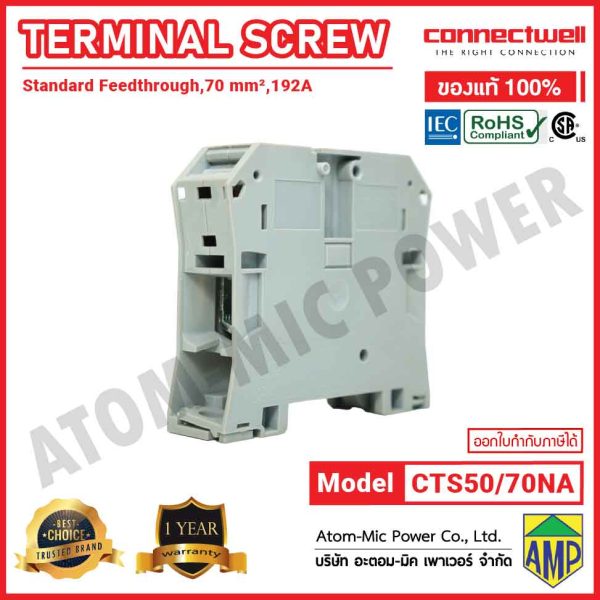

CONNECTWELL – Screw Clamp Feedthrough Terminal Block – CTS50/70NA

CTS50/70NA is a allen key operated high current feedthrough terminal block a versatile solution for reliable wire-to-wire connections, featuring two connection points for straightforward circuit continuity. Designed with a universal mounting foot, it supports installation on DIN 32 & DIN 50/70NA rails, offering flexibility across various panel configurations. The terminal block allows the connection of two wires using twin ferrule lugs, ensuring secure, vibration-resistant terminations. For circuit distribution and potential looping, it supports jumpering via screw-type jumpers, which are available in multiple pole configurations to suit different wiring needs. These terminal blocks are also available in multiple colours.

Short-Time Withstand Current
8.4 kA
Type of Connection
Screw Clamp
Wire Entry Orientation
Side
Operating Temperature Range
-40 to +105
Number of Levels
1
Number of Connections
2
Rated Voltage (IEC)
1000 V
Rated Current (IEC)
192 A
Tightening Torque (IEC)
3 Nm
Rated Voltage (UL/CSA)
1000 V
Rated Current (UL/CSA)
175 A
Tightening Torque (UL/CSA)
38 lb-in
Mounting Possibility
DIN 35/DIN 35-15 Rail
Internally Shorted
No
Screw Size
M6
Rated Surge Voltage
8 kV
Overvoltage Category
III
Pollution Degree
3
