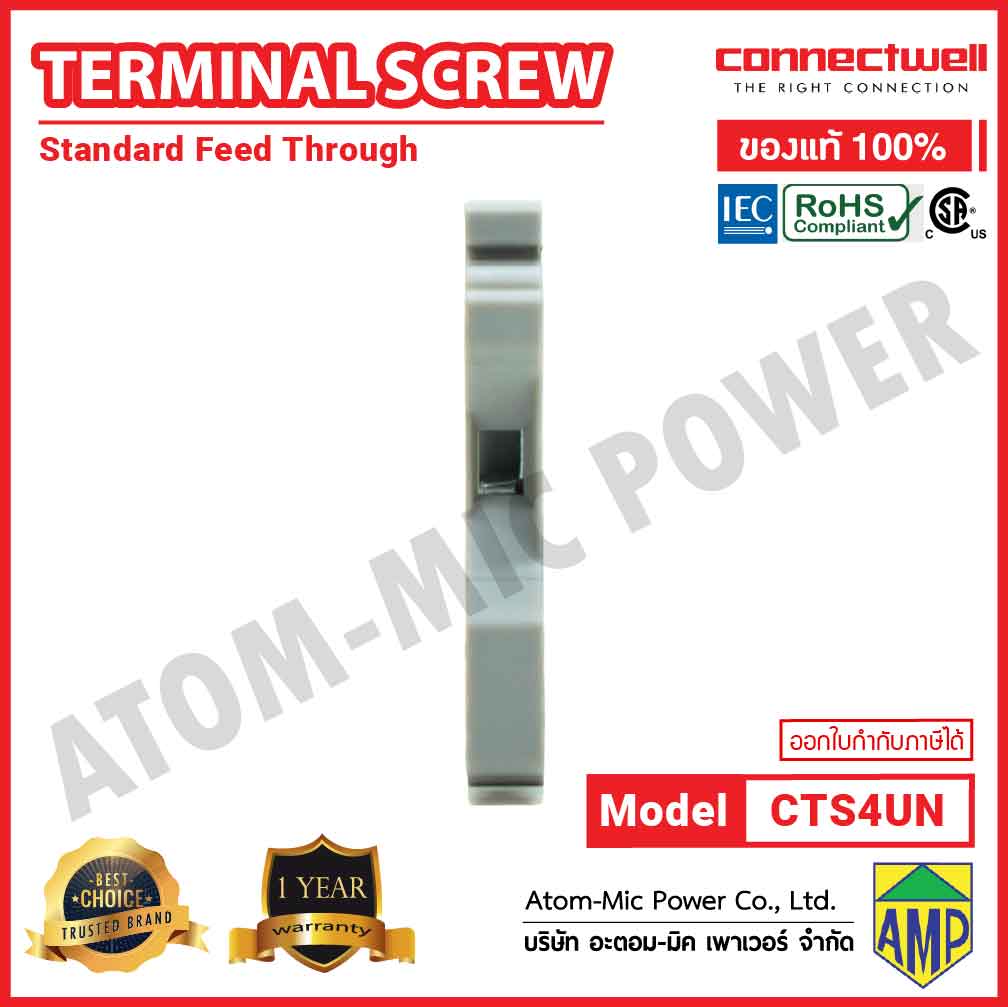

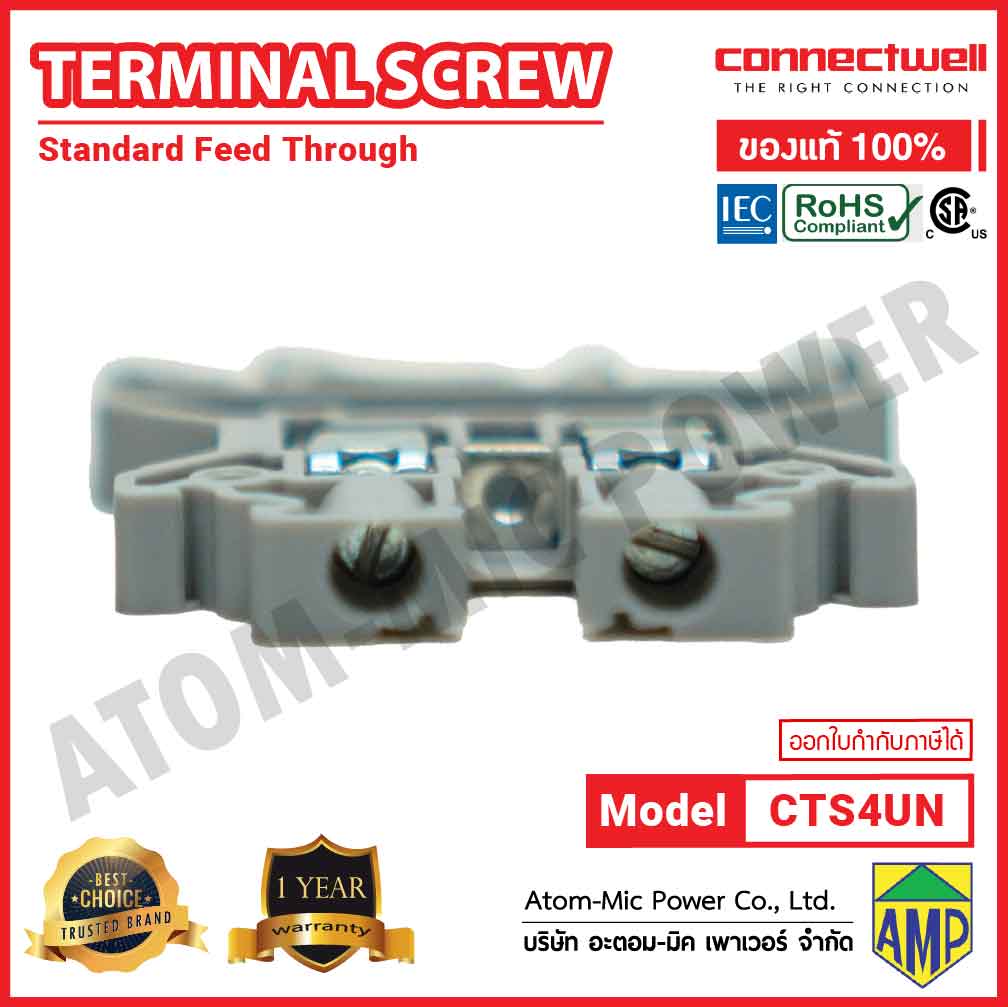

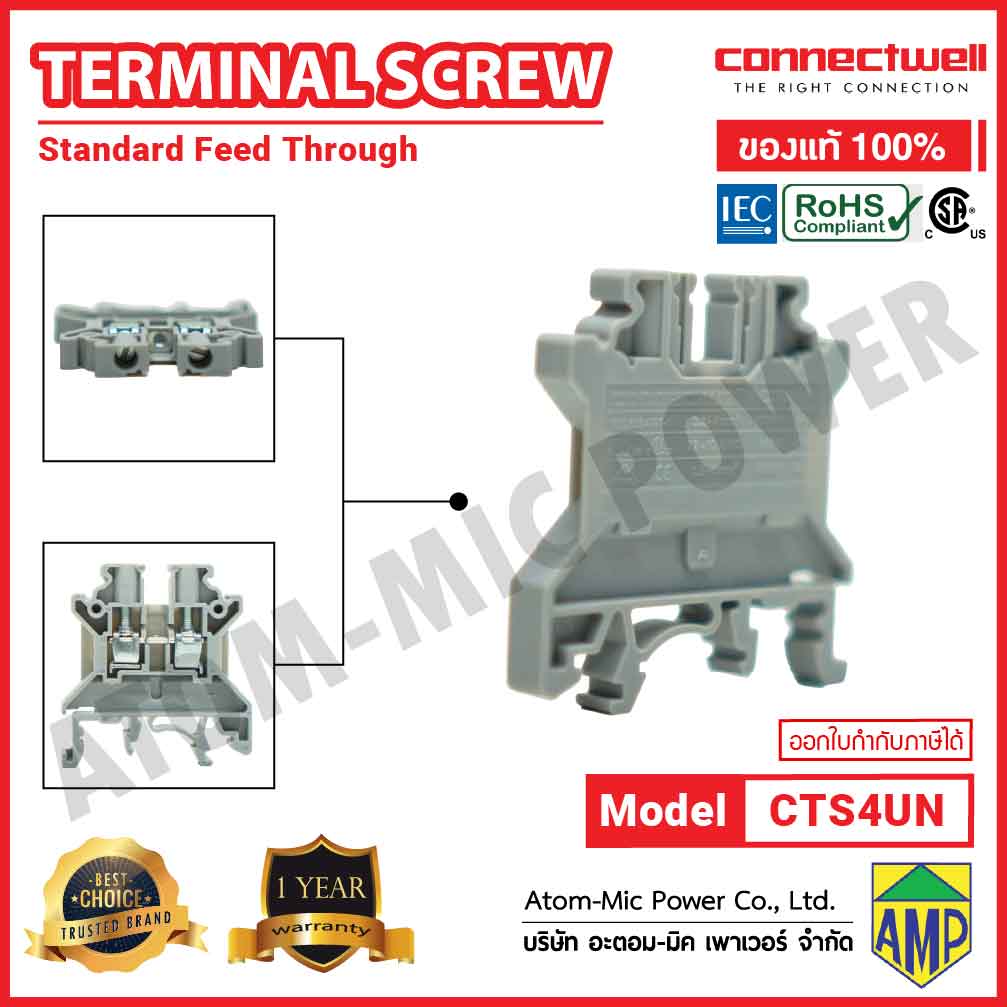

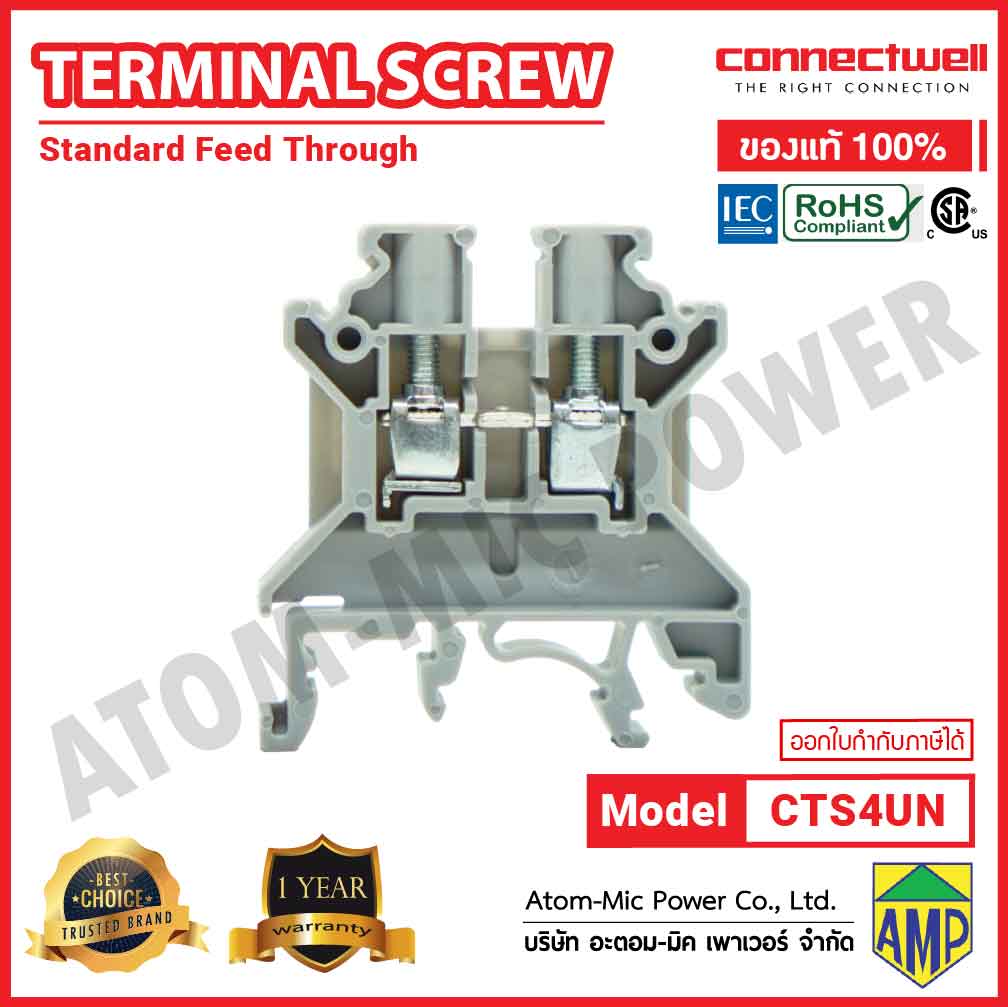

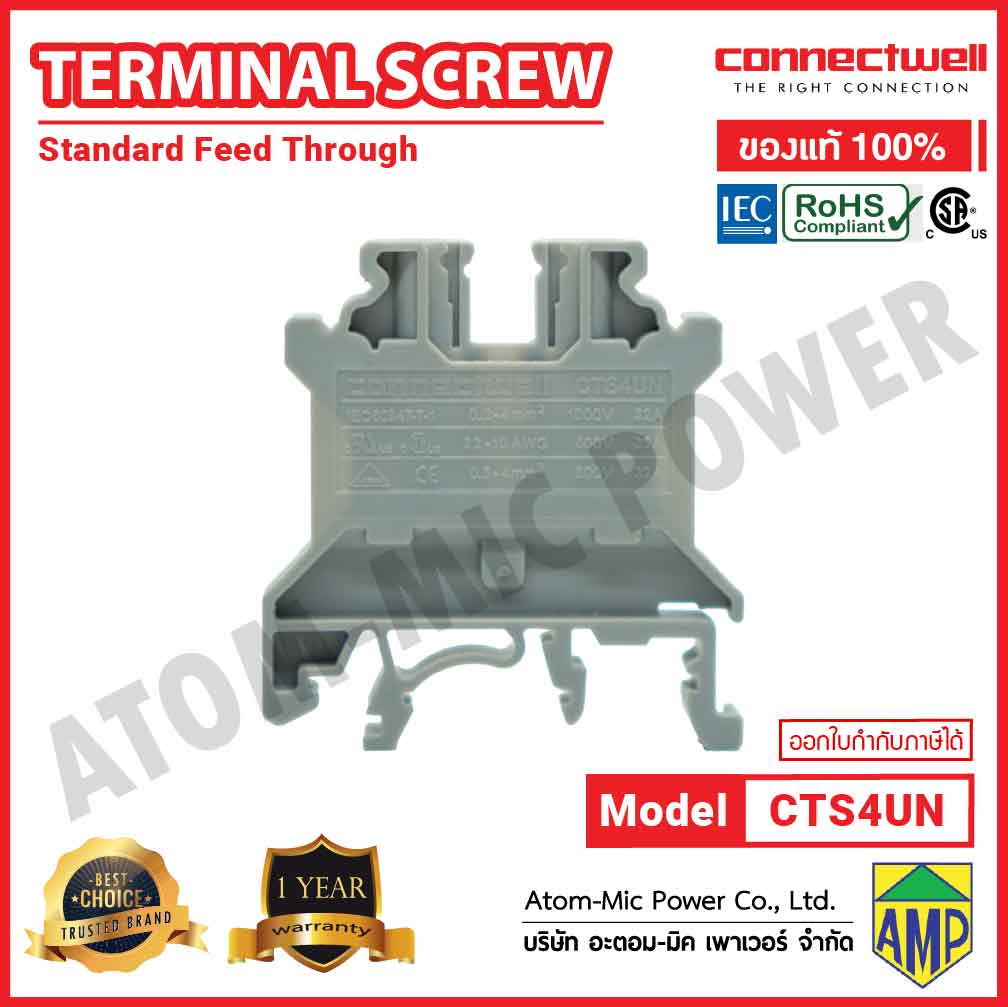

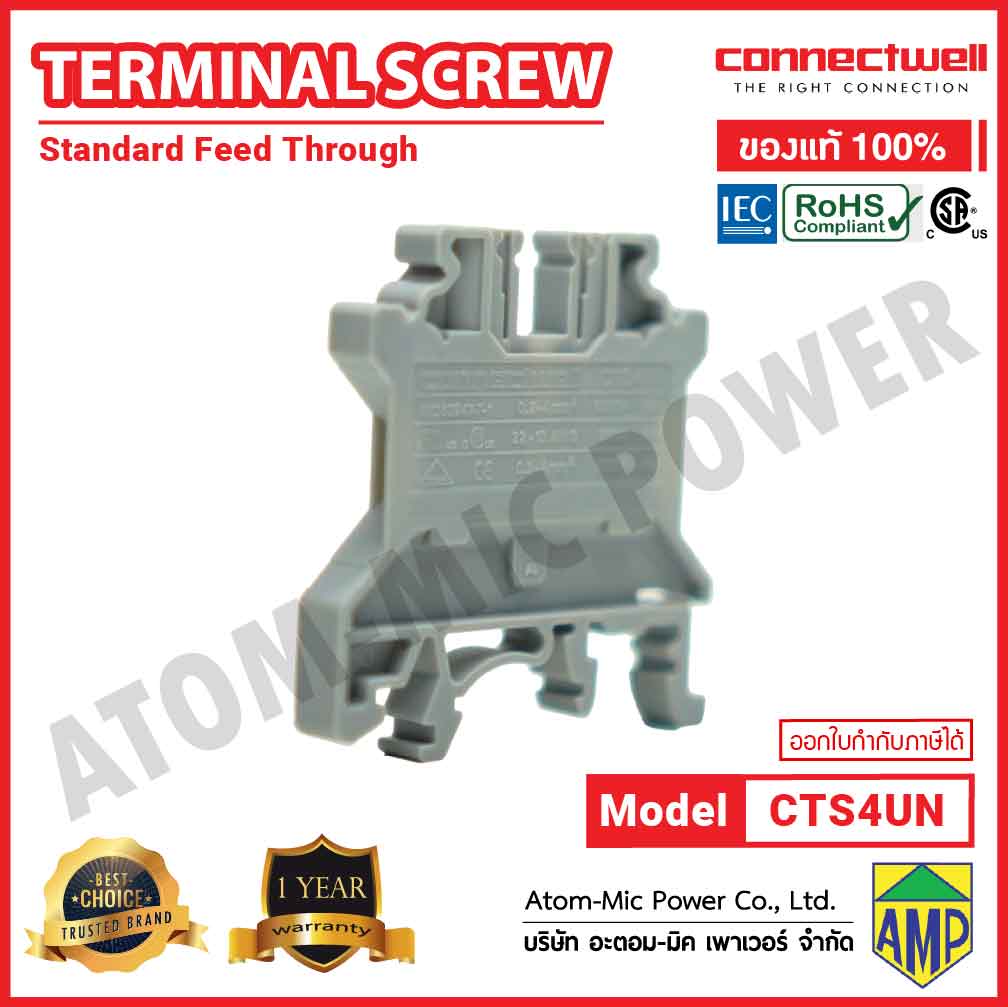

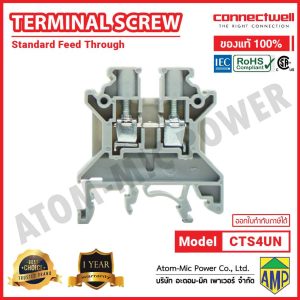

Connectwell – Screw Clamp Feedthrough Terminal Block – CTS4UN

Technical Data
Short-Time Withstand Current : 0.48 kA
Type of Connection : Screw Clamp
Wire Entry Orientation : Side
Operating Temperature Range : -40 to +105
Number of Levels : 1
Number of Connections : 2
Rated Voltage (IEC) : 1000 V
Rated Current (IEC) : 32 A
Tightening Torque (IEC) : 0.5 Nm
Rated Voltage (UL/CSA) : 600 V
Rated Current (UL/CSA) : 35 A
Tightening Torque (UL/CSA) : 7 lb-in
Mounting Possibility : DIN 32/DIN 35/DIN 35-15 Rail
Internally Shorted : No
Screw Size : M3
Operated by : Screwdriver
Rated Surge Voltage : 8 kV
Overvoltage Category : III
Pollution Degree : 3

Dimensions
Width (Thickness) : 6 mm
Length : 43 mm
Height with DIN 35 x 7.5 mm rail : 46.2 mm
Height with DIN 35 x 15 mm rail : 53.7 mm
Height with DIN 32 mm rail : 51.1 mm

Material Details
Material Group : 1
Housing Material : Polyamide
Flammability Class According to UL 94 : V2
Colour : Grey
Comparative Tracking Index : 600
