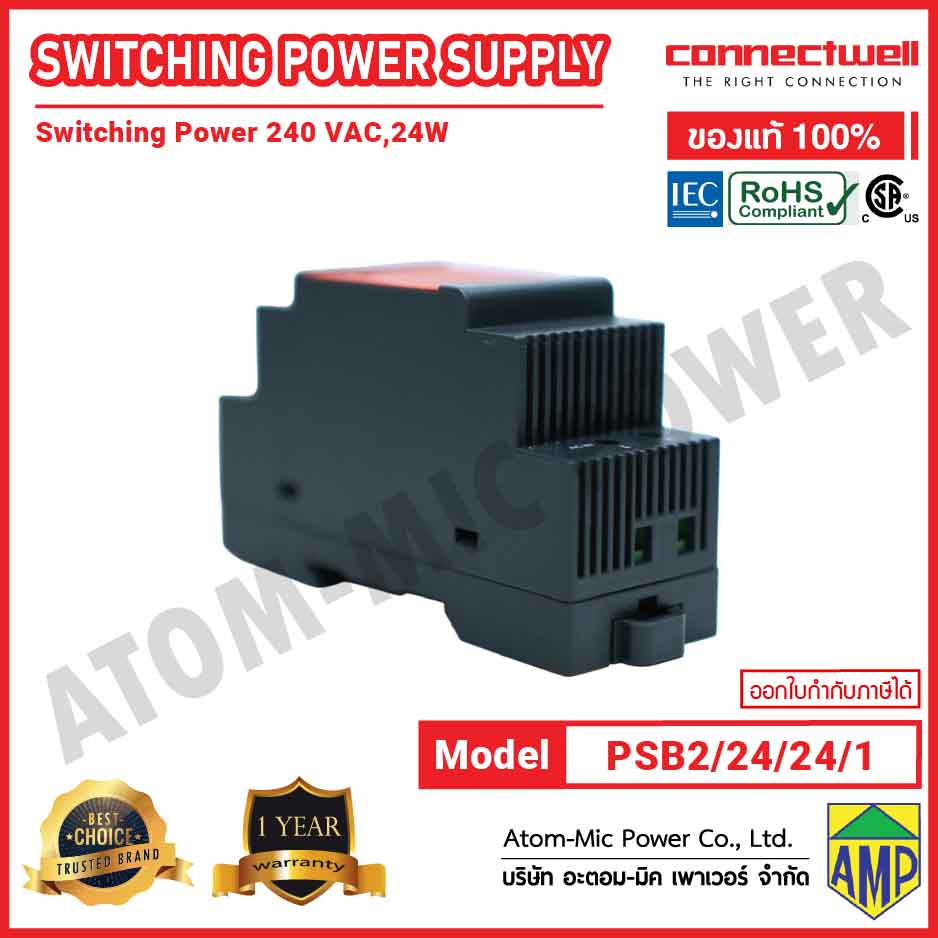

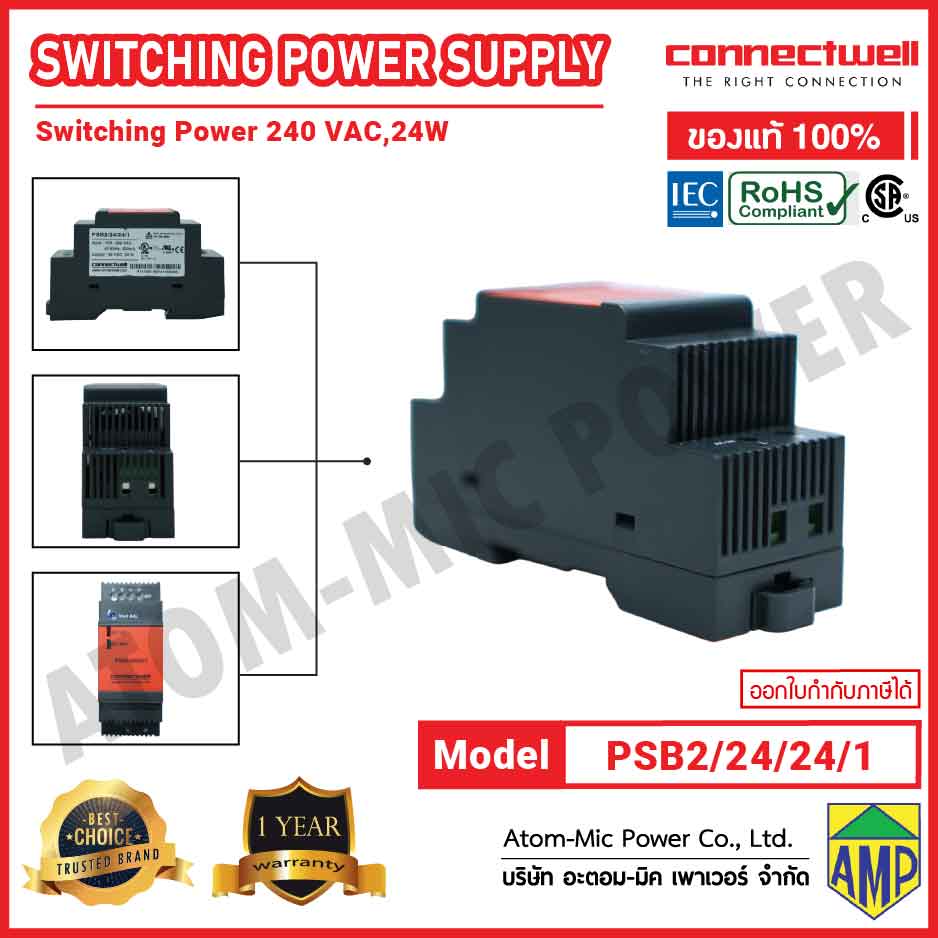

CONNECTWELL-Power Supply-Switching Power Supply-PSB2/24/24/1

Features

‘Step shape’ power supply
Housing similar to Modular Circuit Breakers

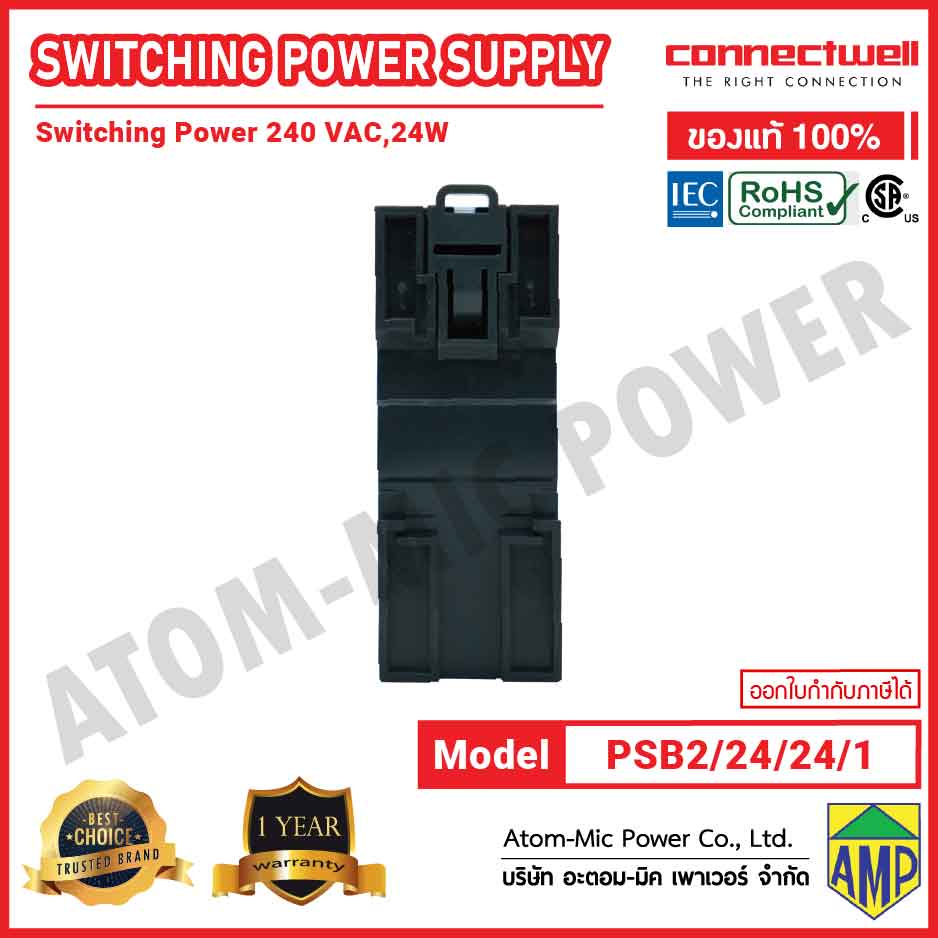

DIN-rail mounting
Overload, overvoltage and short circuit protection
Low ripple and noise

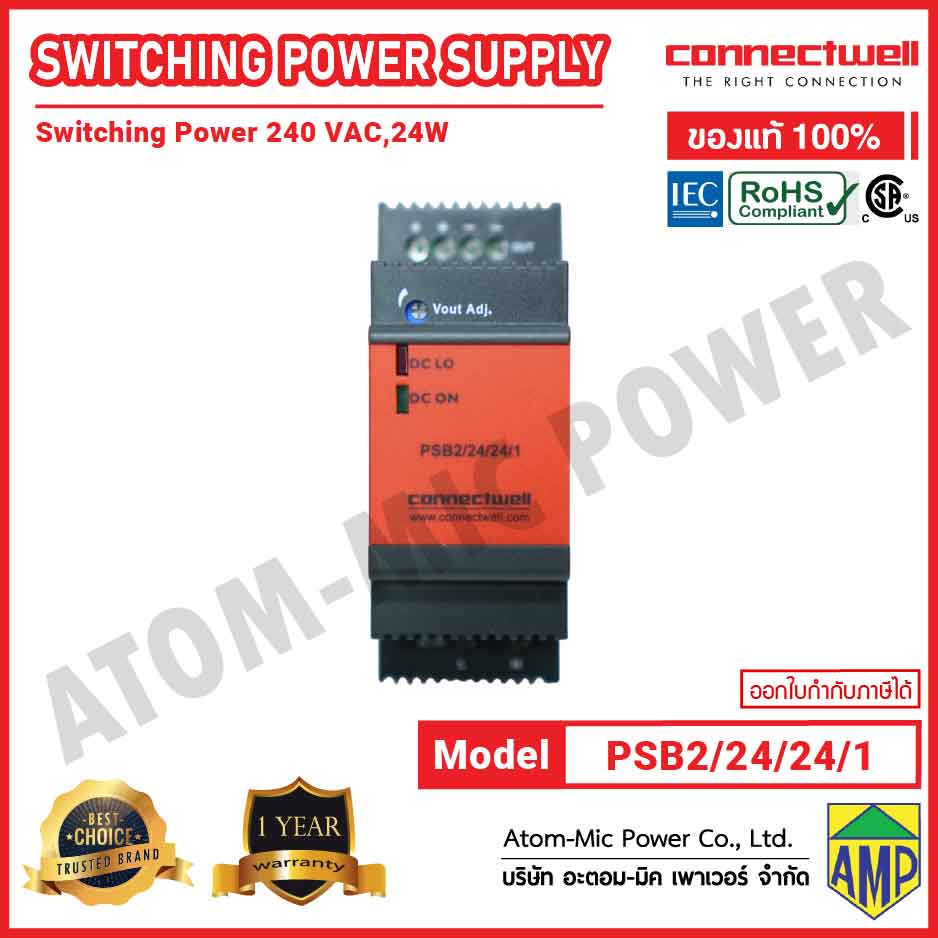

Output voltage status LEDs
Approvals: UL, CE

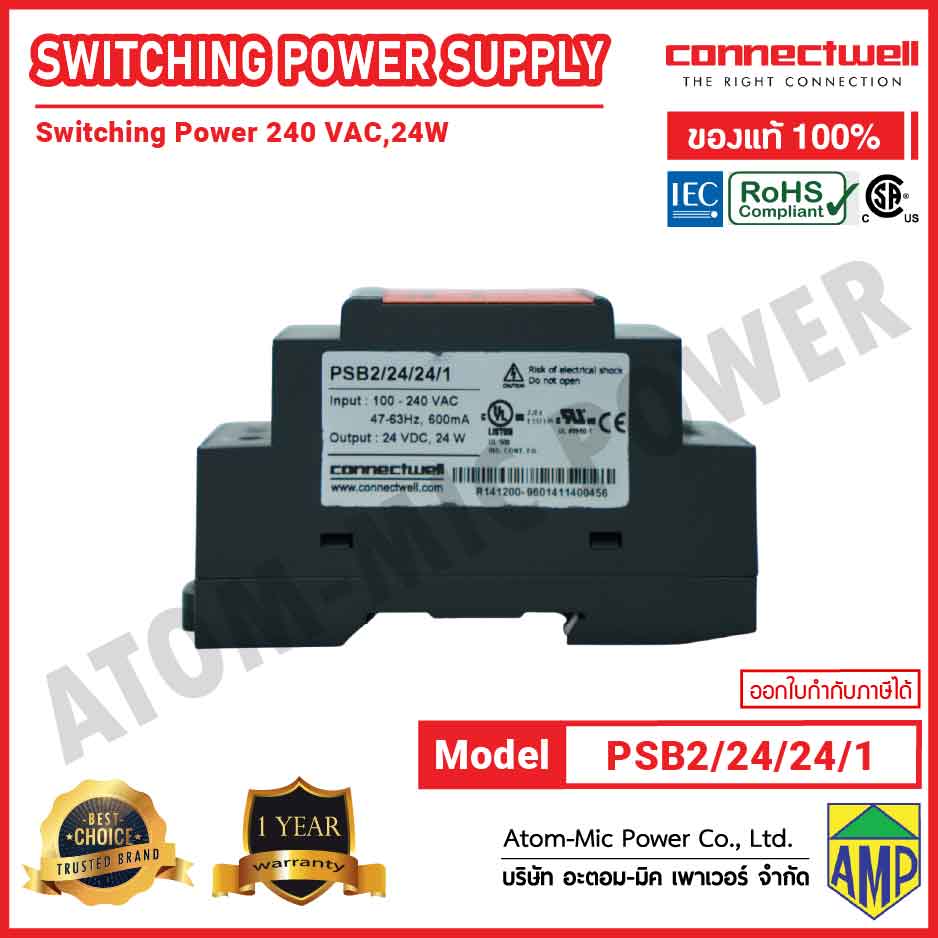

Specifications of the PSB2/24/24/1:

– 2 Module width
– Output: 24 VDC, 1A (24W)
– Input: 90-264 VAC / 120-375 VDC
– Overload, overvoltage and short circuit protection
– Typical efficiency 85%
– Line regulation +/- 1%
– Load regulation +/- 1%
– Operating temperature -25 to + 71°C
– MTBF 832000 hours
– Plastic housing

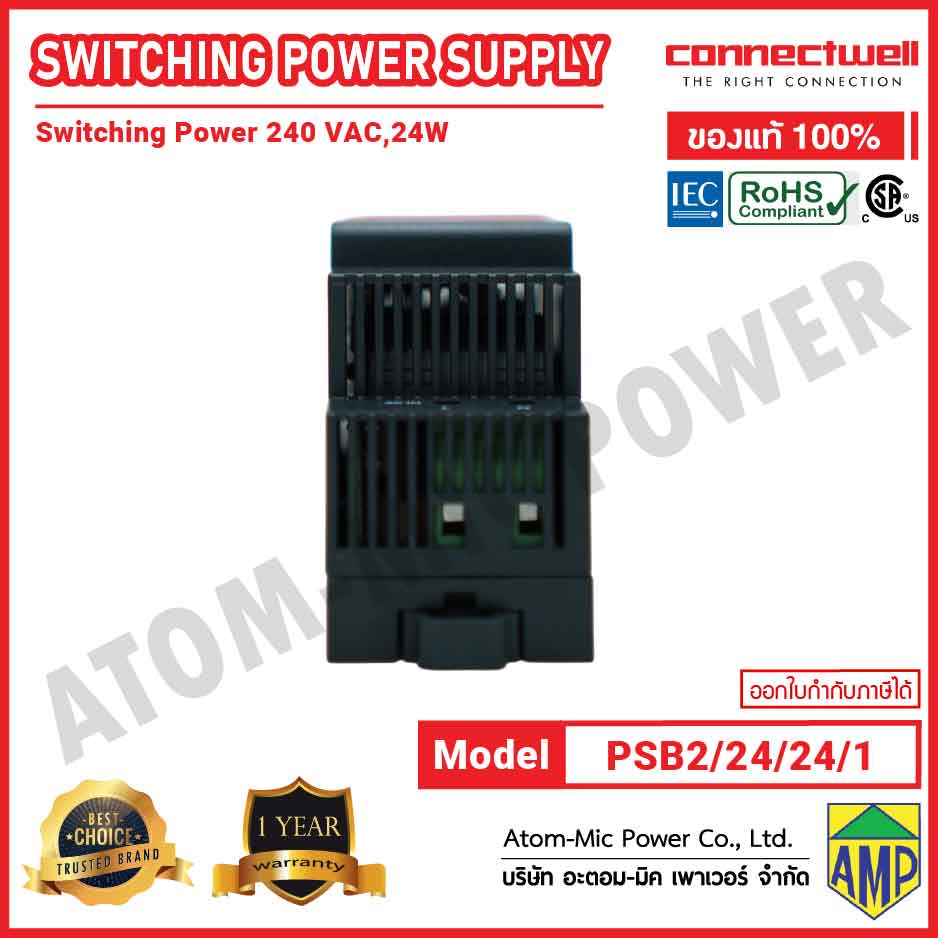

– Screw terminal type
– Dimensions: 91 x 35 x 56.5 mm
