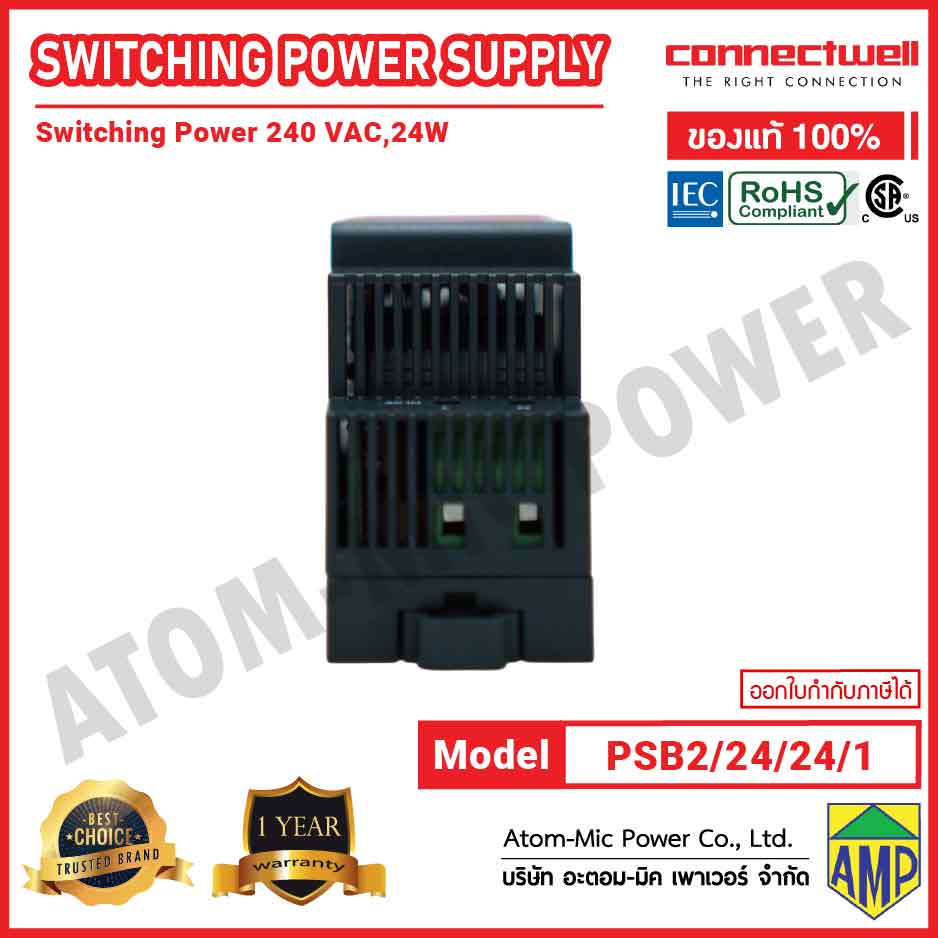

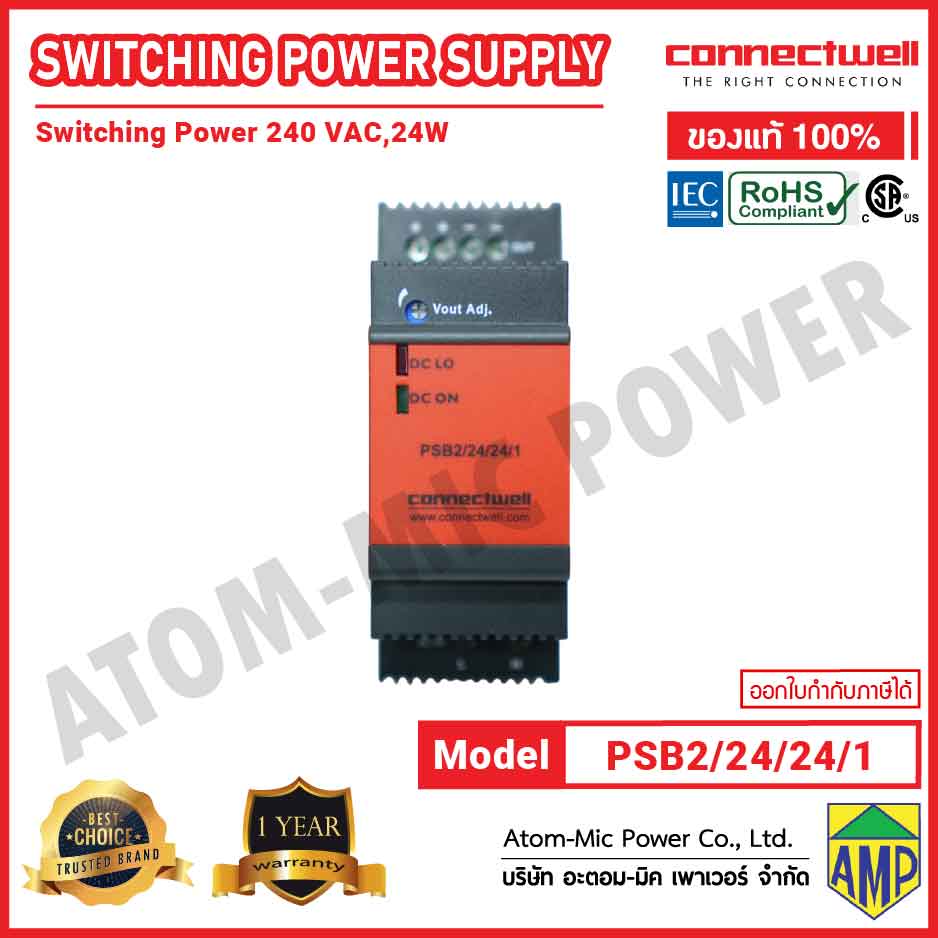

CONNECTWELL – POWER SUPPLY – PSB2/24/1 (240V AC, 24 W)

1A ,Single Phase Din Rail Mountable Step Type Switching Power Supplies
-Full Range Input selection from 90 to 264VAC
-Typical efficiency of 85%
-Compact design with a width of only 35mm

รหัสสินค้า: PSB2/24/1 หมวดหมู่: CONNECTWELL POWER SUPPLY, แหล่งจ่ายกำลังและหม้อแปลง

คำอธิบาย
ข้อมูลเพิ่มเติม

GENERAL SPECIFICATION
– Switching Frequency (typ.) : 65 KHz
– Min. Isolation Voltage -AC (Input-Output) : 3000 VAC
– Min. Isolation Voltage -DC (Input-Output) : 4242 VDC
– Isolation Resistance (Input-Output @500VDC) : 100 MΩ
– Ambient Temperature Range (Operational at Vi norm) : 25 to +71 deg.C
– Derating from +61°C to +71°C (see deratingcurve) : 2.5% per °C
– Ambient Temperature Range (Storage) : -25 to +85 deg.C
– Relative Humidity Range : 20 – 95 % RH
– Temperature Coefficient Range : +/- 0.03 % / Degree celcius
– MTBF (Bellcore Issue 6 @40°C, GB) : 832000 hr
– Altitude During Operation (IEC 60068-2-13) : 3000 m
– Dimension : L91 x W35 x D56.5 mm
– Cooling : Free Air Convection
– Pollution Degree : 2

ORDERING INFORMATION
– Cat. No. : PSB2/24/24/1
– Output Voltage : 24 VDC
– Output Current : 1 A
– Output Wattage : 24 W
– Efficiency (min.) : 83%
– Efficiency (typ.) : 85%
– Input Voltage Range : 90 – 264 VAC
– Standard Packing Qnty : 1

PHYSICAL SPECIFICATIONS
– Dimensions (H x W x D) : 91 x 35 x 56.5 mm
– Weight : 130 g
– Case Material : Plastic
– Packing : 0.17kg ; 80 pcs / 15 kg / 1.82 CUFT

INPUT SPECIFICATIONS
– Input Phase : Single
– AC Input Voltage Range : 90 to 264
– DC Input Voltage Range : 120 to 375
