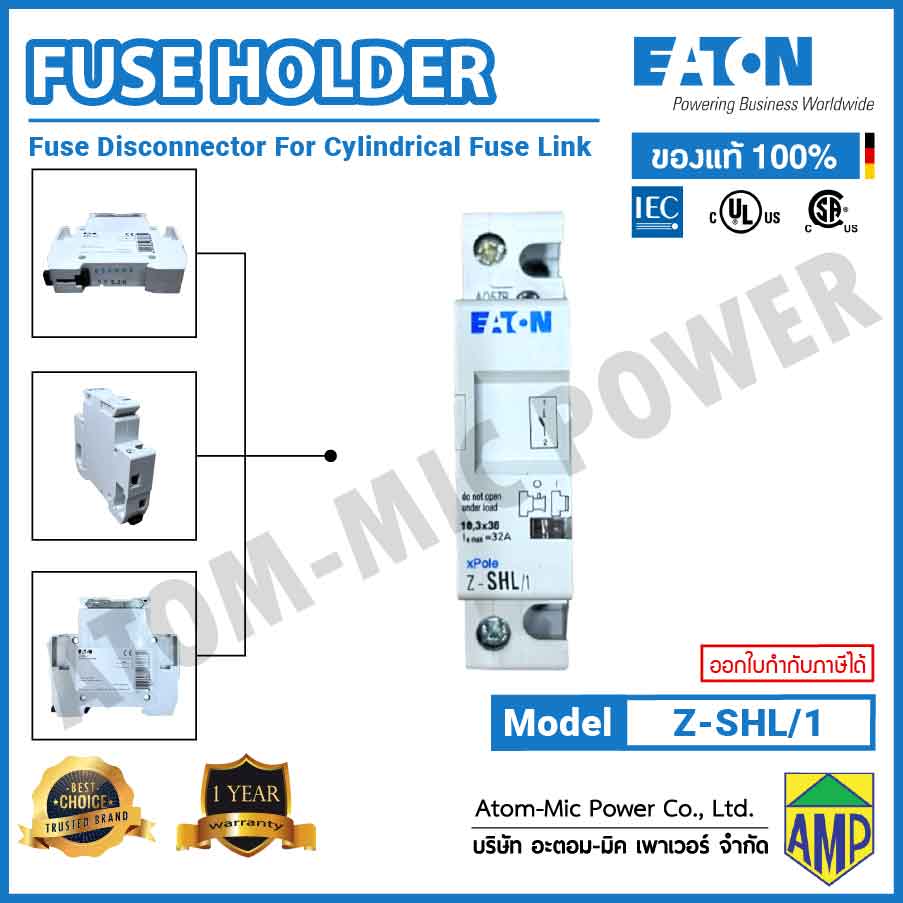

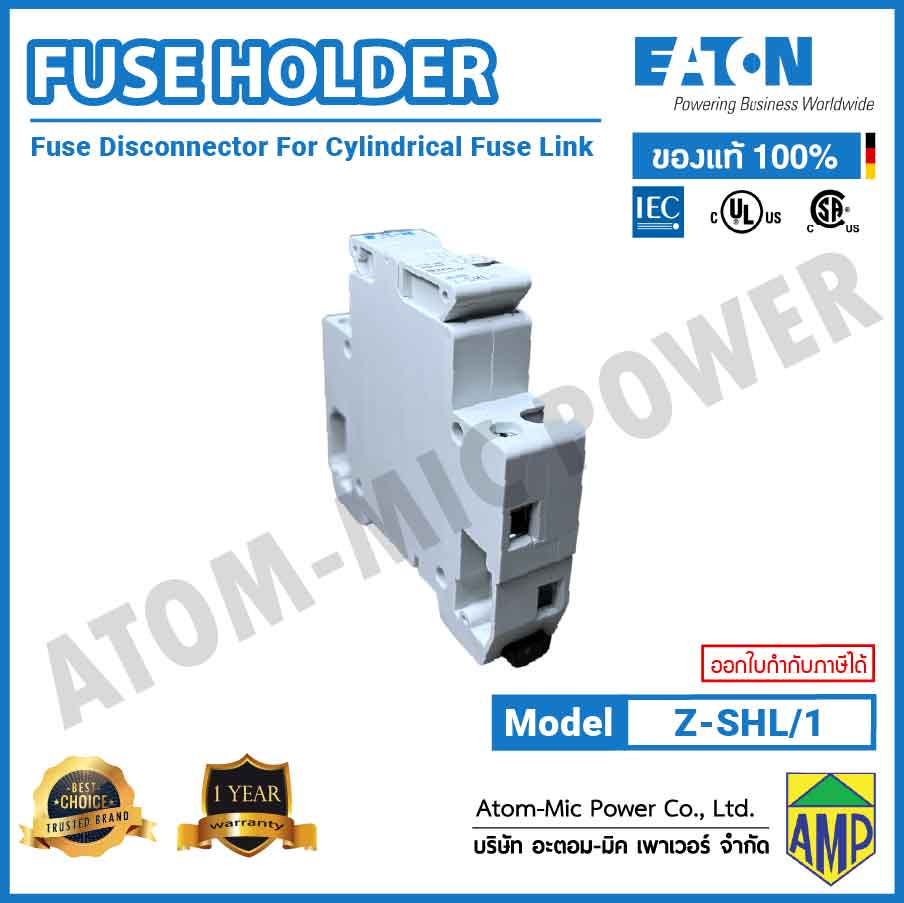

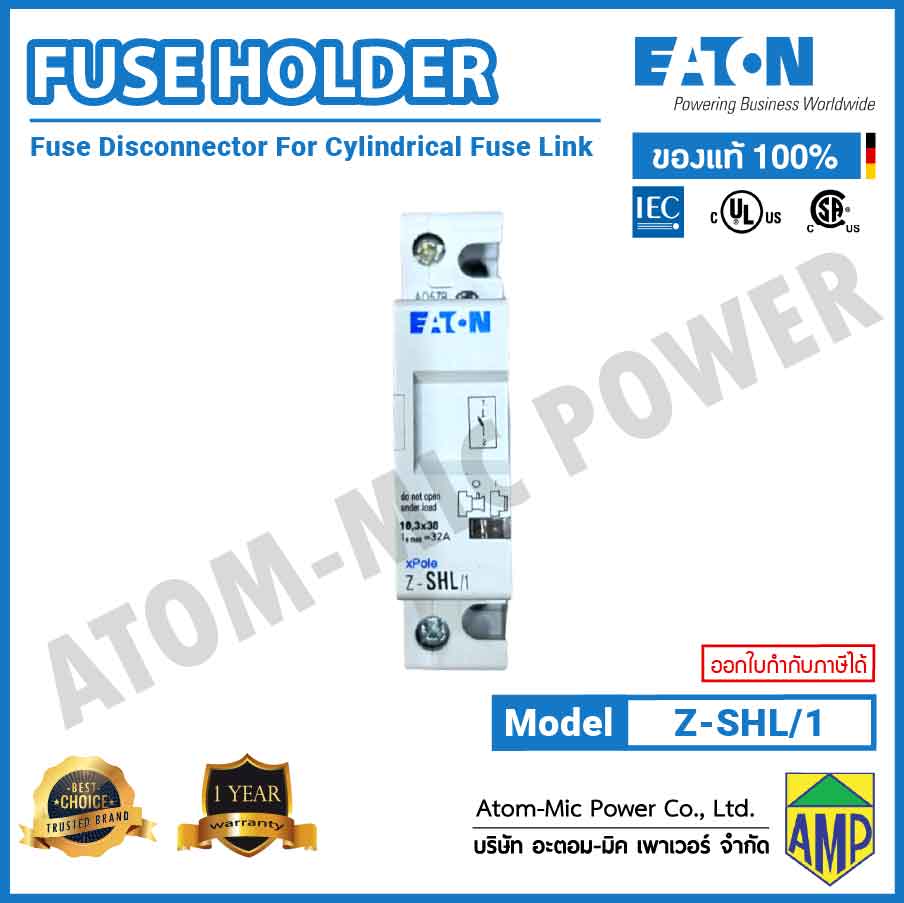

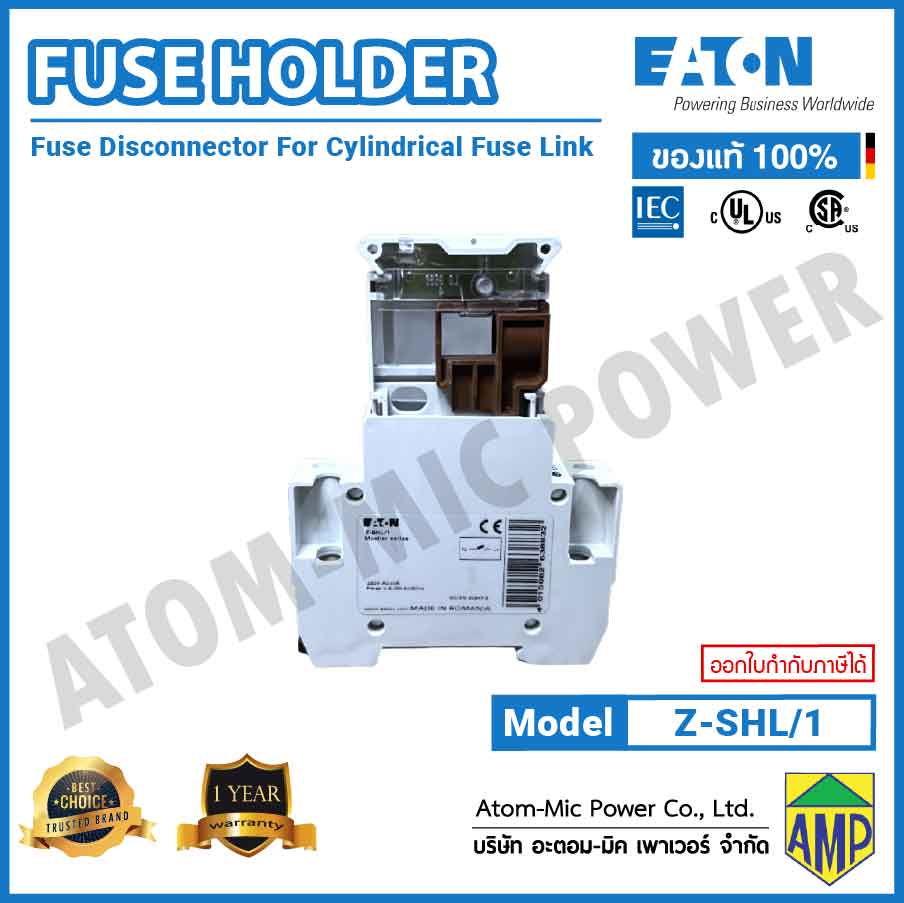

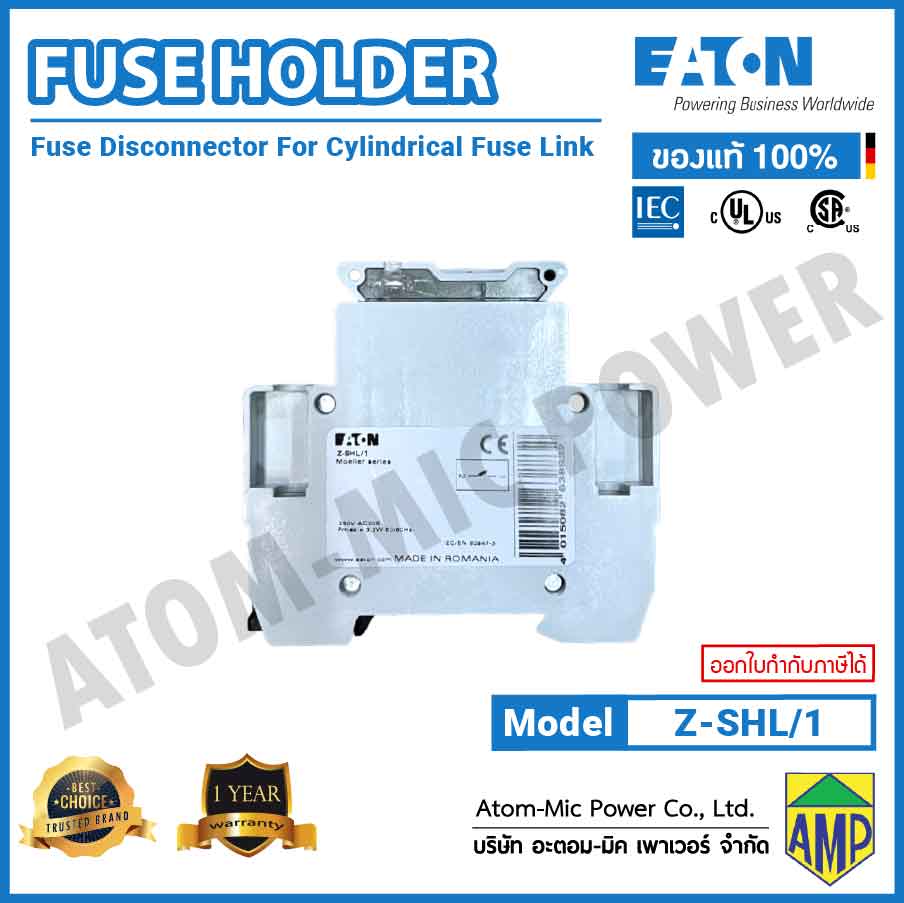

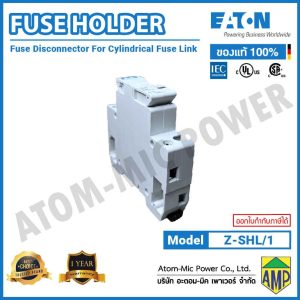

EATON-Fuse Disconnectors-Z-SHL/1 (1 POLE)

Part no. : Z-SHL/1
EAN : 4015082638832
Product Length/Depth : 80 millimetre
Product height : 74 millimetre
Product width : 17.8 millimetre
Product weight : 0.092 kilogram
Compliances : RoHS conform
Actuator position : Front side
Conditioned rated short-circuit current Iq : 10 kA
Degree of protection (front side) IP20
Electrical connection type of main circuit : Screw connection
Number of poles : Single-pole
Power rating at AC-23, 400 V 0 kW
Rated conditional short-circuit current (Iq) 10 kA
Rated operating voltage (Ue) at AC – max 230 V
Rated operation power at AC-23, 400 V : 0 kW
Rated short-time withstand current (Icw) : 0 kA
Rated uninterrupted current (Iu) : 32 A
Suitable for fuses : Shape C1-C3
Max. rated operation voltage Ue AC : 230 V
Rated permanent current Iu : 32 A
