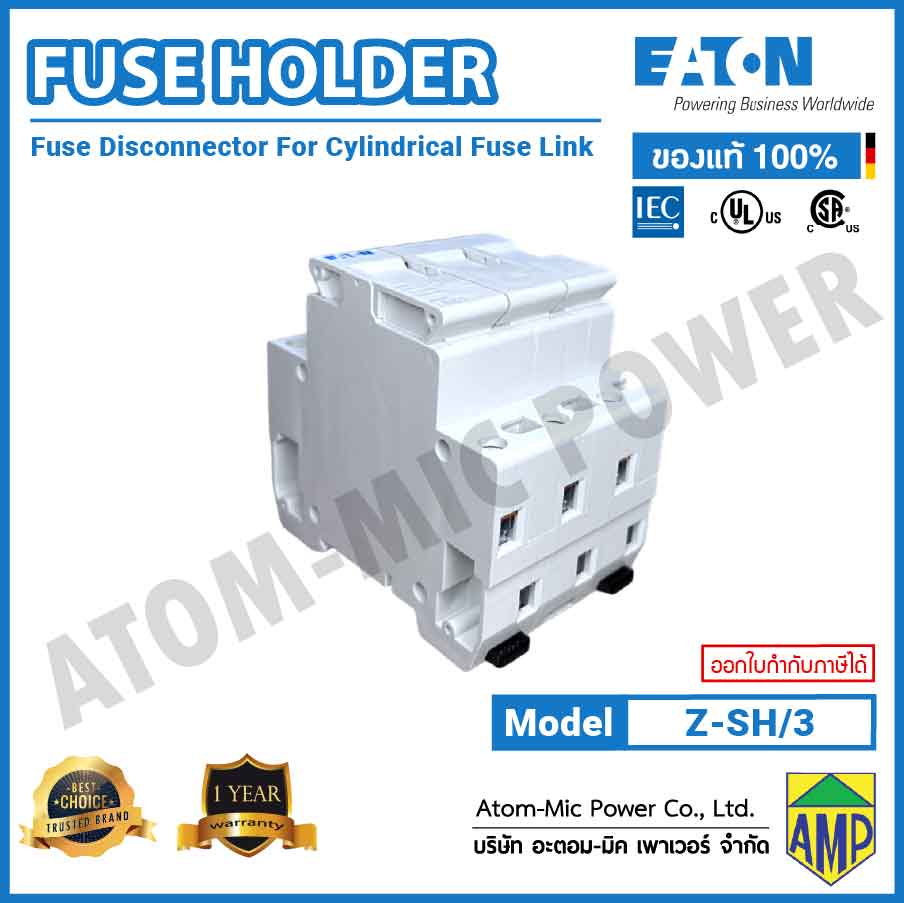

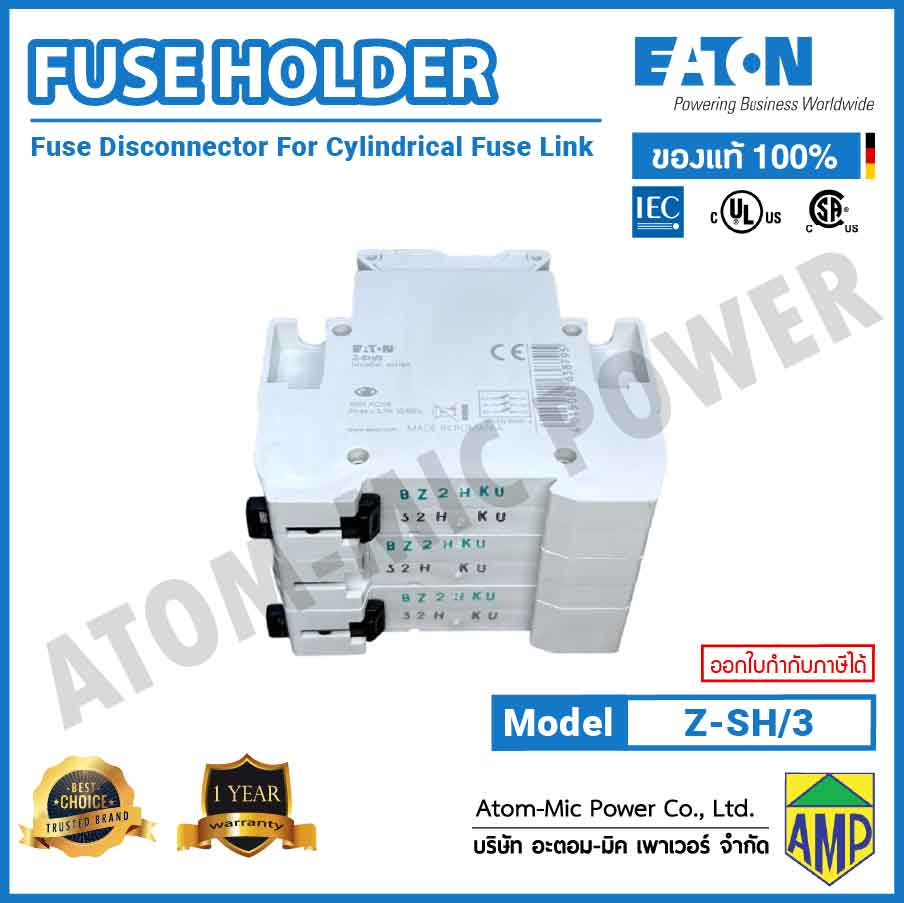

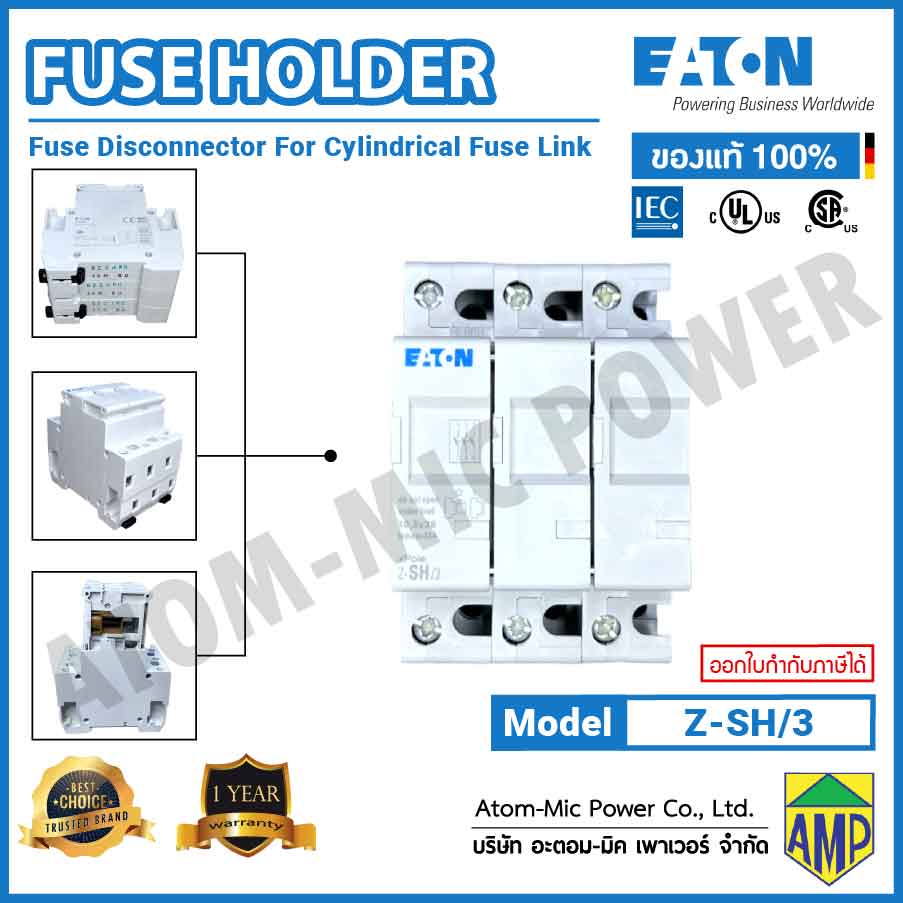

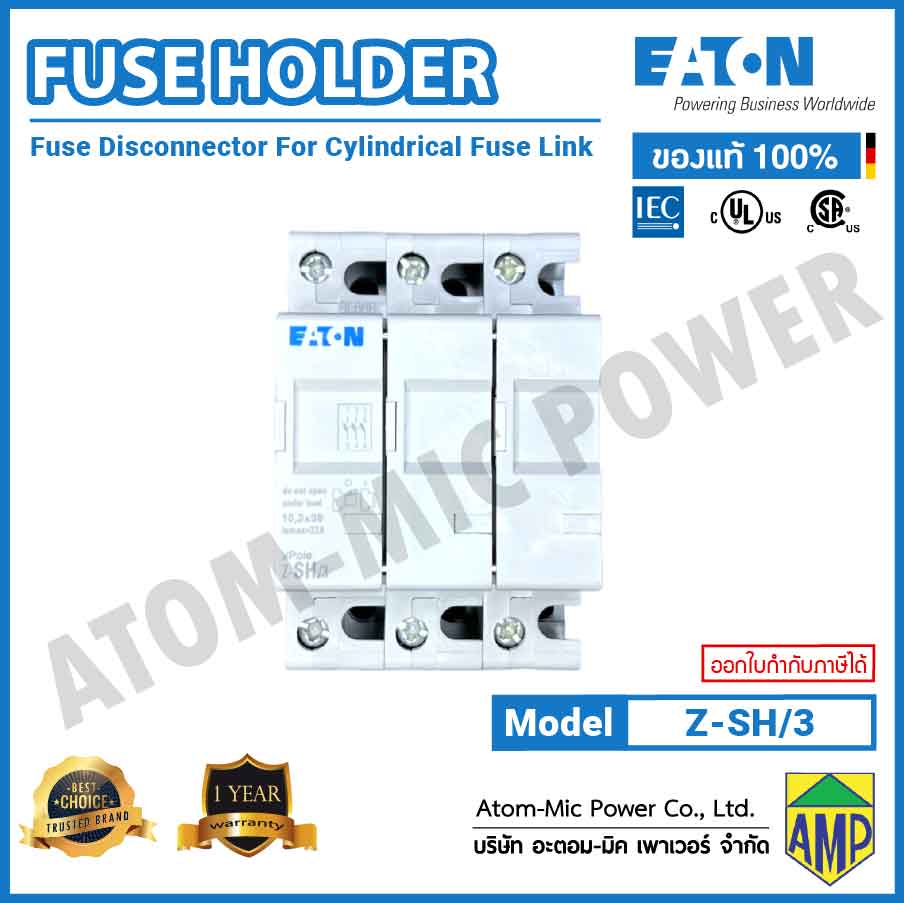

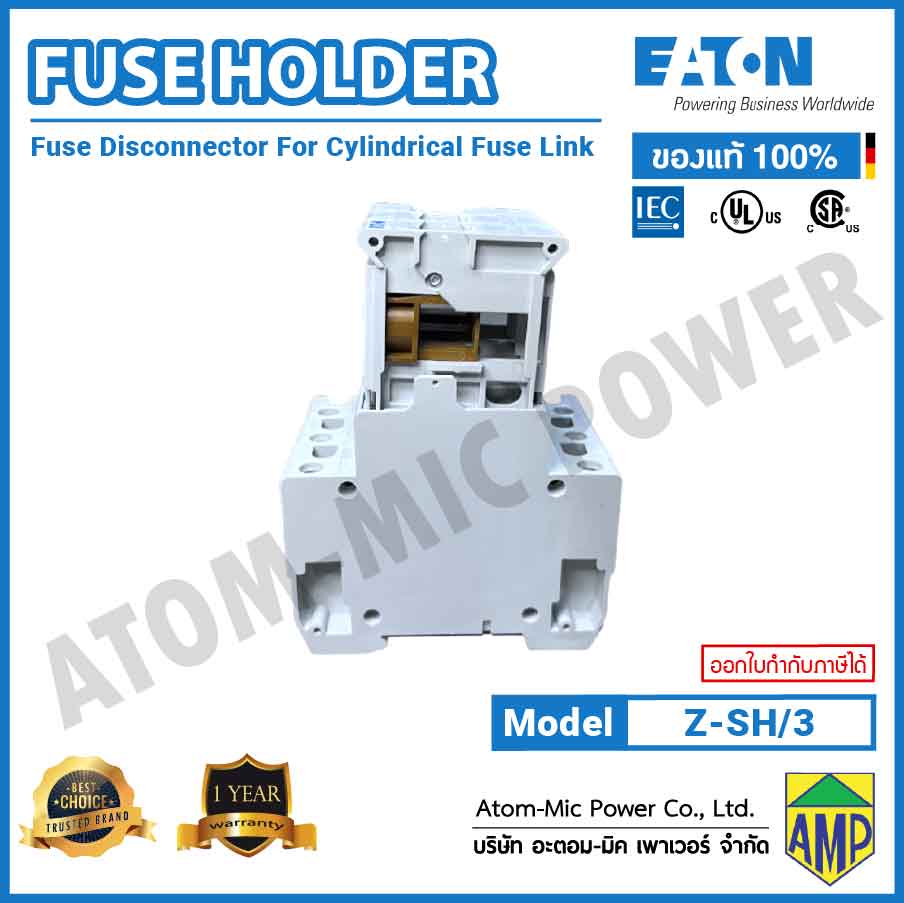

EATON-Fuse Disconnectors-Z-SH/3 (3 POLE)

Model Code : Z-SH/3
EAN : 4015082638795
Product Length/Depth : 80 mm
Product Height : 74 mm
Product Width : 52.5 mm
Product Weight : 0.238 kg
Compliances : RoHS conform
Rated uninterrupted current (Iu) : 32 A
Conditioned rated short-circuit current Iq : 10 kA
Number of poles : Three-pole
Electrical connection type of main circuit : Screw connection
Actuator position : Front side
Suitable for fuses : Shape C1-C3
Cable entry type : Other
Degree of protection (front side) : IP20
Power rating at AC-23, 400 V : 0 kW
Rated operating voltage (Ue) at AC – max : 400 V
