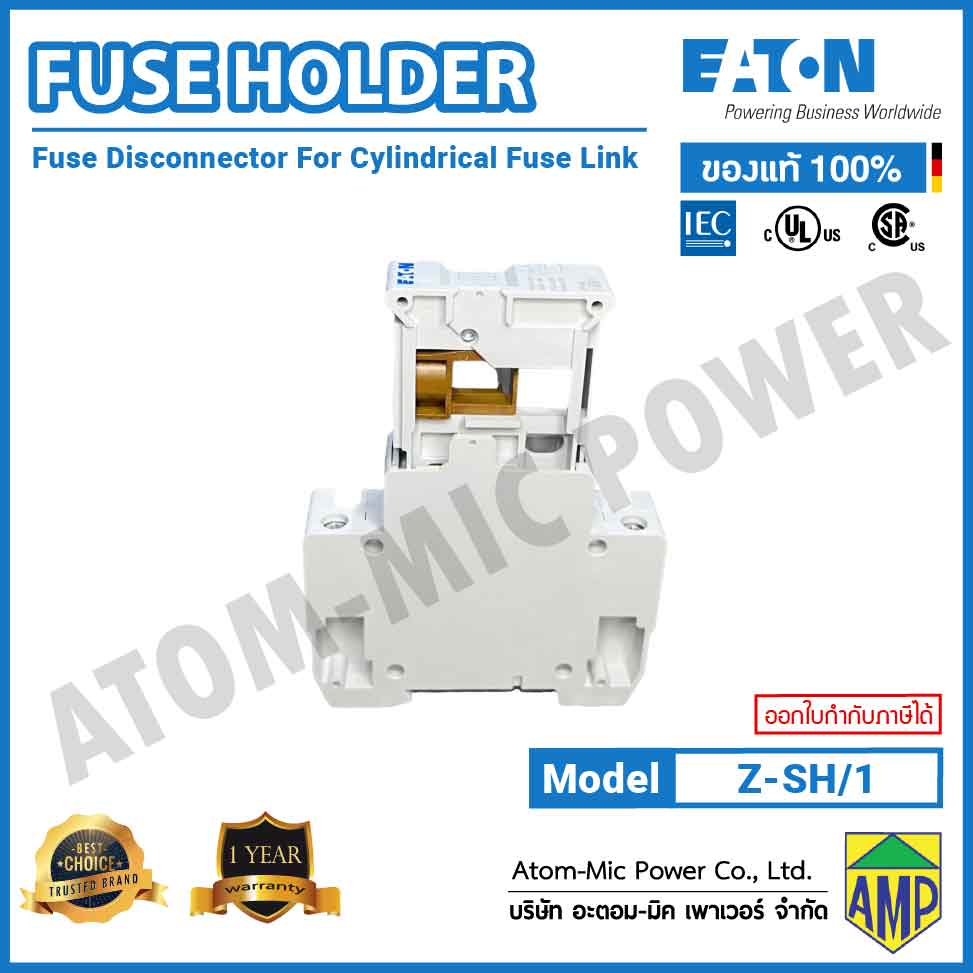

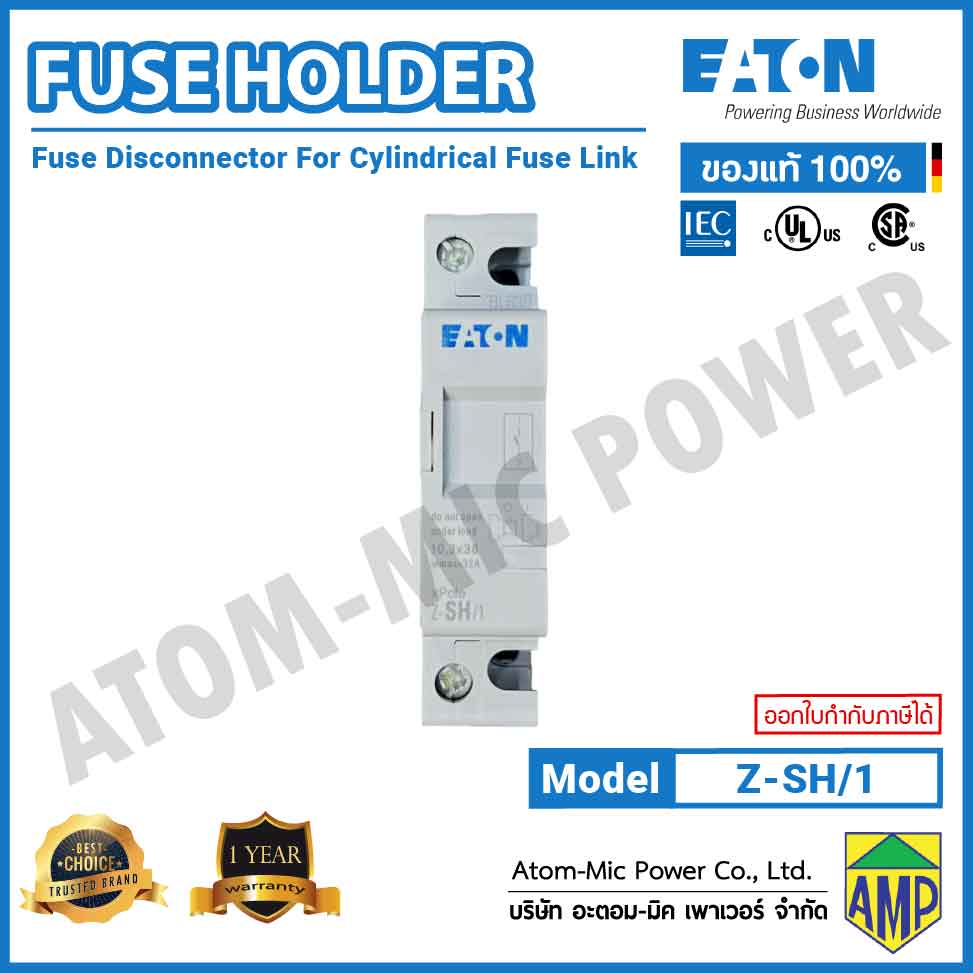

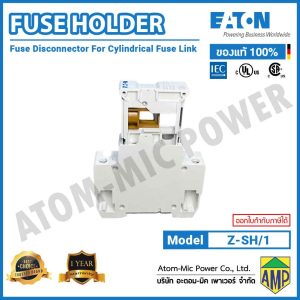

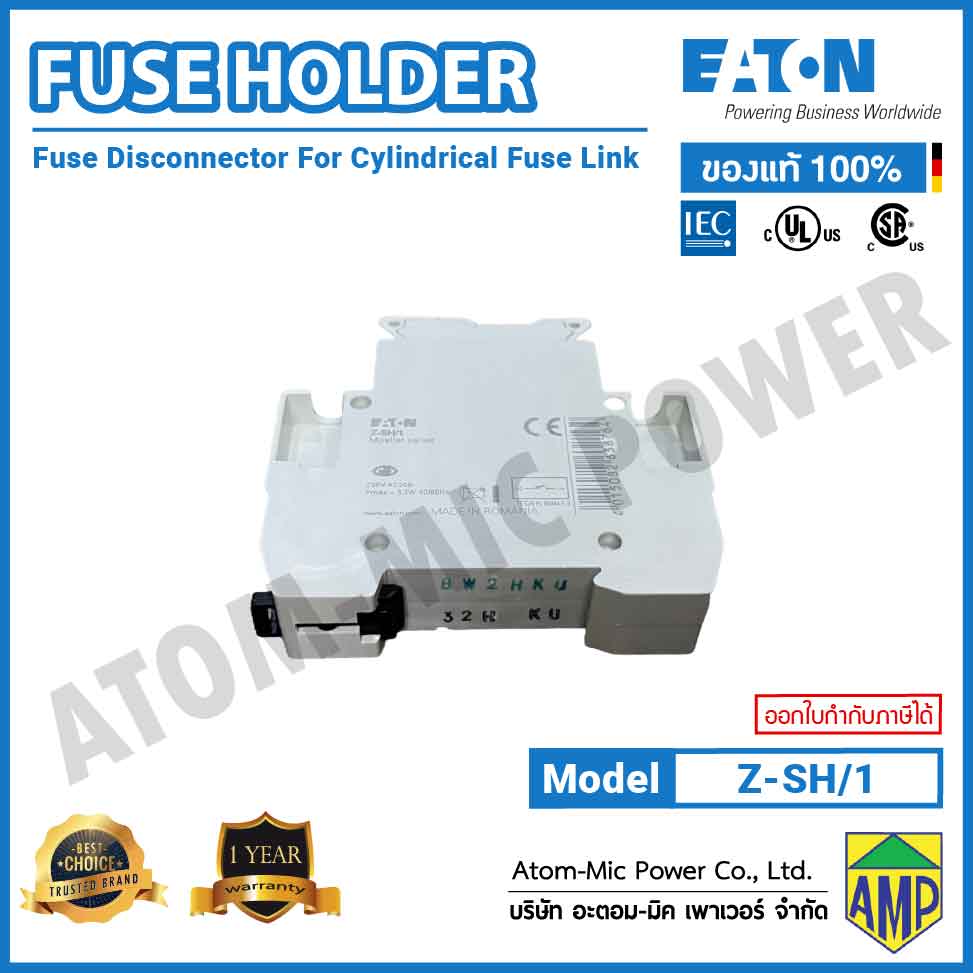

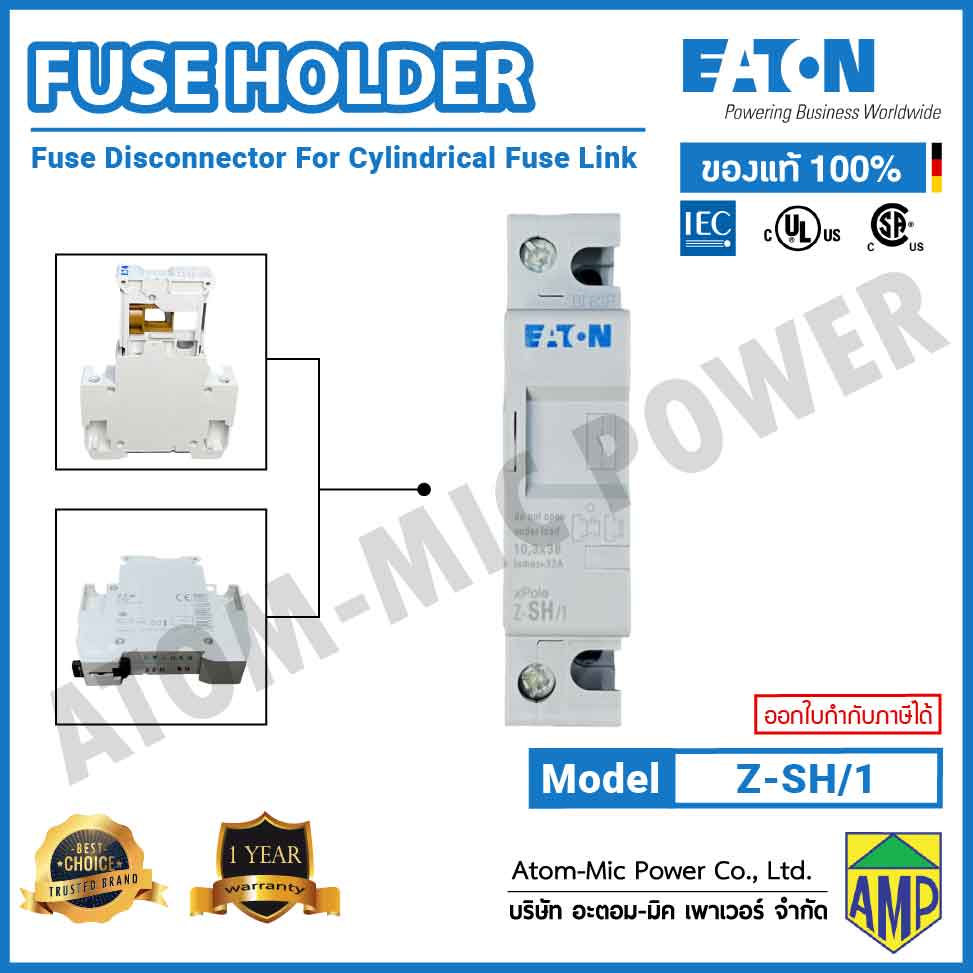

EATON-Fuse Disconnectors-Z-SH/1 (1 POLE)

Product Name : Z-SH/1
Catalog Number : 263876
EAN : 4015082638764
Product Length/Depth : 80 mm
Product Height : 74 mm
Product Width : 17.8 mm
Product Weight : 0.085 kg
Compliances : RoHS conform
Rated uninterrupted current (Iu) : 32 A
Conditioned rated short-circuit current Iq : 10 kA
Number of poles : Single-pole
Electrical connection type of main circuit : Screw connection
Actuator position : Front side
Rated conditional short-circuit current (Iq) : 10 kA
Degree of protection (front side) : IP20
