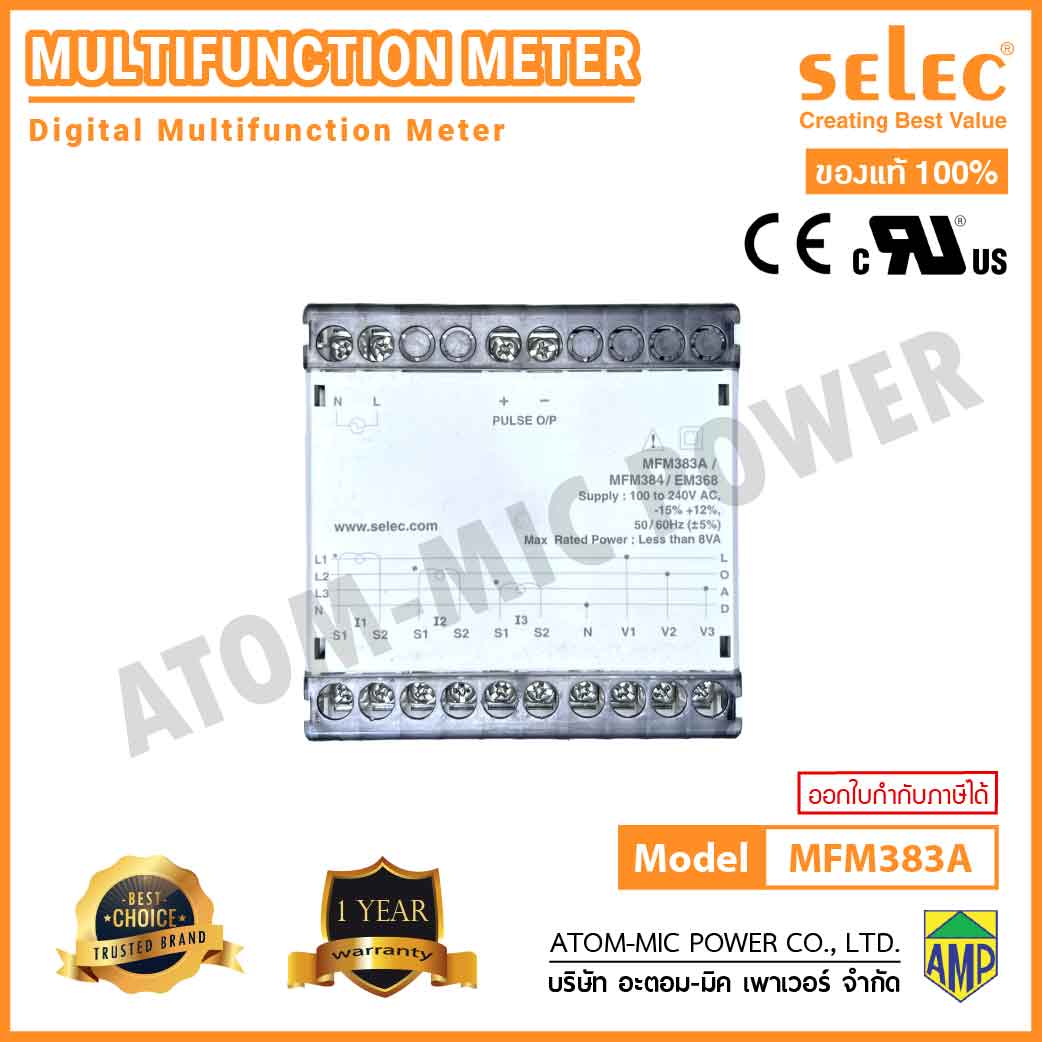

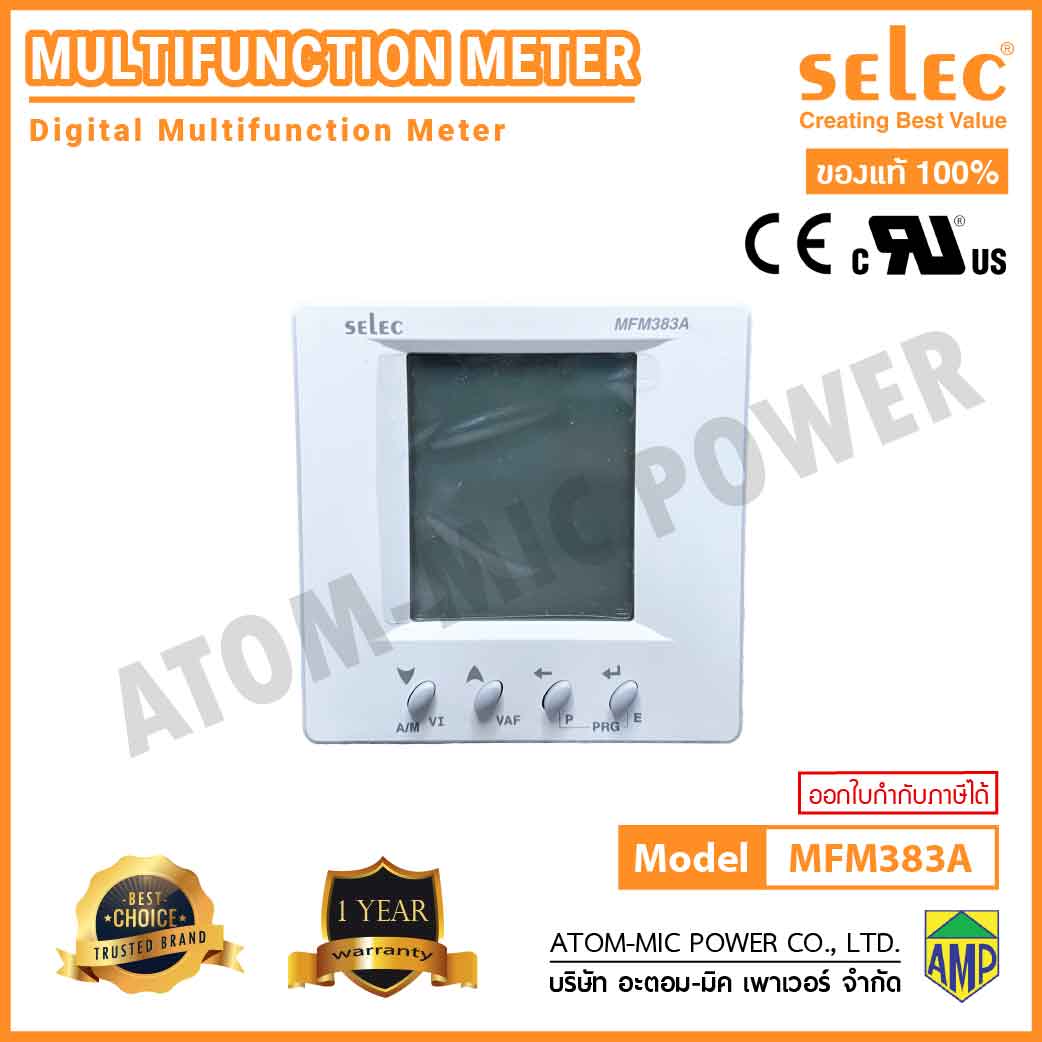

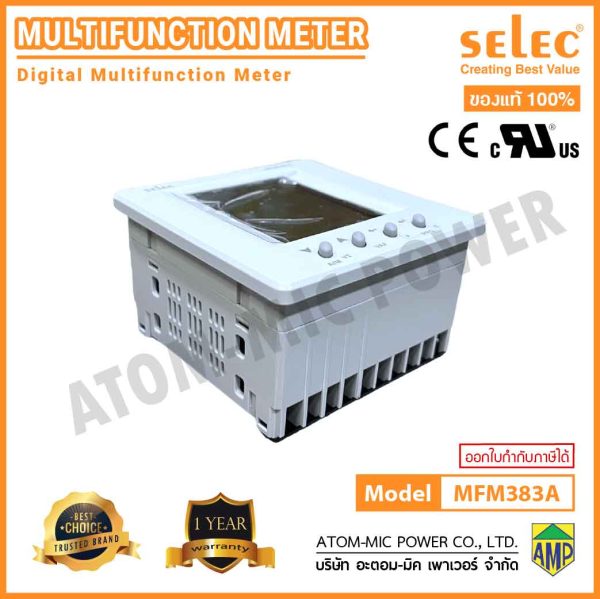

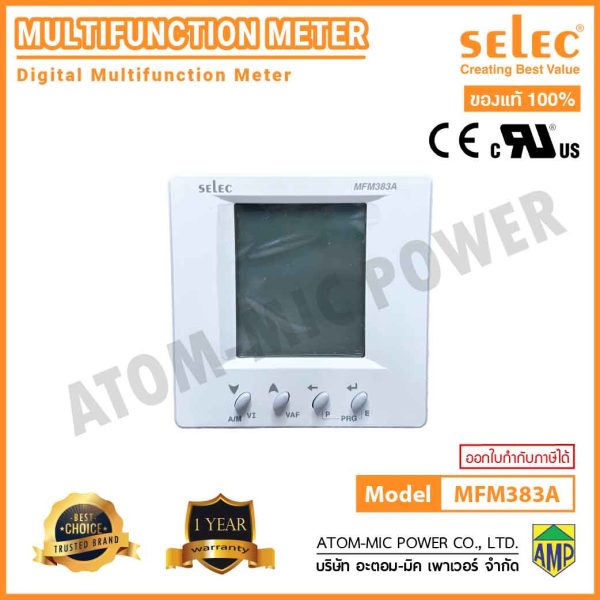

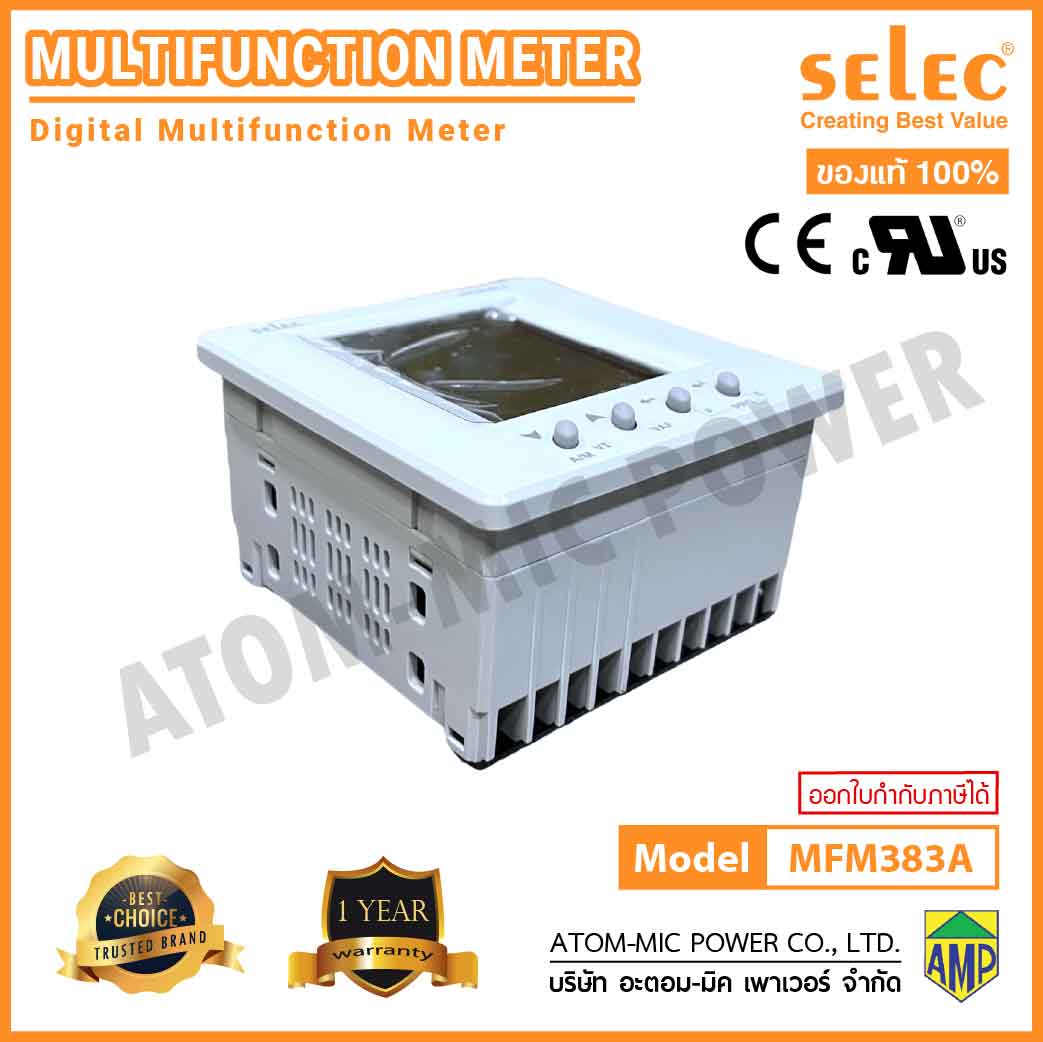

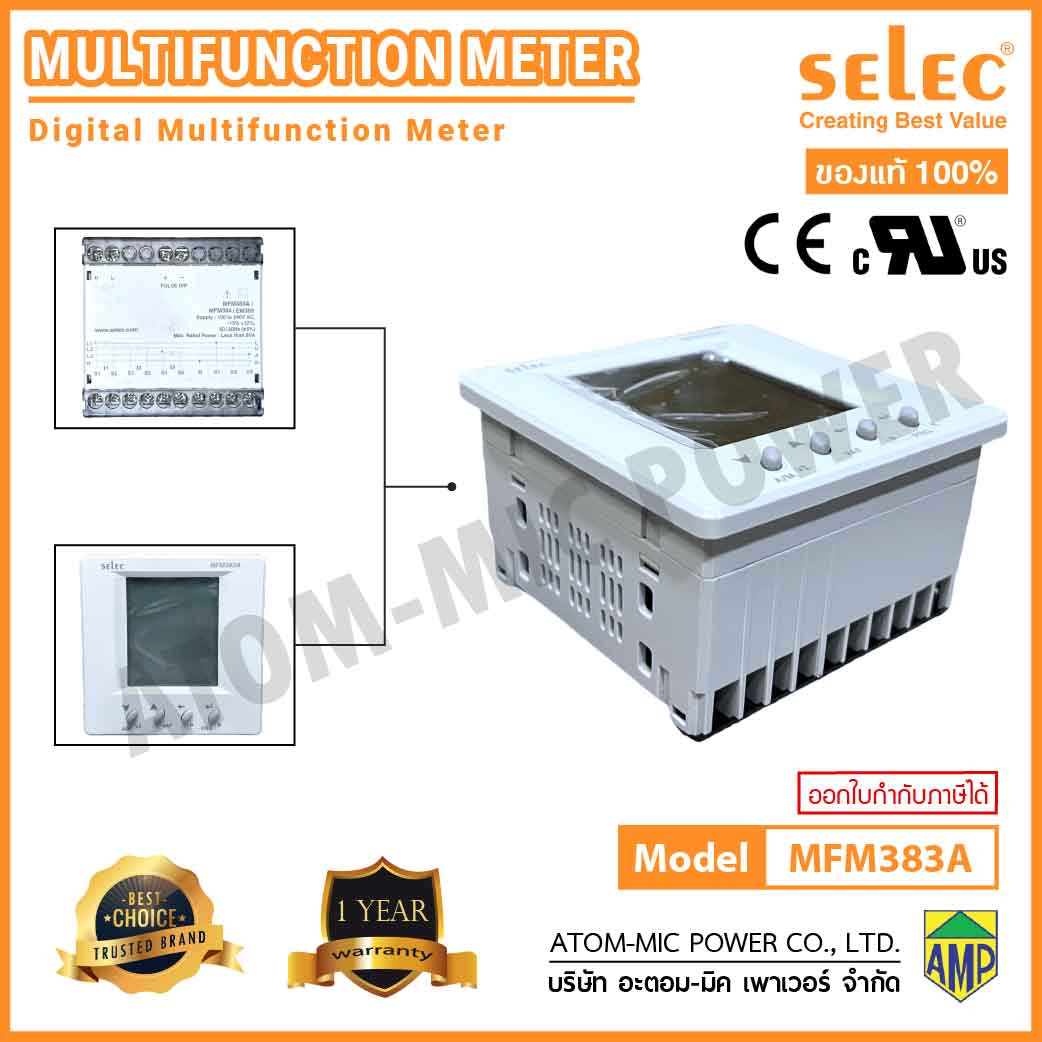

SELEC – DIGITAL MULTIFUNCTION METER – MFM383A
Features
– 3Ø True RMS (Voltage, Current)
– Modbus RTU Communication (RS485) (Optional)
– Single Pulse Output
– Programmable CT / PT Primary / Secondary
– Energy (Active, Reactive & Apparent)
– 3Ø Power (Active, Reactive & Apparent)
Display Specifications
– Display 3 rows, LCD with Backlight Lowest 7½ digit for energy display
– Digits : 4
Input Specifications
– Input Current Range : Nominal 5A AC (Min – 11mA, Max – 6A)
– Frequency : 45 to 65Hz
– Input Voltage Range 11 to 300V AC (L – N) 19 to 519V AC (L – L)
– Electrical Connection : 3Ø – 3 wire, 3Ø – 4 wire, 2Ø – 3 wire, 1Ø – 2 wire
– Power Consumption : 8VA max
– Display Scrolling : Automatic / Manual
– Display Reset : Programmable (For energy)
– Weight : 310 gms
– Supply Voltage : 100 to 240V AC, -15% to +12%, 50 / 60 Hz, (±5%)
