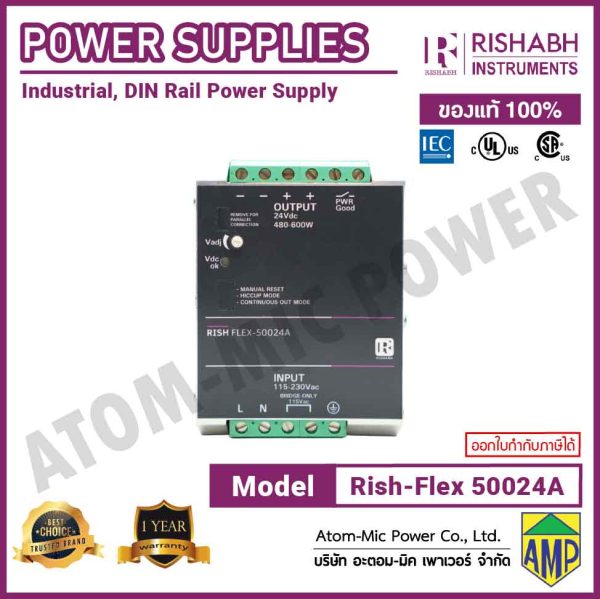

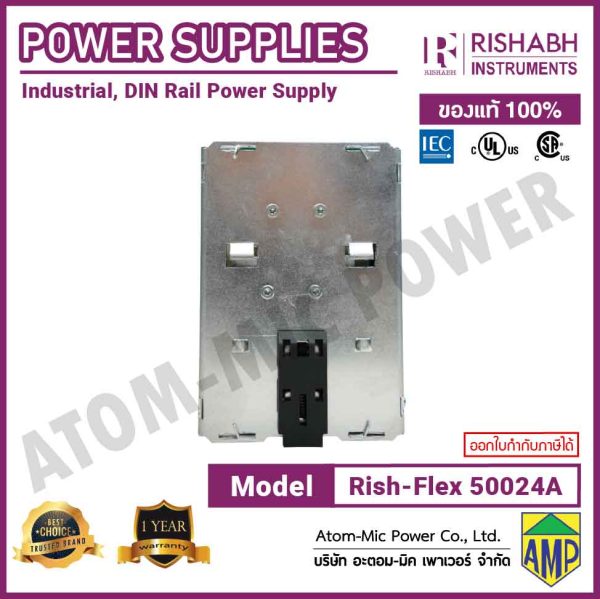

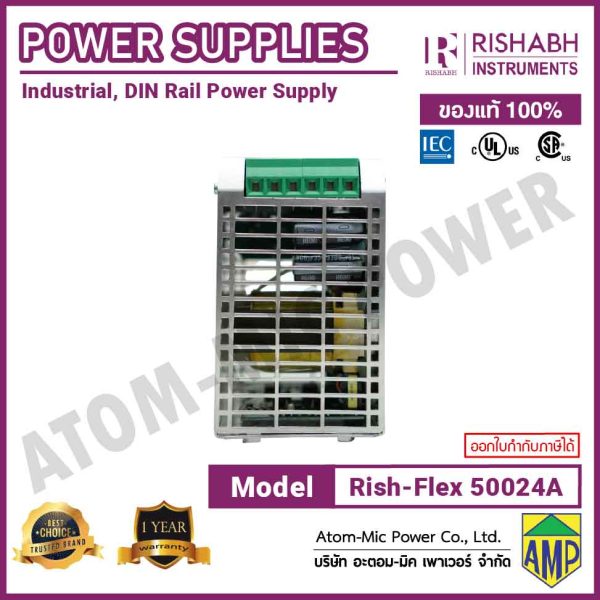

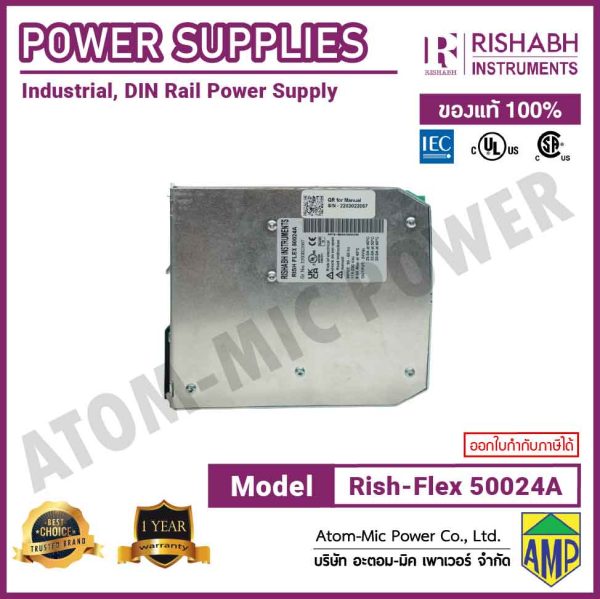

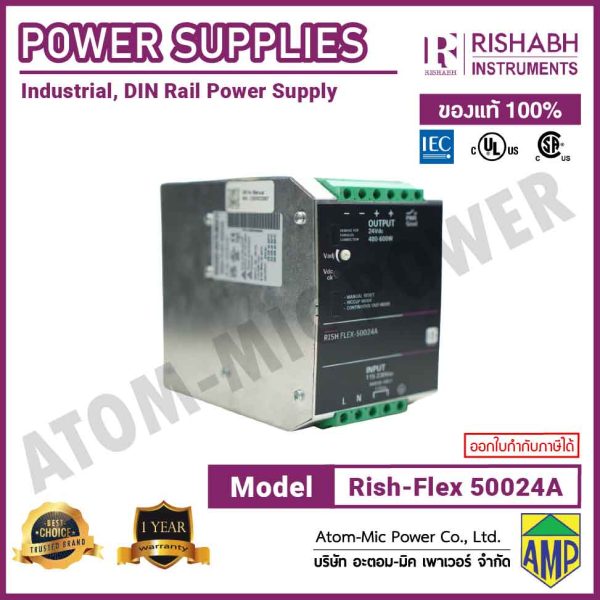

RISHABH – Current Transformer – RISH FLEX 50024A

Input Data
Nominal Input Voltage (2 x Vac)
Manual select Input from 115 to 230
115 – 230
Input Voltage range (Vac) 90 – 135 (115)
170 – 280 (230)
Inrush Current (Vn and In Load) I2
t  16 A  5 msec. Frequency 47 – 63 Hz 6%
Input Current (115 – 230 Vac) 8 – 4.2 A
Internal Fuse T 10 A
External Fuse (recommended) 16 A (MCB curve B)
Output Data
Output Voltage (Vn) Factory Setting 3% 24 Vdc
Adjustment range (Vadj) 22 – 27 Vdc
Start up with Strong Load (capacitive load) 50,000F
Turn-On delay after applying mains voltage 1 sec. (max)
Continuous Current at 24 V < 40°C (In) 25 A (permanent) Continuous Current at 24 V < 50°C (In) 22 A (permanent) Continuous Current at 24 V < 60°C (In) 20 A (permanent) Power Boost Current at 24 Vdc 60°C(In) 25 A  3 min. Current max. Overload  4Vdc (permanent) Imax=In60°Cx(1.8 -2.2) Current Short Circuit Icc Max 2 sec.: Hiccup mode Permanent : Continuous Mode 60 A Hold-up Time ( min. Vac) Typ. 20 msec Residual Ripple  80 mVpp Efficiency  92 % Over temperature Protection Yes. Shut-down output and automatic restart. Short-circuit protection 1° Manual Reset 2° Hiccup Mode 3° Continuous Out Mode Dissipation power load max (W) 54 Over Load protection Yes Over Voltage Output protection Yes (typ. 35 Vdc) Parallel connection Yes. “Easy Parallel” Power Good Contact rating (EN60947.4.1): Max. DC1: 30 Vdc 1 A; AC1: 60 Vac 1A Min.1mA at 5 Vdc Resistive load Min permissive load Climatic Data Ambient Temperature operation -25°C up to +70 °C (>60°C Derating 2.5% °C)
Ambient Temperature Storage -40°C up to +85 °C
Humidity at 25 °C, no condensation 95 % to 25 °C
General Data
Isolation Voltage (In / Out) 3000 Vac
Isolation Voltage (In / PE) 1605 Vac
Isolation Voltage (Out / PE) 500 Vac
Protection Class (EN/IEC 60529) IP 20
Reliability: MTBF IEC 61709 > 5,00,000 h
Pollution Degree Environment 2
Connection Terminal Blocks Screw Type 4 mm² (30-10 AWG)
Protection class I with PE connected
Dimension (w-h-d) 85x120x140 mm Weight 1.1 kg approx.
