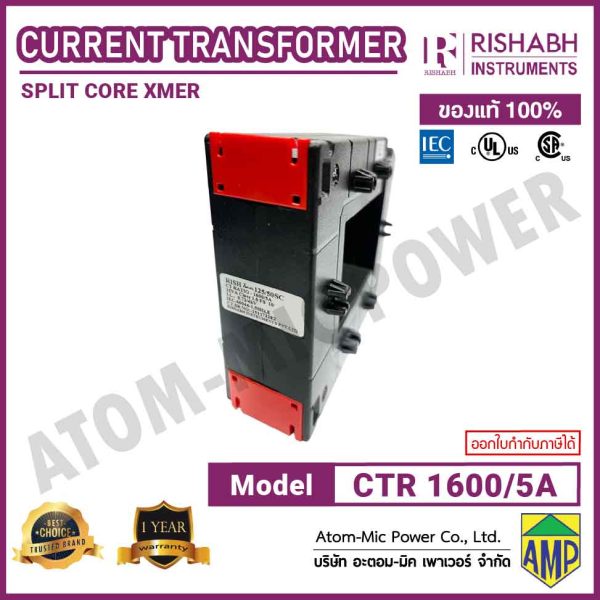

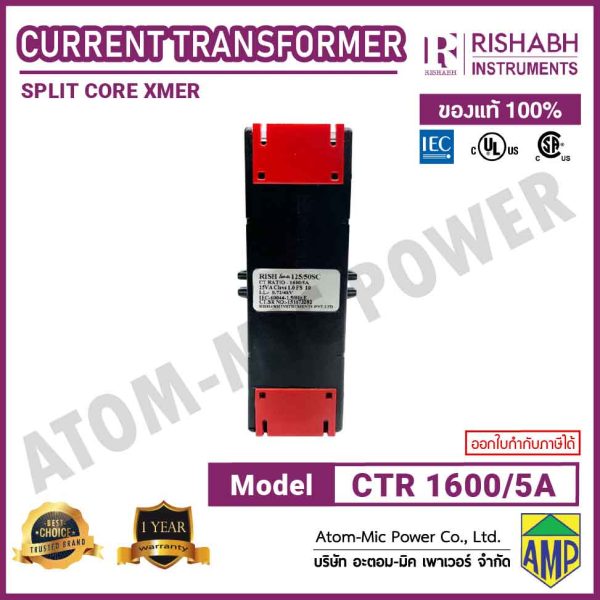

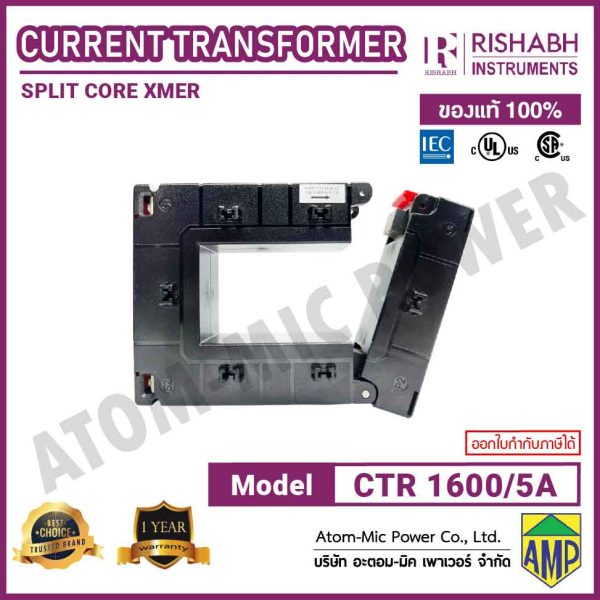

RISHABH – Current Transformer – CTR 1600/5A (125/50SC)
The RISHABH Current Transformer CTR 1600/5A (125/50SC) has a primary current rating of 1600A and a secondary current rating of 5A. It is designed for measuring and monitoring electrical currents in high-voltage systems. Its applications include protection and metering in substations, industrial plants, and power distribution networks. The transformer is built to provide accurate current measurement and ensure safety in electrical installations.
Rated primary current : 100A – 5000A
Rated secondary current : 1A or 5A
Highest voltage for equipment Um (rms) : 0.72Kv
Operating frequency : 50/60Hz
Withstand voltage (rms) : 3000Vac
Instrument security factory : FS<5
Case material : UL flame retardent rating 94 - V0
Operating temperature : -15 - 60C
