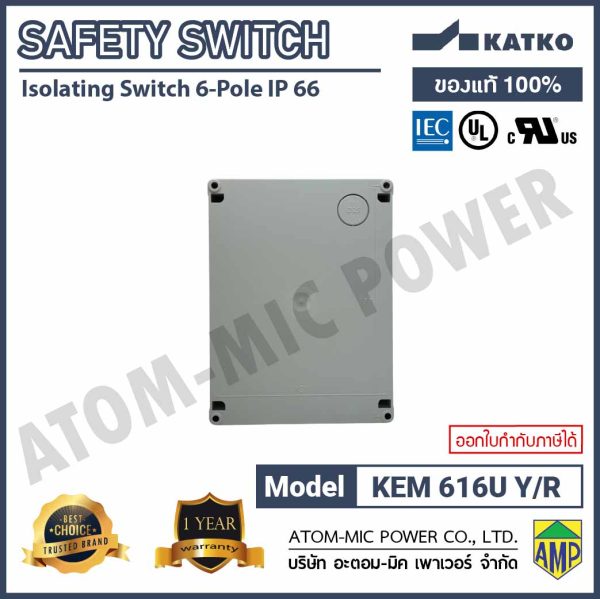

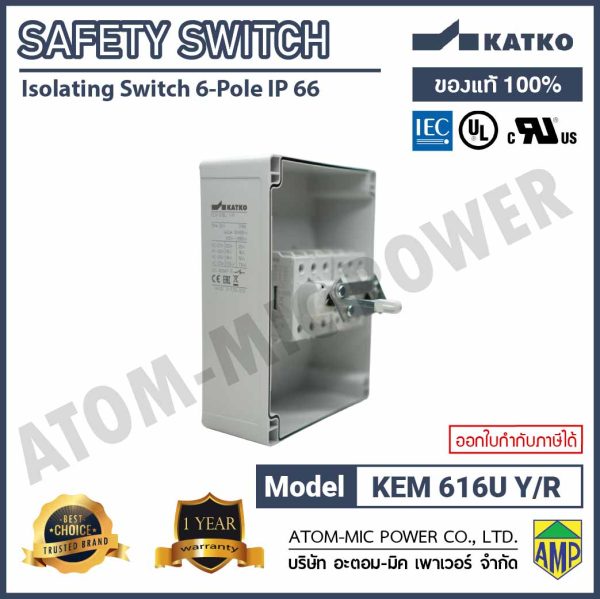

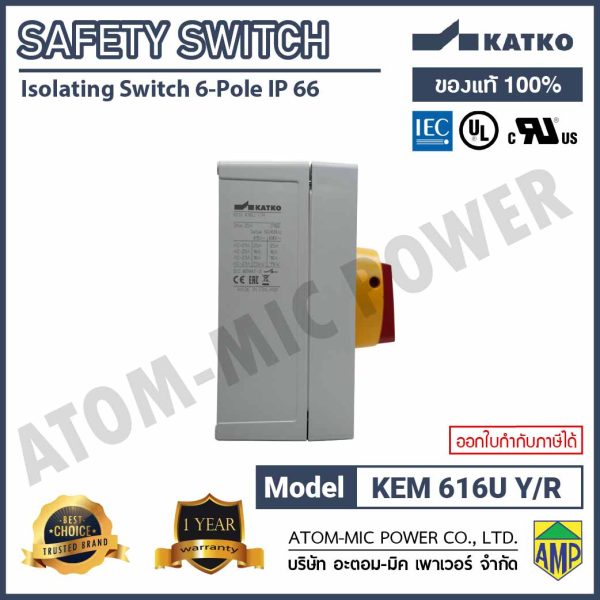

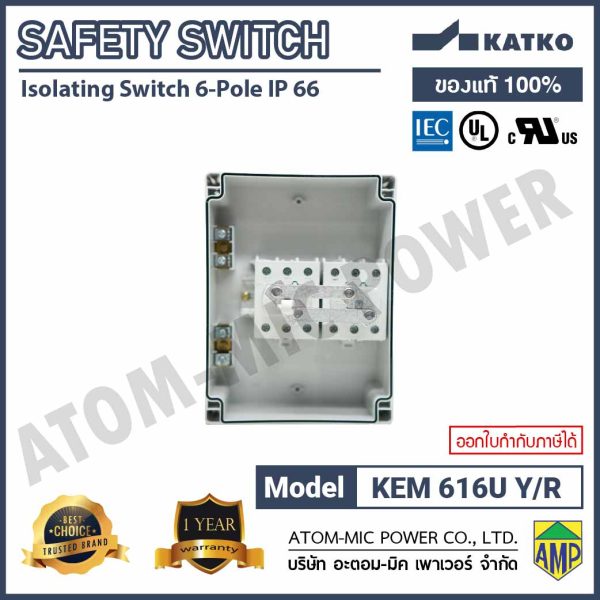

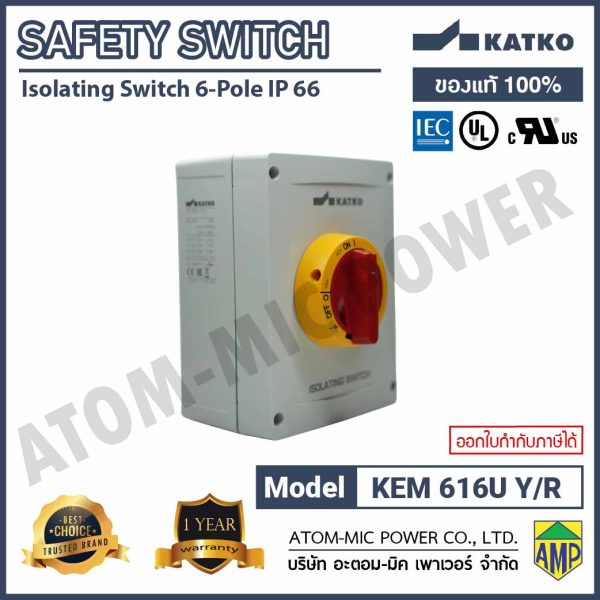

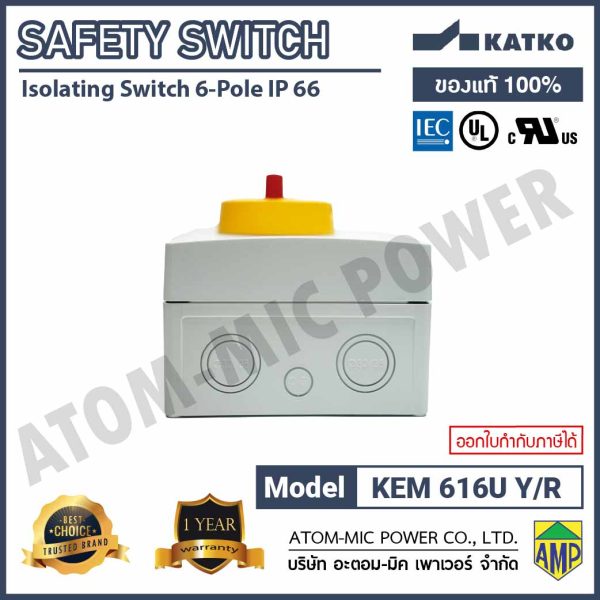

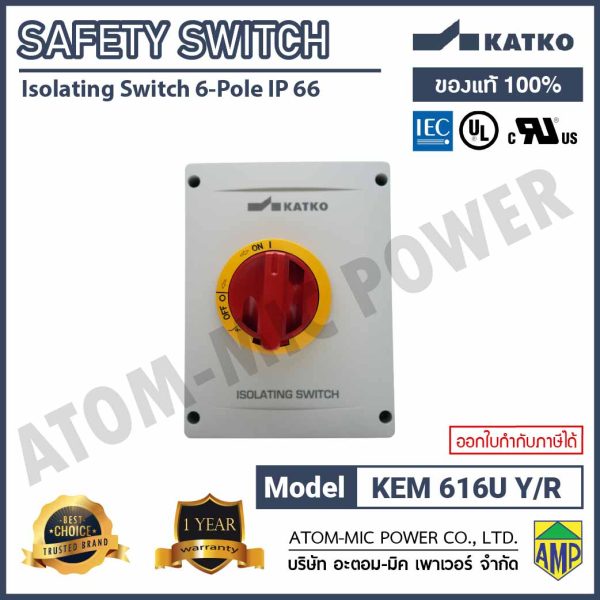

KATKO-SAFETY SWITCH-LOAD BREAK-KEM 616 U Y/R (IP66, 6 POLE)

Description
Possibility of three padlock locks, resistant to chemicals. Polycarbonate has good UV resistance and is self-extinguishing.

KEM POLYCARBONATE 16A
– IP66; Housing M3
– Self-extinguishing material
– Wide operating temperature range
– Padlock with 3 locks
– Door lock with manipulation mechanism
– Excellent insulating properties
– Good UV resistance
– Good resistance to many chemicals
– Tested according to IEC 60947-3

SKU: KEM 616 U Y/R Categories: KATKO LOAD BREAK SWITCH ENCLOSURES, MAIN SWITCH & LOAD BREAK

Description
Additional information

Brand : Katko
Model : KEM 616 U Y/R
Length (mm) : 144
Width (mm) : 131
Height (mm) : 190
Weight in : 0.945 kg
Minimum order quantity : 1
Step size : 1
Packing unit : 1
Poles : 6
AC22 : 400/415V16A
AC23 : 400/415V16A/7.5kW
Colour : handleYellow/Red
Enclosure : M3
Max. rated operation voltage Ue AC : 690 V
Rated operating voltage : 400 – 690 V
Rated permanent current Iu : 16 A
Rated permanent current at AC-23, 400 V : 16 A
Rated permanent current at AC-21, 400 V : 16 A
Rated short-time withstand current lcw : 0.7 kA
Rated operation power at AC-23, 400 V : 7.5 kW
Switching power at 400 V : 7.5 kW
Conditioned rated short-circuit current Iq : 50 kA
