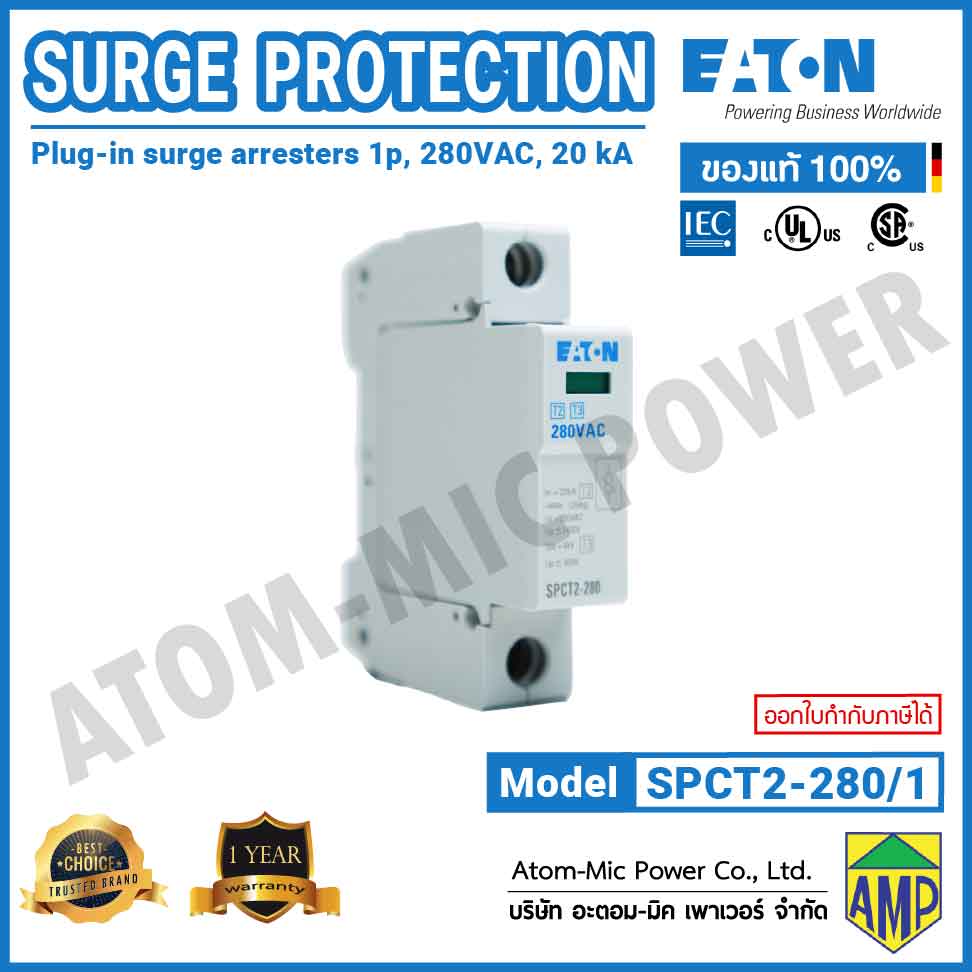

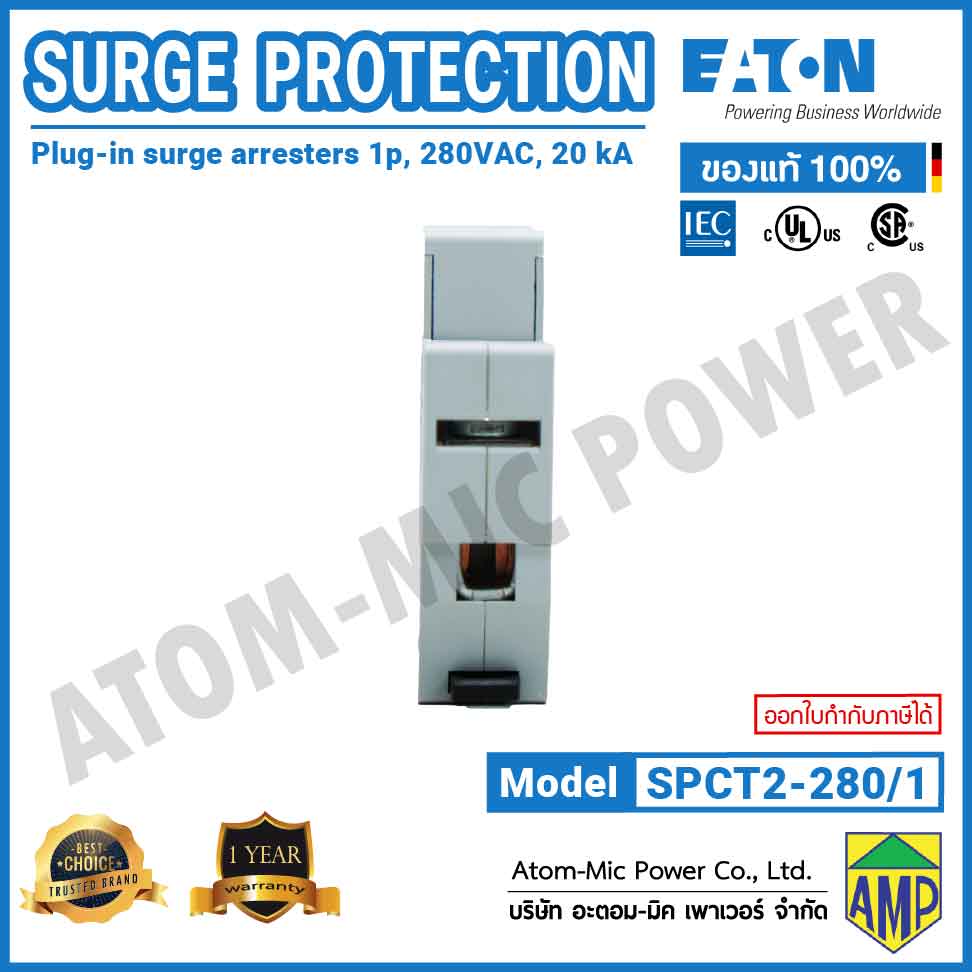

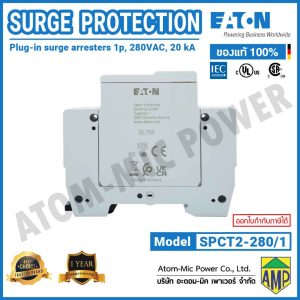

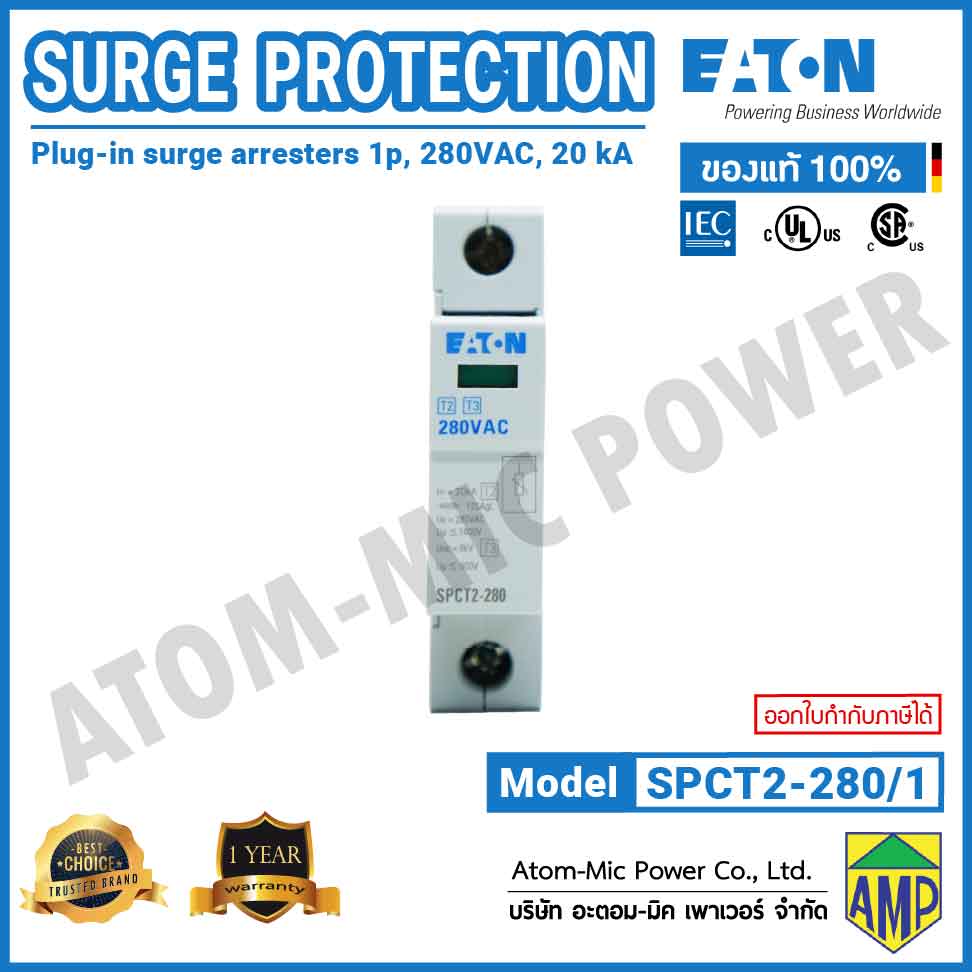

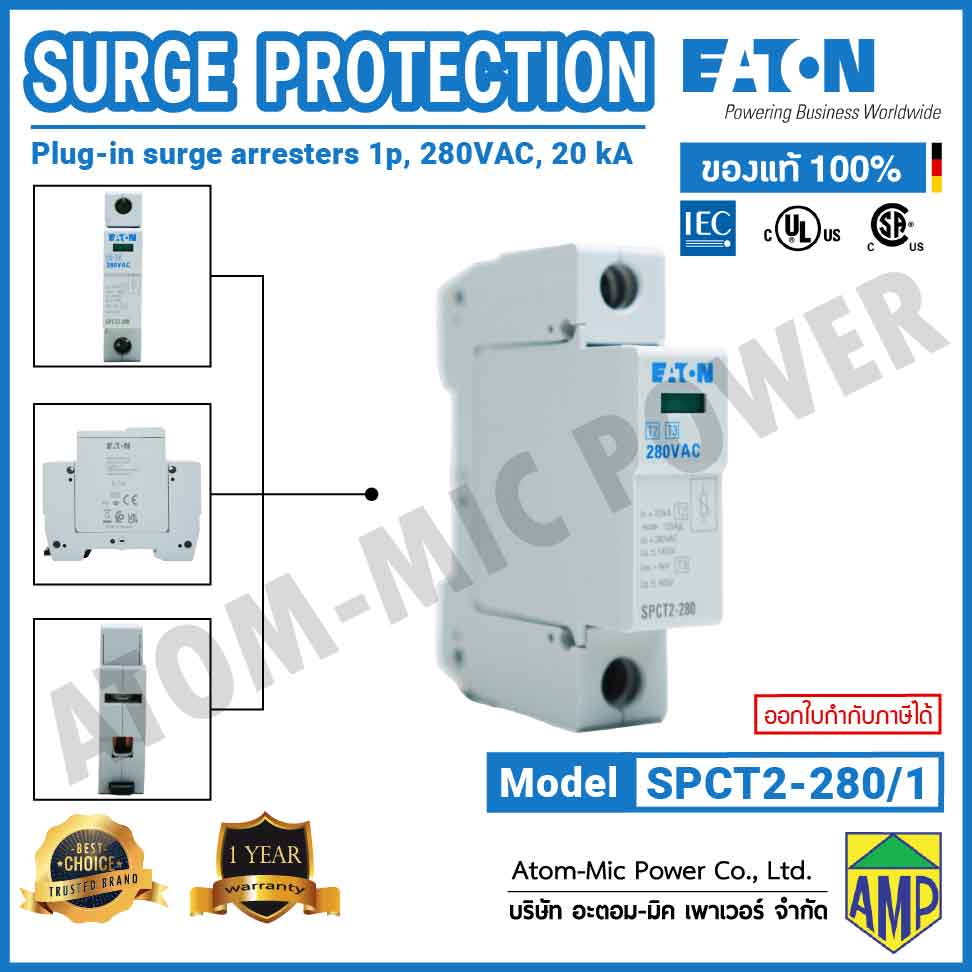

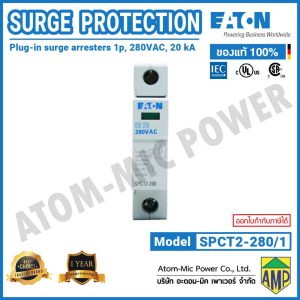

Eaton – SPCT2 Surge Protection Device, Plug-in surge arresters, 1p, 280VAC, 20 kA – SPCT2-280/1

General specifications
Product Name : Eaton Moeller series xPole – SPCT2 Surge protection device
Catalog Number : 167593
Model Code : SPCT2-280/1
EAN : 4015081640850
Product Length/Depth : 85 mm
Product Height : 67 mm
Product Width : 17.5 mm
Product Weight : 0.098 kg
Compliances : RoHS conform
Certifications : CE

Product specifications
Features : Category type 2
Frame : 1 modular spacing
Degree of protection : IP20
Mounting method : DIN rail (top hat rail) 35 mm
Signalling at the device : Optic
Continuous voltage at AC – max : 280 V
Discharge surge current (8/20) – max : 40 kA
Nominal discharge surge current (8/20) : 20 kA
Nominal voltage at AC : 280 V
Number of conductors without earthing : 1
Voltage protection level : 1.4 KV
Overcurrent protection device, series connection (fuse) – max : 125 A
