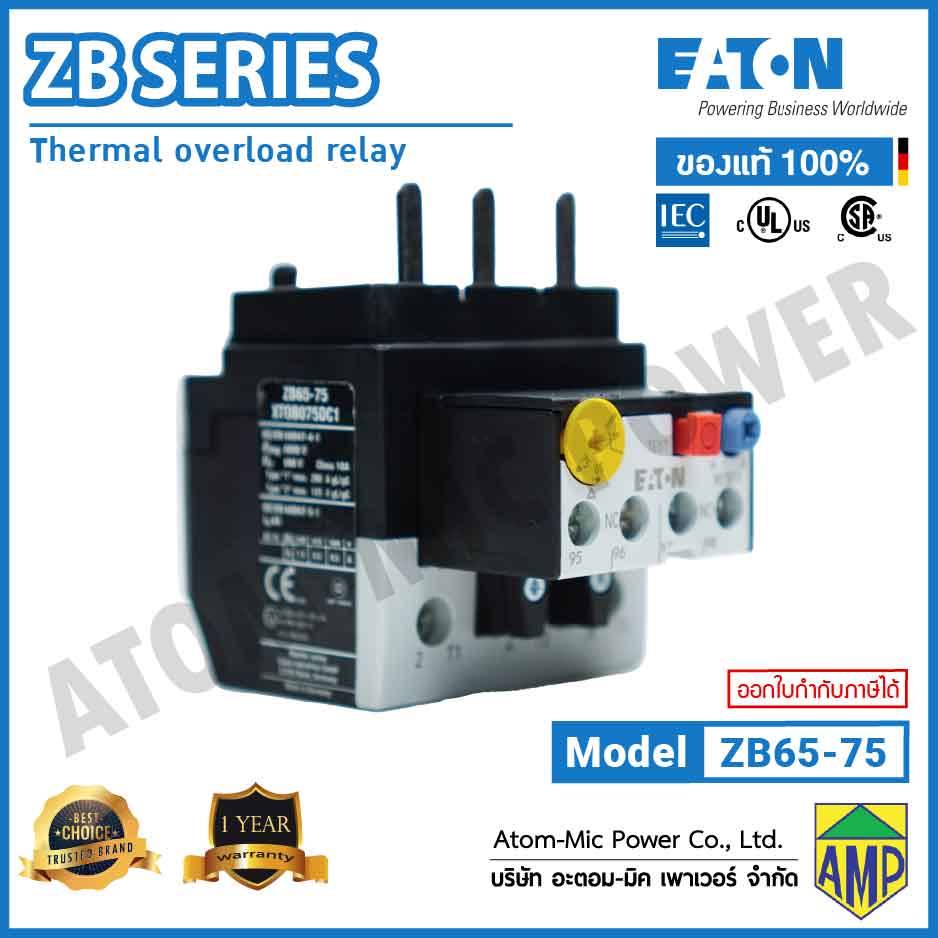

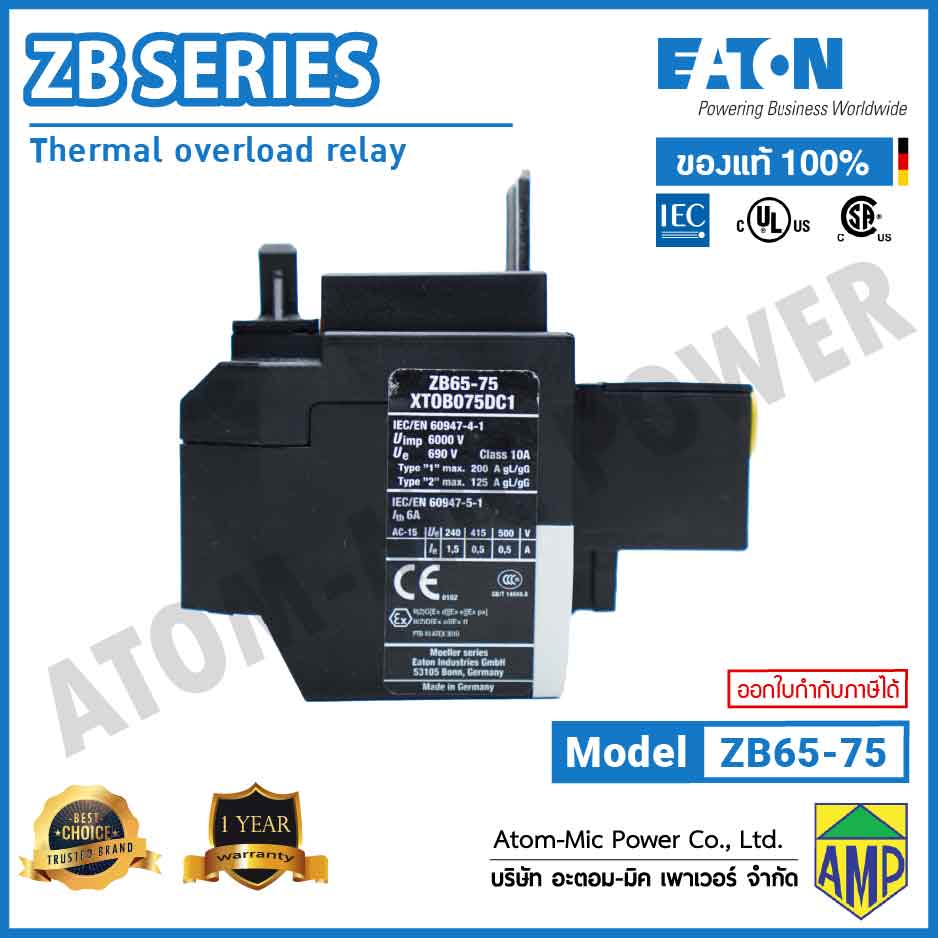

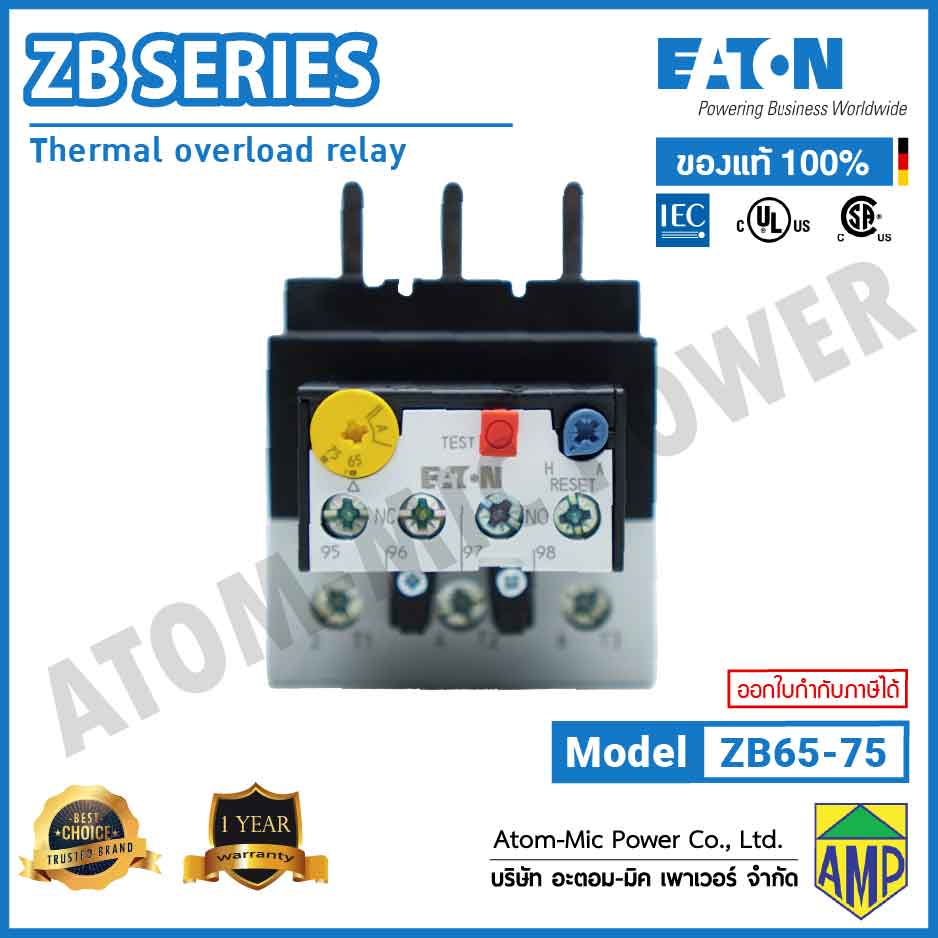

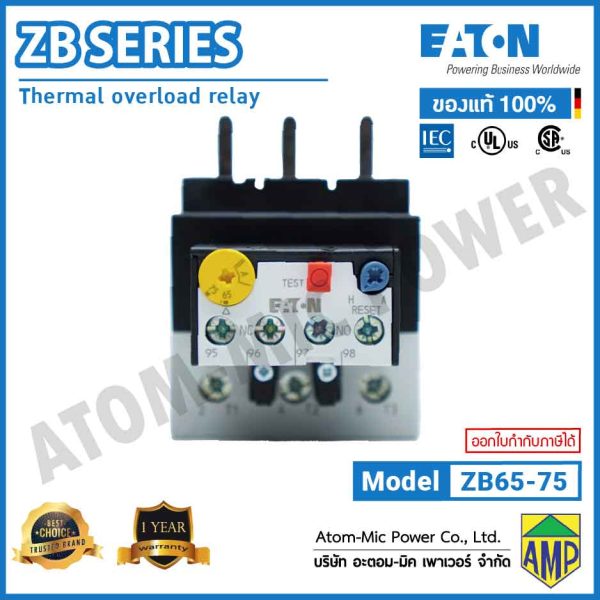

EATON – Overload Relay – ZB65-75 (1 N/O, 1 N/C)

Part no. : ZB65-75
Product range Overload relay ZB up to : 150 A
Product range : Accessories
Accessories : Overload relays
N/O = Normally open : 1 N/O
N/C = Normally closed : 1 N/C
Rated impulse withstand voltage Uimp V AC 6000
Overvoltage category/pollution degree III/3
Rated insulation voltage Ui V 690
Rated operational voltage Ue V AC 690
Safe isolation to EN 61140
Between auxiliary contacts and main contacts V AC 440
Between main circuits V AC 440
rrent heat loss (3 conductors)
Lower value of the setting range W 10.8
Maximum setting W 14.4
Rated impulse withstand voltage Uimp V 4000
Rated insulation voltage Ui V AC 500
Rated operational voltage Ue V AC 500
Safe isolation to EN 61140
between the auxiliary contacts V AC 240
Conventional thermal current I th A 6
Rated operational current for specified heat dissipation In A 75
Heat dissipation per pole, current-dependent Pvid W 4.8
Equipment heat dissipation, current-dependent Pvid W 14.4
Adjustable current range A 65 – 75
Max. rated operation voltage Ue V 690
Max. Voltage Rating 600 V AC
