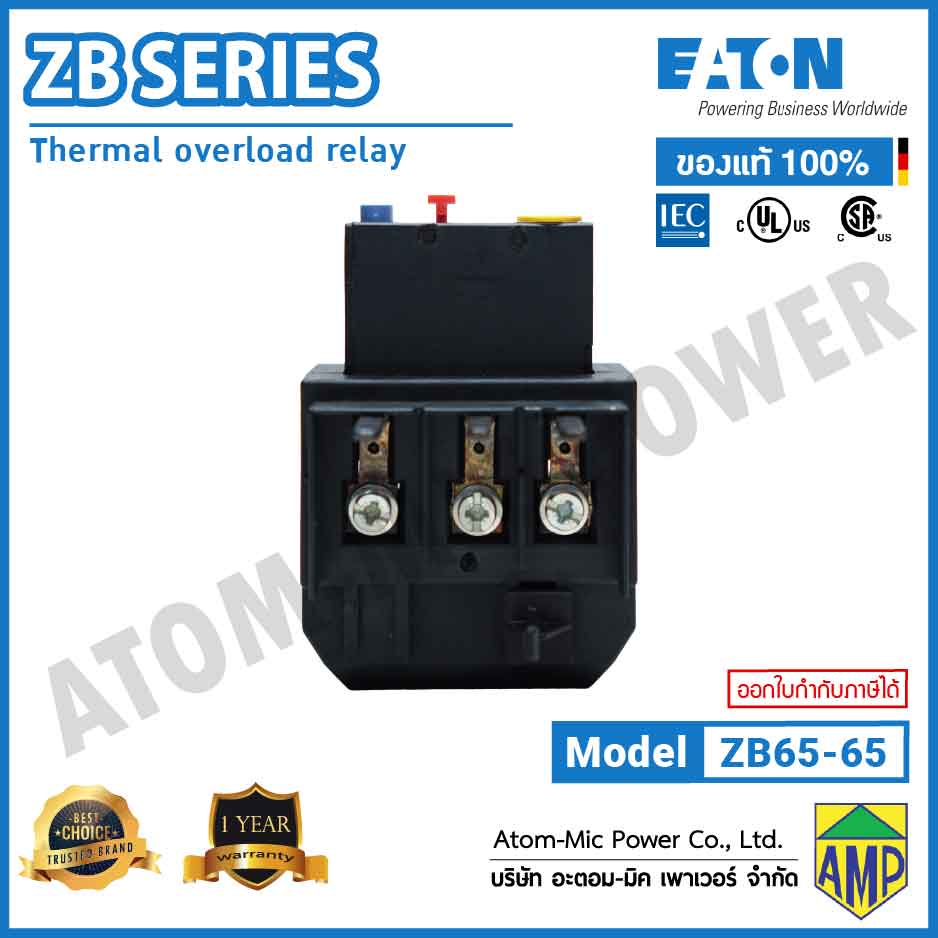

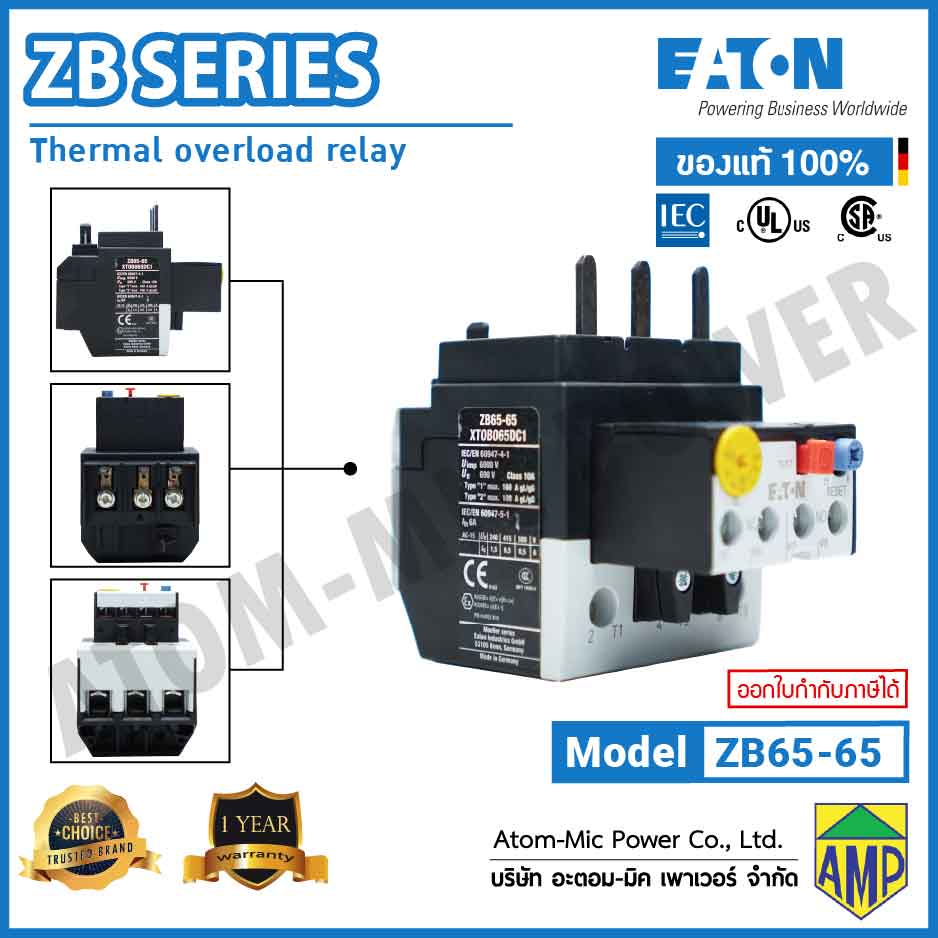

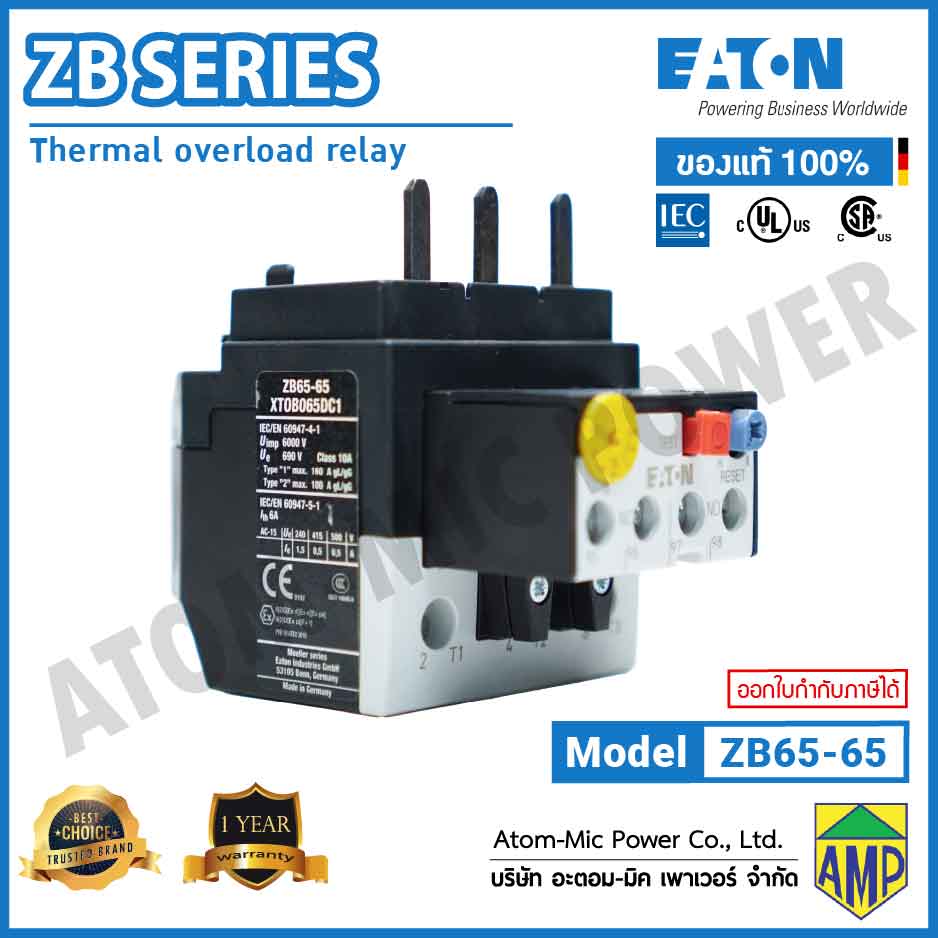

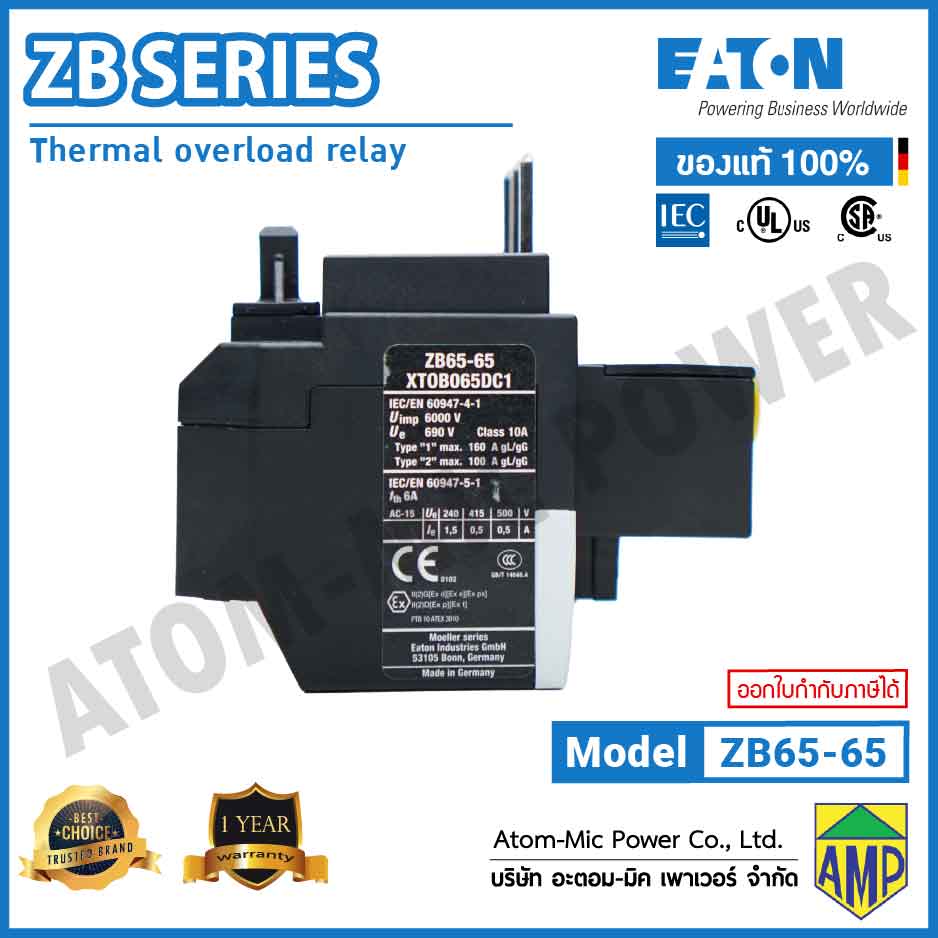

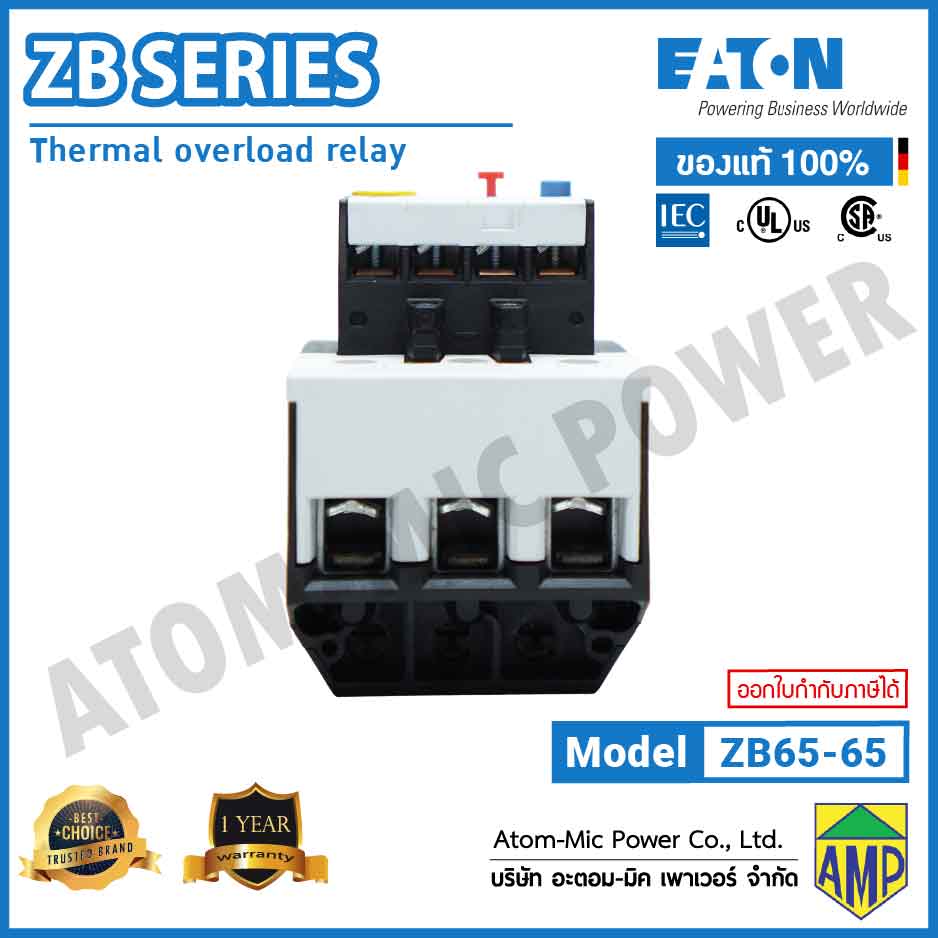

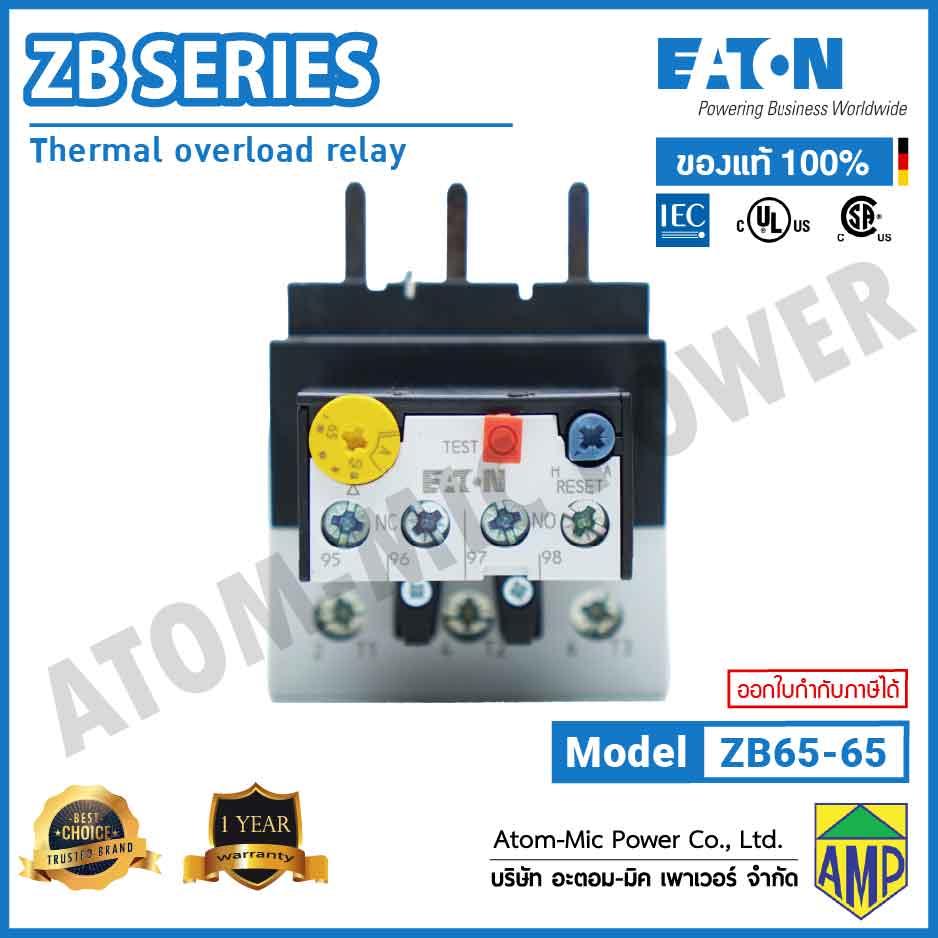

EATON – Overload Relay – ZB65-65 (1 N/O, 1 N/C)

General specifications
Model code : ZB65-65
Product Length/Depth : 88 mm
Product Height : 75 mm
Product Width : 60 mm
Product Weight : 0.23 kg
Product Type : Thermal overload relay
Pollution degree : 3
Class : CLASS 10 A
Rated impulse withstand voltage (Uimp) : 4000 V
Stripping length (control circuit cable) : 8 mm
Stripping length (main cable) : 11 mm
Voltage rating – max : 600 VAC
Adjustable current range – max : 65 A
Adjustable current range – min : 50 A
Overload release current setting – max : 65 A
Overload release current setting – min : 50 A
Rated operational voltage (Ue) – max : 690 V
Rated operational current (Ie) at AC-15, 120 V : 1.5 A
Electrical connection type of main circuit : Screw connection
