– Part no. ZB65-40
– Product range Overload relay ZB up to 150 A
– Product range Accessories
– Accessories Overload relays
– N/O = Normally open 1 N/O
– N/C = Normally closed 1 N/C
– Rated impulse withstand voltage Uimp V AC 6000
– Rated insulation voltage Ui V 690
– Rated operational voltage Ue V AC 690
– Safe isolation to EN 61140
– Between auxiliary contacts and main contacts V AC 440
– Between main circuits V AC 440
– Temperatur compensation residual error > 40 ºC ≦ 0.25
– Lower value of the setting range W 3.3
– Maximum setting W 9.3
– Terminal screw M6
– Tightening torque Nm 3.5
– Rated insulation voltage Ui V AC 500
– Rated operational voltage Ue V AC 500
– Safe isolation to EN 61140
– between the auxiliary contacts V AC 240
– Rated operational current for specified heat dissipation In A 40
– Heat dissipation per pole, current-dependent Pvid W 3.1
– Equipment heat dissipation, current-dependent Pvid W 9.3
– Adjustable current range A 24 – 40
– Max. rated operation voltage Ue V 690
– Max. Voltage Rating 600 V AC

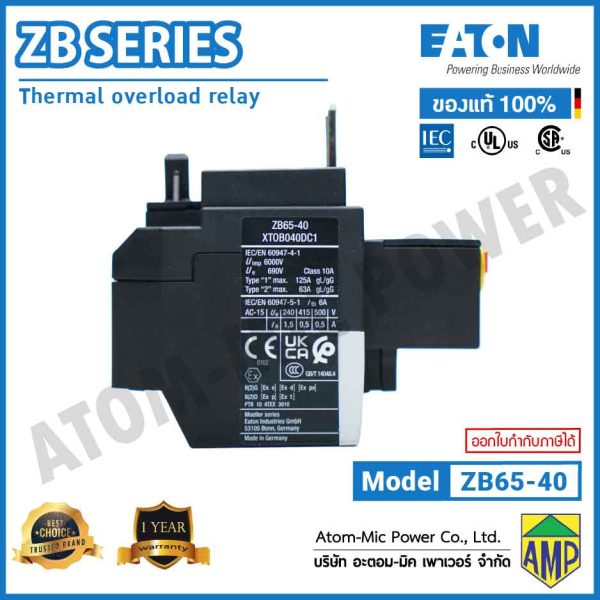

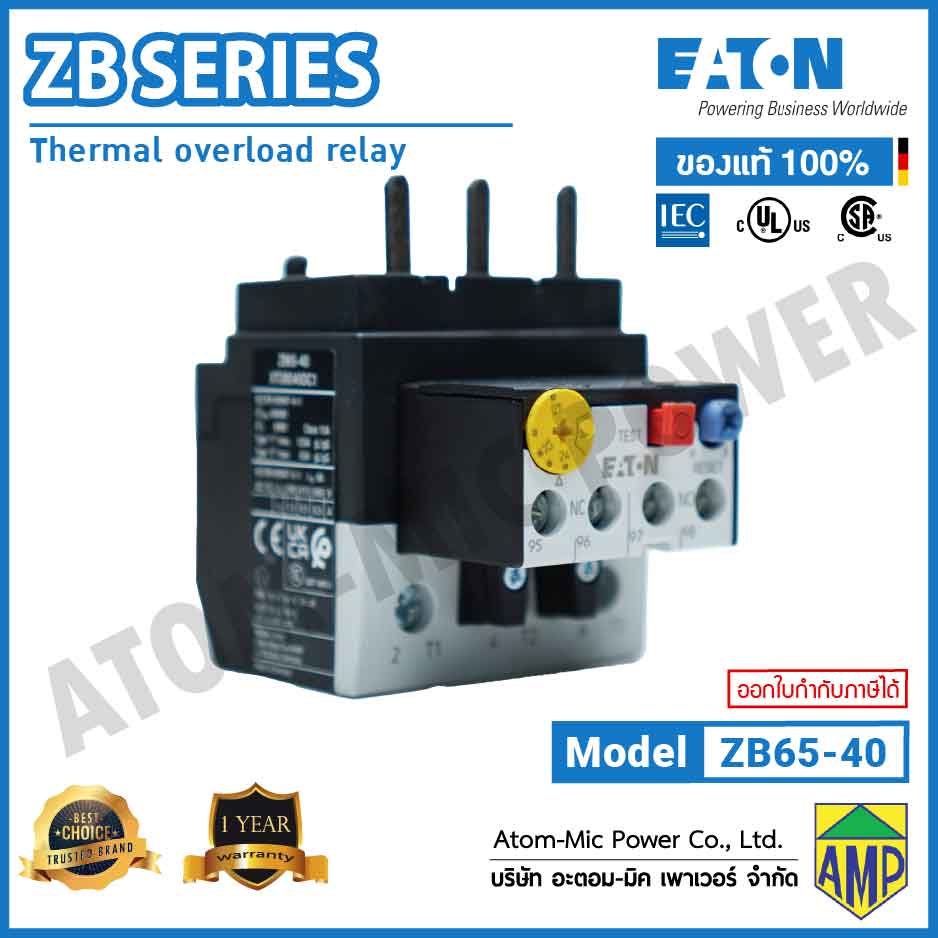

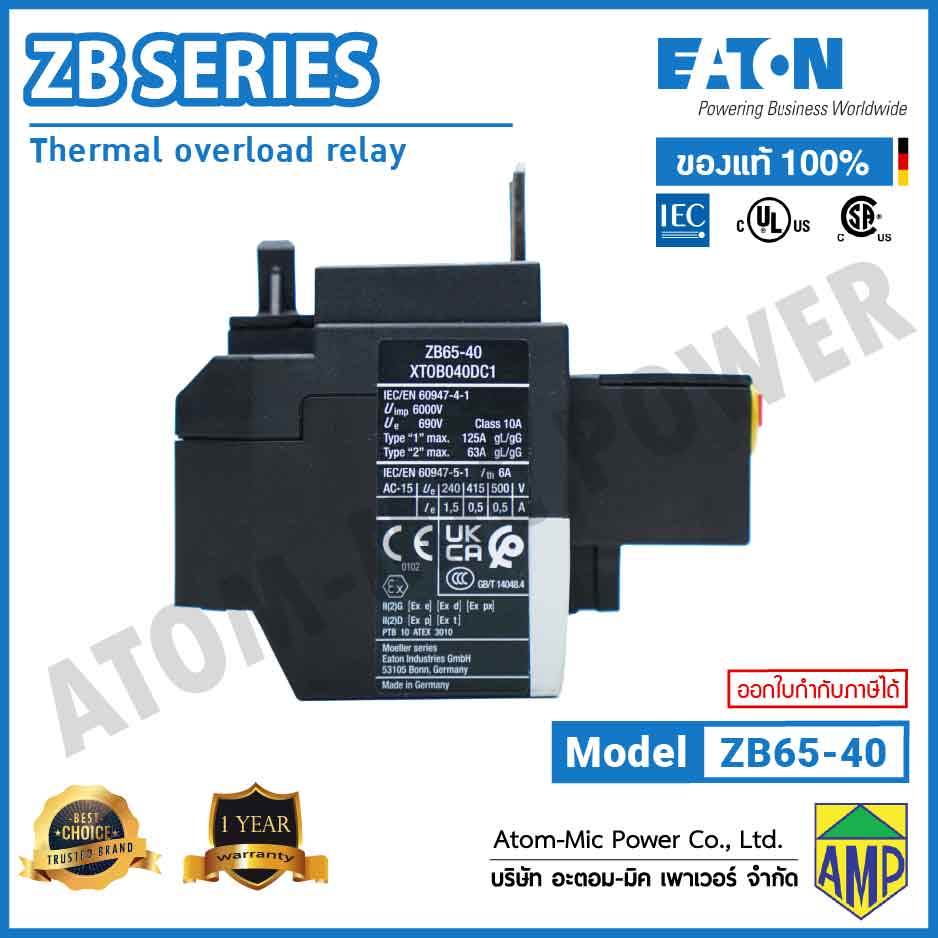

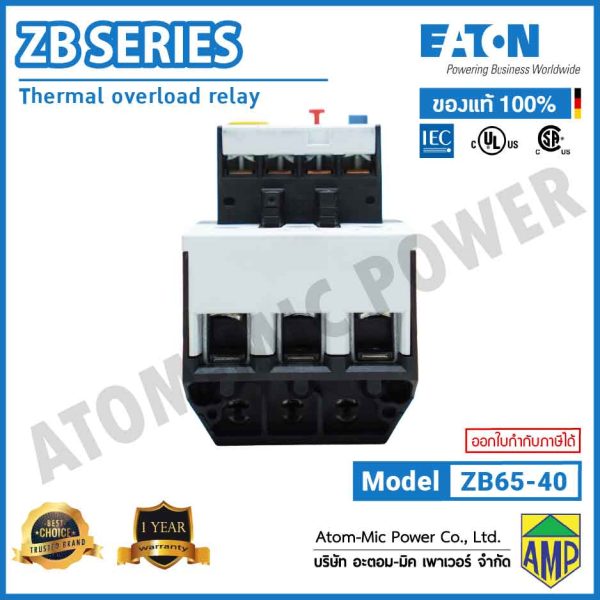

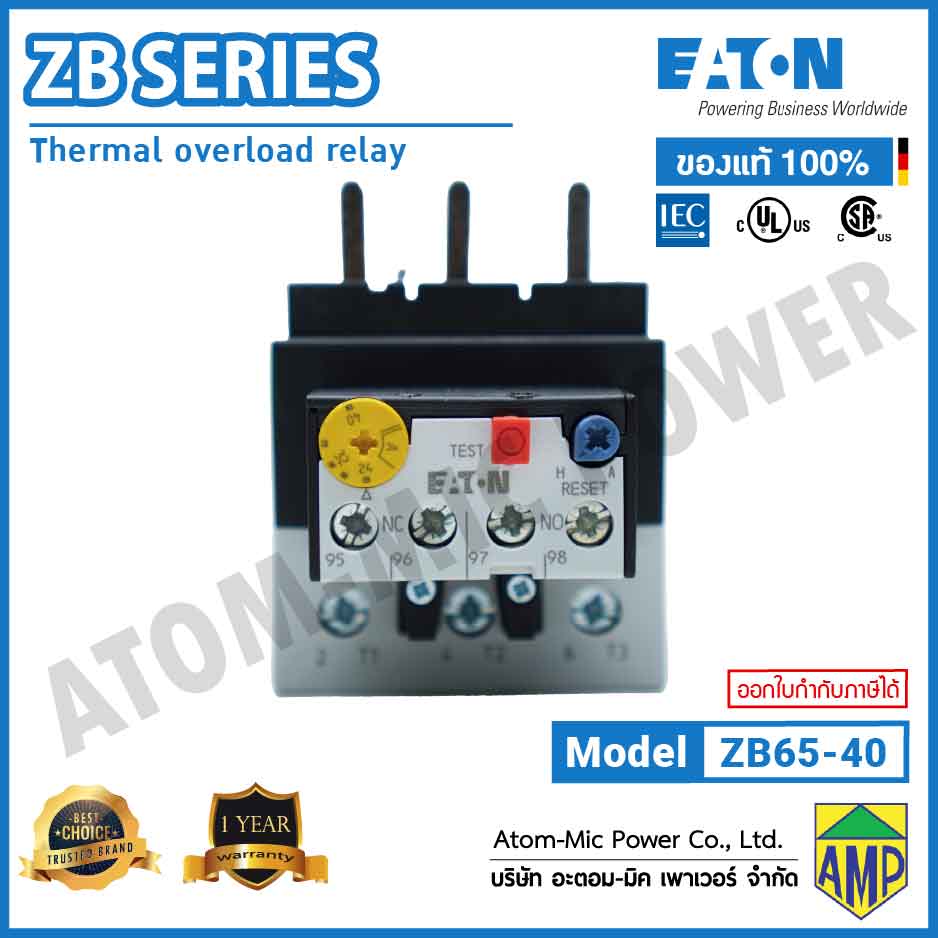

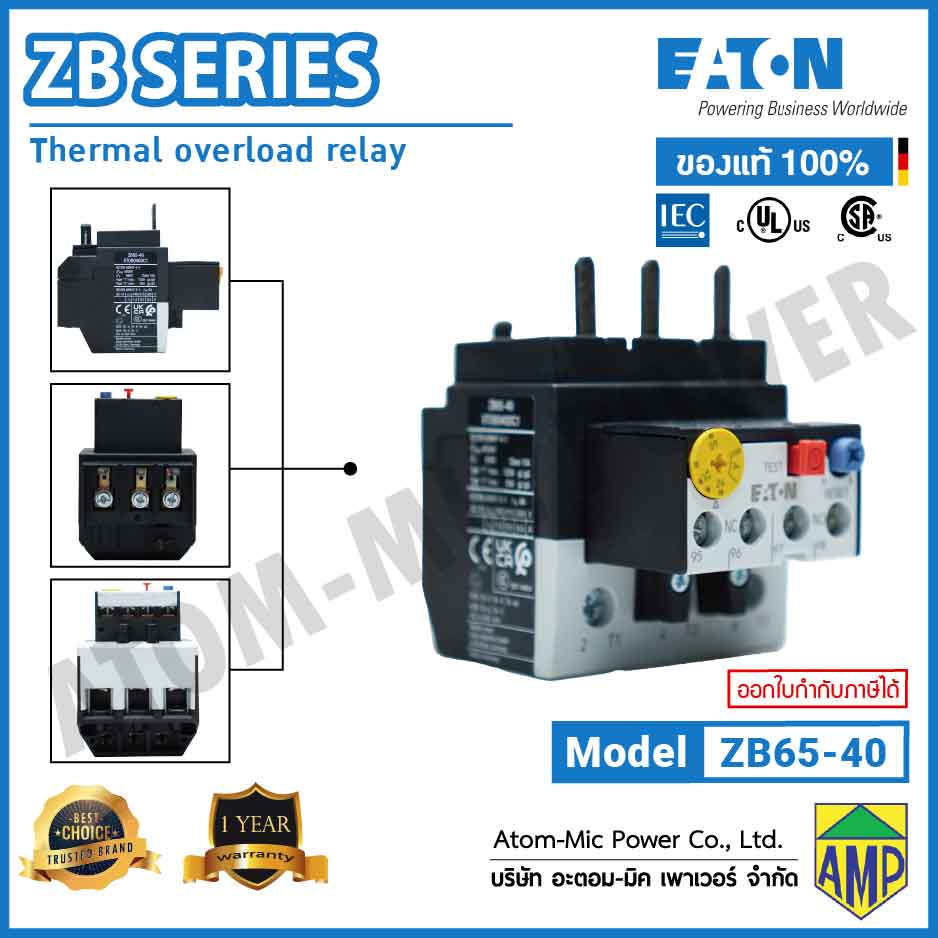

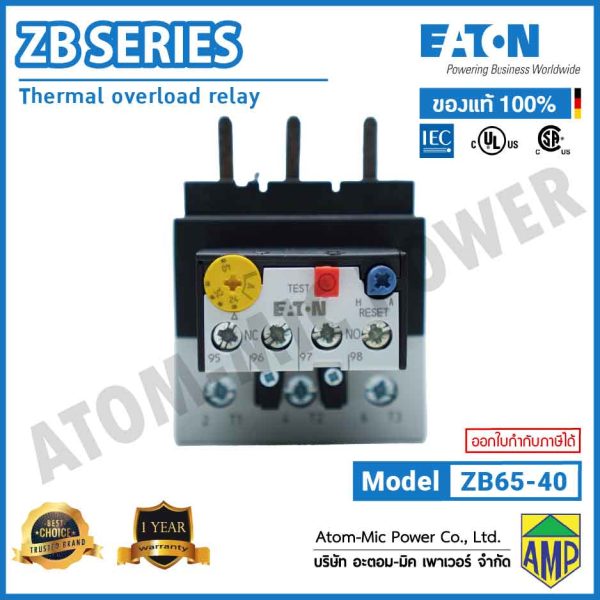

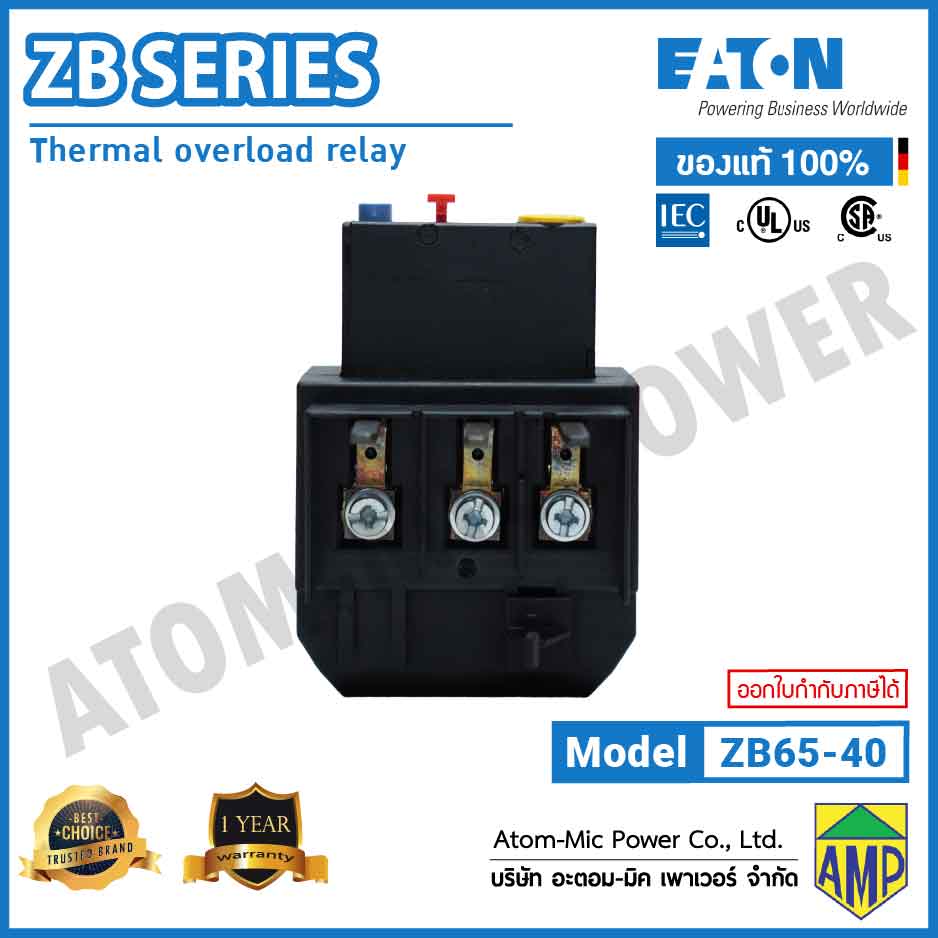

EATON – Overload Relay – ZB65-40 (1 N/O, 1 N/C)
฿5,480.00 Original price was: ฿5,480.00.฿2,756.00Current price is: ฿2,756.00.
Overload relay, ZB65, Ir= 24 – 40 A, 1 N/O, 1 N/C, Direct mounting, IP00
SKU: ZB65-40
Categories: OVERLOAD RELAY, EATON OVERLOAD RELAY
| Weight | 2.3 g |
|---|
