General specifications
– Part no. ZB65-24
– EAN 4015082784577
– Product Length/Depth 88 millimetre
– Product height 75 millimetre
– Product width 60 millimetre
– Product weight 0.22 kilogram
– Product Type Thermal overload relay
– Overload release current setting – min 16 A
– Overload release current setting – max 24 A
– Pollution degree 3
– Product category Overload relay ZB up to 150 A
– Rated impulse withstand voltage (Uimp) 4000 V
– Stripping length (main cable) 11 mm
– Stripping length (control circuit cable) 8 mm
– Conventional thermal current ith of auxiliary contacts (1-pole, open) 6 A
– Rated operational current (Ie) at AC-15, 120 V 1.5 A
– Rated operational current (Ie) at AC-15, 220 V, 230 V, 240 V 1.5 A
– Rated operational current (Ie) at AC-15, 380 V, 400 V, 415 V 0.9 A
– Rated operational current (Ie) at DC-13, 110 V 0.4 A
– Rated operational current (Ie) at DC-13, 220 V, 230 V 0.2 A
– Rated operational current (Ie) at DC-13, 24 V 0.9 A
– Rated operational current (Ie) at DC-13, 60 V 0.75 A
– Rated operational voltage (Ue) – max 690 V
– Voltage rating – max 600 V AC
– Equipment heat dissipation, current-dependent Pvid 5.7 W
– Heat dissipation capacity Pdiss 0 W
– Heat dissipation per pole, current-dependent Pvid 1.9 W
– Adjustable current range A 16 – 24
– Max. rated operation voltage Ue V 690

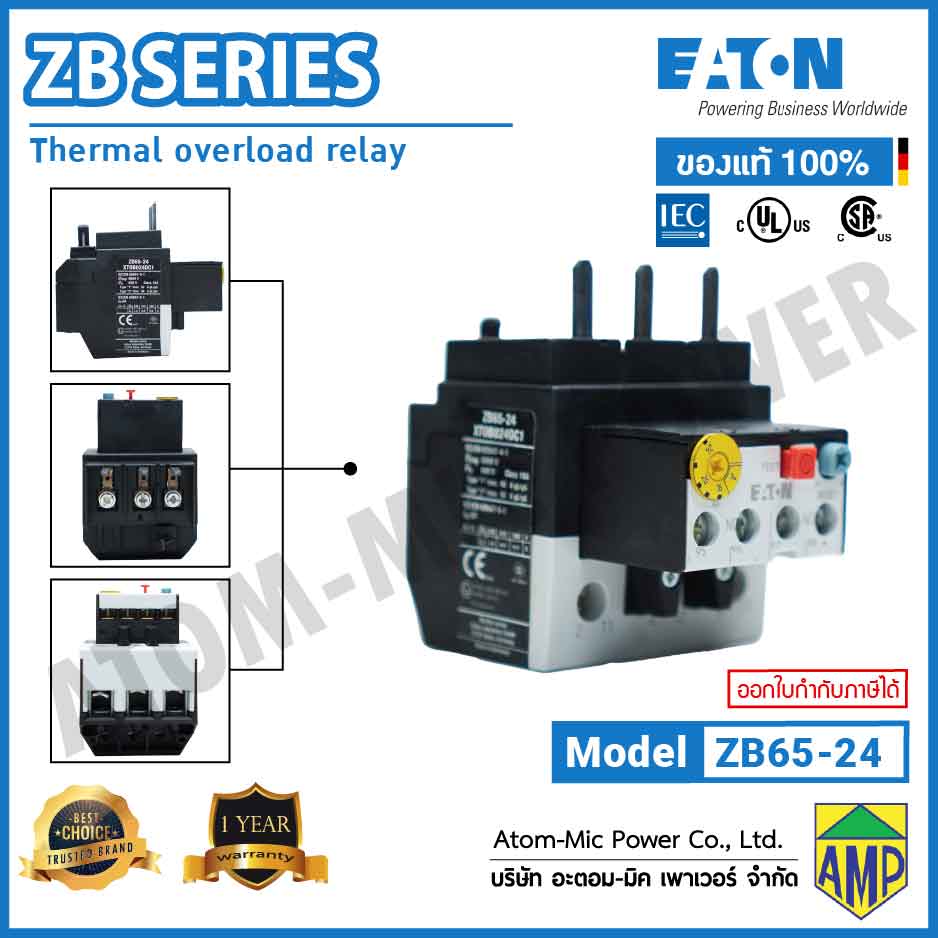

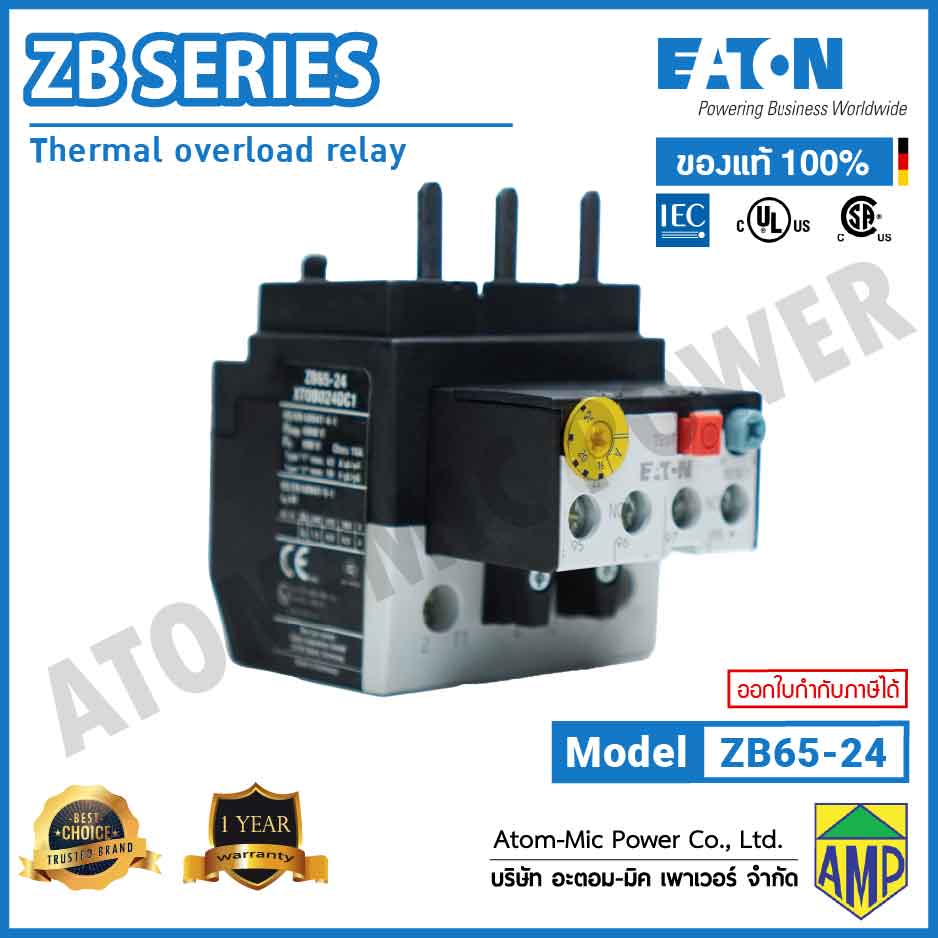

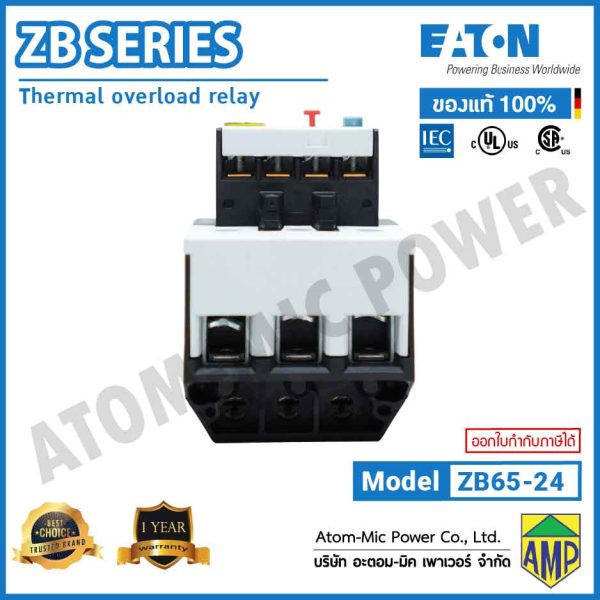

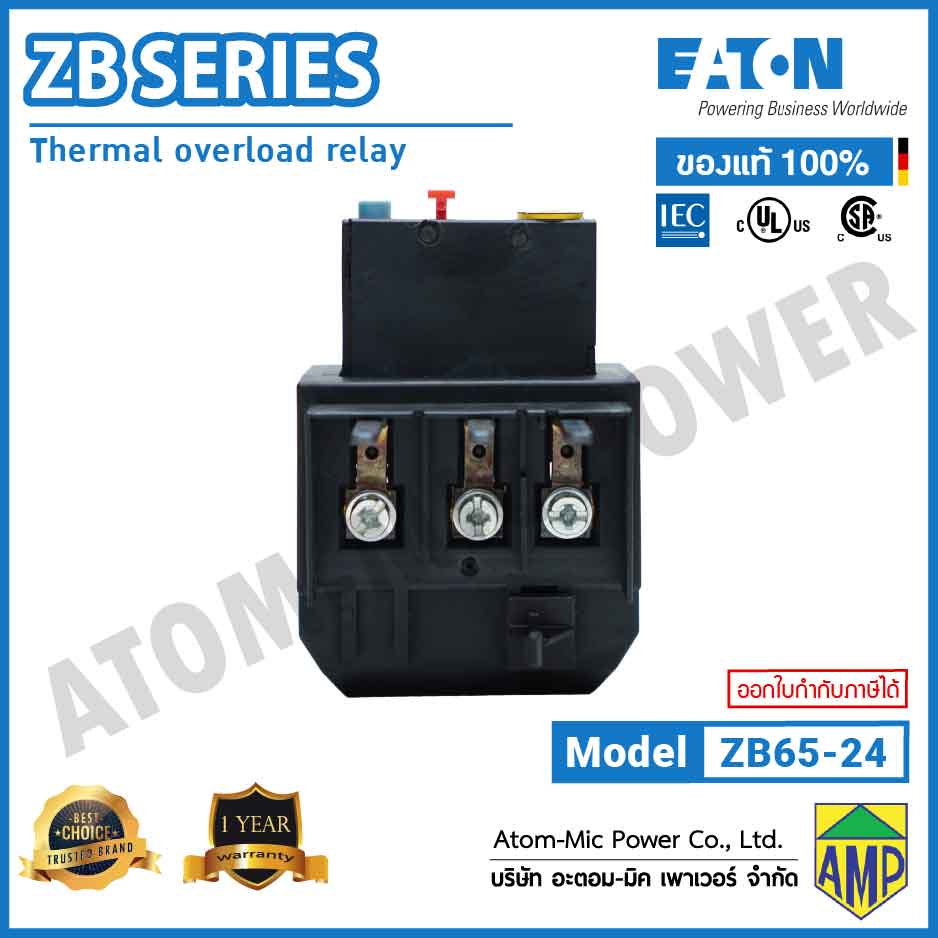

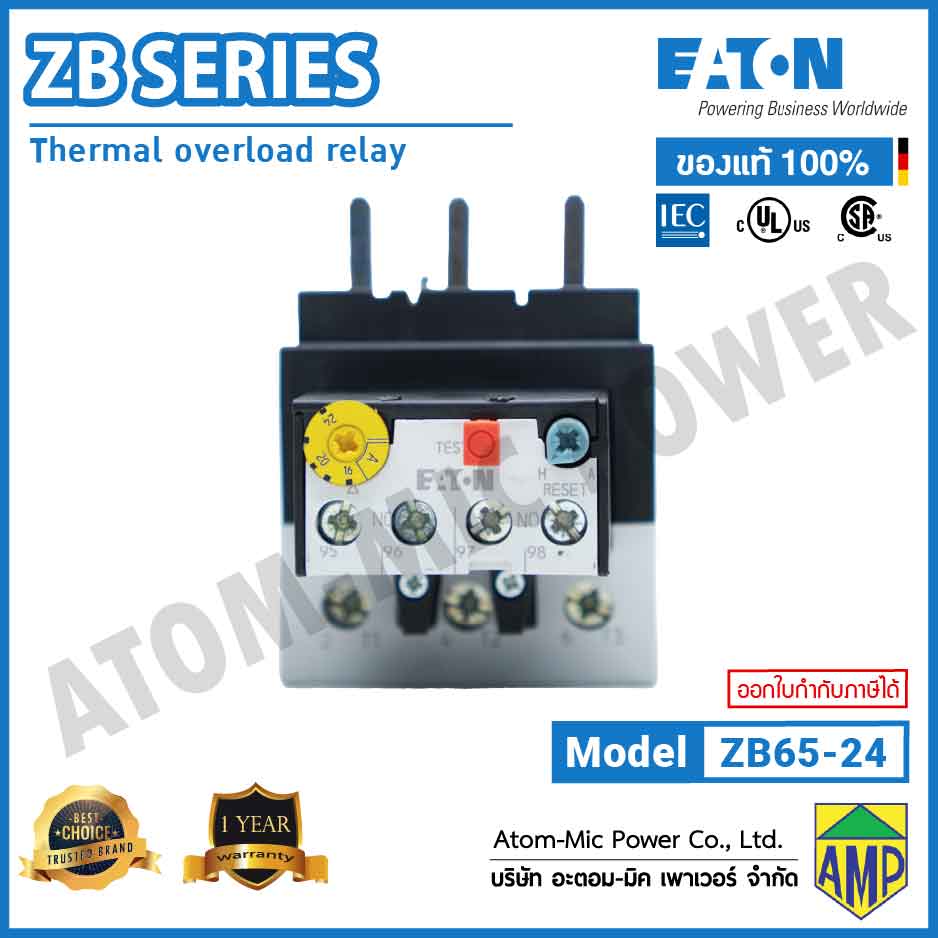

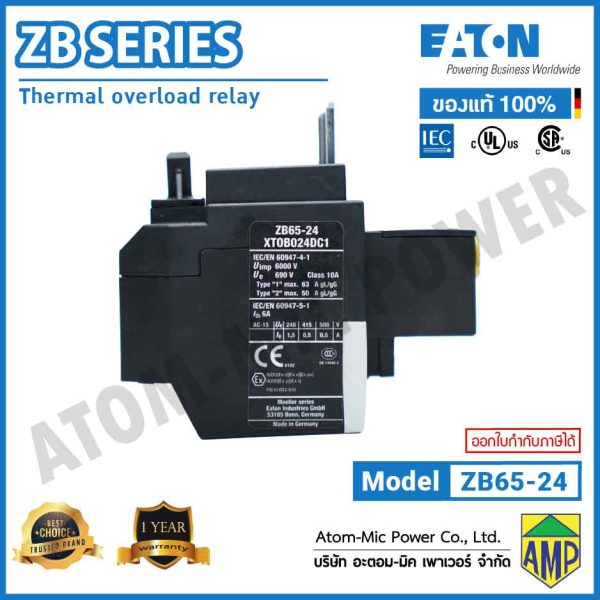

EATON – Overload Relay – ZB65-24 (1 N/O, 1 N/C)
฿4,280.00 Original price was: ฿4,280.00.฿2,152.00Current price is: ฿2,152.00.
Overload relay, ZB65, Ir= 16 – 24 A, 1 N/O, 1 N/C, Direct mounting, IP00
SKU: ZB65-24
Categories: OVERLOAD RELAY, EATON OVERLOAD RELAY
| Weight | 2.2 g |
|---|---|
| Dimensions | 8.8 × 6 × 7.5 cm |
