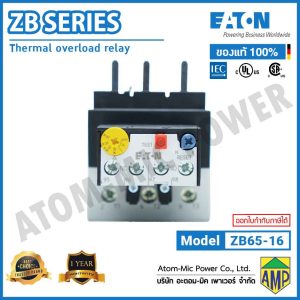

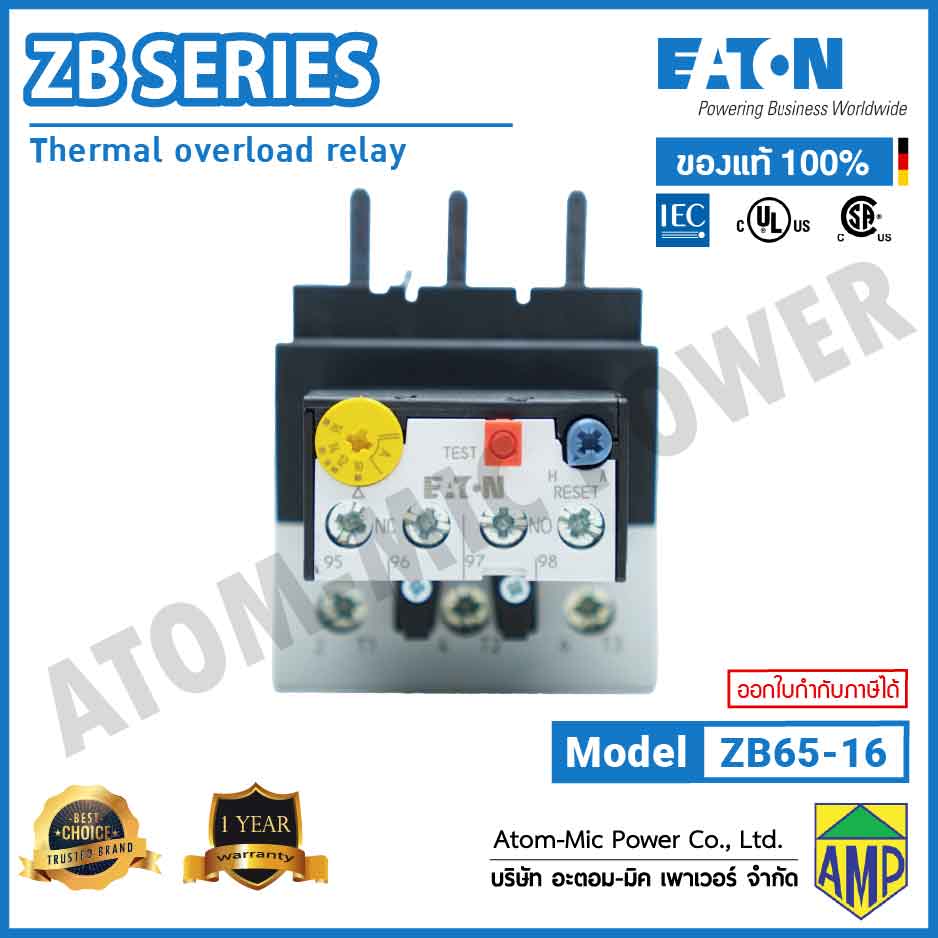

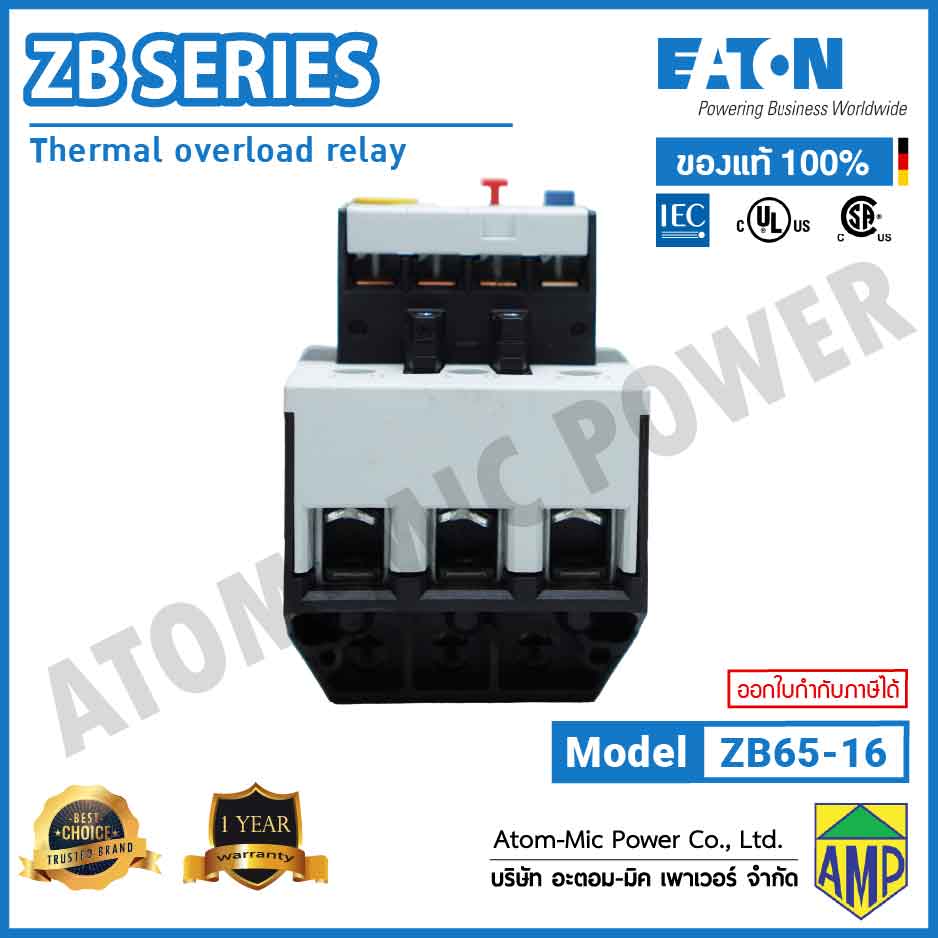

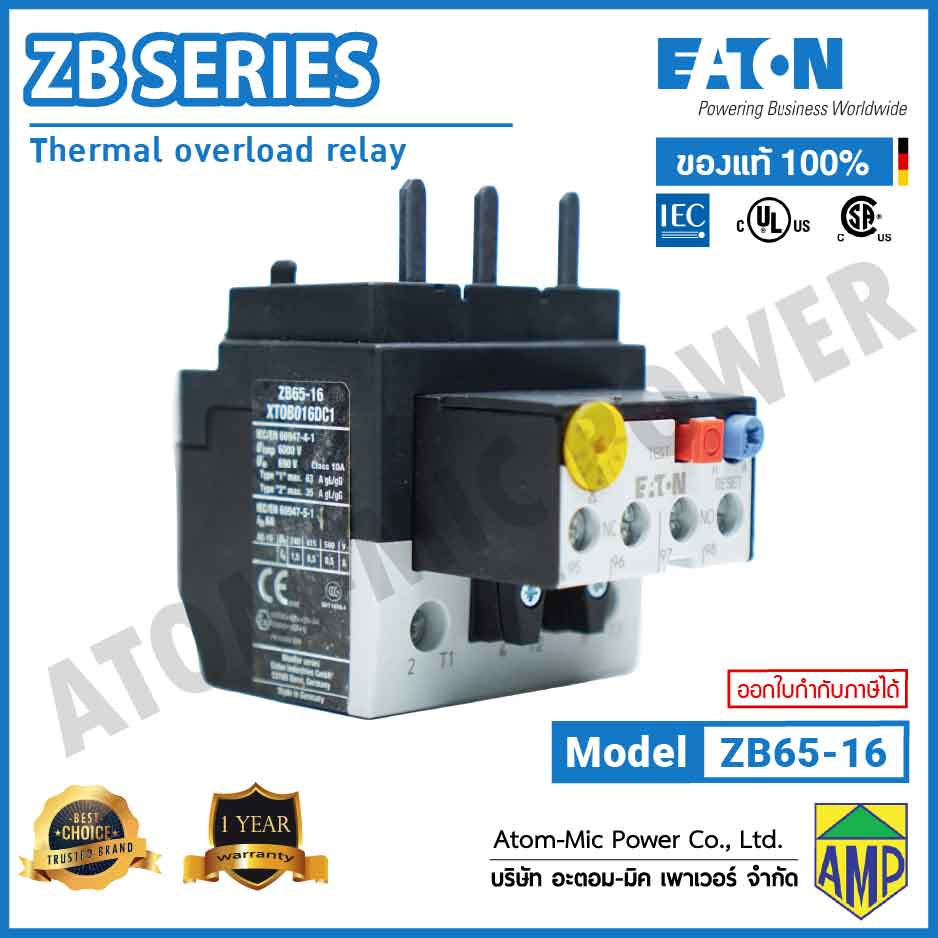

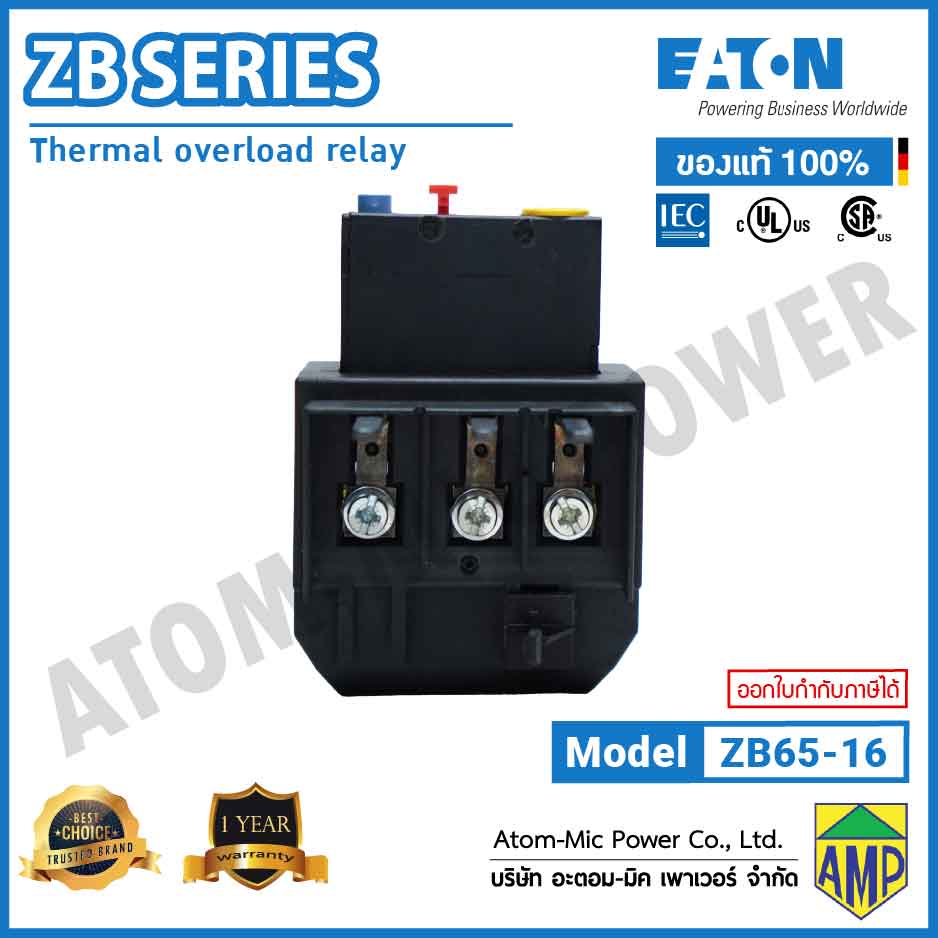

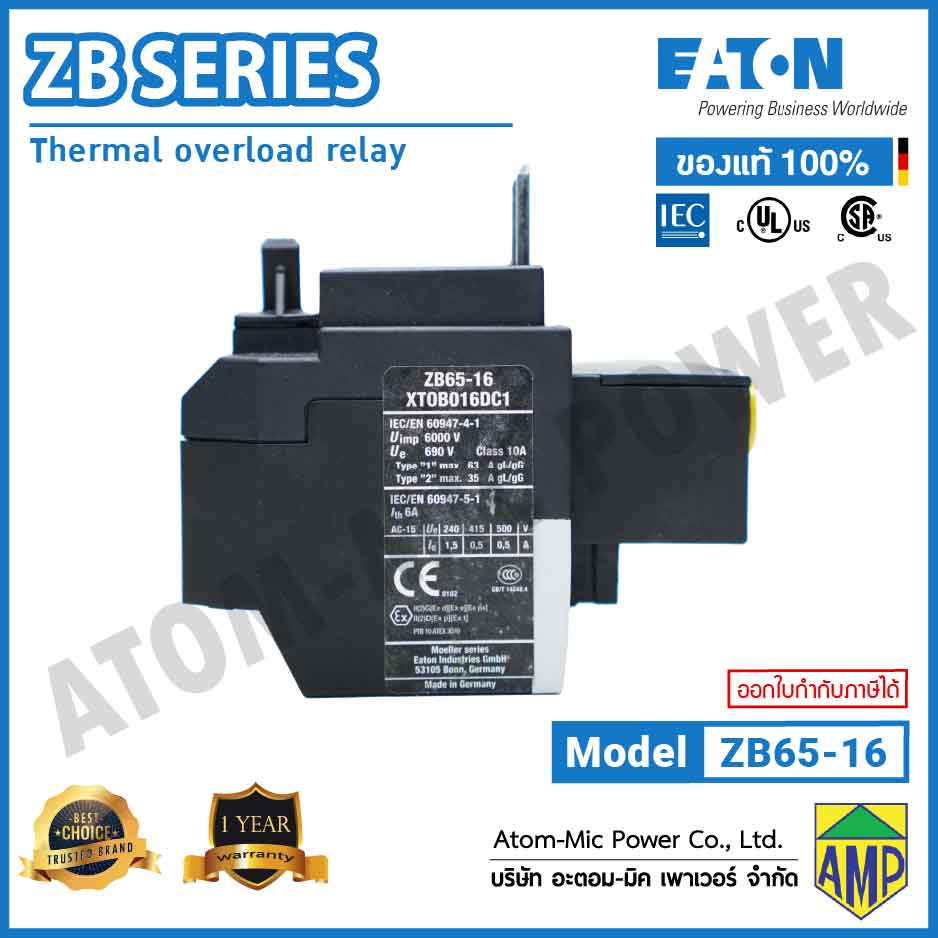

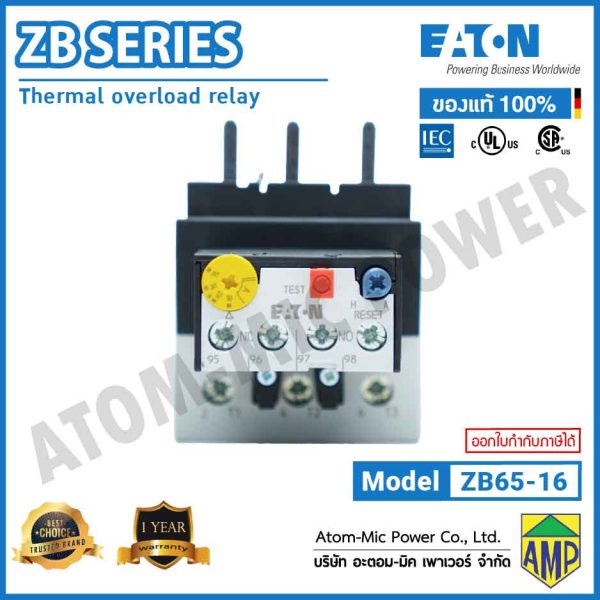

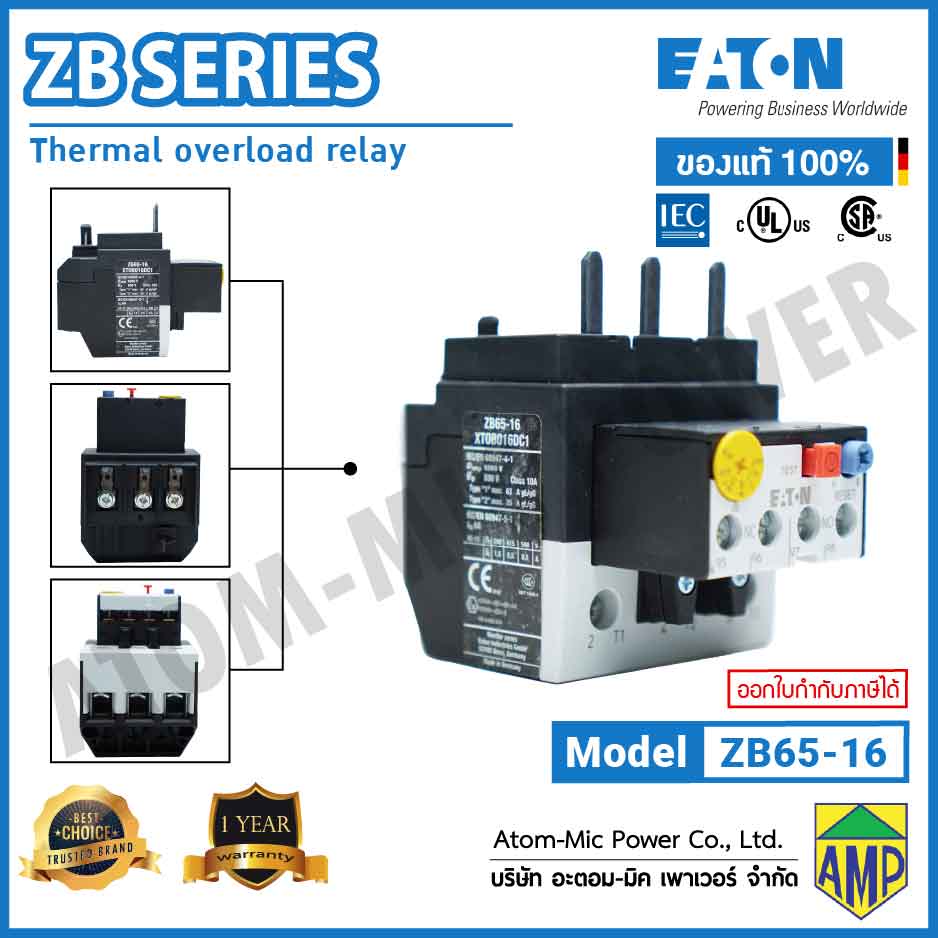

EATON – Overload Relay – ZB32-32 (1 N/O, 1 N/C)

General specifications
– Model Code : ZB65-16
– Product Length/Depth : 88 mm
– Product Height : 75 mm
– Product Width : 60 mm
– Product Weight : 0.22 kg
– Product Type : Thermal overload relay
– Rated operational current (Ie) at AC-15, 220 V, 230 V, 240 V : 1.5 A
– Rated operational current (Ie) at AC-15, 380 V, 400 V, 415 V : 0.9 A
– Rated operational current (Ie) at DC-13, 110 V : 0.4 A
– Rated operational current (Ie) at DC-13, 220 V, 230 V : 0.2 A
– Rated operational current (Ie) at DC-13, 24 V : 0.9 A
– Rated operational current (Ie) at DC-13, 60 V : 0.75 A
– Rated operational current for specified heat dissipation (In) : 16 A
– Static heat dissipation, non-current-dependent Pvs : 0 W
– Stripping length (control circuit cable) : 8 mm
– Stripping length (main cable) : 11 mm
– Voltage rating – max : 600 VAC
– Adjustable current range – max : 16 A
– Adjustable current range – min : 10 A
– Conventional thermal current Ith of auxiliary contacts (1-pole, open) : 6 A
– Equipment heat dissipation, current-dependent Pvid : 6.3 W
– Overload release current setting – max : 16 A
– Overload release current setting – min : 10 A
– Rated operational voltage (Ue) – max : 690 V
– Rated operational current (Ie) at AC-15, 120 V : 1.5 A
– Electrical connection type of main circuit : Screw connection
– Reset function : Push-button, Automatic
