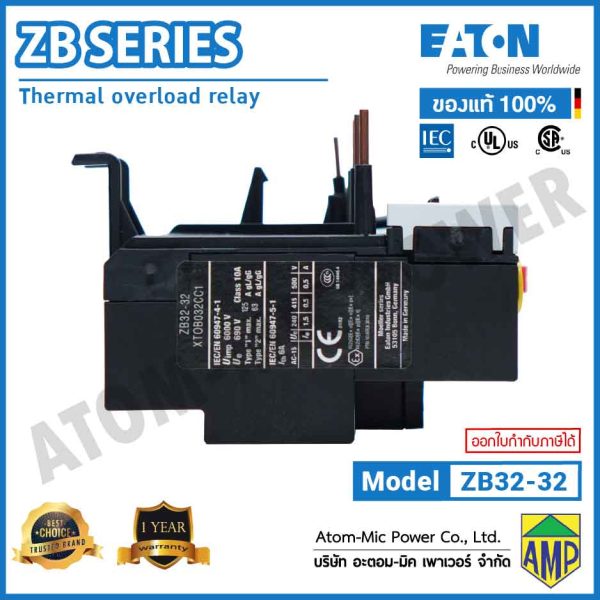

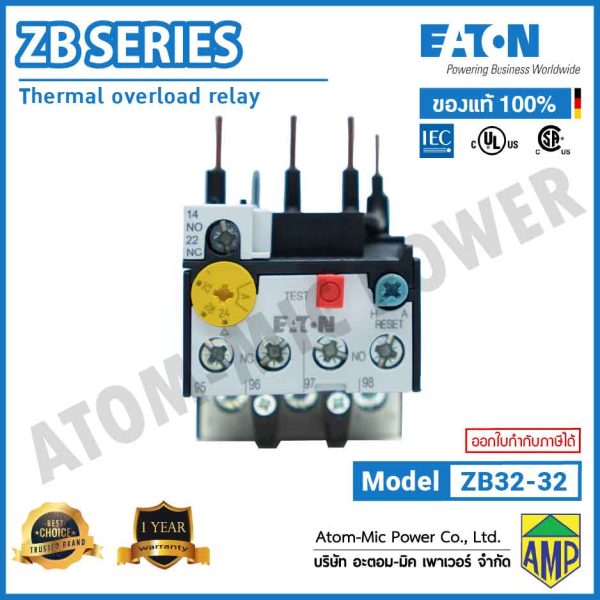

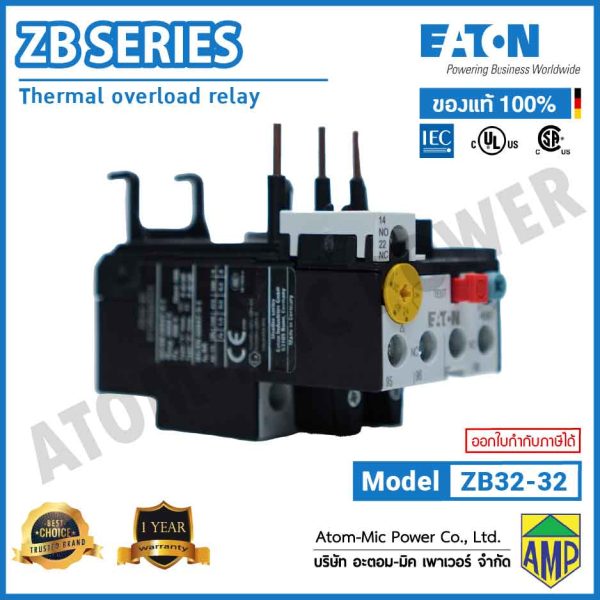

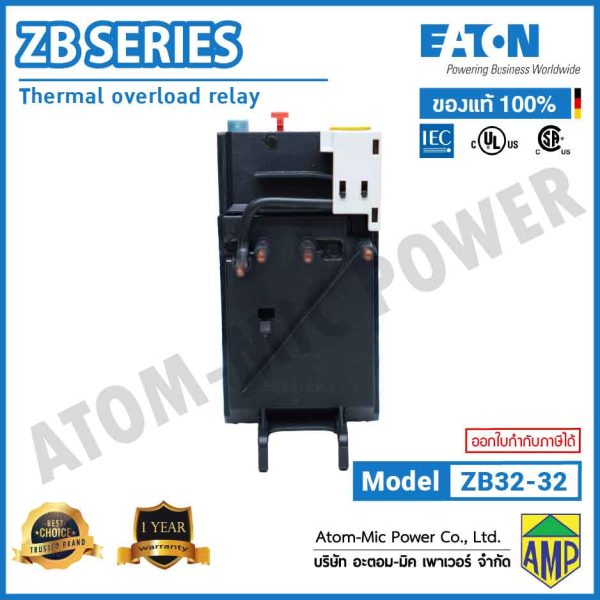

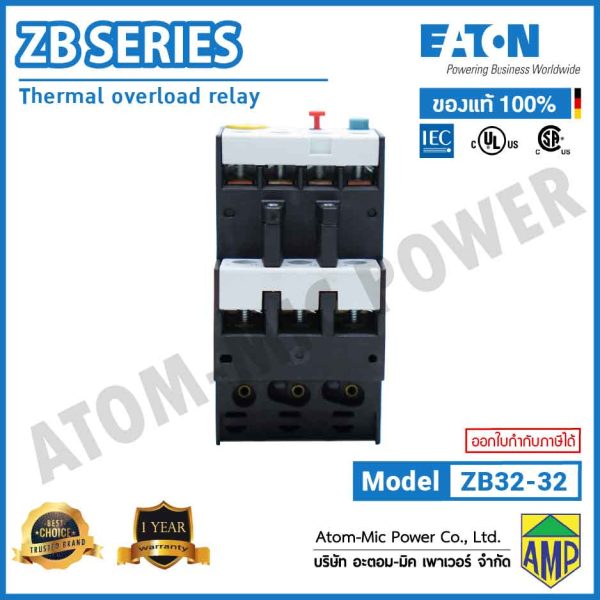

EATON – Overload Relay – ZB32-32 (1 N/O, 1 N/C)

Part no. ZB32-32
Product range Overload relay ZB up to 150 A
Product range Accessories
Accessories Overload relays
Frame size ZB32
N/O = Normally open 1 N/O
N/C = Normally closed 1 N/C
Rated impulse withstand voltage Uimp V AC 6000
Overvoltage category/pollution degree III/3
Rated insulation voltage Ui V 690
Rated operational voltage Ue V AC 690
Safe isolation to EN 61140
Between auxiliary contacts and main contacts V AC 440
Between main circuits V AC 440
Lower value of the setting range W 3.4
Maximum setting W 6
Rated insulation voltage Ui V AC 500
Rated operational voltage Ue V AC 500
Safe isolation to EN 61140
between the auxiliary contacts V AC 240
Max. rated operation voltage Ue V 690
Max. Voltage Rating 600 V AC
