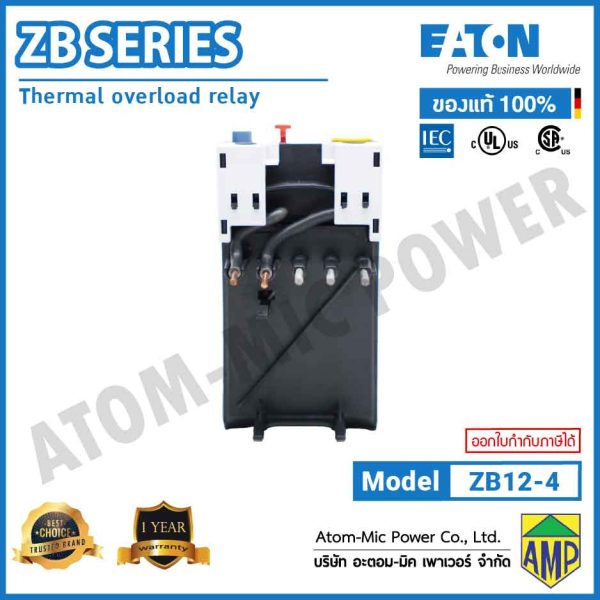

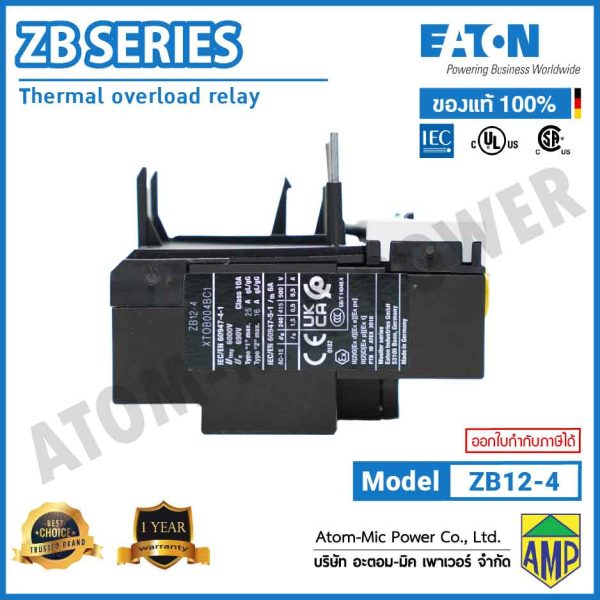

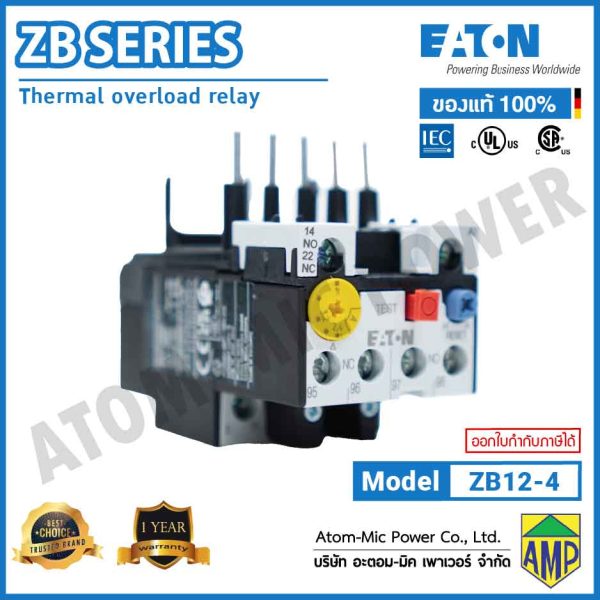

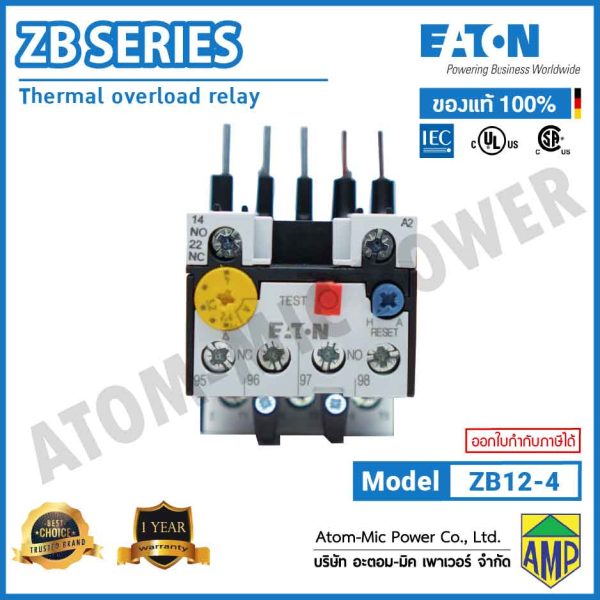

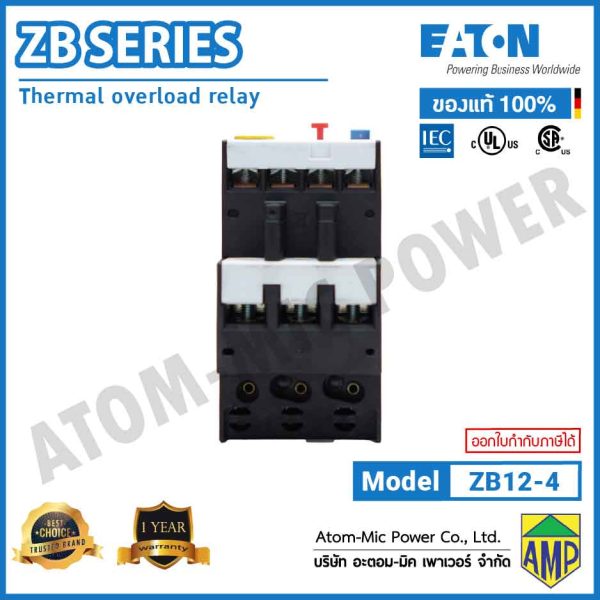

EATON – Overload Relay – ZB12-4 (1 N/O, 1 N/C)

DATASHEET
– Part no. : ZB12-4
– Product range Overload relay ZB up to 150 A
– Product range Accessories
– Accessories Overload relays
– Mounting type Direct mounting
– N/O = Normally open 1 N/O
– N/C = Normally closed 1 N/C
– Rated impulse withstand voltage Uimp V AC 6000
– Overvoltage category/pollution degree III/3
– Rated insulation voltage Ui V 690
– Rated operational voltage Ue V AC 690
– Safe isolation to EN 61140
– Between auxiliary contacts and main contacts V AC 440
– Between main circuits V AC 440
– Temperatur compensation residual error > 40 ºC ≦ 0.25 %/K
– Current heat loss (3 conductors)
– Lower value of the setting range W 2.2
– Maximum setting W 6
– Terminal capacities mm2
– Solid mm2 1 x (1 – 6)
– 2 x (1 – 6)
– Flexible with ferrule mm2 1 x (1 – 4)
– 2 x (1 – 4)
– Solid or stranded AWG 18 – 8
– Terminal screw M4
– Auxiliary and control circuits
– Rated impulse withstand voltage Uimp V 4000
– Overvoltage category/pollution degree III/3
– Terminal capacities mm2
– Solid mm2 1 x (0.75 – 4)
