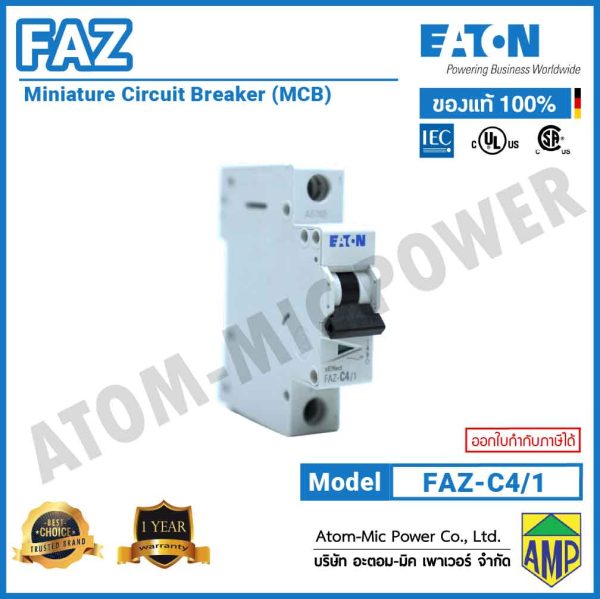

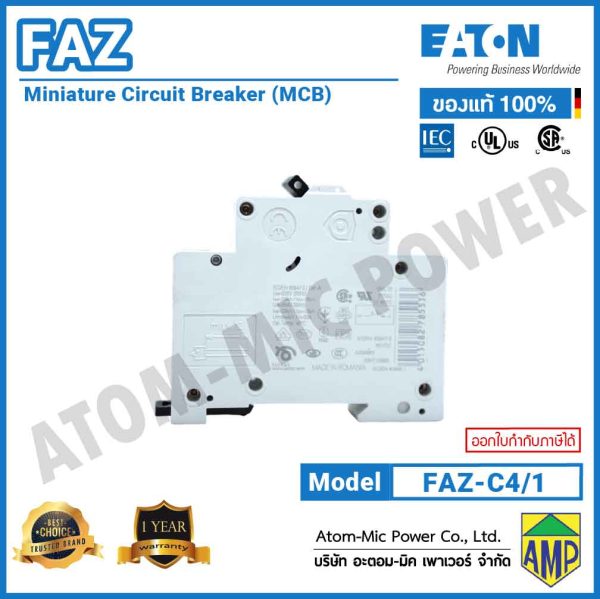

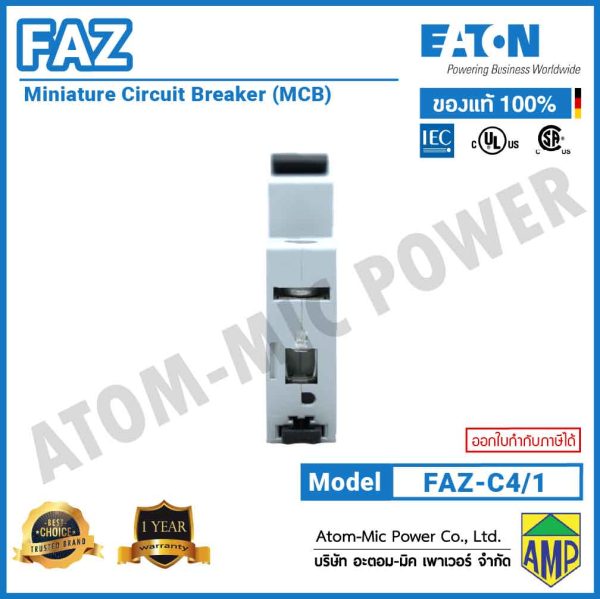

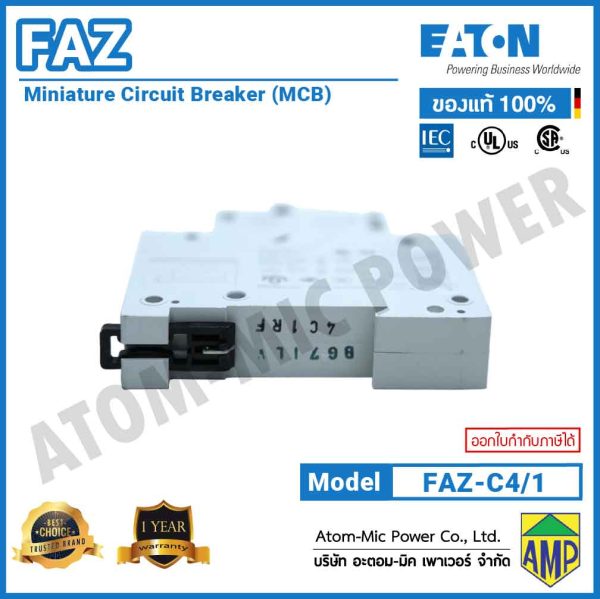

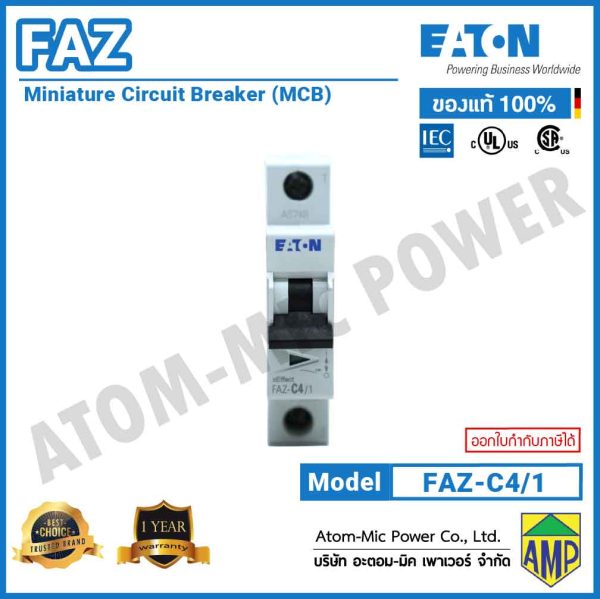

EATON – Miniature Circuit Breaker (MCB) – FAZ-C4/1

Mechanical
Number of poles (total) : 1
Number of protected poles : 1
Rated current : 4 A
Rated voltage : 230 V
Rated insulation voltage Ui : 440 V
Rated impulse withstand voltage Uimp : 4 kV
Rated short-circuit breaking capacity Icn EN 60898 at 230 V : 10 kA
Standard front dimension : 45 mm
Enclosure height : 80 mm
Mounting width per pole : 17.5 mm
