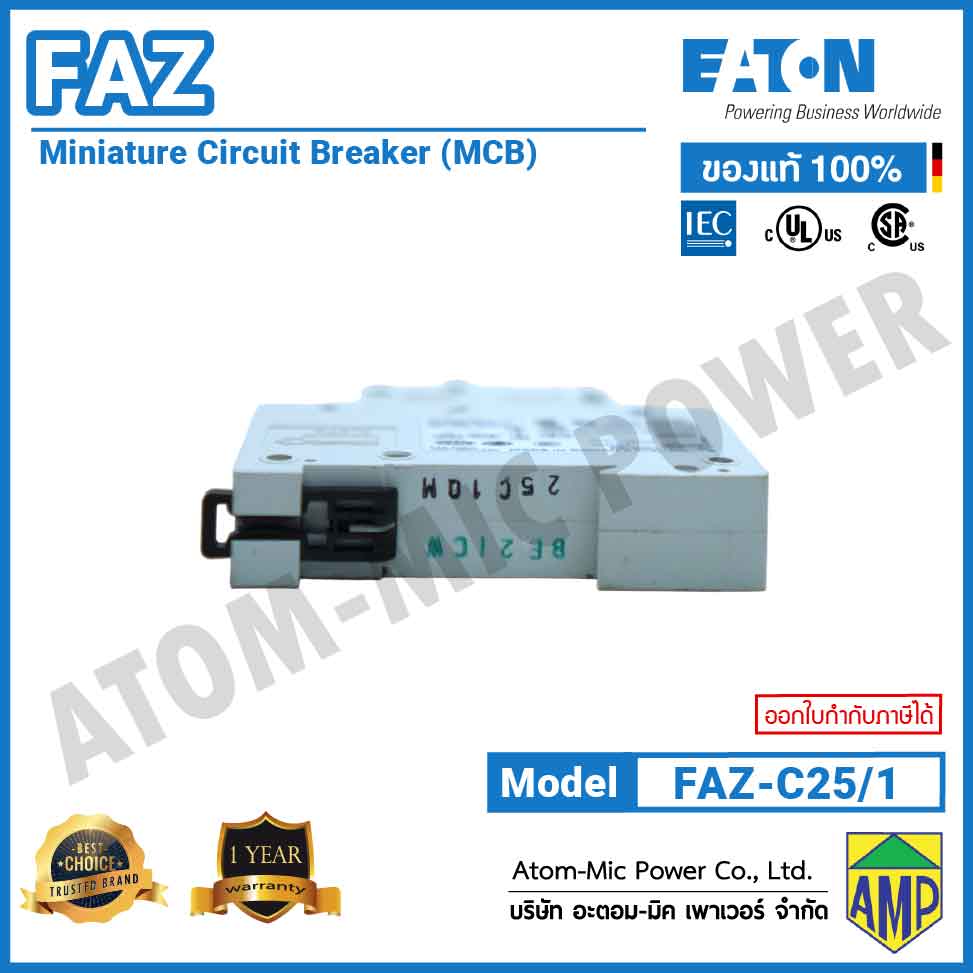

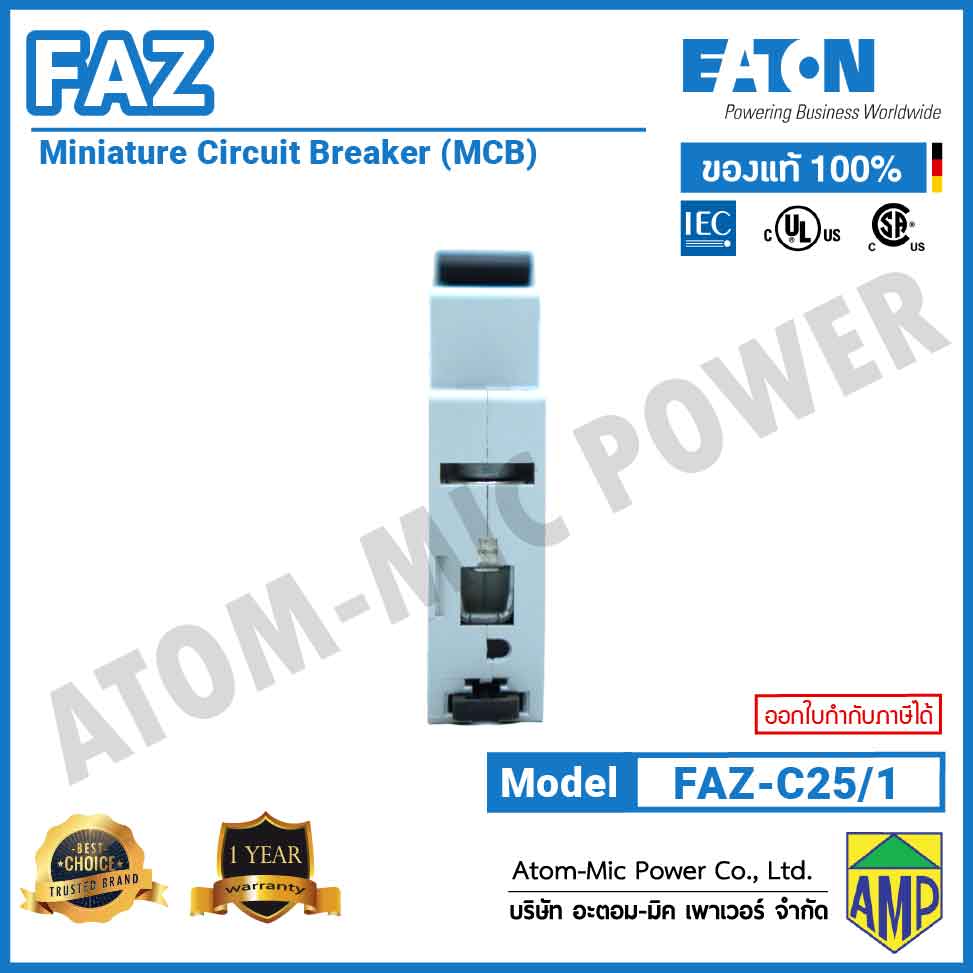

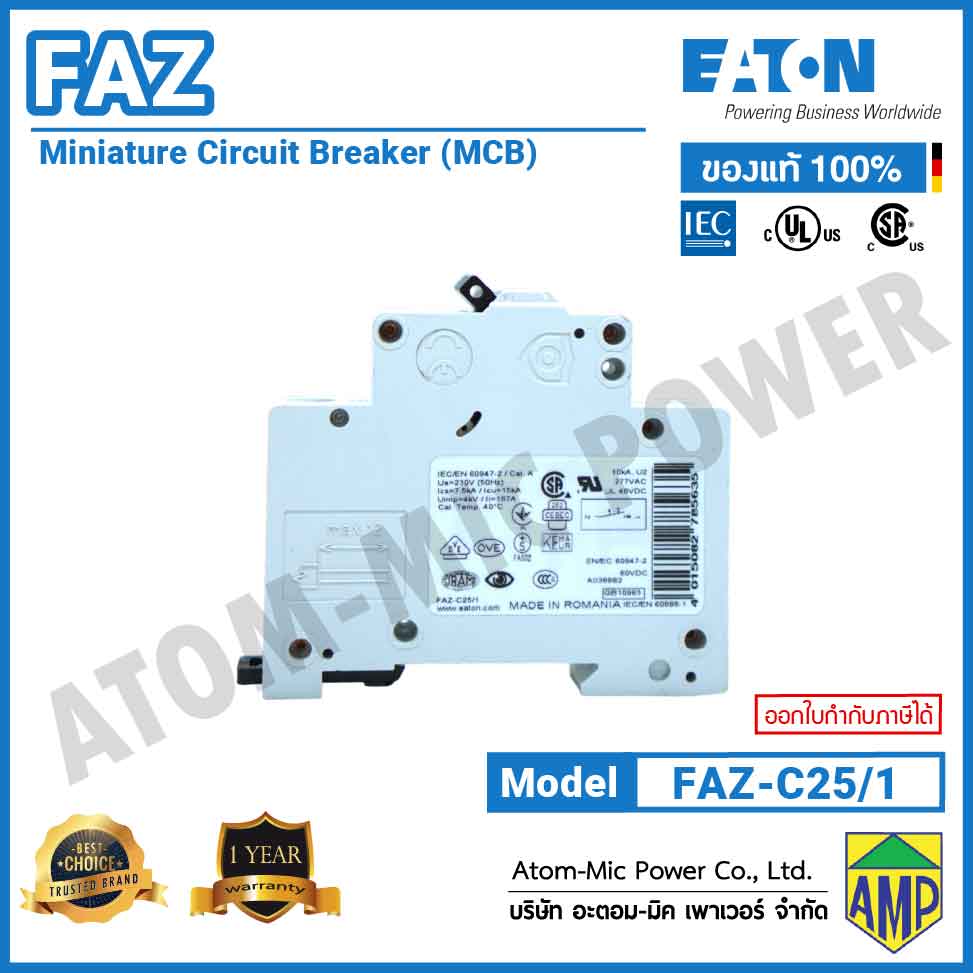

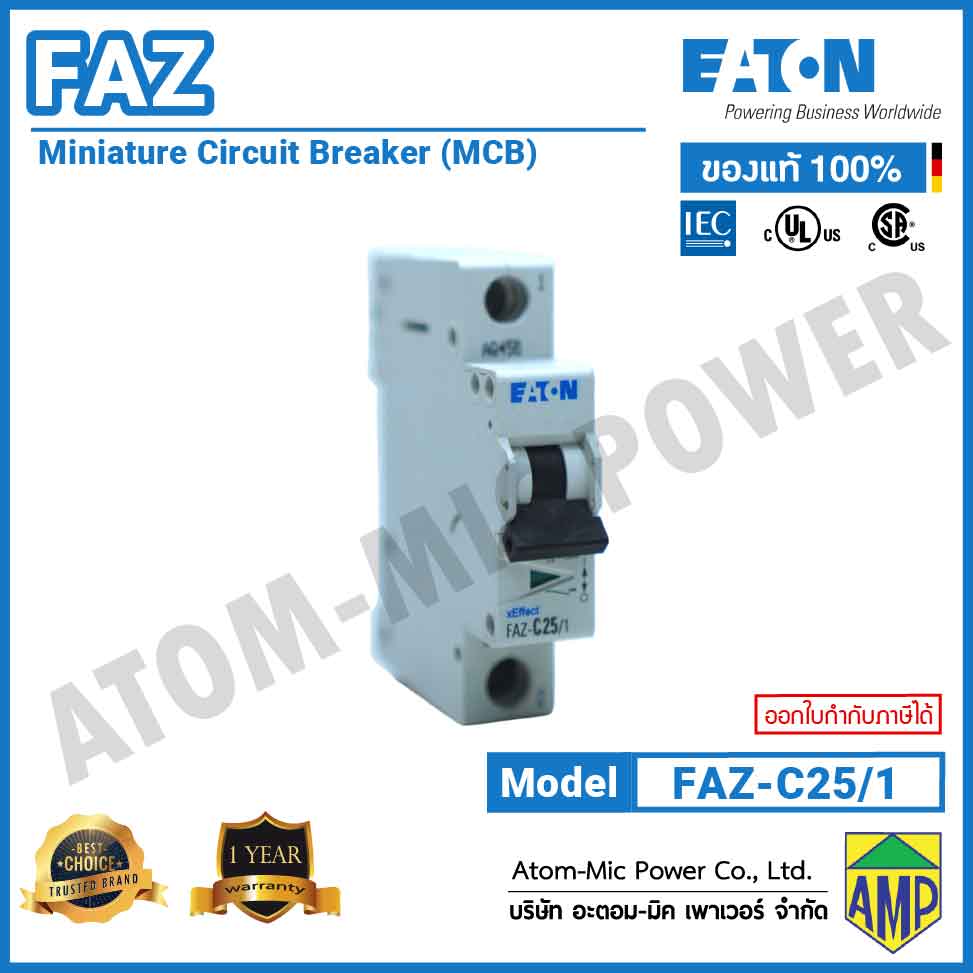

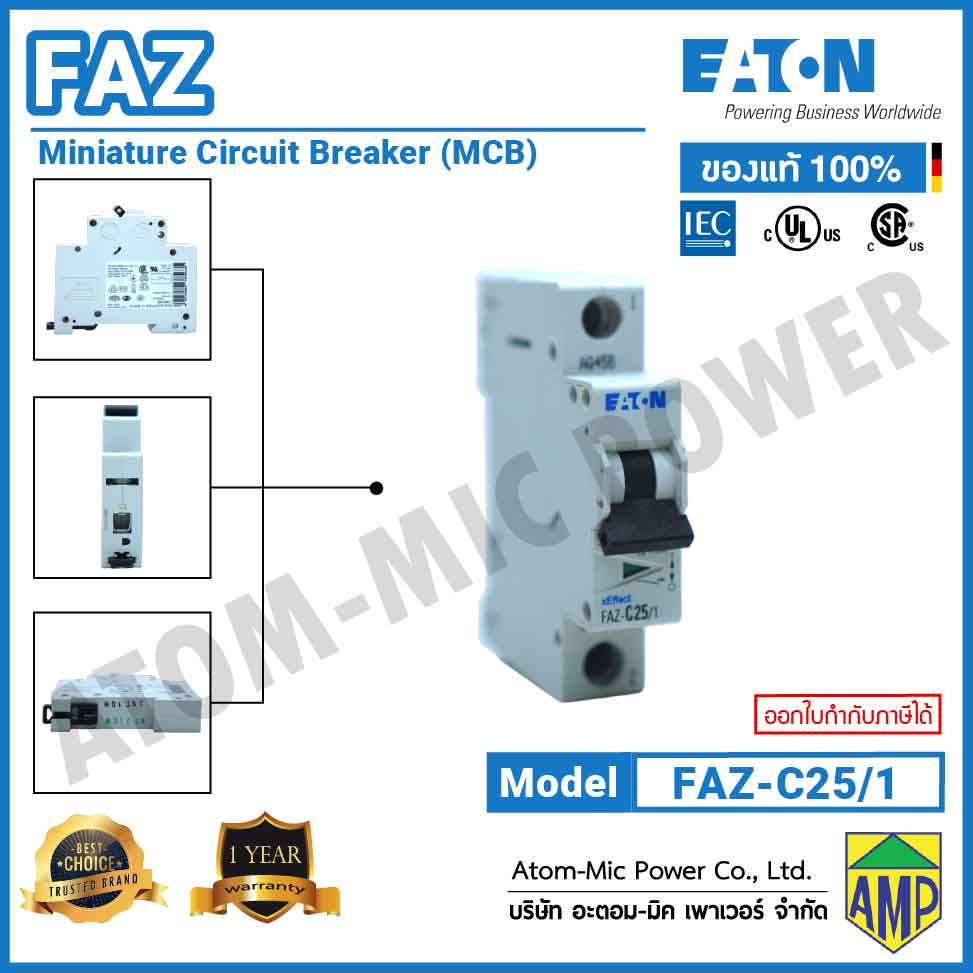

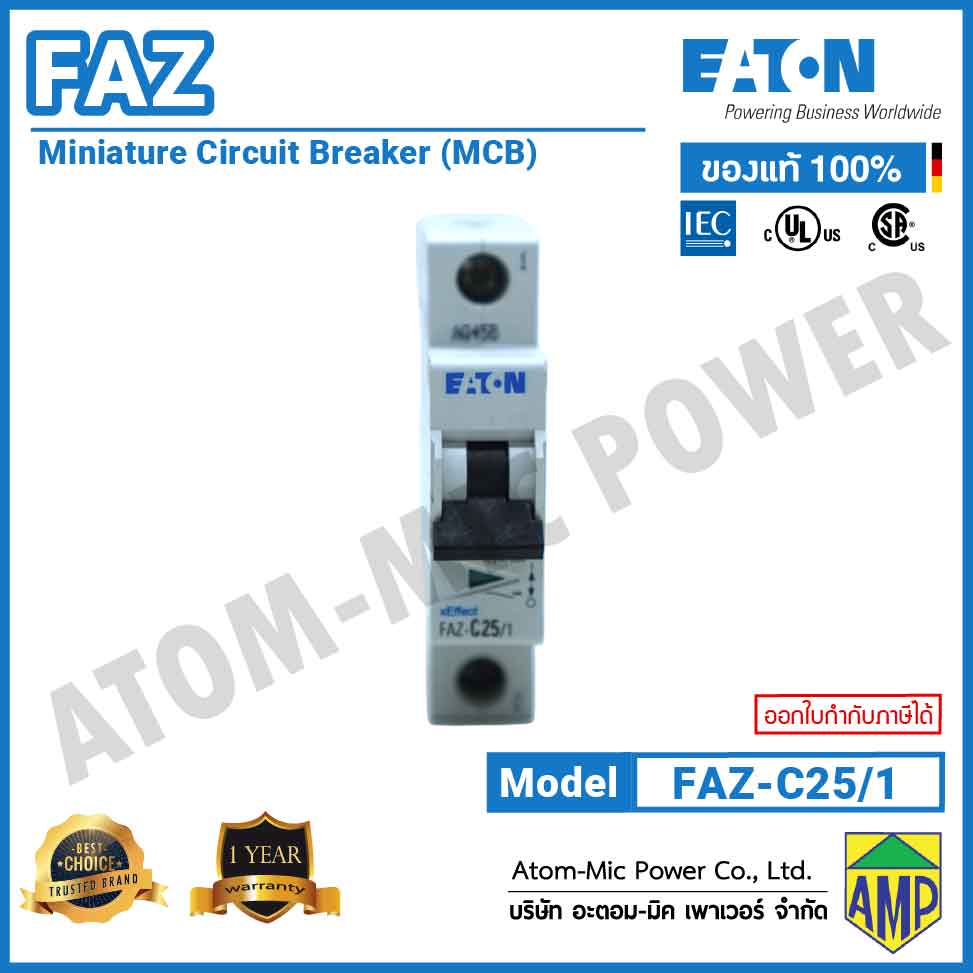

EATON – Miniature Circuit Breaker (MCB) – FAZ-C25/1

Basic function Miniature circuit-breakers
Number of poles : 1 pole
Tripping characteristic : C
Application Switchgear for industrial and advanced commercial applications
Rated current : 25 A In
Rated switching capacity acc. to IEC/EN 60947-2 : 5 kA Icu
Product range : FAZ
Standard front dimension : 45 mm
Enclosure height : 80 mm
Mounting width per pole : 17.5 mm
Rated current : 25 A
Rated voltage : 230 A
Rated insulation voltage : 440 V Ui
Rated impulse withstand voltage Uimp : 4 kV
Rated short-circuit breaking capacity Icn EN 60898 at 230 V : 10 kA
