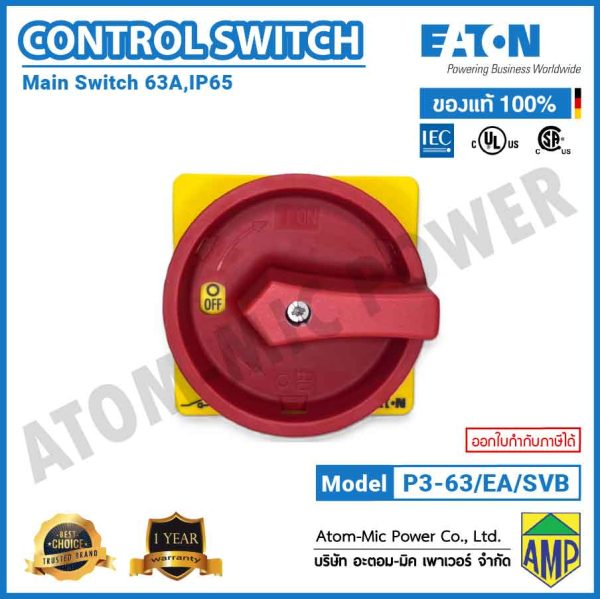

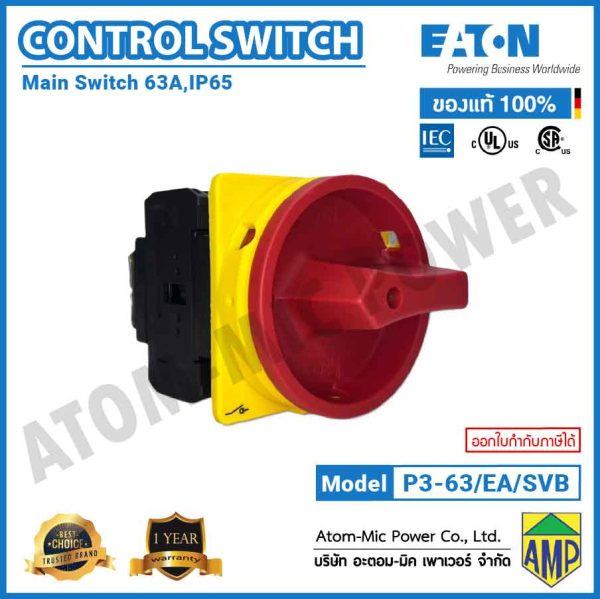

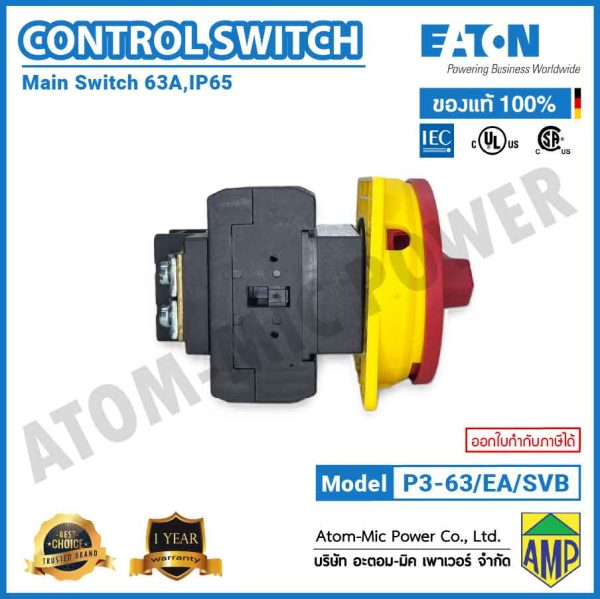

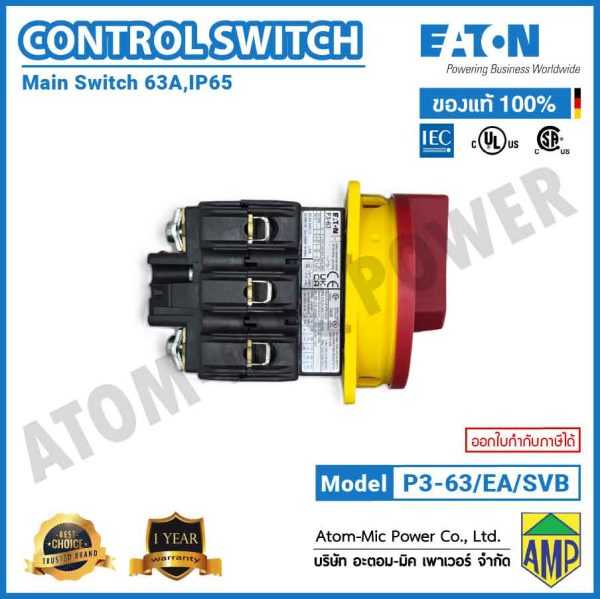

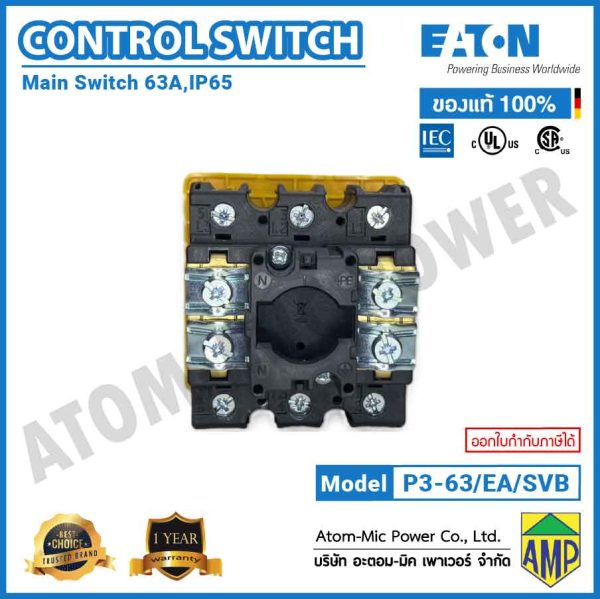

EATON-MAIN SWITCH-P3-63/EA/SVB (63A)

General specifications
Product Name : Eaton Moeller® series P3 Main switch
Catalog Number : 031607
Model Code : P3-63/EA/SVB
EAN : 4015080316077
Product Length/Depth : 128 mm
Product Height : 102 mm
Product Width : 87 mm
Product Weight : 0.426 kg
Rated permanent current at AC-21, 400 V : 63 A
Rated permanent current at AC-23, 400 V : 63 A
Rated uninterrupted current (Iu) : 63 A
Static heat dissipation, non-current-dependent Pvs : 0 W
Switching power at 400 V : 30 kW
Voltage per contact pair in series : 60 V
Accessories : Auxiliary contact or neutral conductor fitted by user.
Rated operational power at AC-3, 500 V, 50 Hz : 30 kW
Device construction : Built-in device fixed built-in technique
Rated short-time withstand current (Icw) : 1.26 kA
Electrical connection type of main circuit : Screw connection
