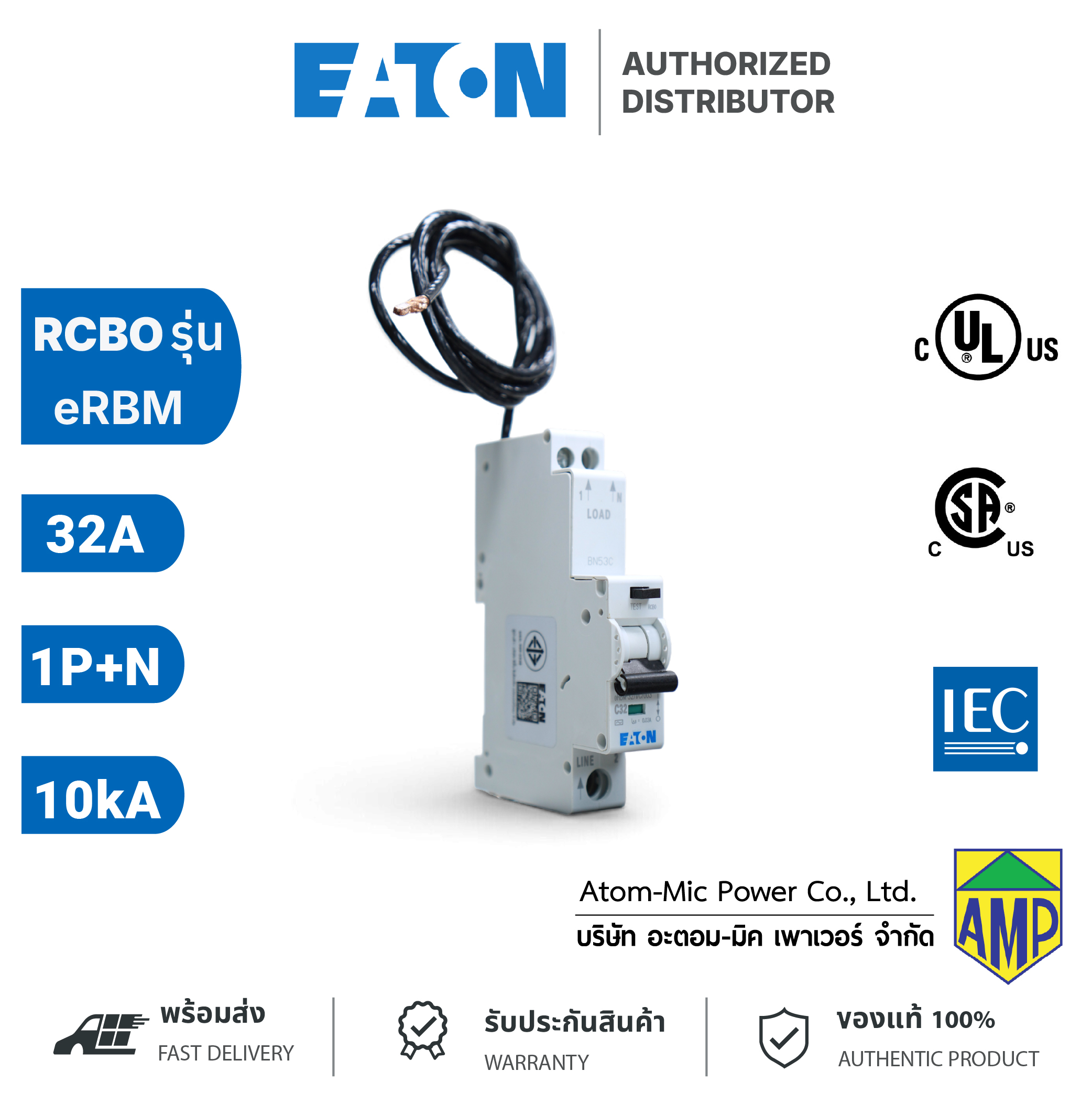

EATON – eRBM อุปกรณ์ป้องกันไฟดูด Electronic Combined RCD/MCB Device – eRBM-32/1/C/003

General specifications
– Product : eRBM-32/1/C/003
– Product Length/Depth : 216 mm
– Product Height : 72 mm
– Product Width : 17.5 mm
– Product Weight : 0.18 kg
– Voltage rating : 240 V – 240 V
– Surge current capacity : 0.25 kA
– Voltage type : AC
– Width in number of modular spacings : 1
– Rated current : 32 A
– Rated operational current for specified heat dissipation (In) : 32 A
– Rated operational voltage (Ue) – max : 240 V
– Degree of protection : IP20
– Leakage current type : AC
– Rated insulation voltage (Ui) : 500 V
– Power loss : 10.7 W
