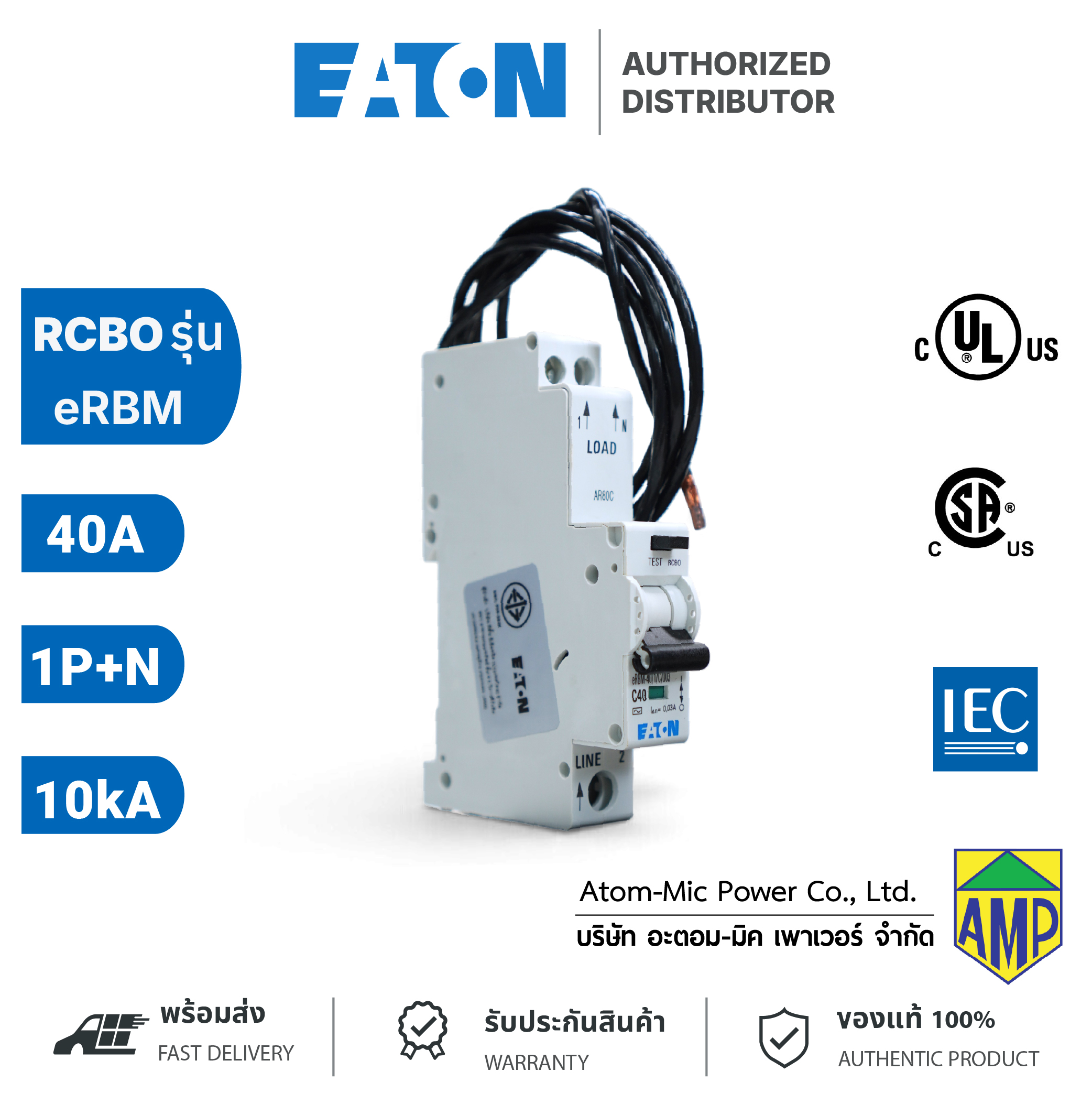

EATON – eRBM อุปกรณ์ป้องกันไฟดูด Electronic Combined RCD/MCB Device – eRBM-40/1/C/003

General specifications
– Product : eRBM-40/1/C/003-ME
– Product Length/Depth : 216 mm
– Product Height : 72 mm
– Product Width : 17.5 mm
– Product Weight : 0.18 kg
– Voltage rating : 240 V – 240 V
– Surge current capacity : 0.25 kA
– Voltage type : AC
– Width in number of modular spacings : 1
– Rated current : 40 A
– Rated operational current for specified heat dissipation (In) : 40 A
– Rated operational voltage (Ue) – max : 240 V
– Mounting Method : DIN rail
– Rated impulse withstand voltage (Uimp) : 4 kV
– Degree of protection : IP20
– Rated insulation voltage (Ui) : 500 V
