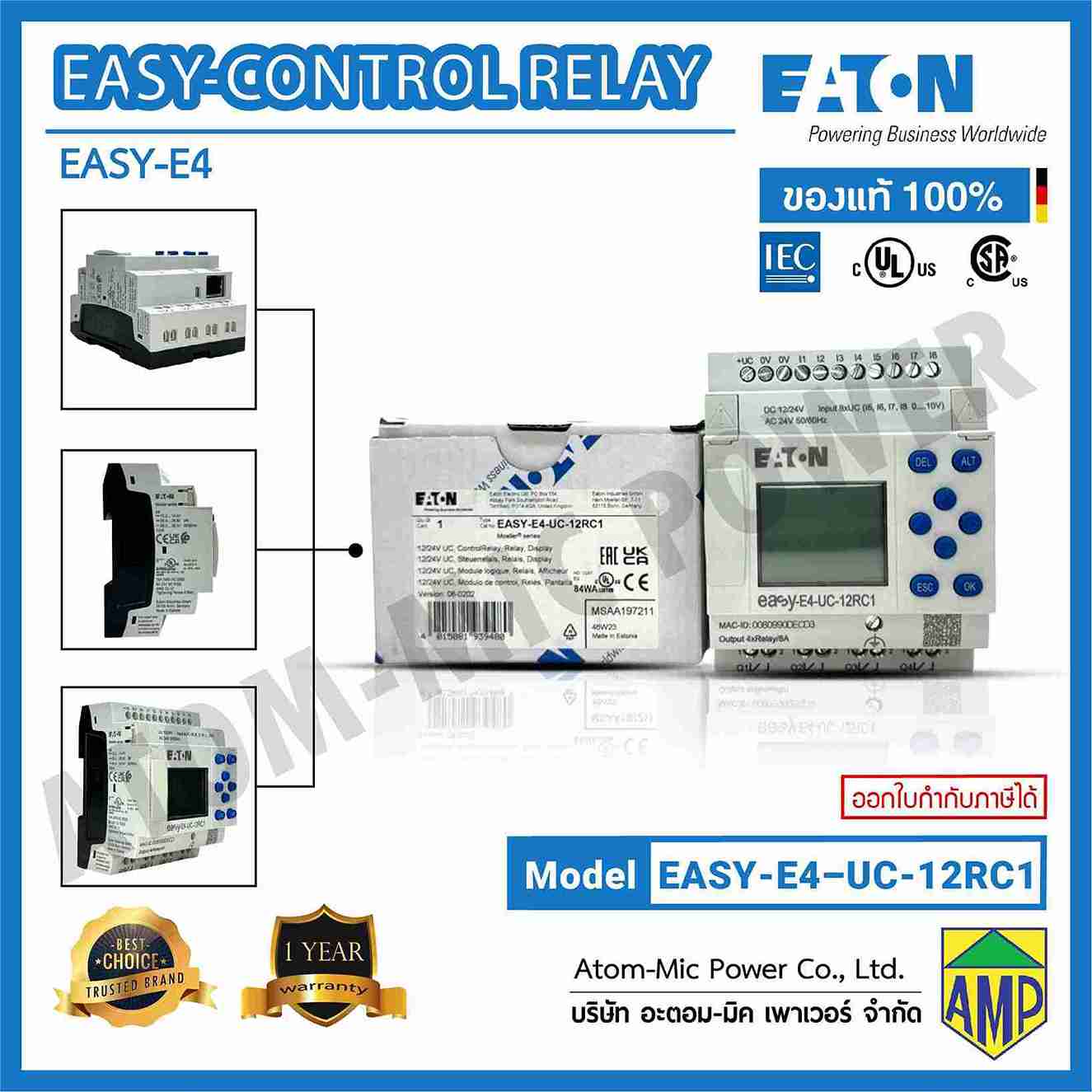

EATON – Control Relays – EASY-E4-UC-12RC1 – 12/24V DC

Dimensions (W x H x D) : 71.5 x 90 x 58 mm.
Weight : 0.2 kg.

Inputs
Digital 8
of which can be used as analog 4
Additional features
Real time clock #
Display & keypad #
Expansions Expandable
networkable (Ethernet)
Supply voltage 12/24 V DC
24 V AC
Software EASYSOFT-SWLIC/easySoft 7

Display
Display – Type Monochrome
Lines x characters 6 x 16

Protection type (IEC/EN 60529, EN50178, VBG 4) IP20

Digital inputs 12 V DC
Number : 8
Status Display : LCD-Display
Potential isolation : from power supply: no
to the memory card: no
to Ethernet: yes
between inputs: no
from the outputs: yes
to expansion devices: yes
Rated operational voltage : Ue V DC 12
Input voltage : V DC Condition 0: ≦ 5 (I1 – I8)
Condition 1: ≧ 8 (I1 – I8)
Input current at signal 1 mA 1.75 mA (I1 – I4)
0.9 mA (I5 – I8)
Deceleration time ms 20 (0 -> 1/1 -> 0, Debounce ON)
type 0.015 (0 -> 1/1 -> 0, Debounce OFF)
Cable length  : m 100 (unshielded)
Frequency counter
Note Notes on this, see under Digital inputs 24 V DC
Incremental counter
Note Notes on this, see under Digital inputs 24 V DC
Rapid counter inputs
Note Notes on this, see under Digital inputs 24 V DC
