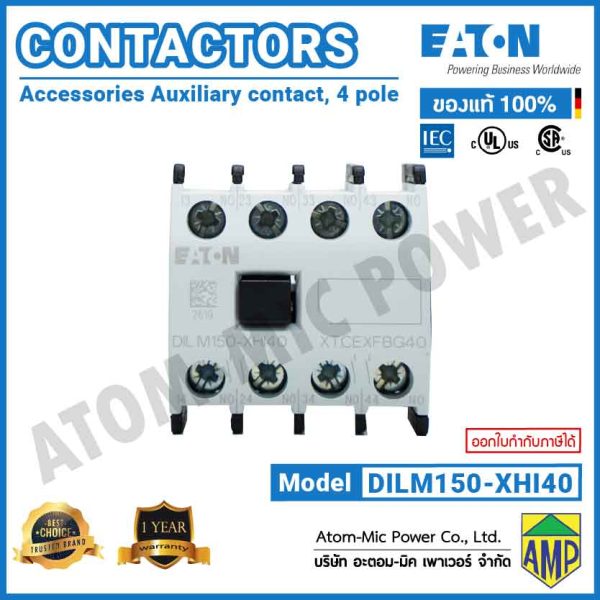

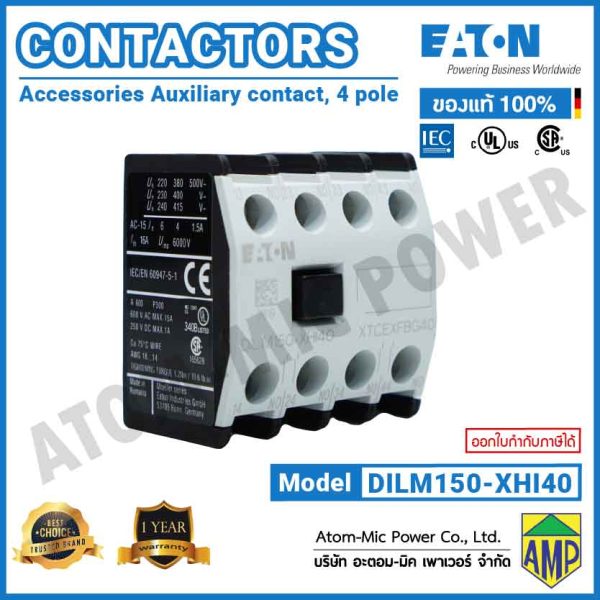

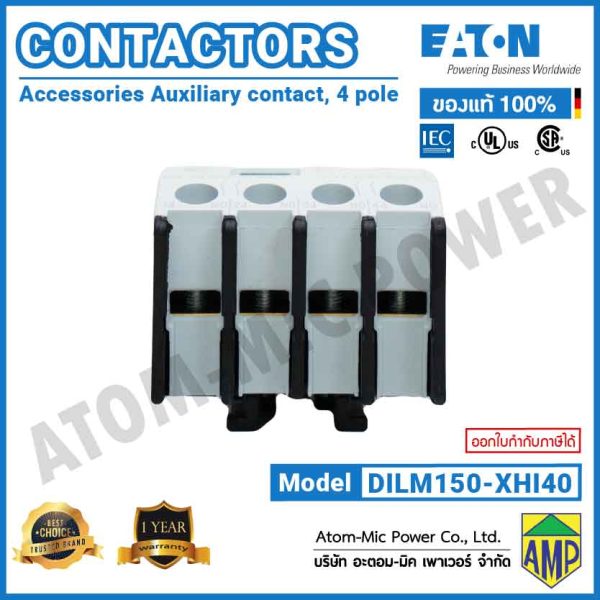

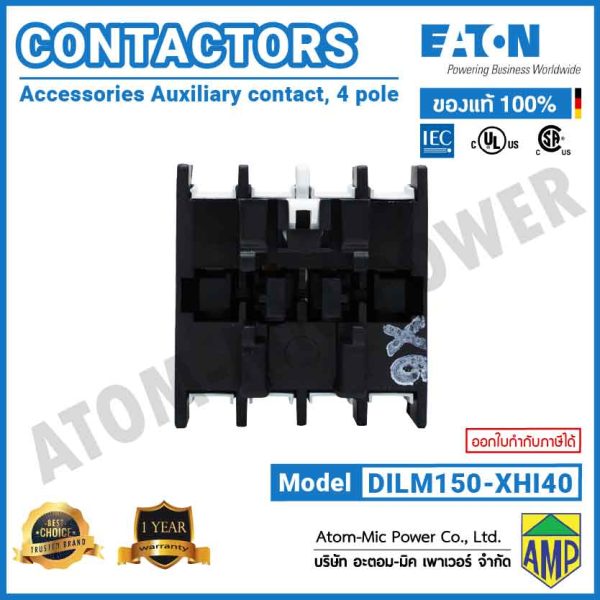

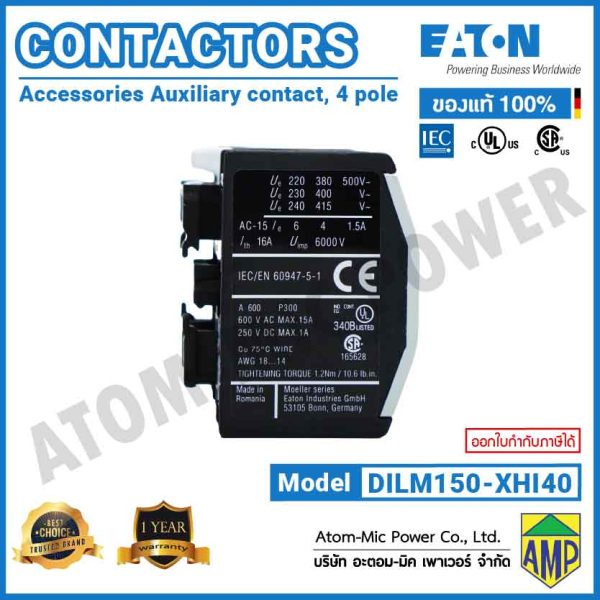

EATON – Auxiliary Contact – DILM150-XHI40 (4 NO)

– Model code : DILM150-XHI40
– Product Length/Depth : 39 mm
– Product Height : 46 mm
– Product Width : 45 mm
– Product Weight : 0.055 kg
– Fitted with : Interlocked opposing contacts
– Number of poles : Four-pole
– Electric connection type : Screw connection
– Degree of protection : IP20
– Pollution degree : 3
– Rated impulse withstand voltage (Uimp) : 6000 V AC
– Tightening torque : 1.2 Nm, Screw terminals
– Rated operational current (Ie) at AC-15, 220 V, 230 V, 240 V : 6 A
– Rated operational current (Ie) at AC-15, 380 V, 400 V, 415 V : 4 A
– Rated operational current (Ie) at AC-15, 500 V : 1.5 A
– Rated insulation voltage (Ui) : 690 V
– Rated operational voltage (Ue) at AC – max : 500 V
