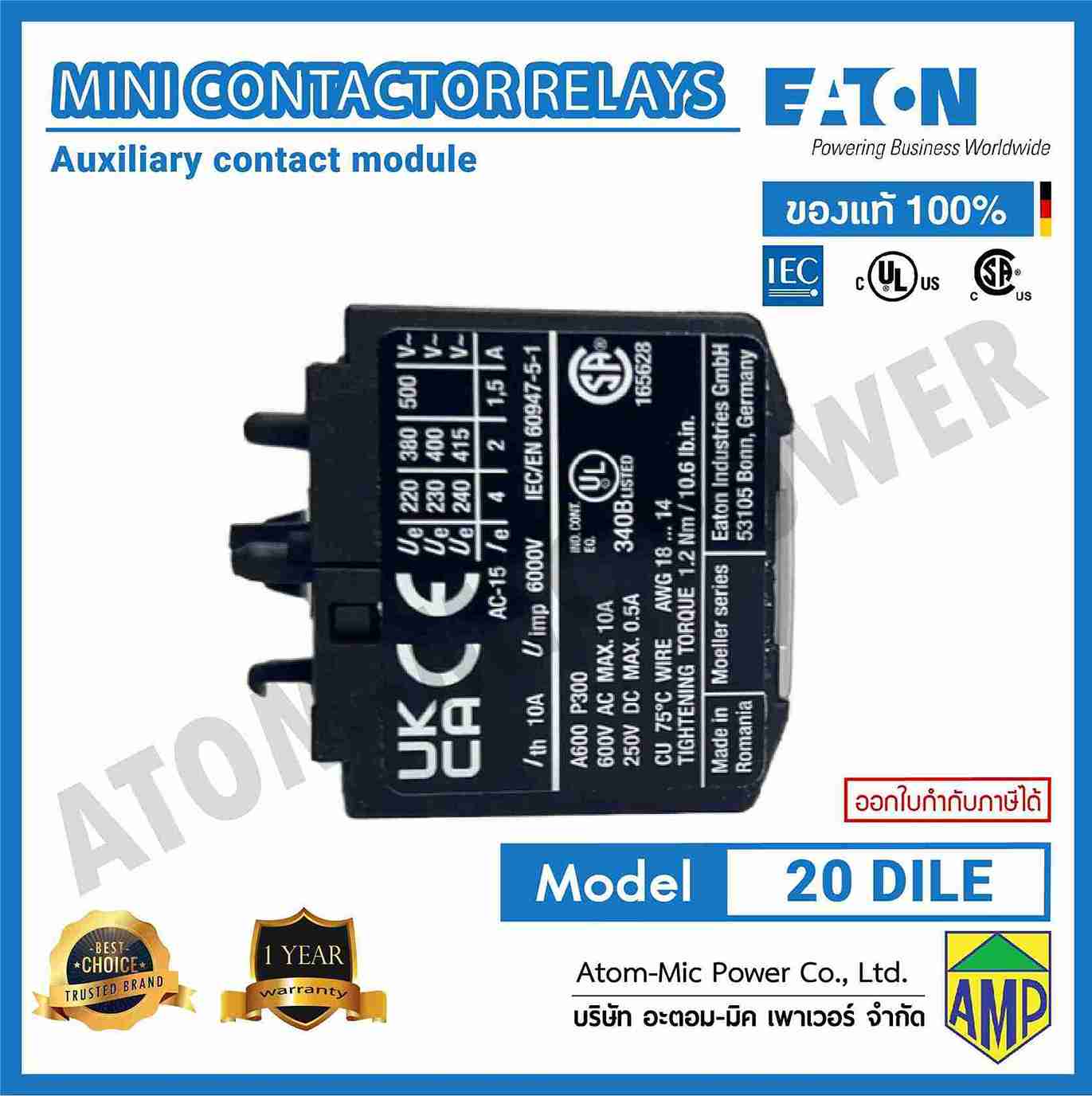

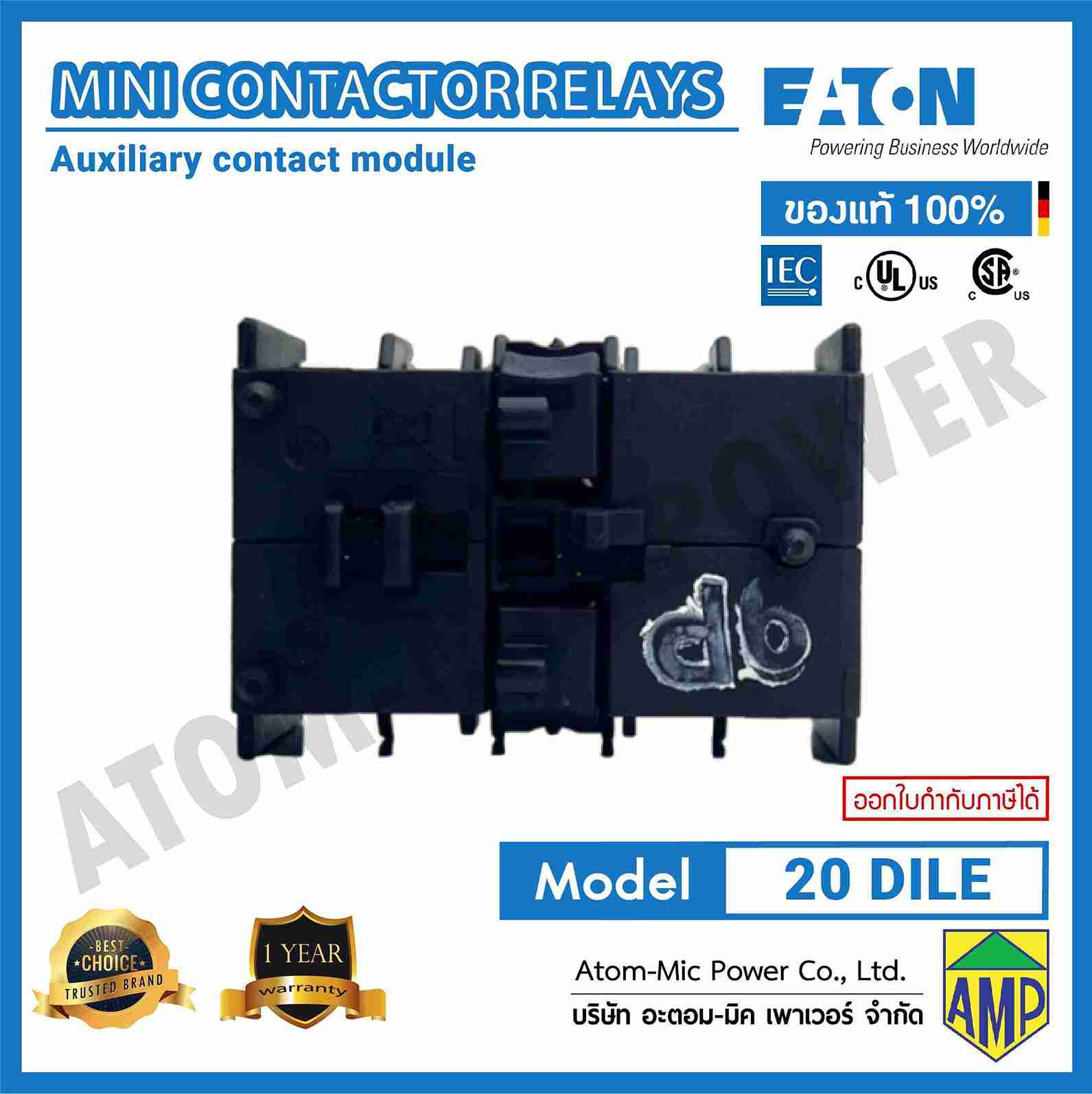

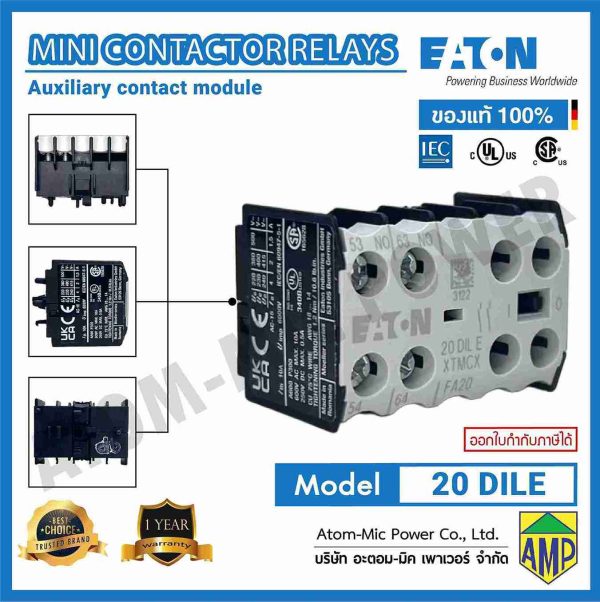

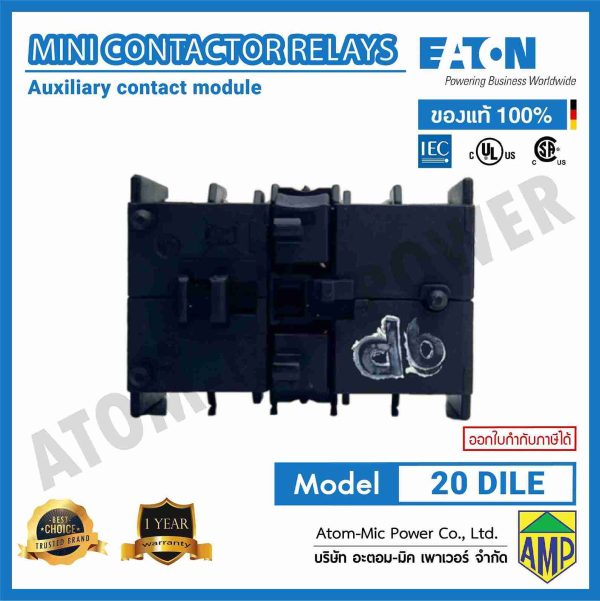

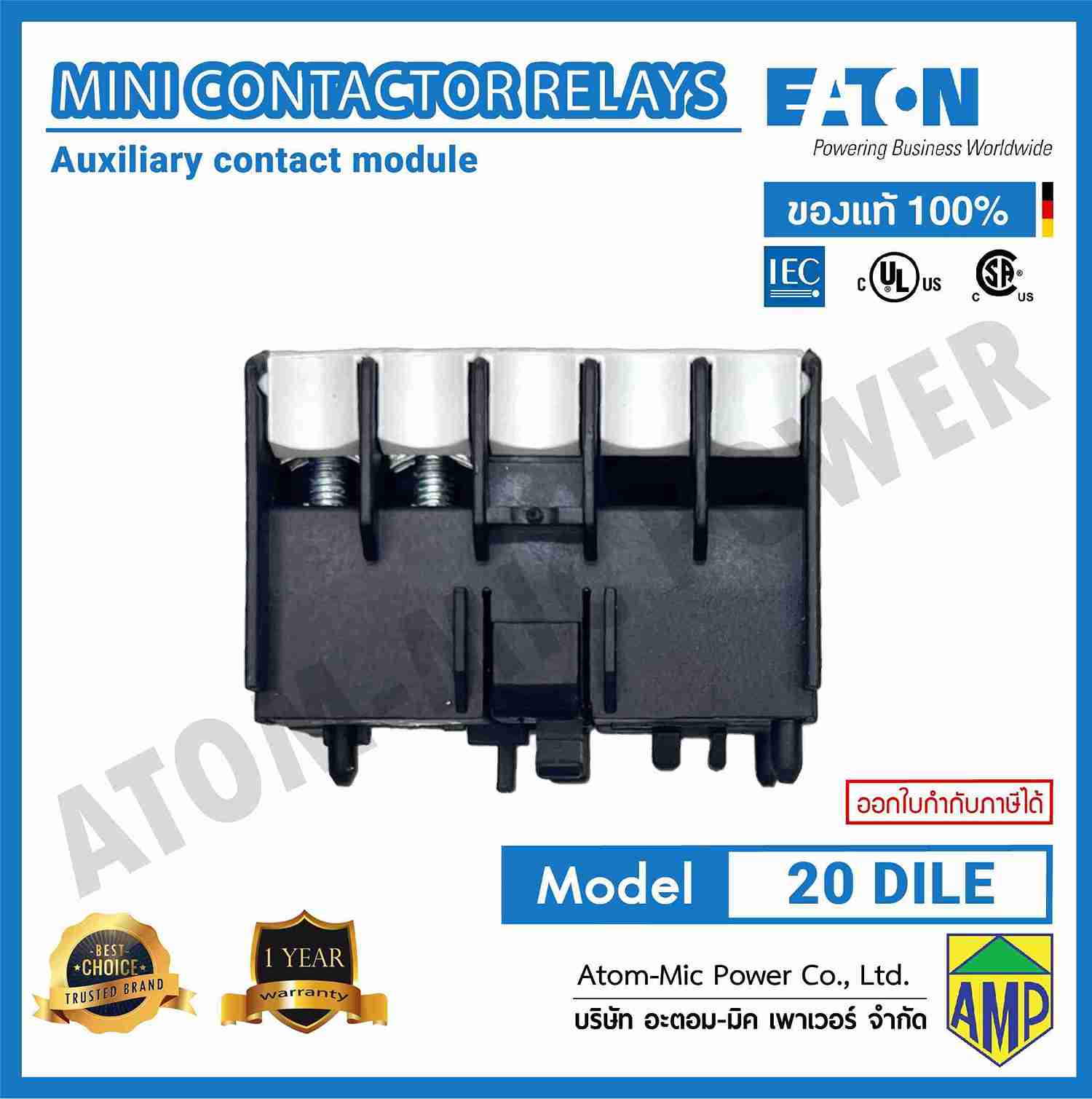

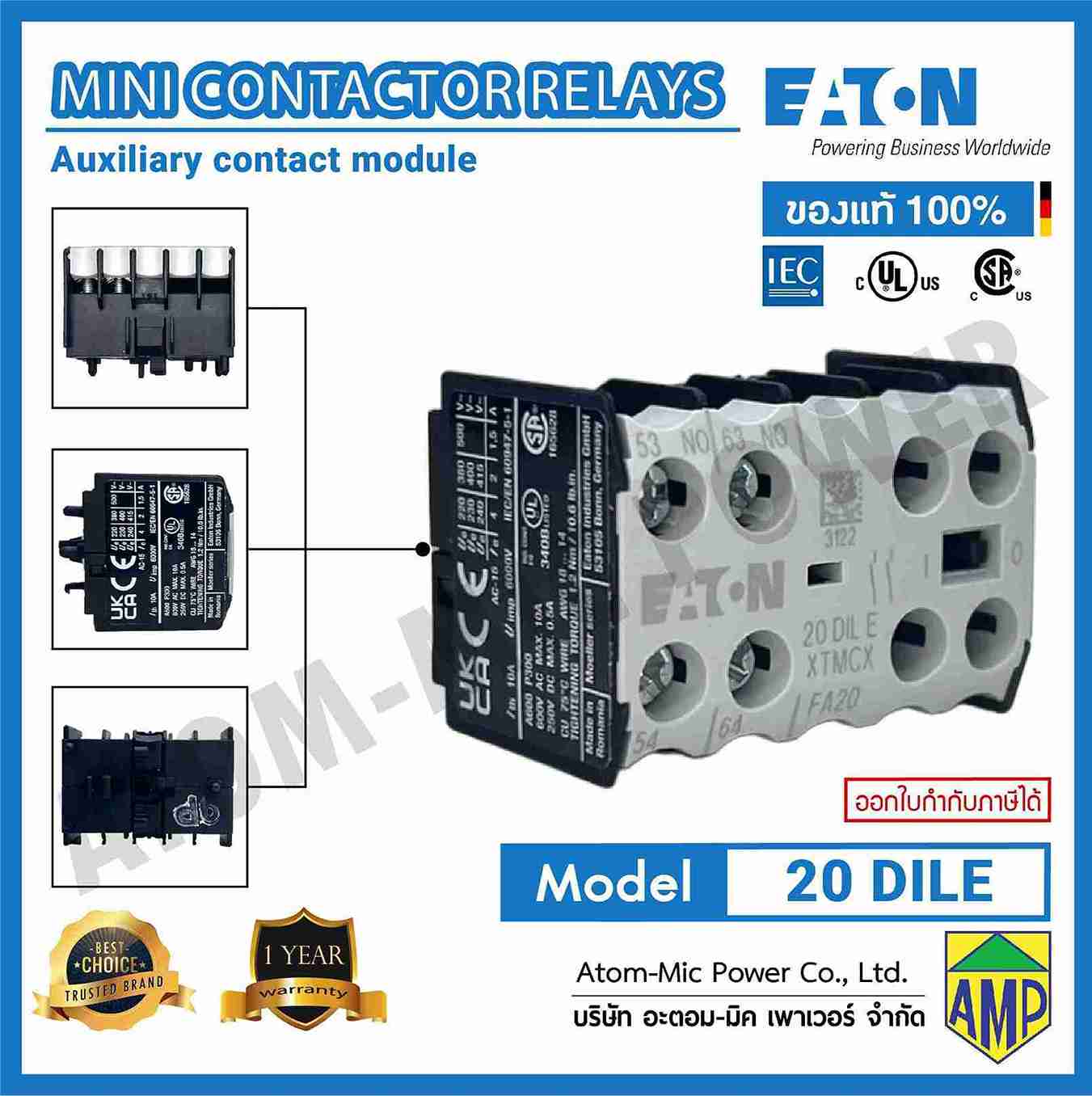

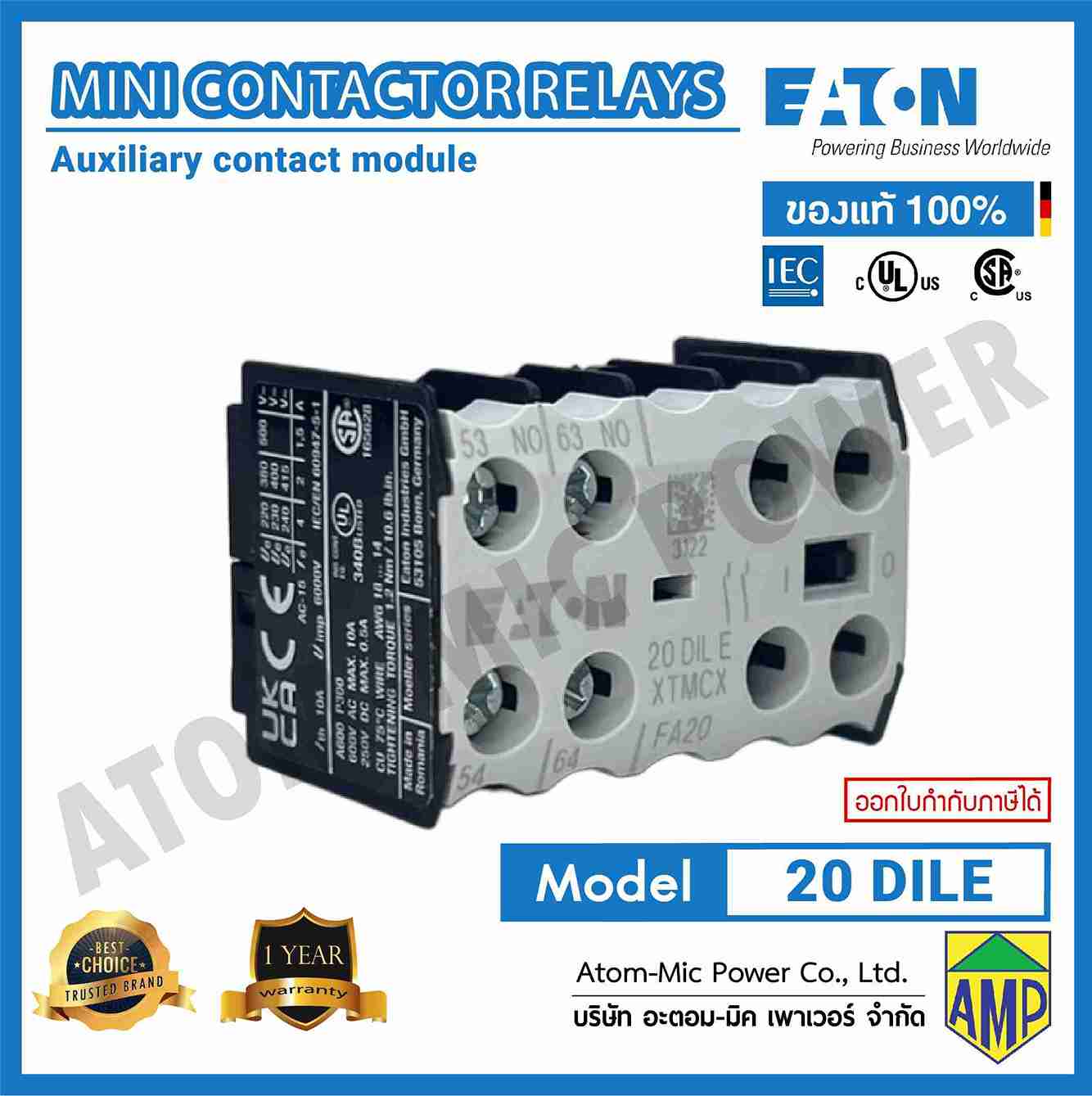

EATON – 20DILE, 2 pole, 2 N/O, Auxiliary contact module, Front fixing, Screw terminals, DILE(E)M, DILER

General specifications

• Part no. : 20DILE
• Product Length/Depth : 36 millimetre
• Product height : 32 millimetre
• Product width : 45 millimetre
• Product weight : 0.03 kilogram
• Product Tradename : DILE
• Product Type : Accessory
• Number of poles : Two-pole
• Functions : For standard applications
• Degree of protection : IP20
• Rated impulse withstand voltage (Uimp) : 6000 V AC
• Screw size : M3.5, Terminal screw
• Tightening torque : 1.2 Nm, Screw terminals
• Rated insulation voltage (Ui) : 690 V
• Rated operational voltage (Ue) at AC – max : 600 V
• Safe isolation : 300 V AC, Between coil and auxiliary contacts, According to EN 61140
  300 V AC, Between auxiliary contacts, According to EN 61140
