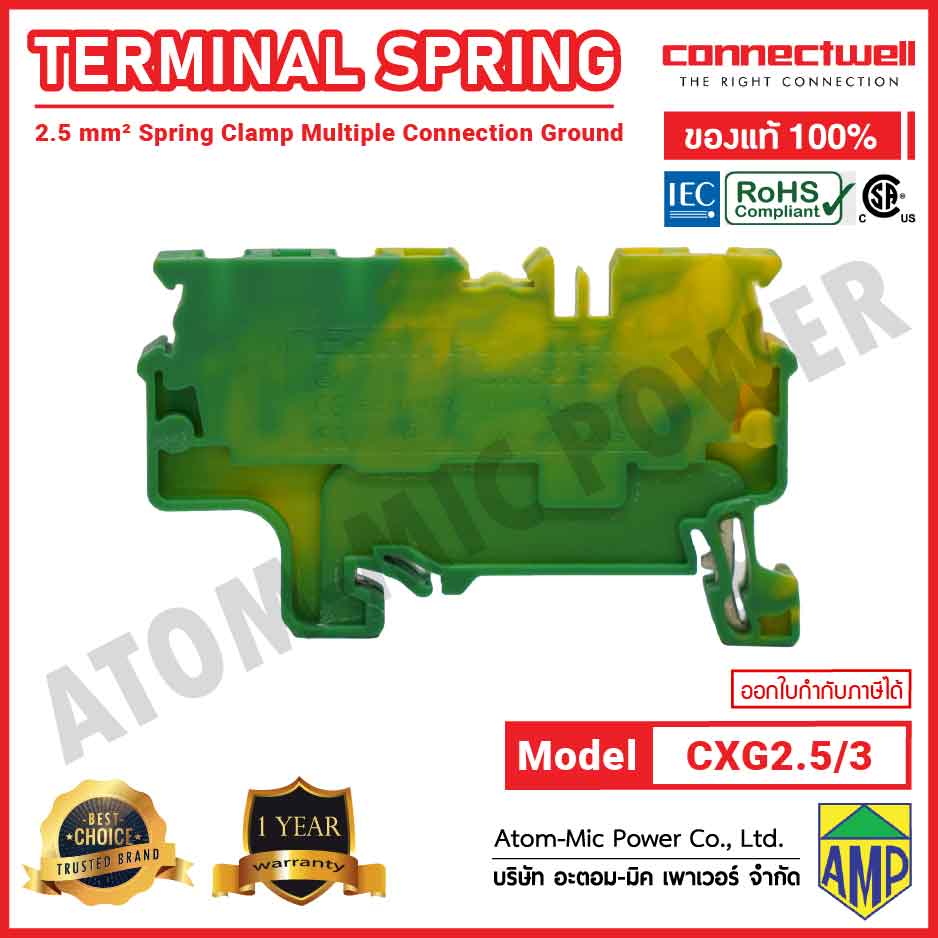

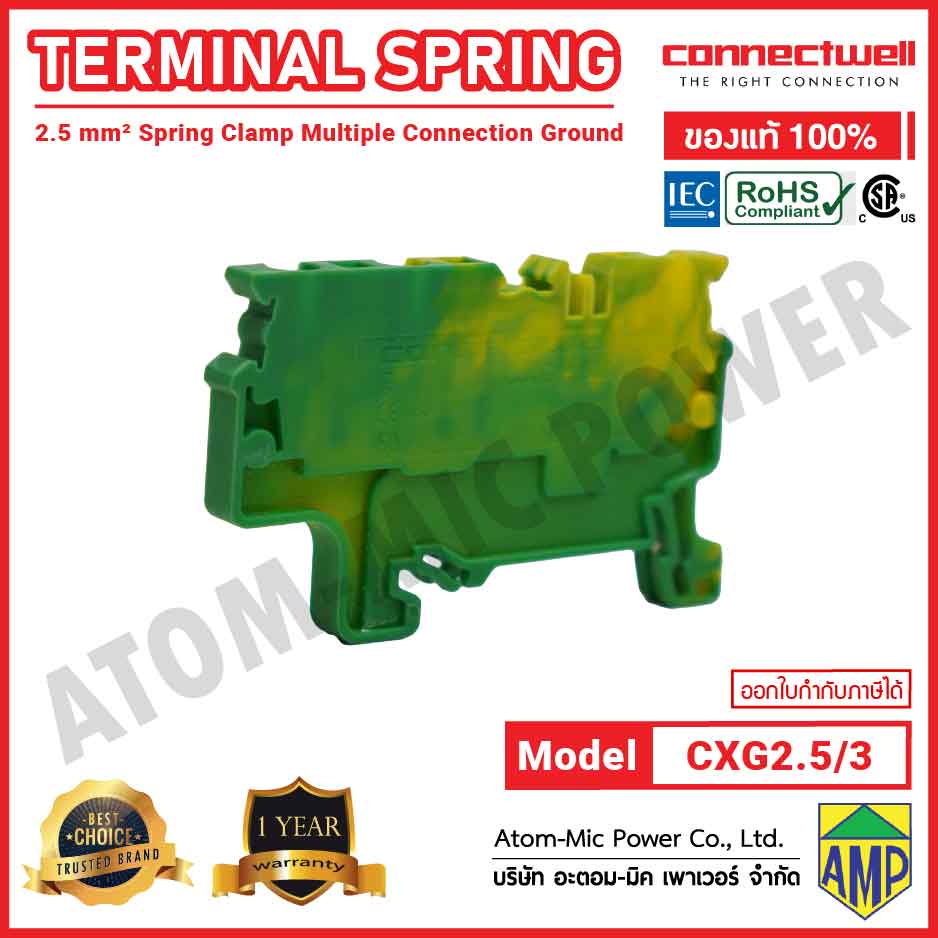

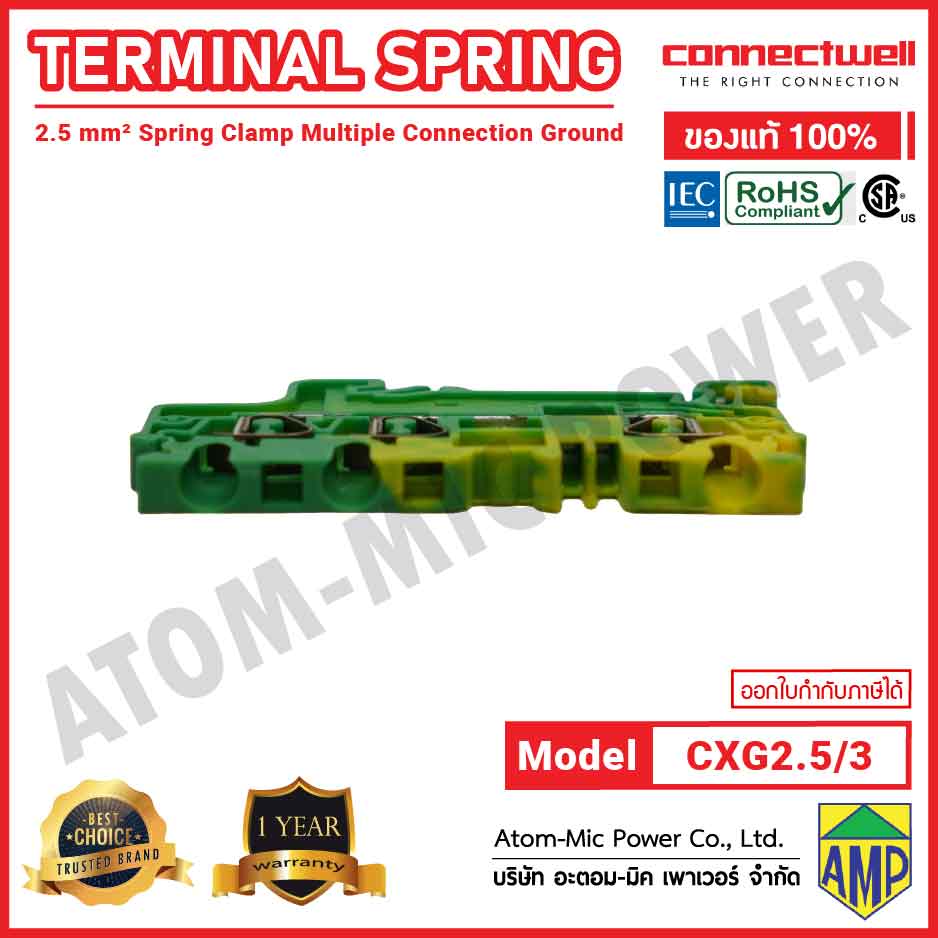

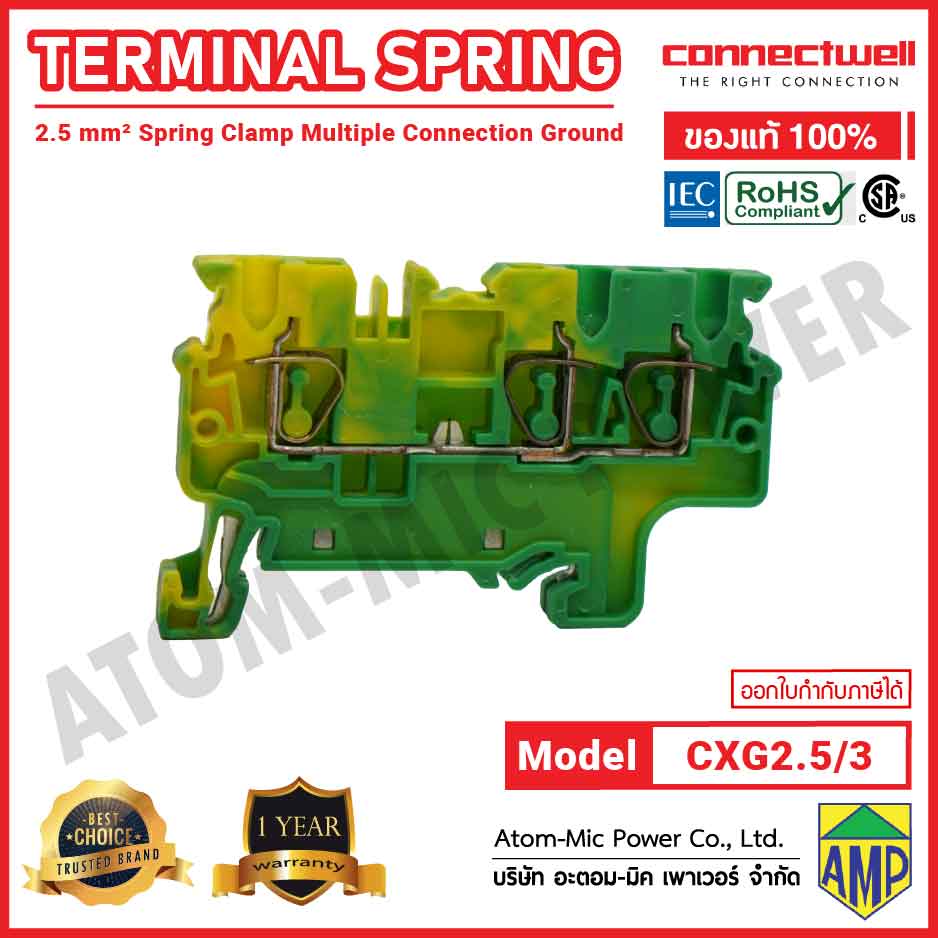

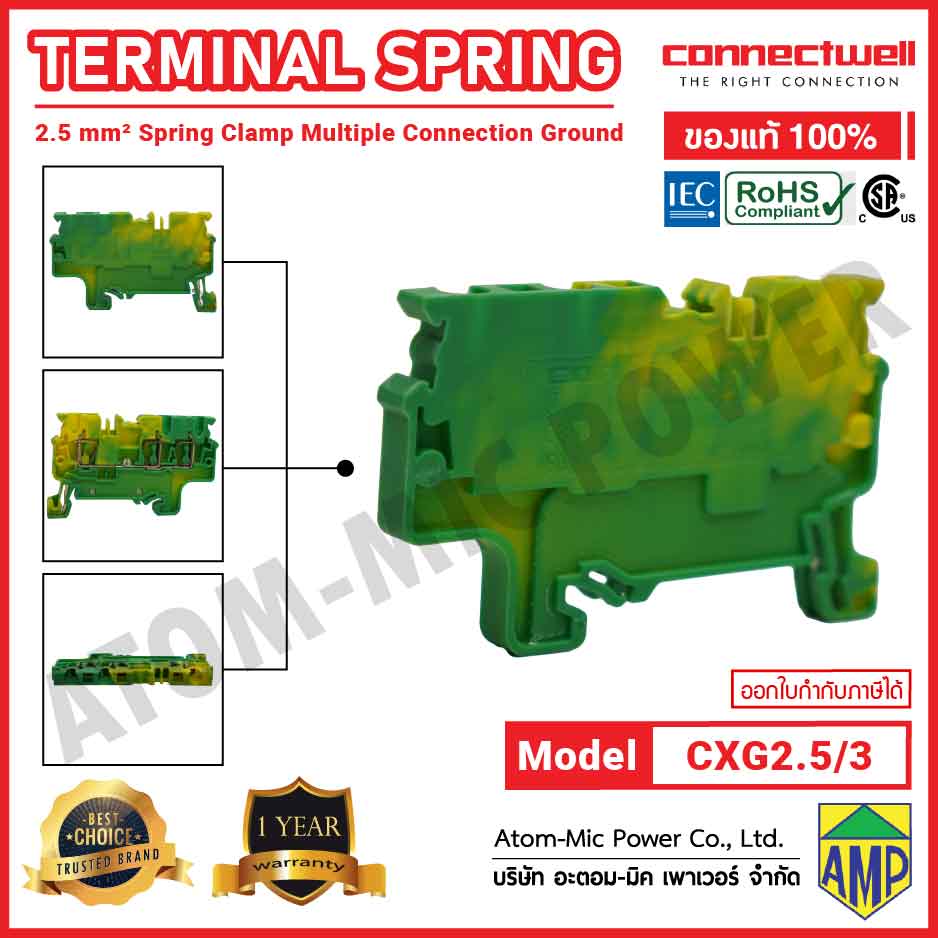

CONNECTWELL – Terminal Block Connector 3 Position Ground, Earth Green, Yellow – CXG2.5/3

2.5 sq.mm Ground/Earth Spring Clamp Terminal Blocks
These Terminal Blocks have specially designed alloy feet which help in achieving very low contact resistance and vibration proof grounding with the DIN rails. They green/yellow colour coded as industry standards.
Number of Positions : 3
Number of Levels : 1
Terminal – Width : 5.0mm
Termination Style
Push In, Spring
Voltage – IEC : 1000V
Voltage – UL : 600V
Wire Gauge or Range – AWG : 12-24 AWG
Wire Gauge or Range – mm² : 0.2-2.5mm²
Color : Green, Yellow
Material – Insulation
Polyamide (PA66), Nylon 6/6
Material Flammability Rating
UL94 V-0, UL94 V-2
Stripping Length : 10mm
