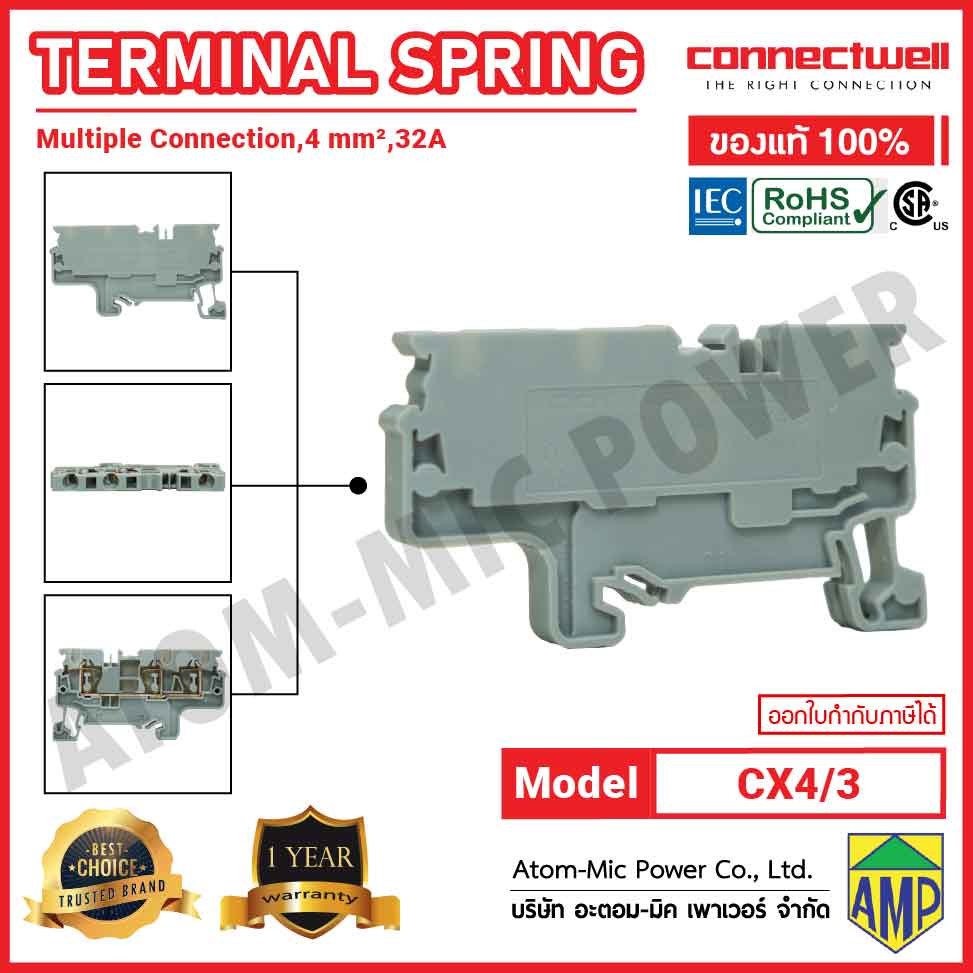

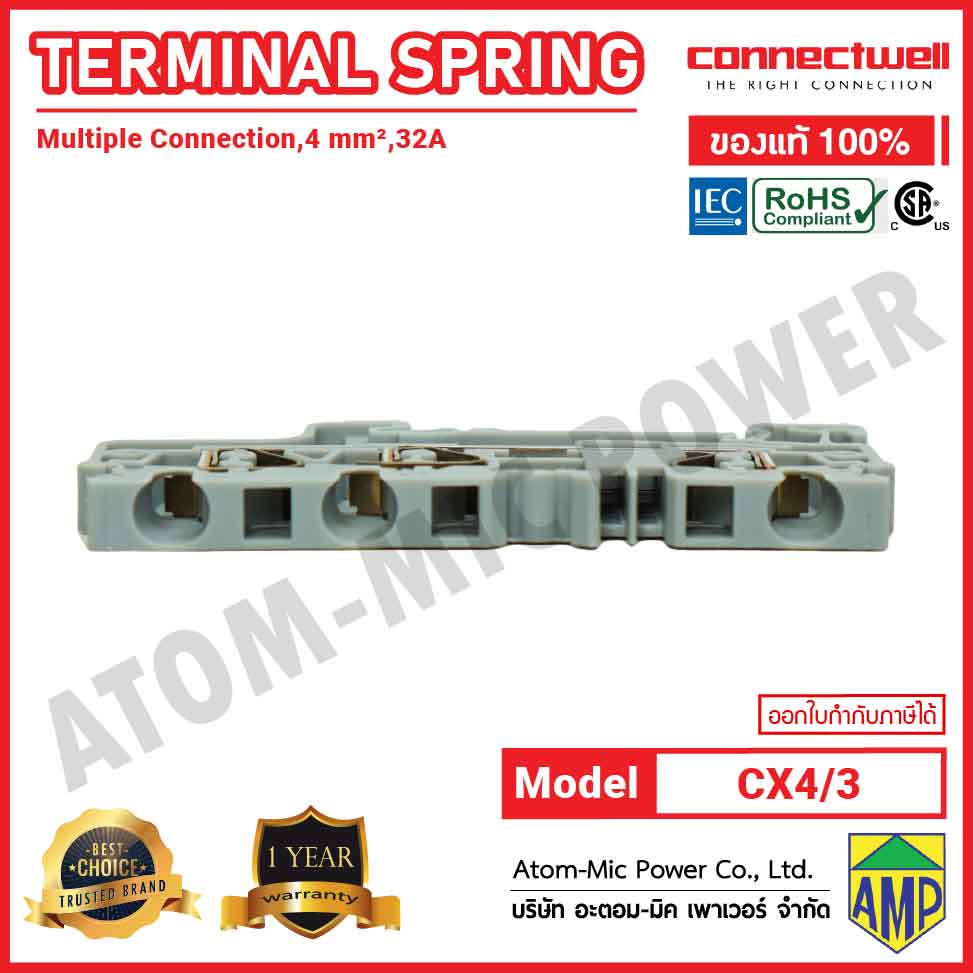

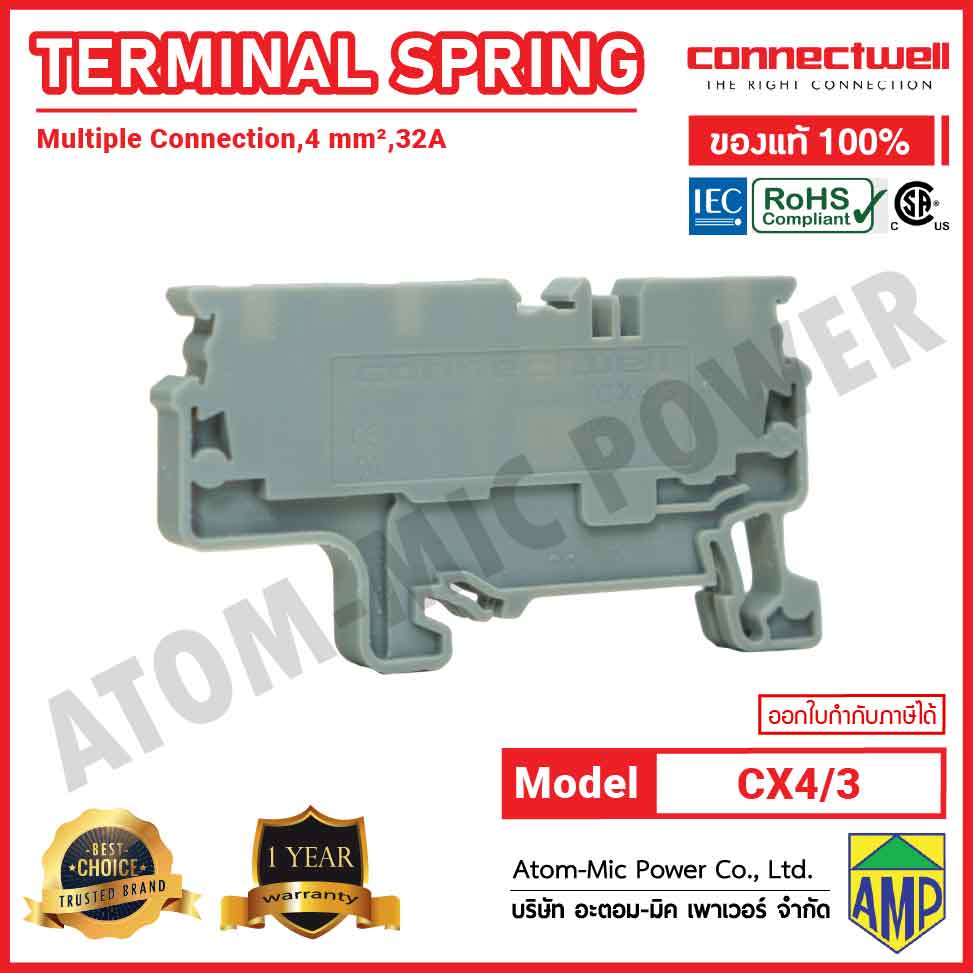

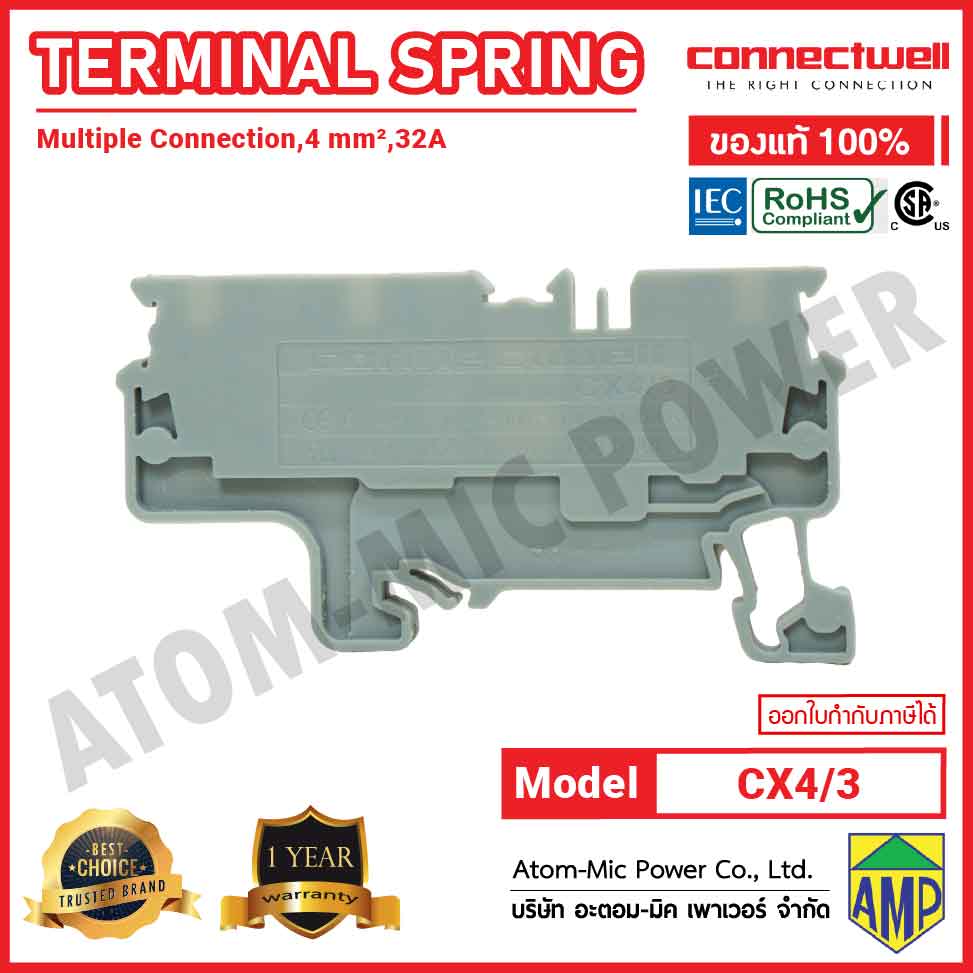

CONNECTWELL – Spring Clamp Multiple Connection Terminal Block with 3 connection points – CX4/3

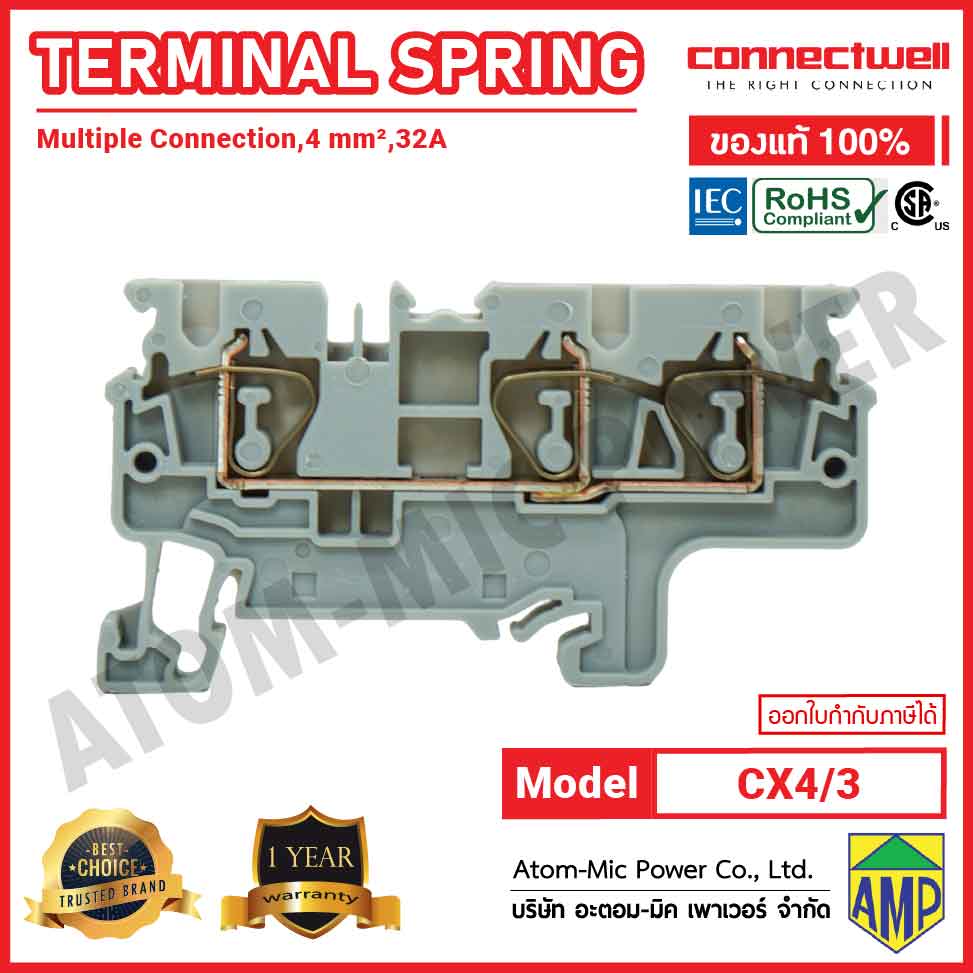

CX4/3 is a spring clamp multiple connection terminal block with three connection points and a screwdriver operated spring mechanism for hands free wiring. The pre-stressed spring ensures a torque independent, maintenance free connection, ideal for vibration prone environments. It provides gas tight, vibration proof, and anti loosening connections, making it suitable for demanding industrial applications. The terminal block also features 2 row jumpering provision for easy cross connections using standard pluggable jumpers, enhancing wiring flexibility and system integration.

CXG4/3 is the same profile grounding terminal block with yellow-green colour hosuing for connecting ground wires.

Short-Time Withstand Current
0.48 kA
Type of Connection
Spring Clamp
Wire Entry Orientation
Top
Operating Temperature Range
-40 to +105
Number of Levels
1
Number of Connections
3
Rated Voltage (IEC)
1000 V
Rated Current (IEC)
32 A
Rated Voltage (UL/CSA)
600 V
Rated Current (UL/CSA)
30 A
Mounting Possibility
DIN 35/DIN 35-15 Rail
Internally Shorted
No
Operated by
Screwdriver
Rated Surge Voltage
8 kV
Overvoltage Category
III
Pollution Degree
3
