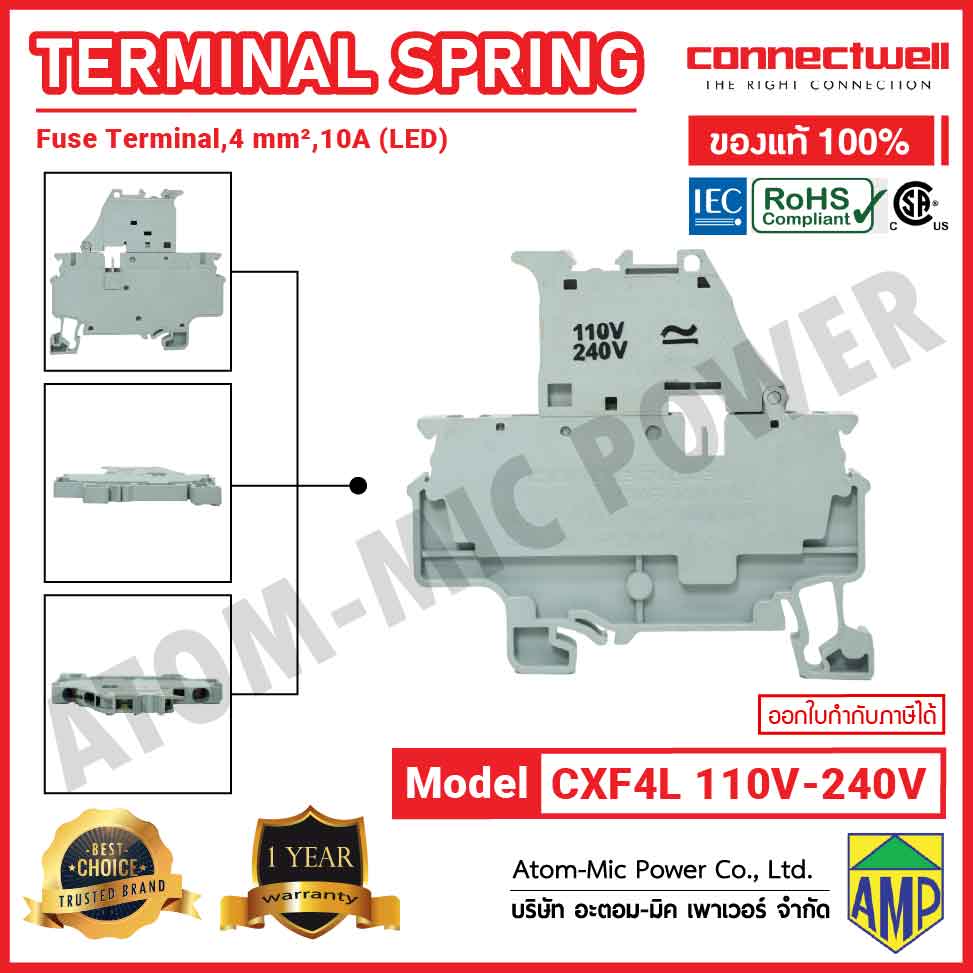

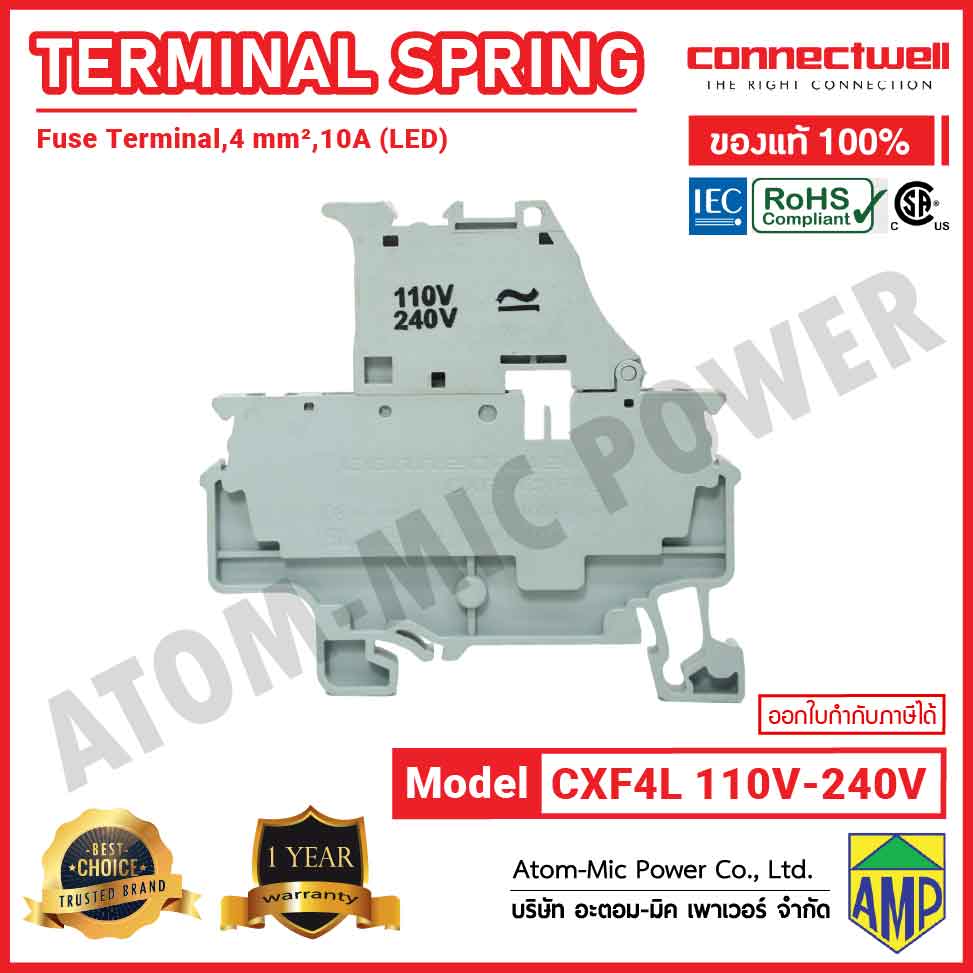

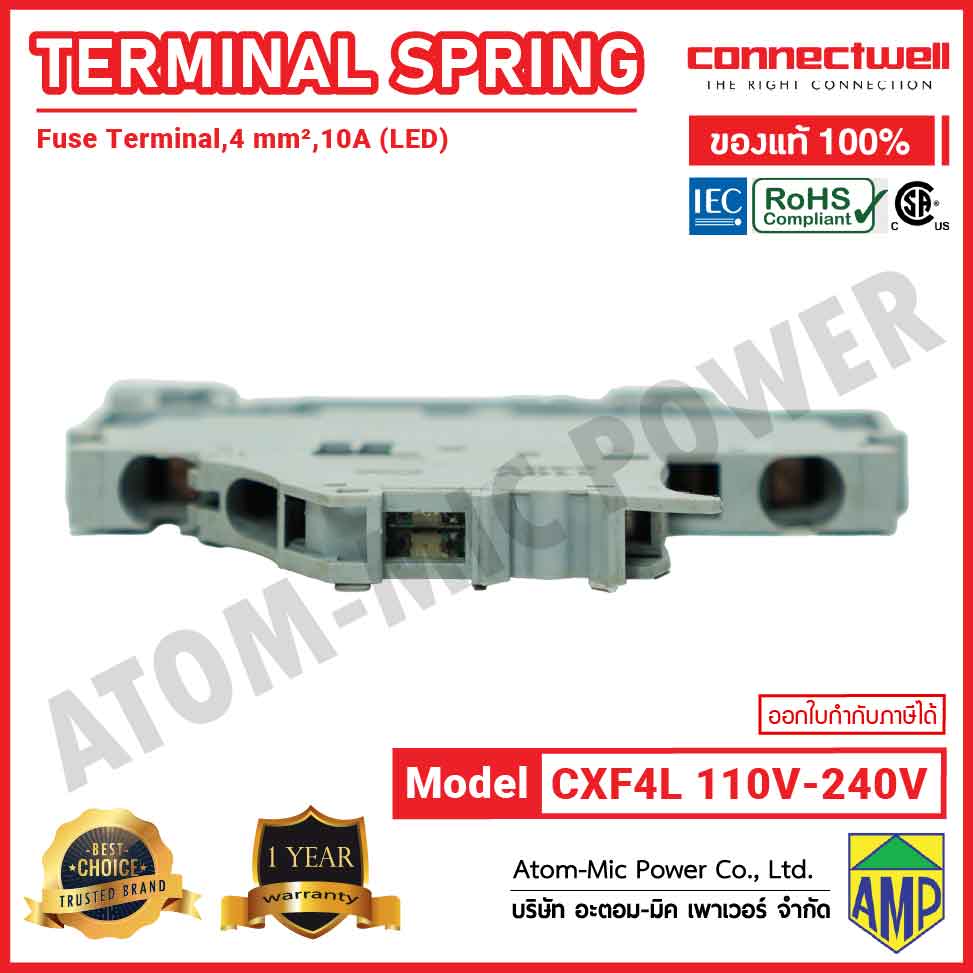

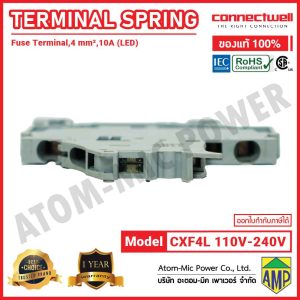

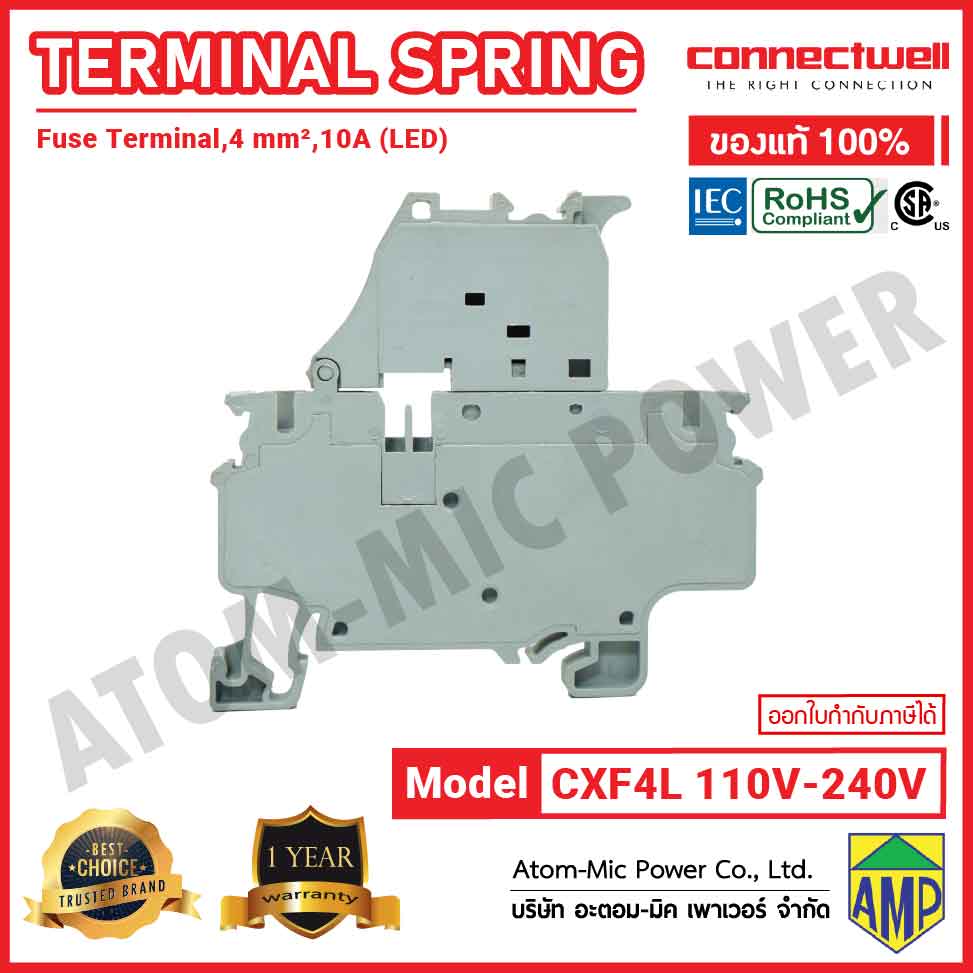

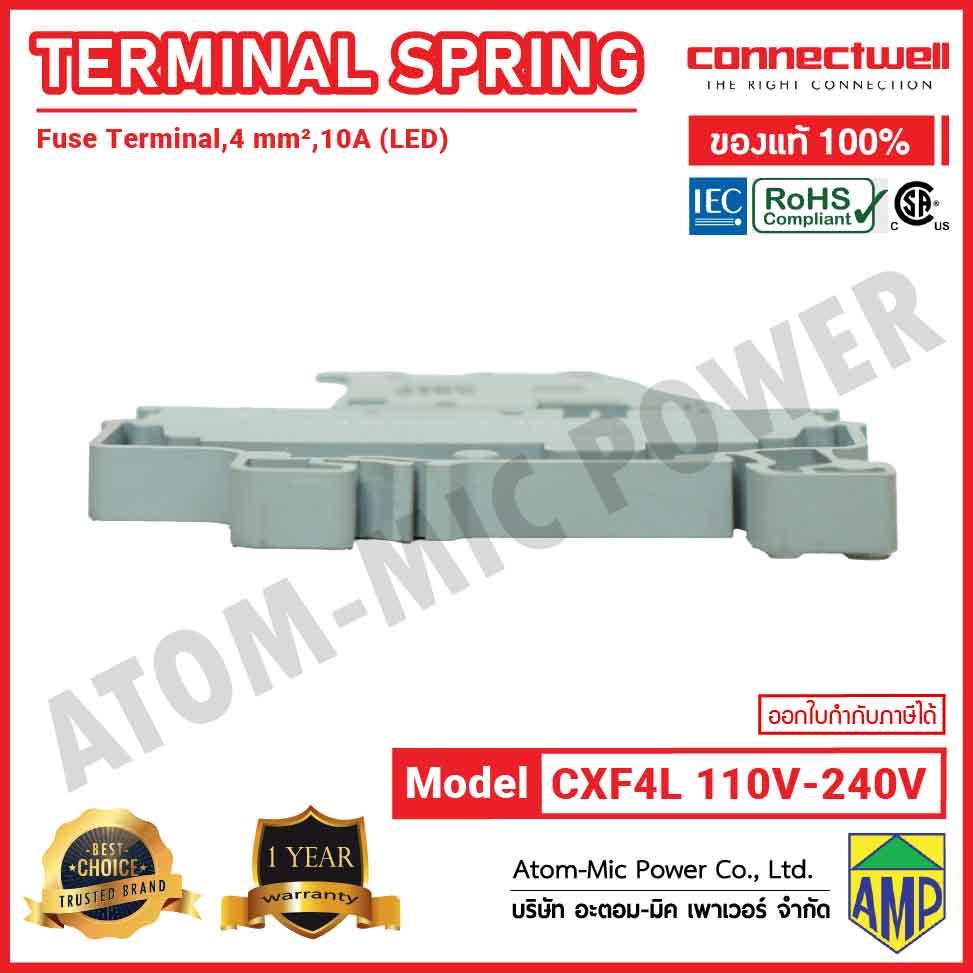

CONNECTWELL – Spring Clamp Fuse Terminal Block with 110-240V LED Indication – CXF4L(110-240V)

CXF4L110-240V is a fuse terminal block featuring spring clamp connection technology, engineered for reliable circuit protection across a wide range of industrial and automation applications. It accommodates standard 5x20mm glass fuses and features a fully enclosed housing, eliminating the need for an additional end plate and ensuring a neat, space-saving installation. An integrated LED indication system provides immediate visual feedback in the event of a fuse blowout, significantly simplifying maintenance. The terminal block also includes reverse polarity protection, offering enhanced safety and consistent operation in both AC and DC circuits. With its 2 row jumpering provision, CXF4 allows for flexible power distribution and simplified circuit expansion. Sharing the same profile as the CX4 feed-through and CXK4 knife disconnect terminal blocks, it can be seamlessly alternated for asimplified layout on the DIN rail.

Short-Time Withstand Current
0.48 kA
Type of Connection
Spring Clamp
Wire Entry Orientation
Top
Operating Temperature Range
-40 to +105
Number of Levels
1
Number of Connections
2
Rated Voltage (IEC)
1000 V
Rated Current (IEC)
10 A
Rated Voltage (UL/CSA)
600 V
Rated Current (UL/CSA)
10 A
Mounting Possibility
DIN 35/DIN 35-15 Rail
Internally Shorted
No
Fuse Fail Indication
Yes
Fuse Fail Indication Voltage
110-240 V
Indication Colour
Red
Indication Current Range
0.31—0.95 mA
Operated by
Screwdriver
Rated Surge Voltage
4 kV
Overvoltage Category
III
Pollution Degree
3
Type of Fuse
Glass
Fuse Size
5×20 mm
With Fuse
No
