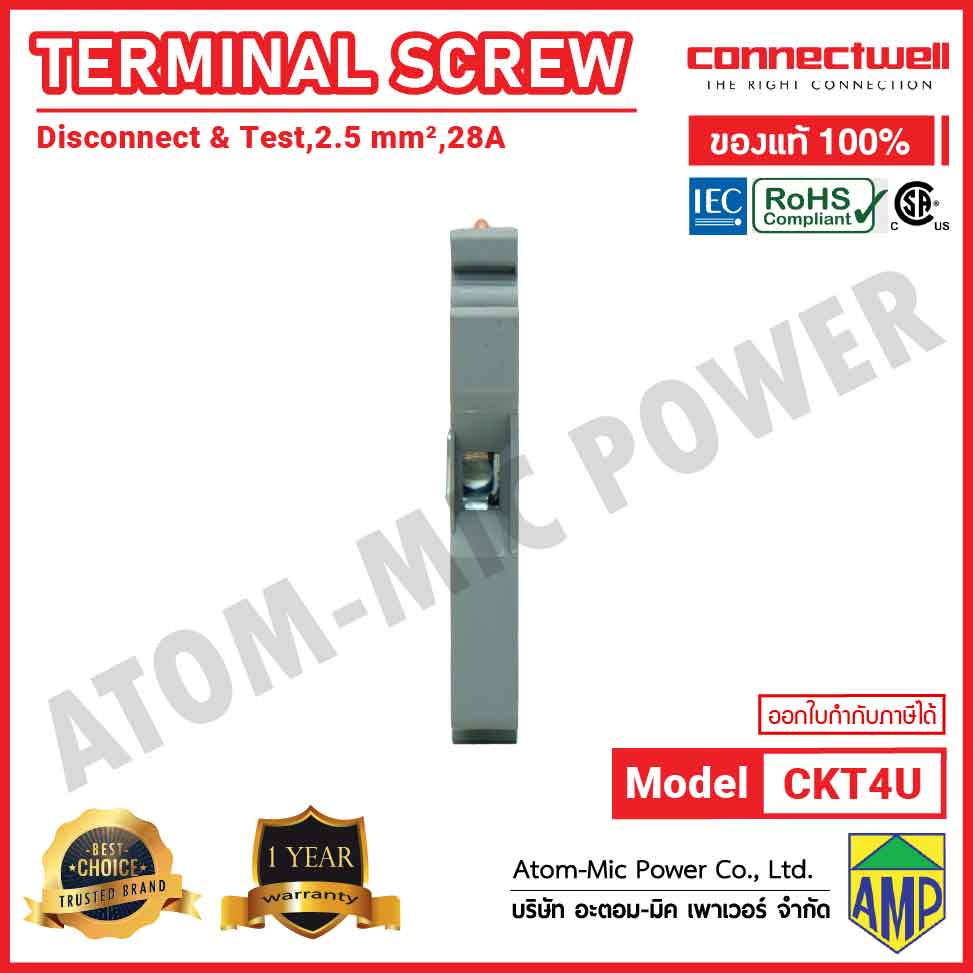

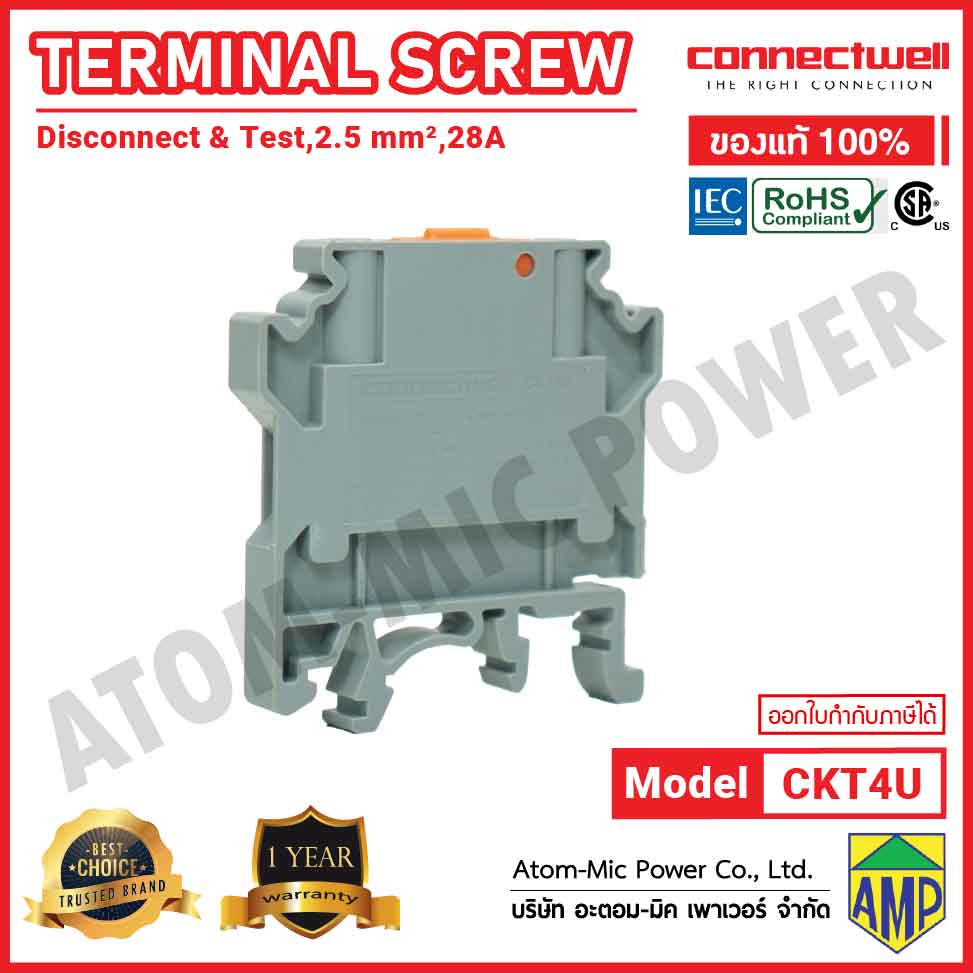

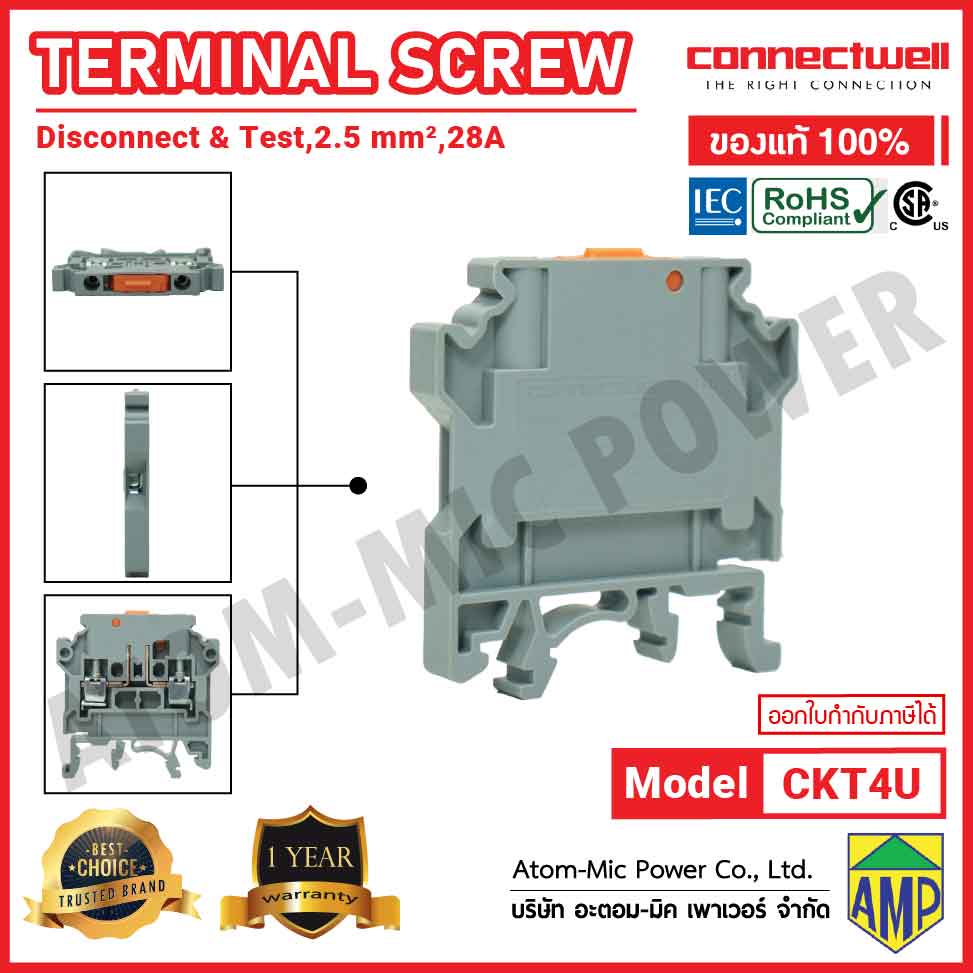

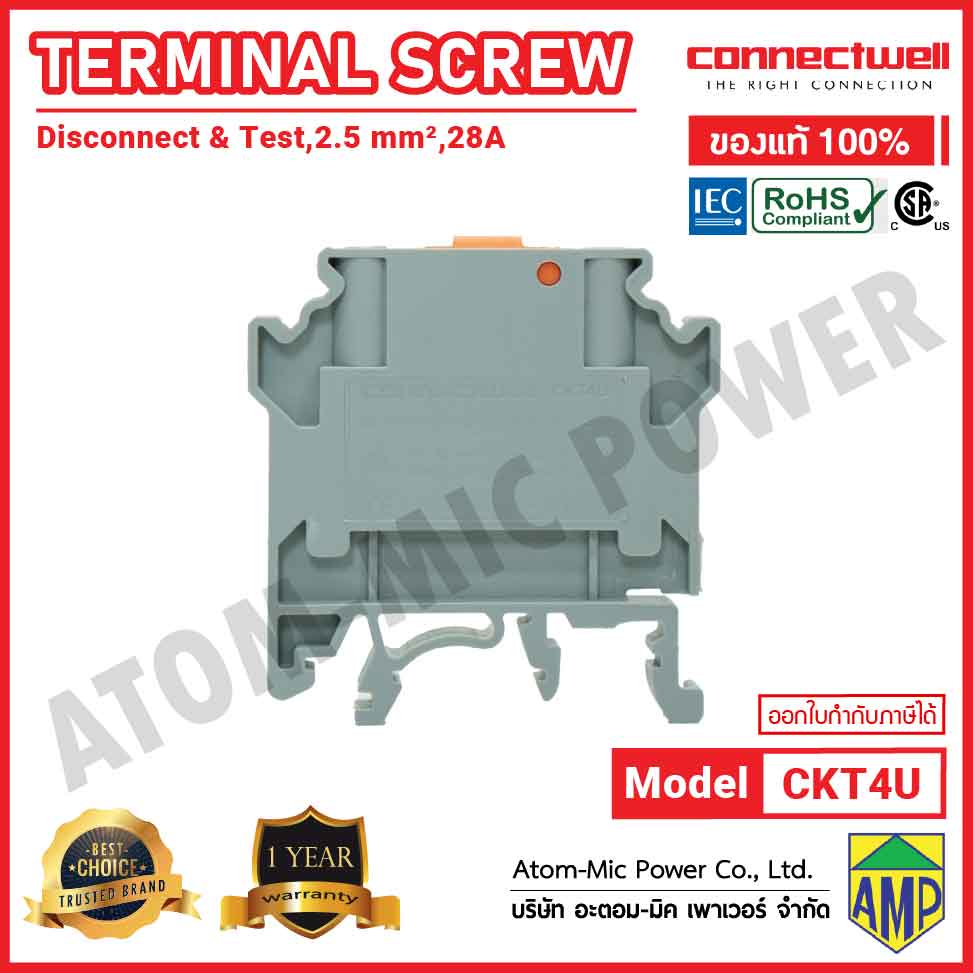

CONNECTWELL – Screw Clamp Knife Type Disconnect and Test Terminal Block – CKT4U

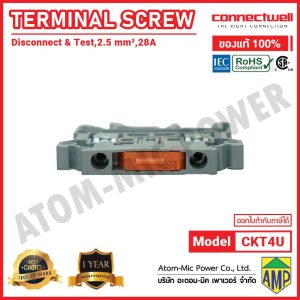

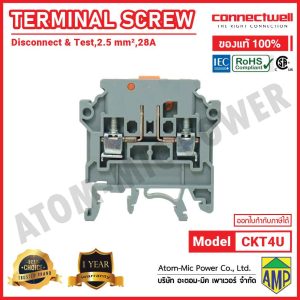

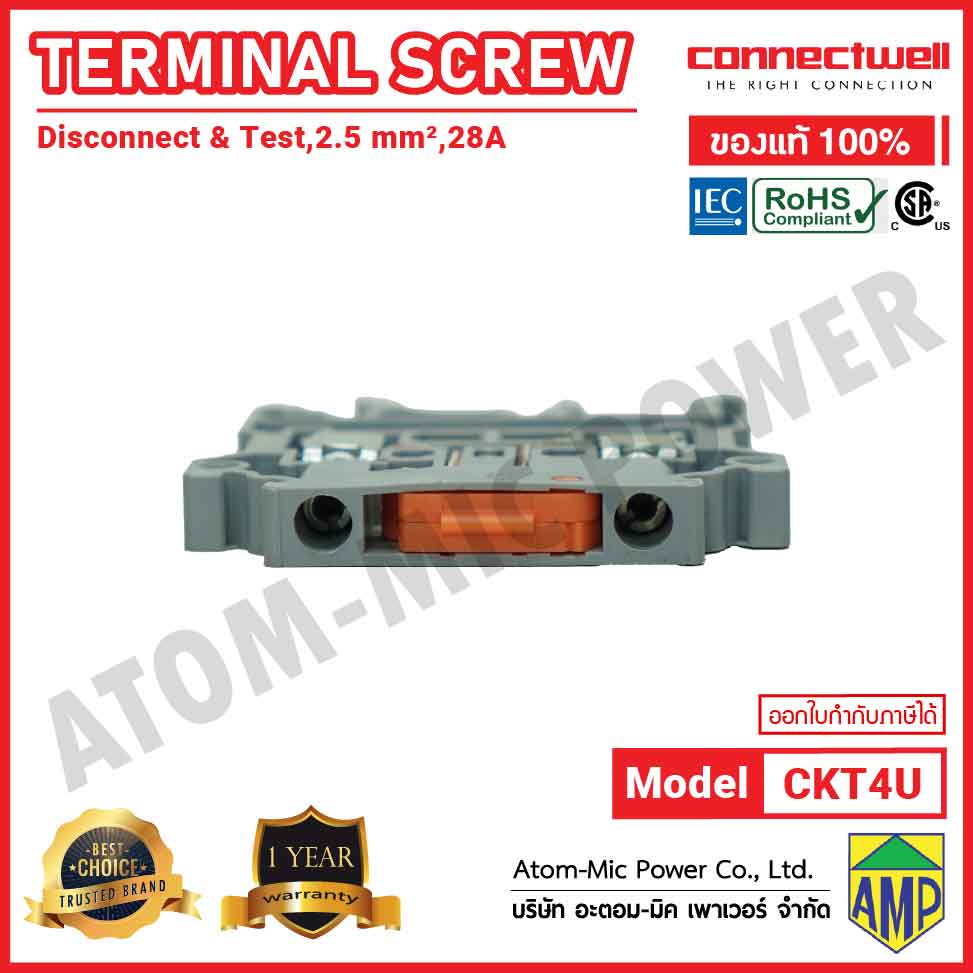

CKT4U is a knife type disconnect terminal block. Disconnection is achieved by opening the orange knife edge with the help of screwdriver. This terminal blocks has socket headed screws which acts as receptacles for test probes an gives added advantage during testing. Jumpering can be done using external comb type shorting link.

Short-Time Withstand Current
0.48 kA
Type of Connection
Screw Clamp
Wire Entry Orientation
Side
Operating Temperature Range
-40 to +105
Number of Levels
1
Number of Connections
2
Rated Voltage (IEC)
800 V
Rated Current (IEC)
28 A
Tightening Torque (IEC)
0.5 Nm
Rated Voltage (UL/CSA)
600 V
Rated Current (UL/CSA)
35 A
Tightening Torque (UL/CSA)
7 lb-in
Mounting Possibility
DIN 32/DIN 35/DIN 35-15 Rail
Internally Shorted
No
Screw Size
M3
Disconnection method
Knife Disconnect
Operated by
Screwdriver
Rated Surge Voltage
8 kV
Overvoltage Category
III
Pollution Degree
3
