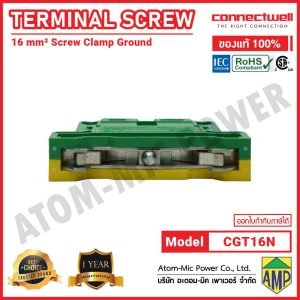

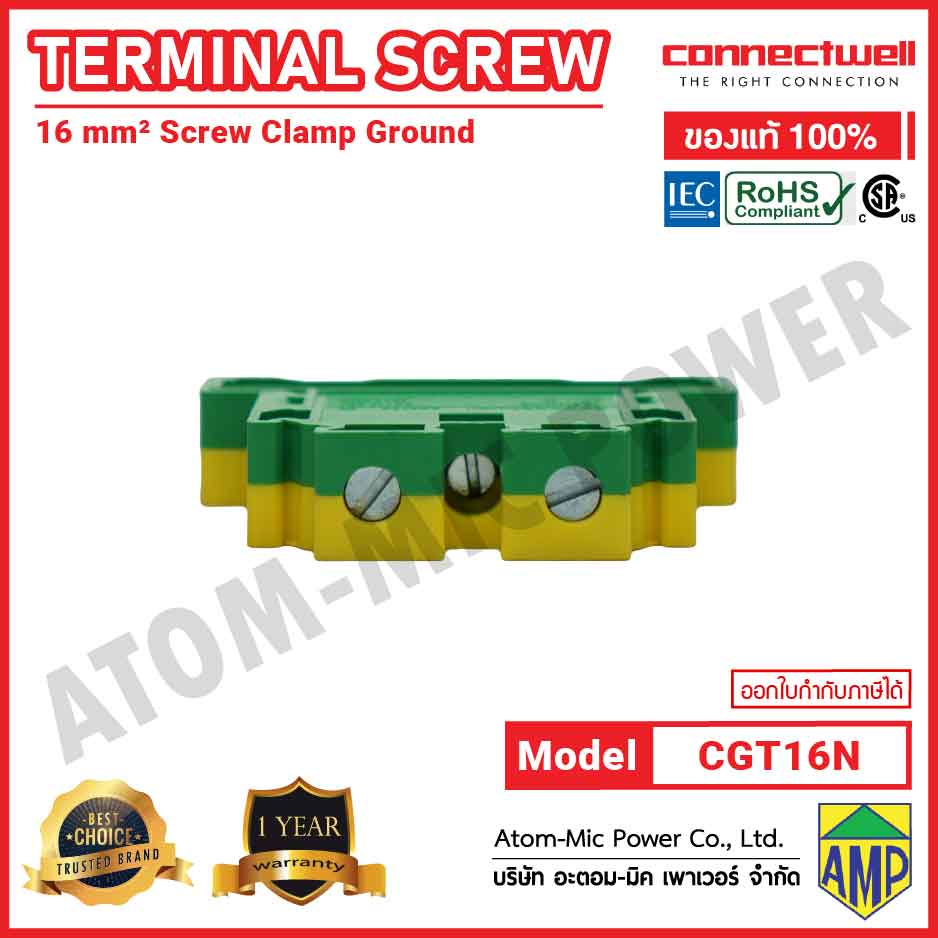

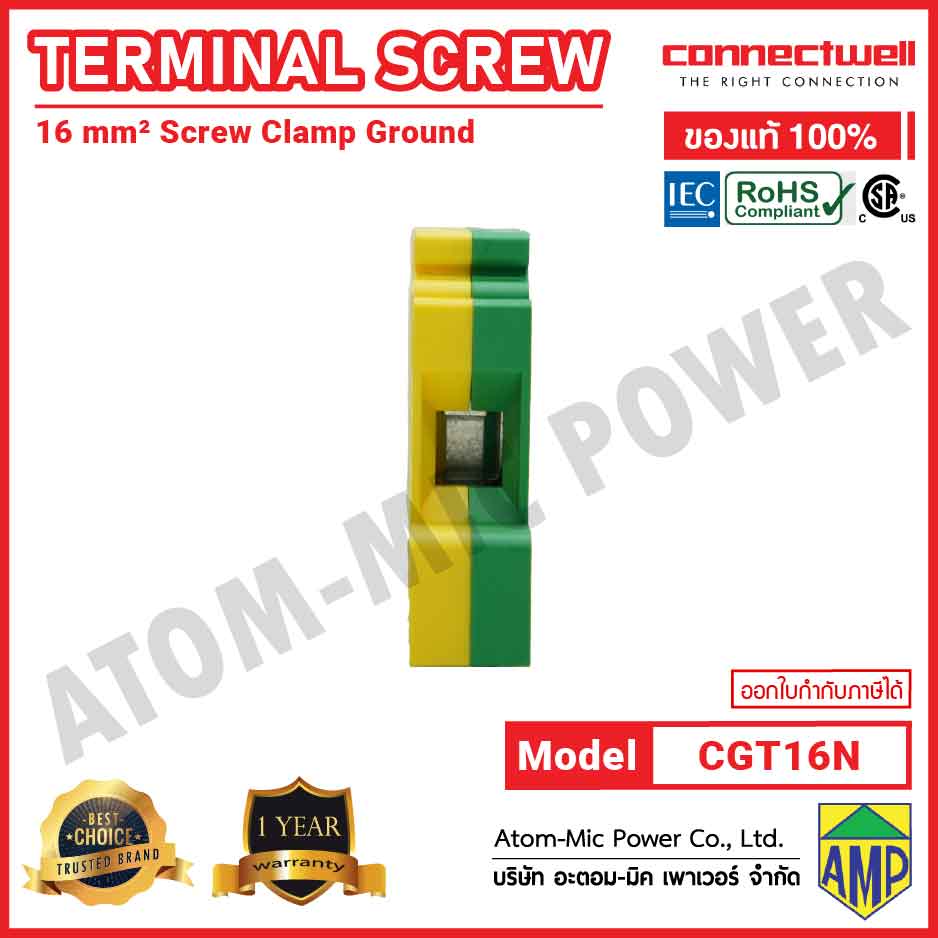

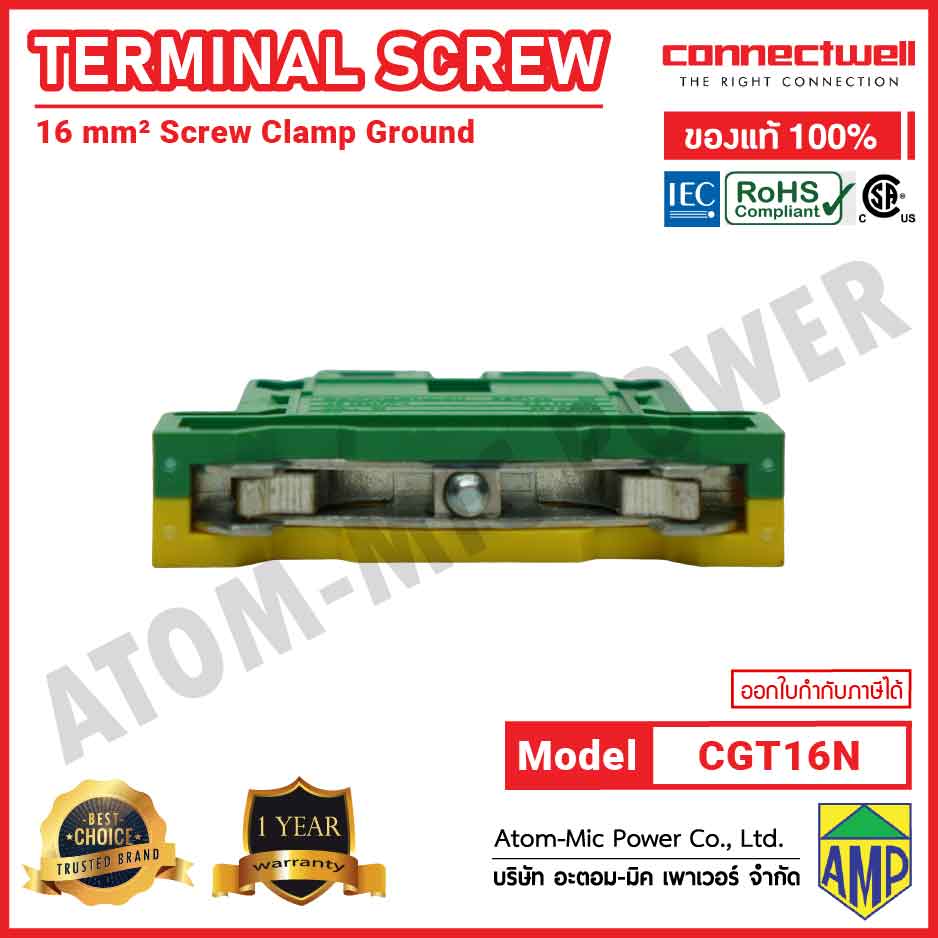

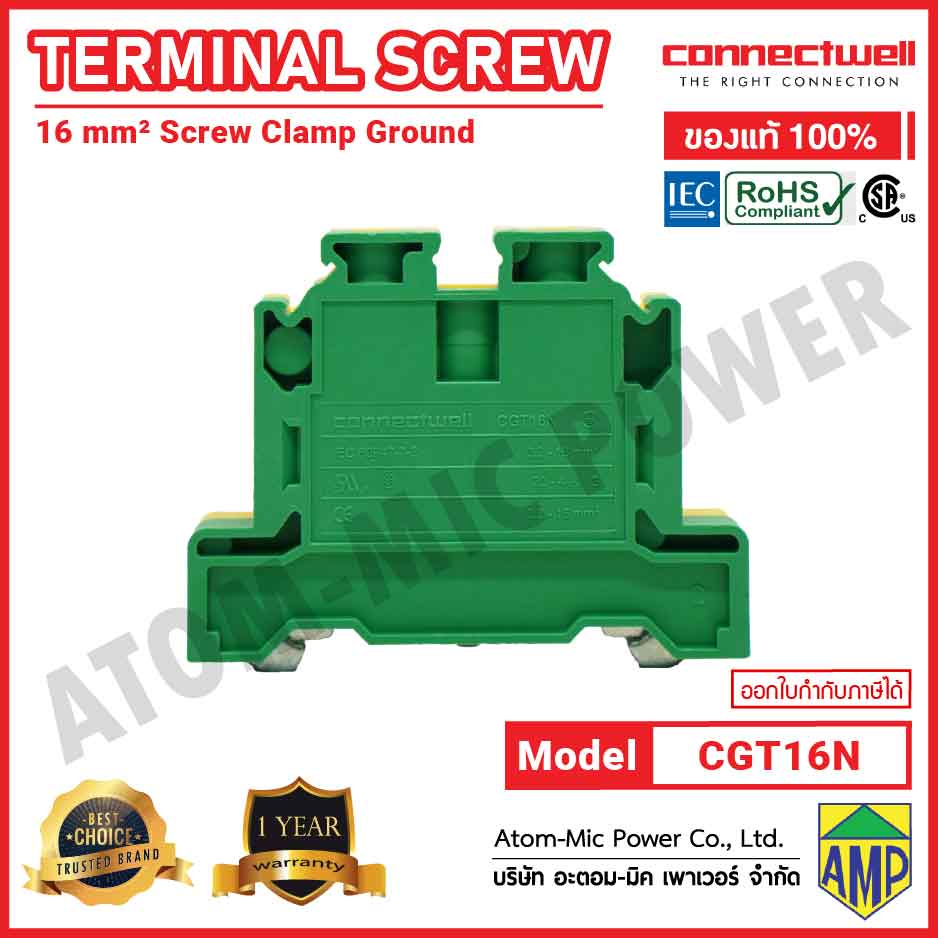

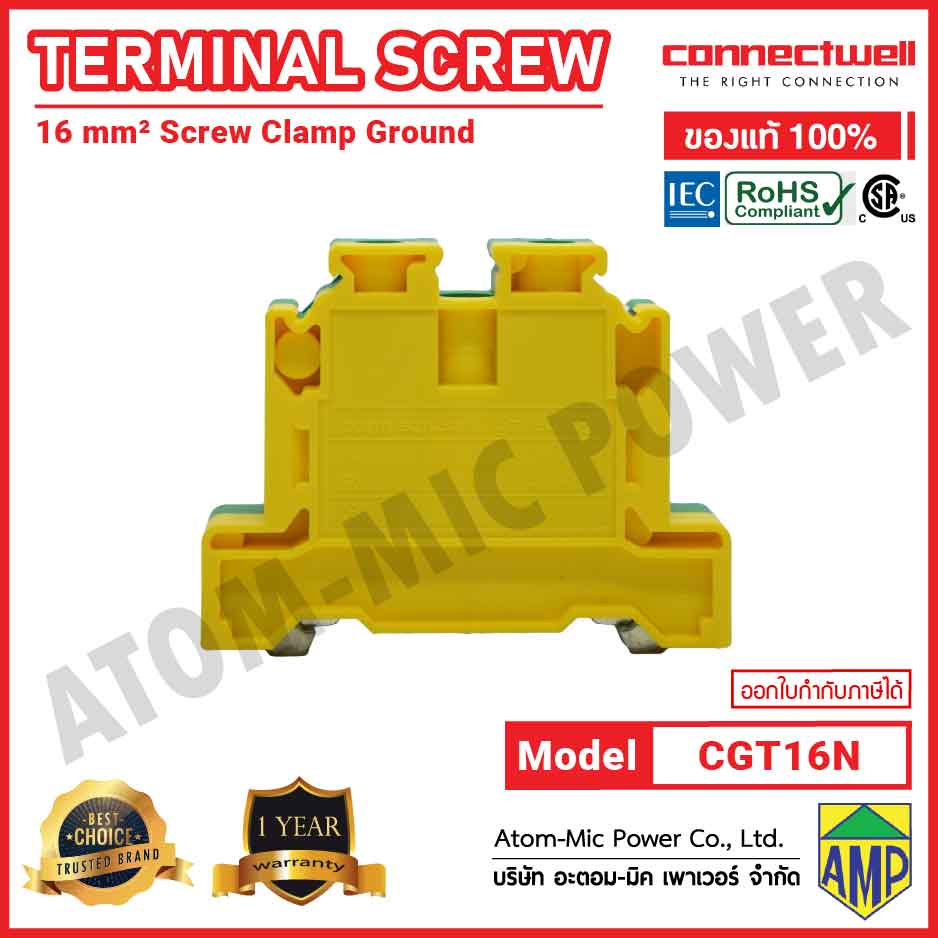

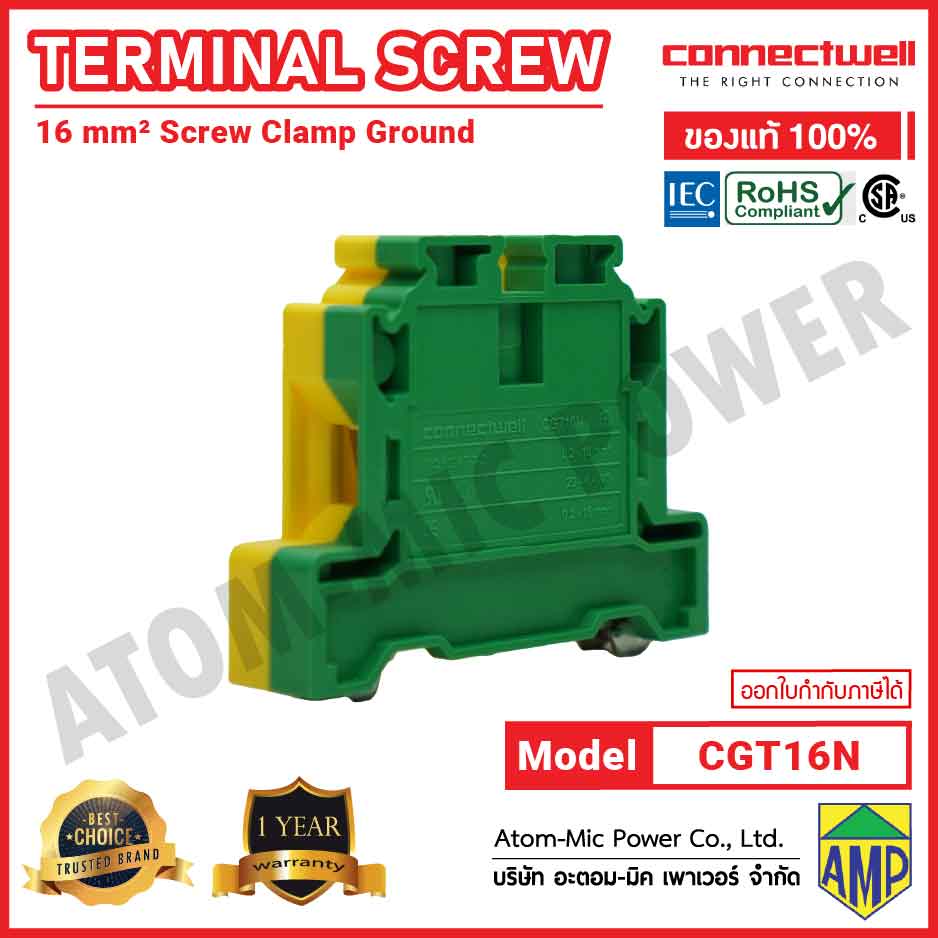

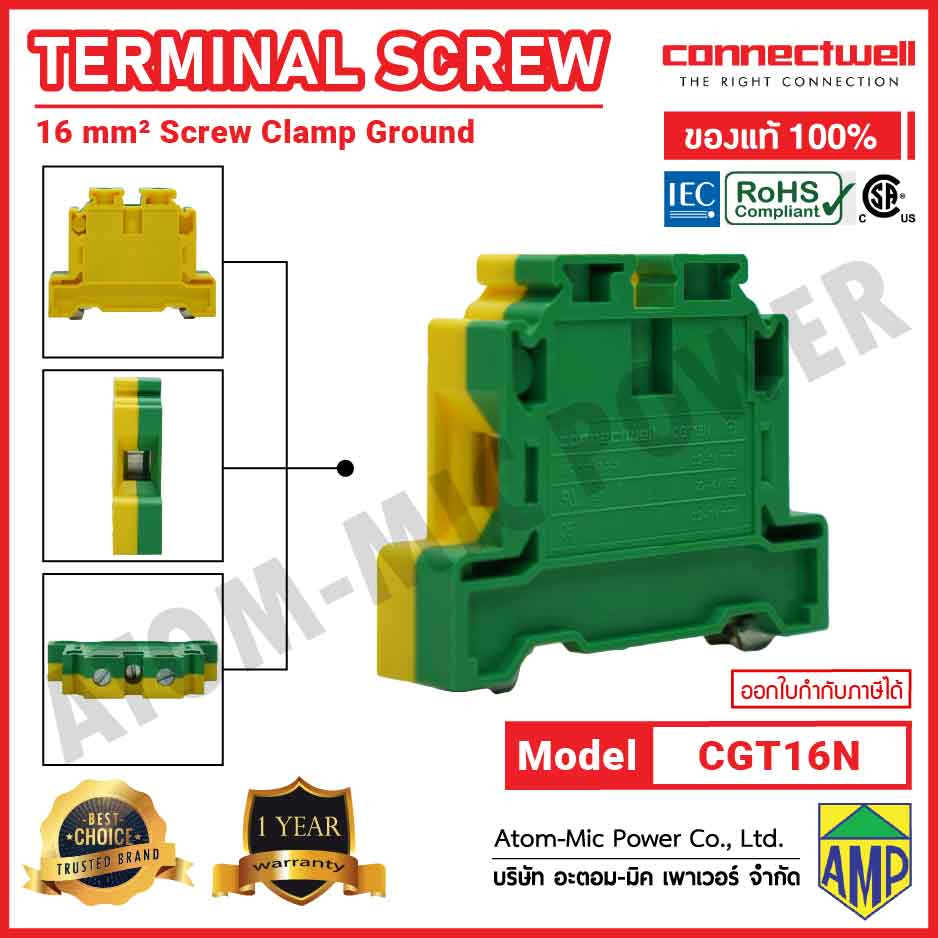

CONNECTWELL – Screw Clamp Ground Terminal Block – CGT16N

Name: CONNECTWELL - Screw Clamp Ground Terminal Block - CGT16N
SKU: CGT16N
Availability: InStock

Original price was: ฿220.00.Current price is: ฿112.00.

16 sq.mm Ground / Earth Terminal Blocks
These Terminal Blocks are used for Grounding / Earthing Wires. They are Green-Yellow colour coded as per industries standard. They have the same top profile as their respective feed through Terminal Blocks.

SKU: CGT16N Categories: TERMINAL BLOCK & ACCESSORIES, CONNECTWELL SCREW, SPRING, PUSH-IN, CERAMIC

Description
Additional information

Tightening Torque 1.2 Nm
Housing Material Polyamide
Comparative Tracking Index 1
Standard Colour Yellow – Green
Type of Connection Screw Clamp
Product Function Earthing/Grounding
Wire Entry Orientation Side Entry
Mounting Possibility DIN 35/DIN 35-15 Rail
Screw Size M4
Operated by Screwdriver
Rated Surge Voltage 8 KV
Pollution Degree 3
